EMT TSD Novel Phono Cartridge

EMT TSD Novel Phono Cartridge

Regular price $6,495.00 USD
Regular price Sale price $6,495.00 USD
Sold out

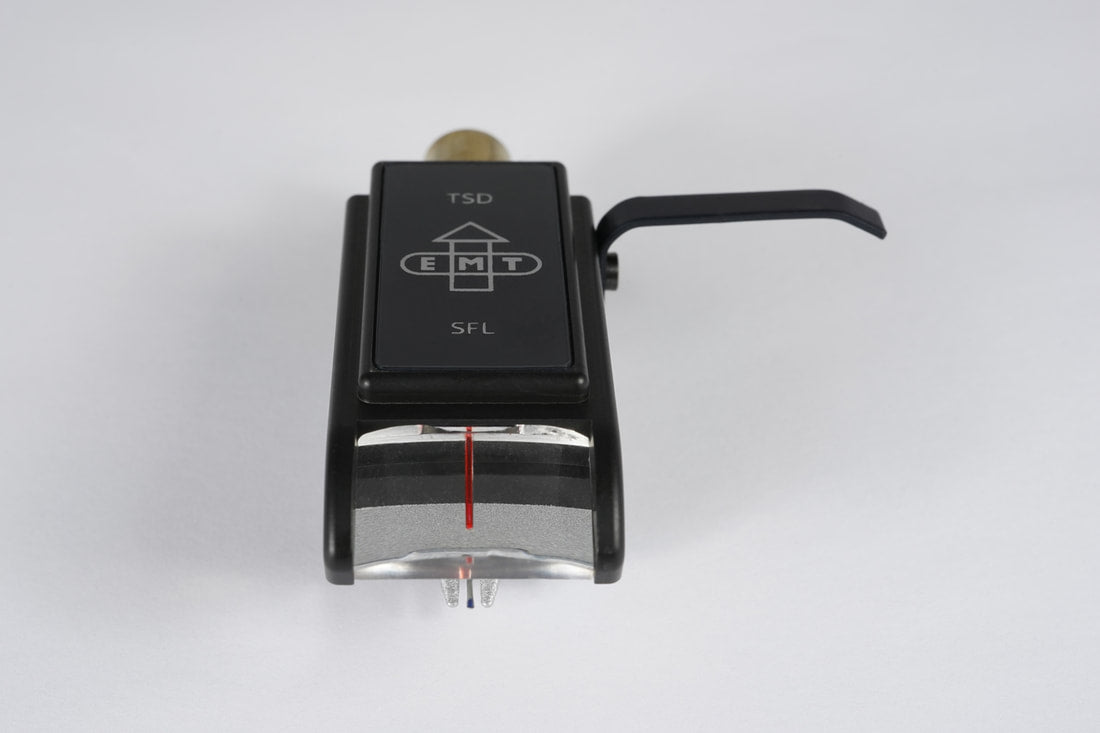

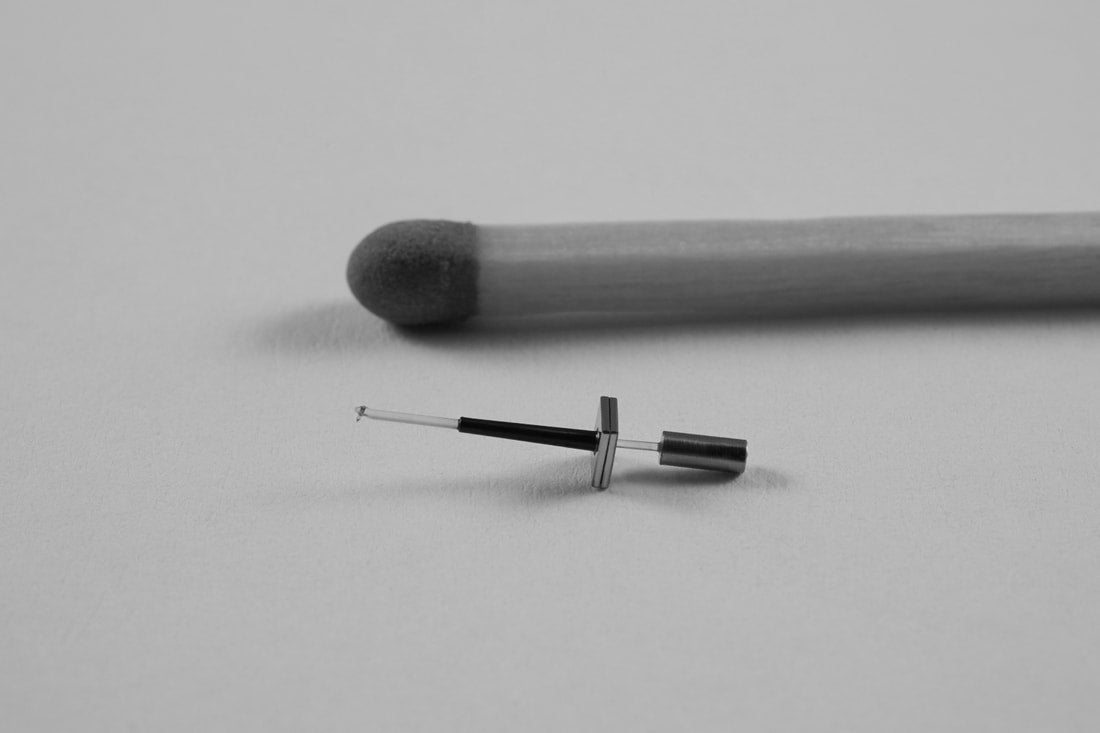

The TSD Novel is the flagship of the Tondose line — the legendary EMT generator format, introduced as the TSD 15 in 1965 and used by the tens of thousands in broadcast studios, now milled from a solid block of magnesium for maximum stiffness. It carries EMT's Novel multi-layer core transducer with a multi-radius diamond on a sapphire and titanium cantilever. Mount is specified at order — X (SME style), EMT, or INT (Ortofon A). The TSD SFL is pictured; all Tondose models share the same housing.

Specifications

Format Tondose — integrated-headshell cartridge, magnesium monobloc
Diamond MR HP
Cantilever Titanium and sapphire
Transducer EMT multi-layer core, stereo
Mount X (SME style), EMT, or INT (Ortofon A) — specified at order
Tracking force 2.5 g
Output voltage 1.00 mV @ 5 cm/s
Compliance 12 µm/mN
Impedance 24 Ω standard; 12 Ω and 6 Ω coils to order
Recommended load 200–300 Ω
Coil Copper standard; silver or gold coil to order

Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.

In Store Only — Contact Us Plan a showroom visit

Or call (512) 883-0844

Pricing on request. Call or visit the showroom about availability.
