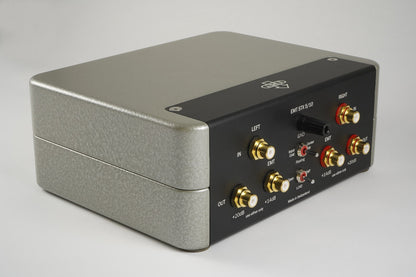

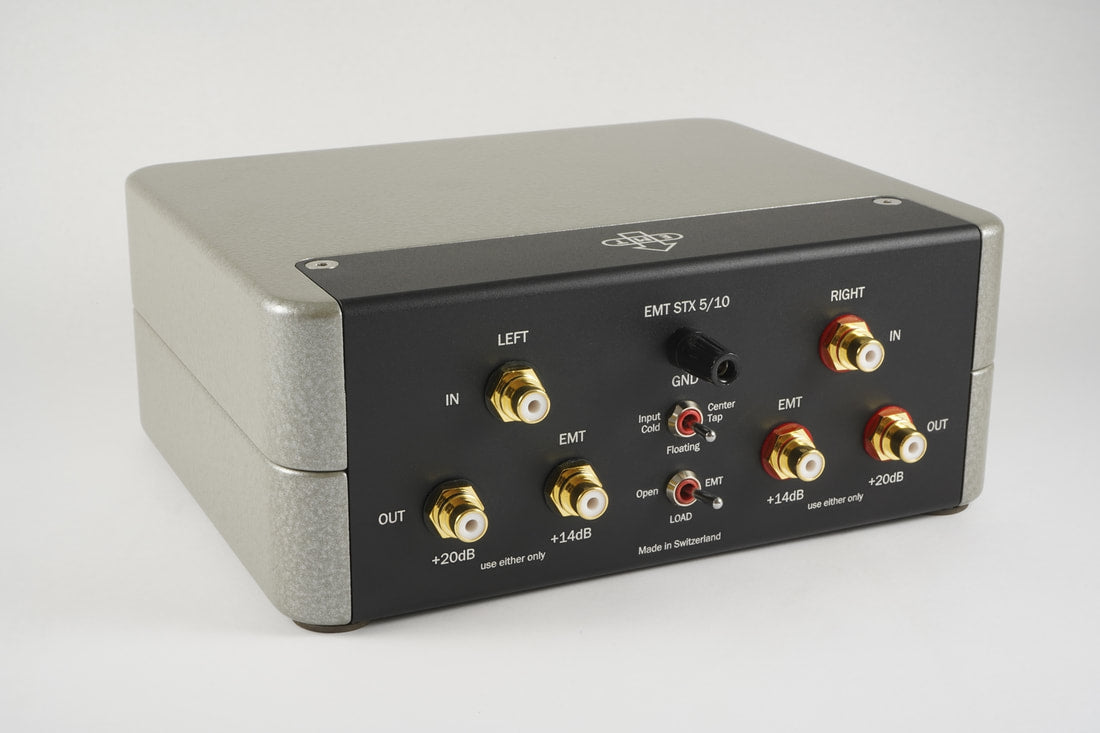

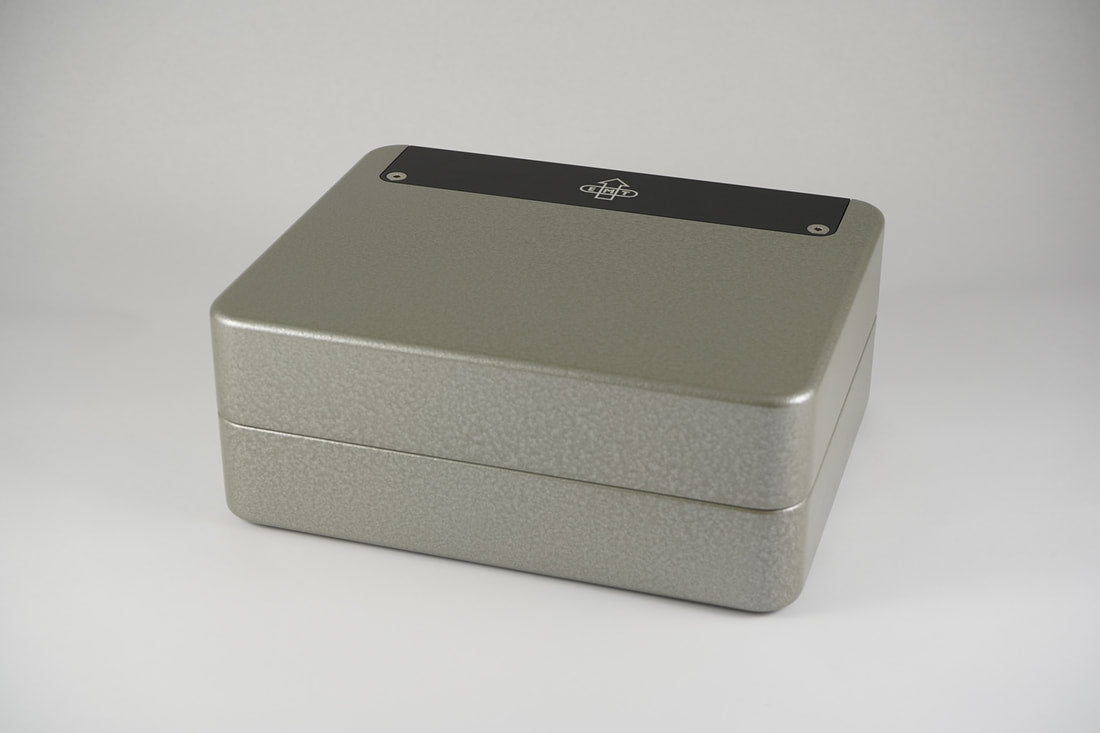

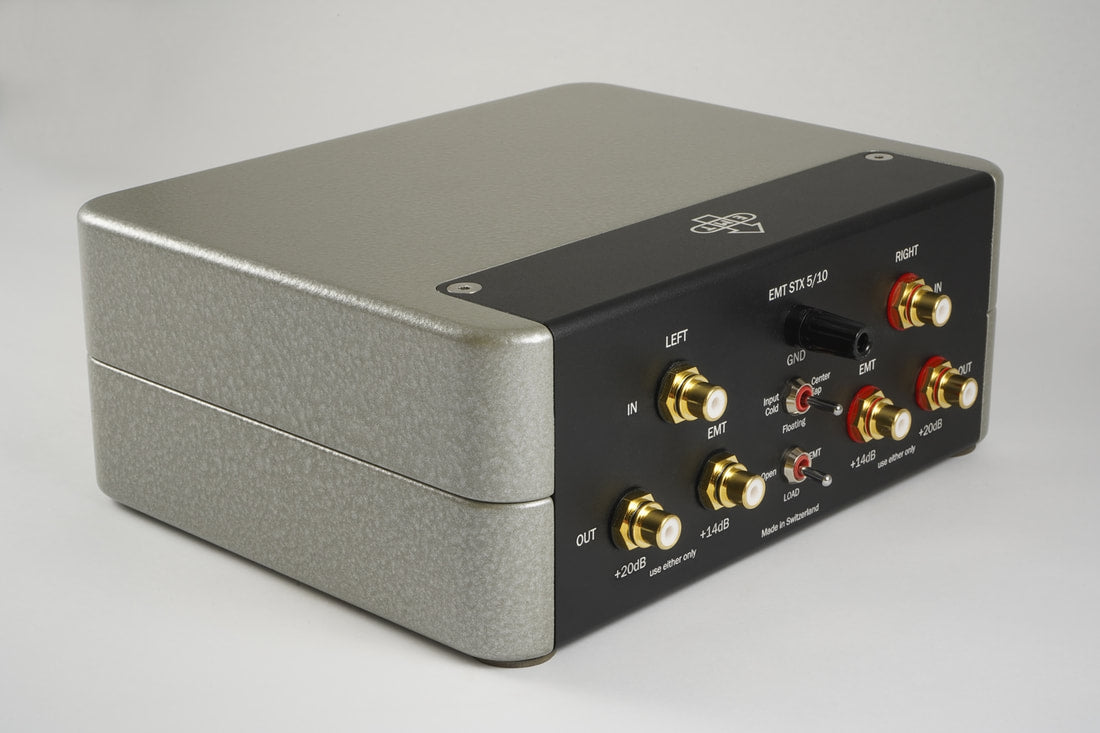

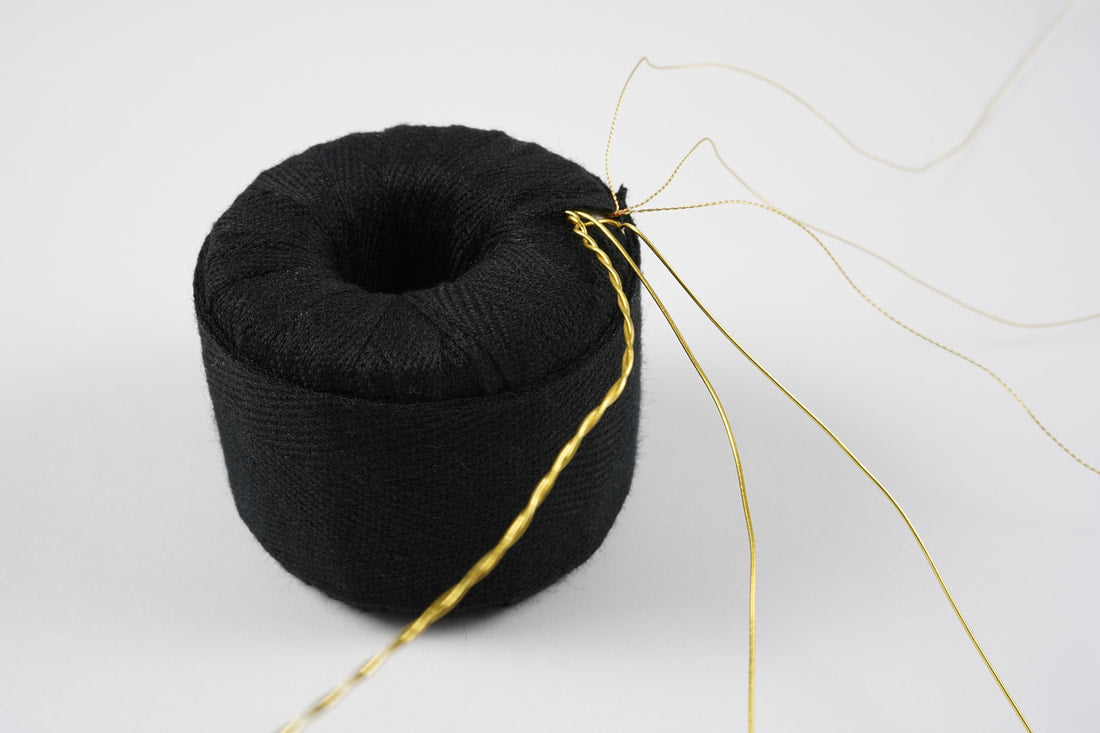

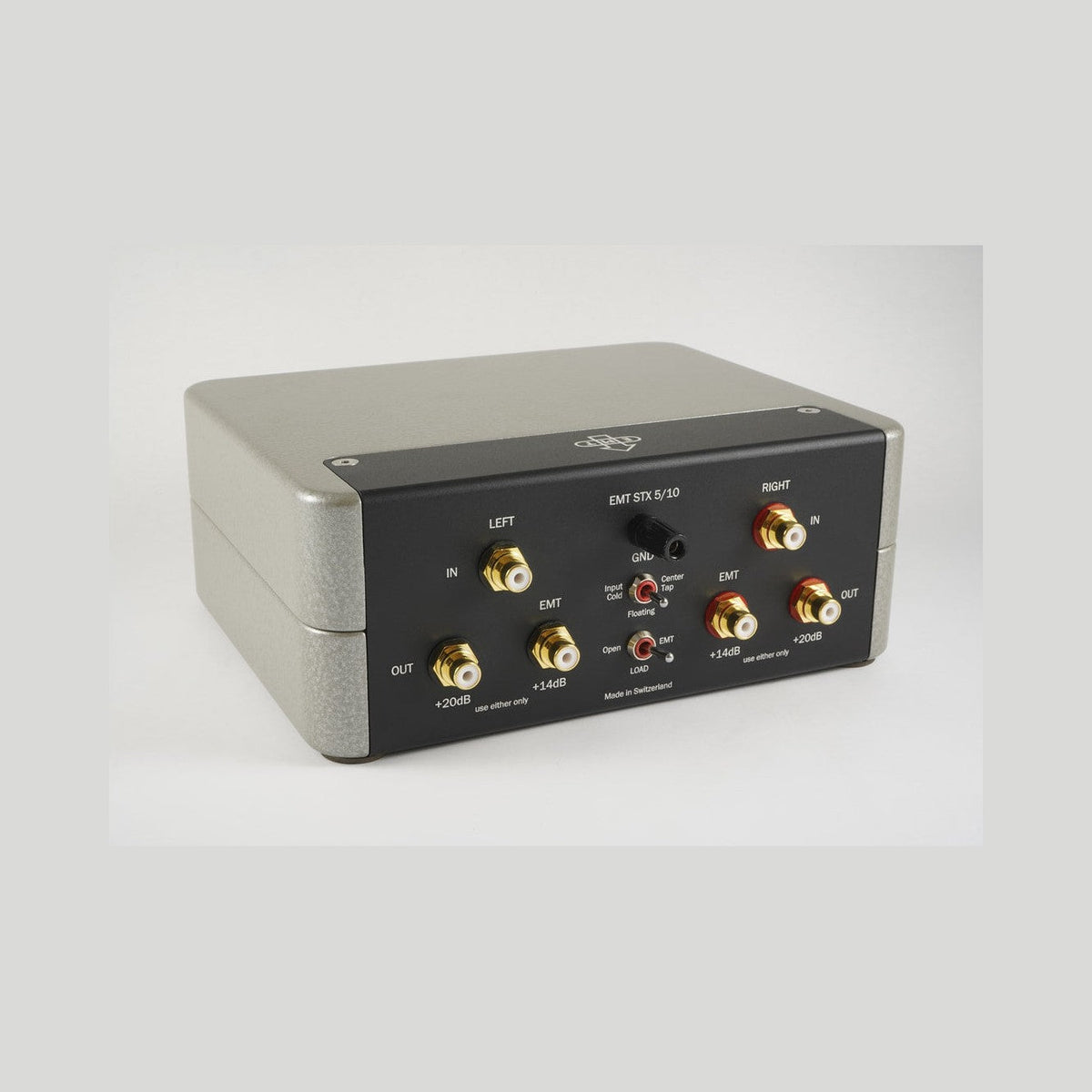

The STX 5/10 is EMT's MC step-up transformer, designed and manufactured in Switzerland and matched to EMT cartridges as the reference. Toroidal winding with purest silver wire and advanced low-loss magnetic materials bring this very traditional technology to a new level of low noise and high resolution. Two gain settings serve standard and low-output cartridges, and ground and load options let it be configured precisely to the system around it.
Specifications
Gain
+14 dB (1:5) | +20 dB (1:10)
Wire
Silver 4N
Core
Very low-loss alloy
Ground options
Input Cold | Floating | Center tap
Load options
EMT | Open
Dimensions
200 x 160 x 80 mm
