EMT TMD 025 Mono Phono Cartridge
EMT TMD 025 Mono Phono Cartridge

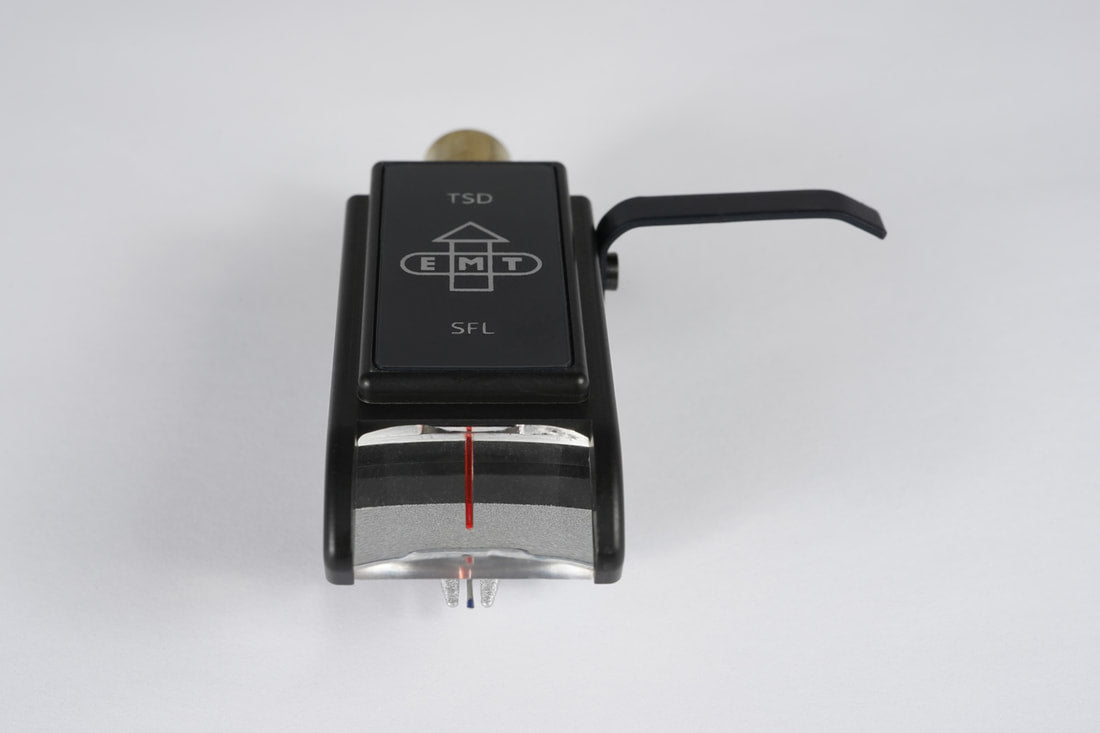

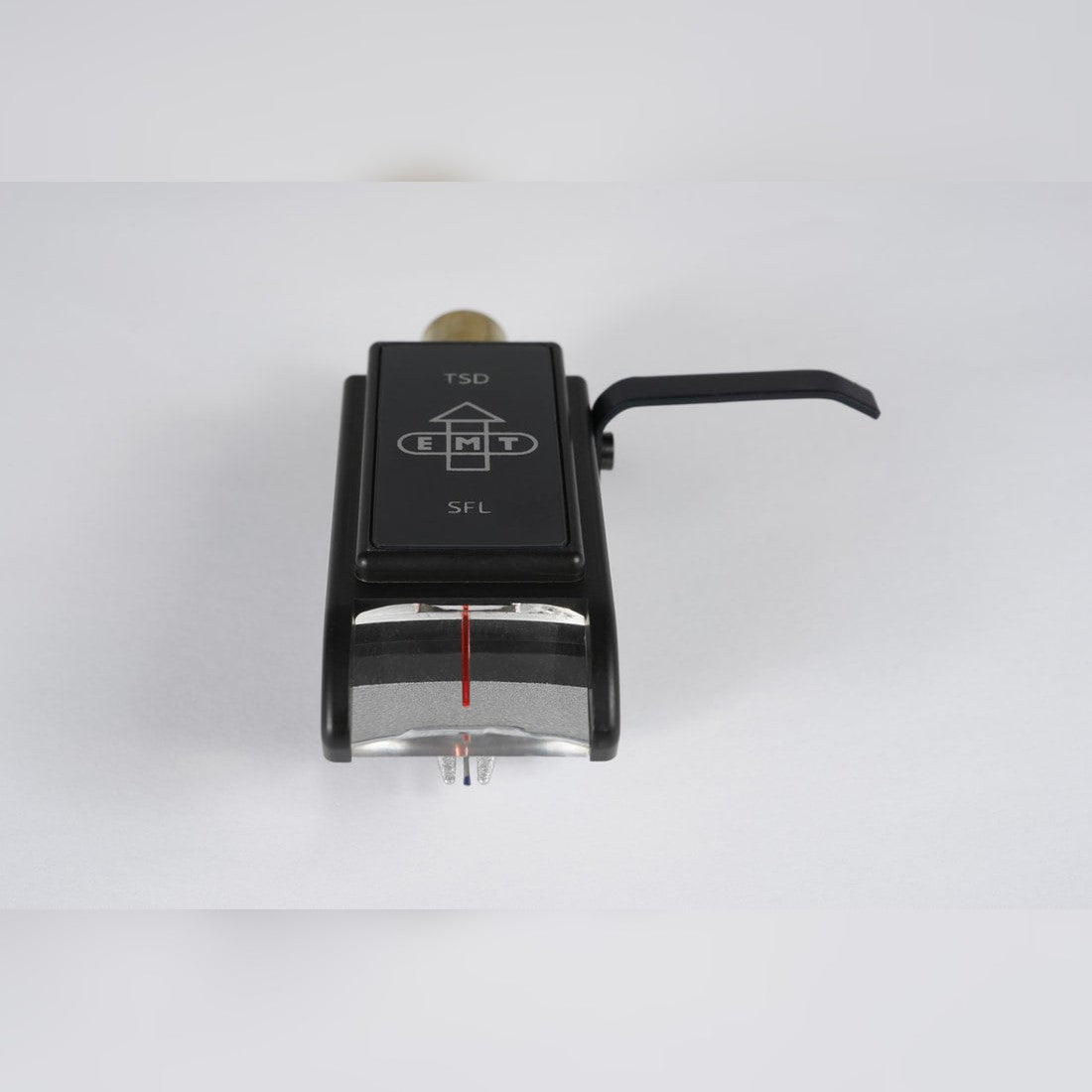

The TMD 025 is a true-mono Tondose — a single-winding transducer, not a bridged stereo generator — with a 25 µm spherical stylus sized for early mono LPs and their wider grooves. For original pressings from the first mono era, played on an EMT arm as they were in the studios. Mount is specified at order — X (SME style), EMT, or INT (Ortofon A). The TSD SFL is pictured; all Tondose models share the same housing.
Specifications
| Format | Tondose — integrated-headshell cartridge, magnesium monobloc |
|---|---|
| Diamond | SPH 25 µm spherical |
| Cantilever | Aluminium |
| Transducer | MC true mono, single winding |
| Used for | Early mono LPs |
| Mount | X (SME style), EMT, or INT (Ortofon A) — specified at order |
| Tracking force | 2.5 g |
| Output voltage | 1.00 mV @ 5 cm/s |
| Compliance | 12 µm/mN |
| Recommended load | 200–300 Ω |
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
Or call (512) 883-0844
Pricing on request. Call or visit the showroom about availability.
