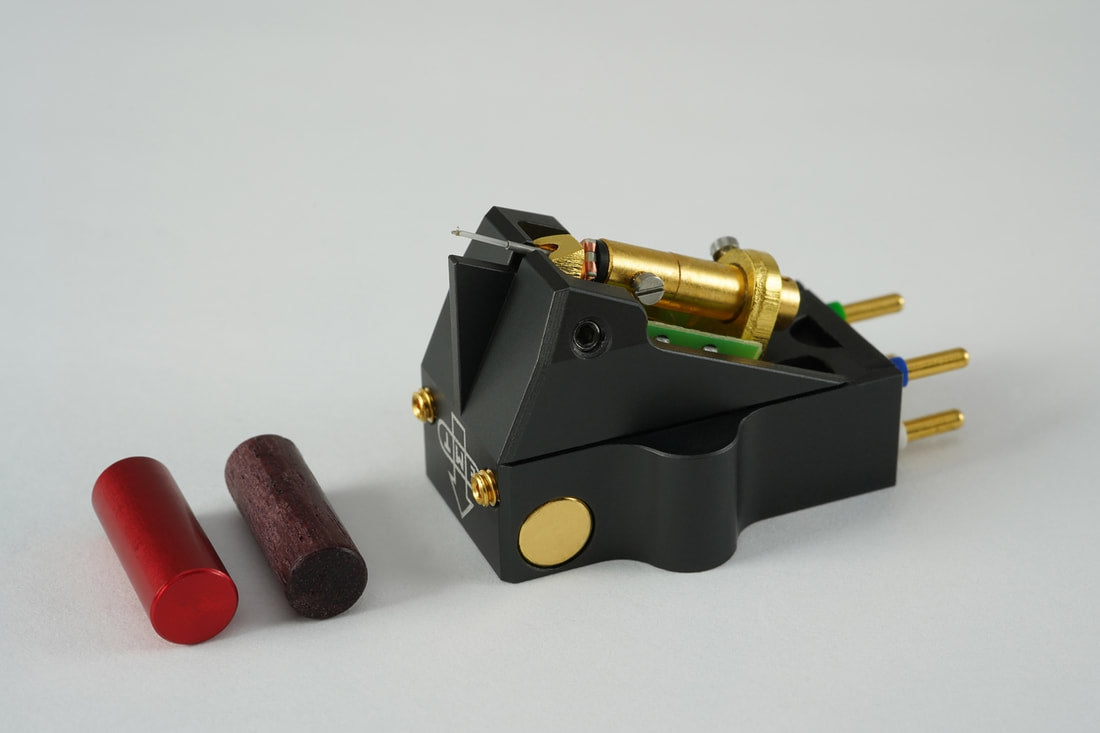

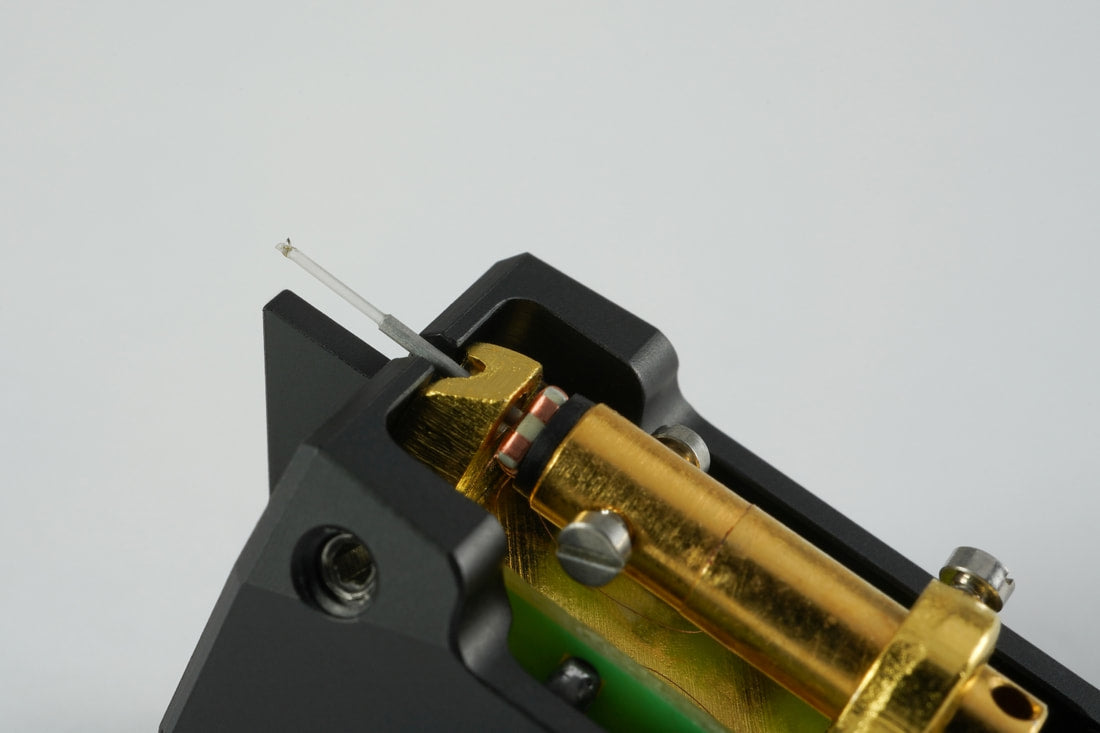

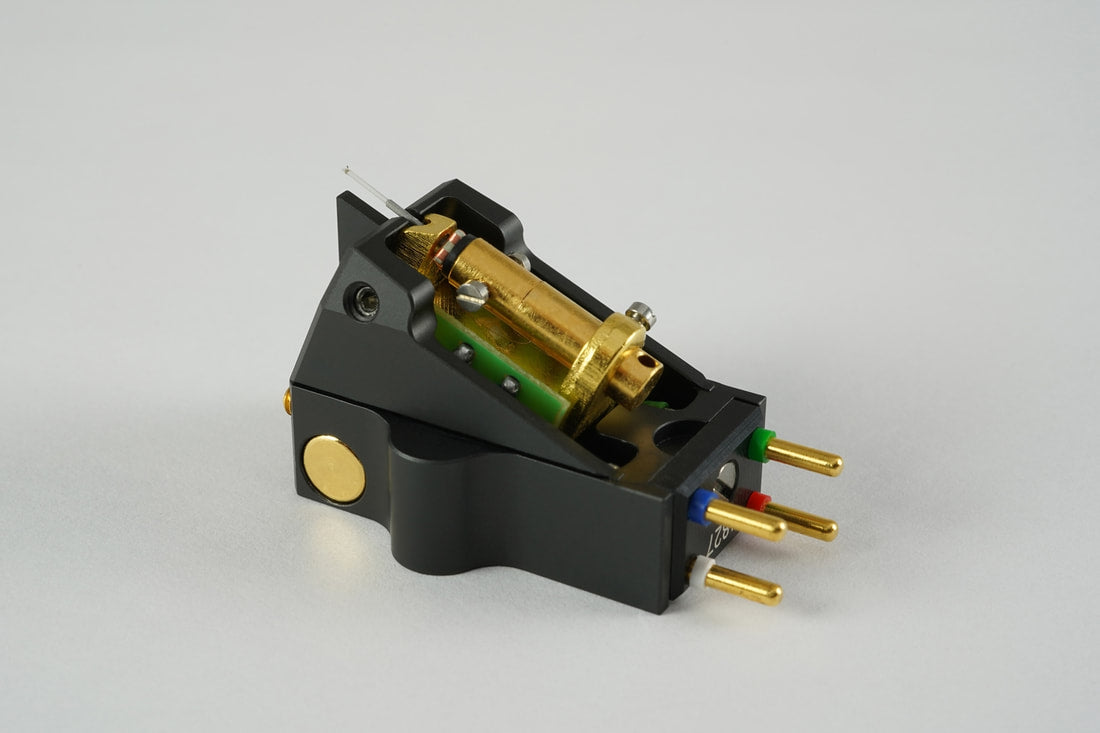

The JSD VM — variable mass — gives the listener a possibility unique in the world: tuning the cartridge's resonance behaviour to the tonearm and to personal preference. It ships with three interchangeable inlay bolts of different materials, shifting effective mass between 10 and 12 grams. The generator is EMT's modern reference design with a multi-radius diamond on a sapphire cantilever, assembled by hand in Switzerland.
Specifications
Diamond
MR HP
Cantilever
Sapphire
Transducer
MC Stereo
Coil
Copper 4N
Magnet
AlNiCo, gold-plated
Body
Aluminium, variable mass, graphite-anodised
Connection
1/2 inch, 4-pin
Vertical tracking angle
23°
Weight
10–12 g
Tracking force
2.4 g
Output voltage
1 mV @ 5 cm/s
Compliance
12 µm/mN
Frequency response
20 Hz – 30,000 Hz
Impedance
2x 24 Ω
Recommended load
200–300 Ω
