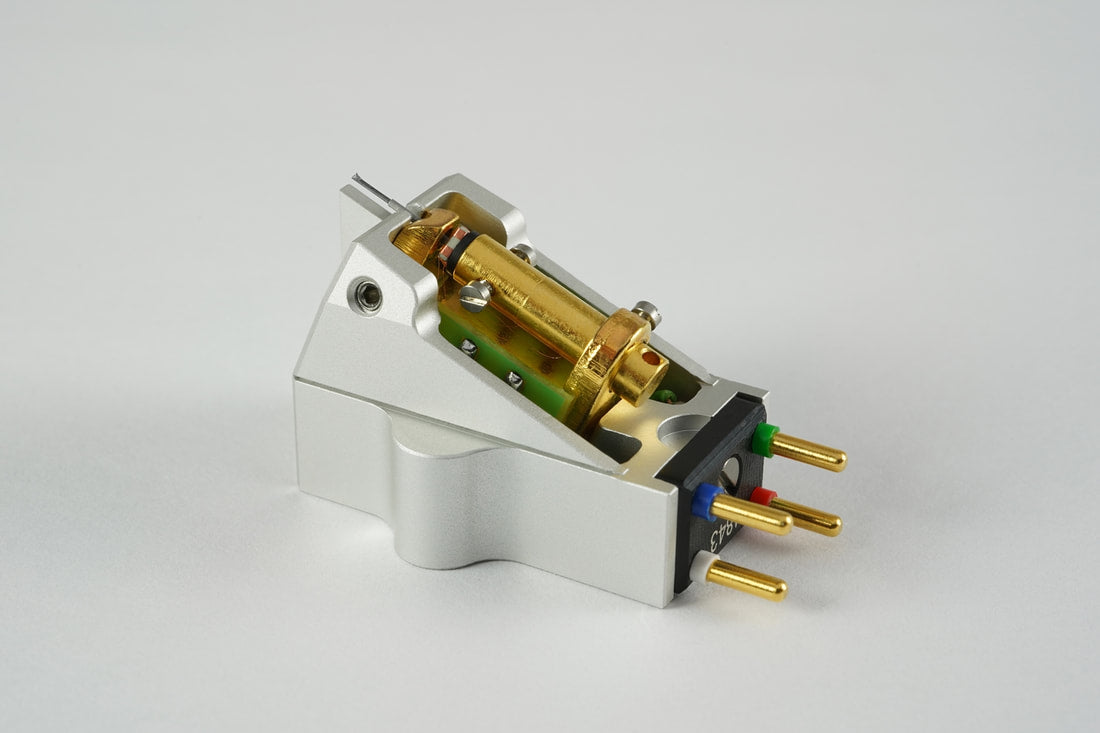

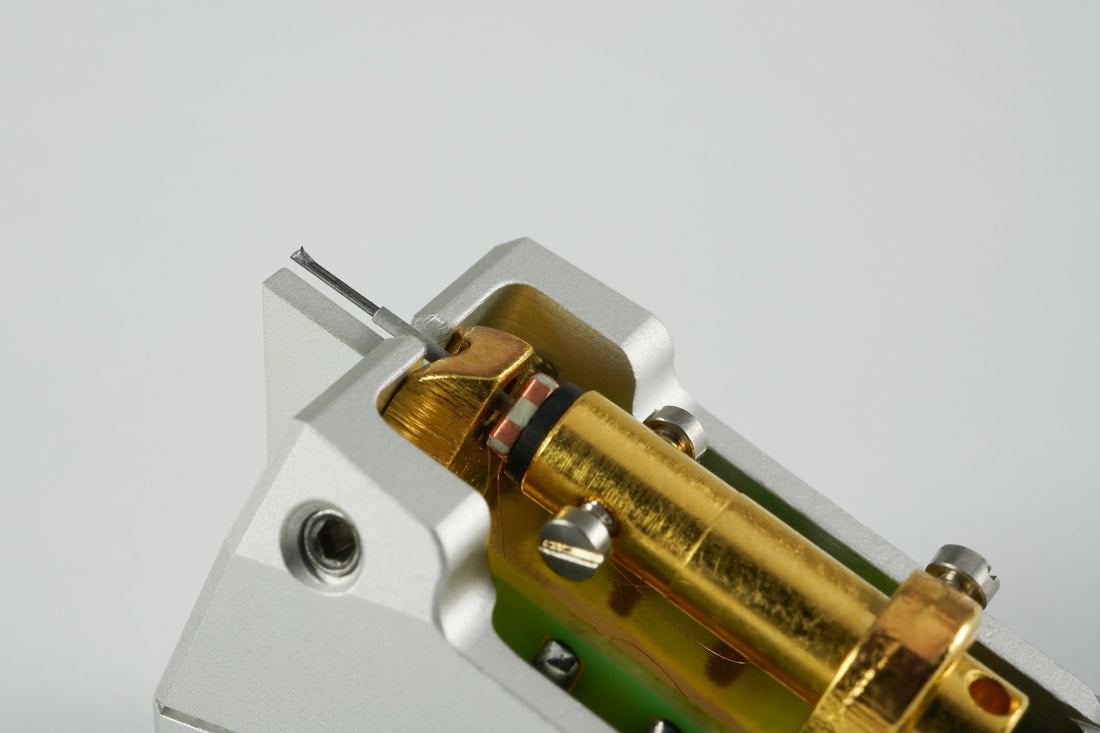

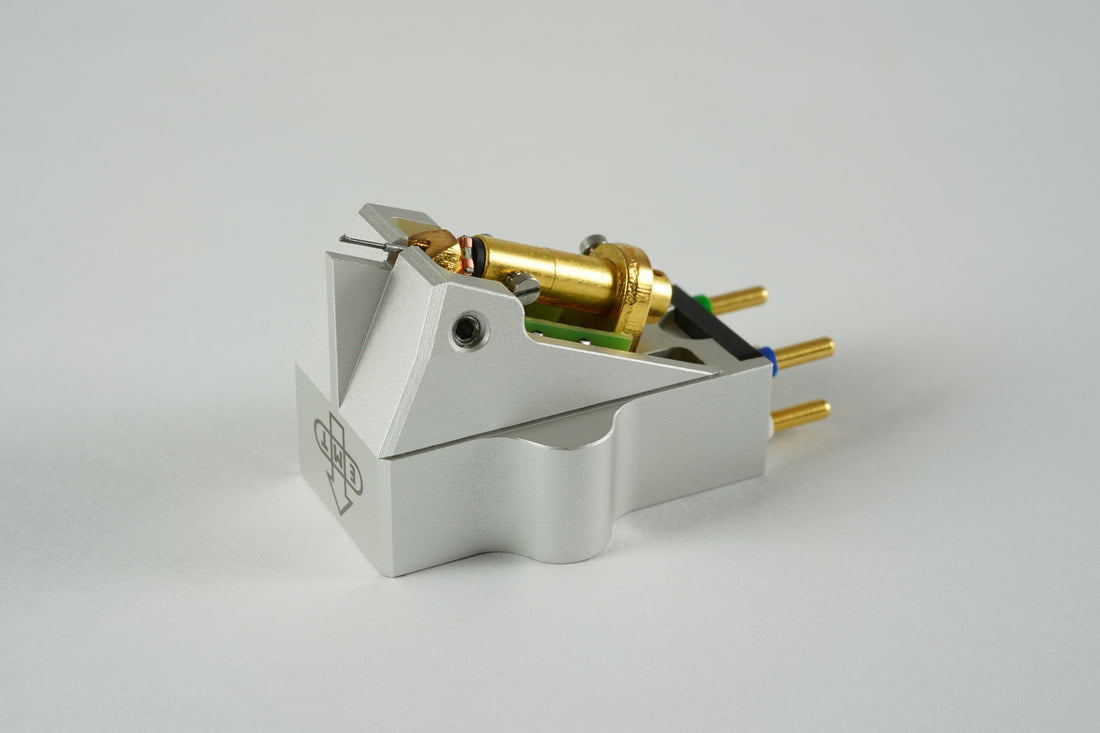

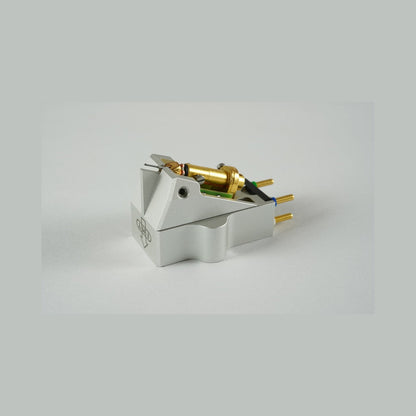

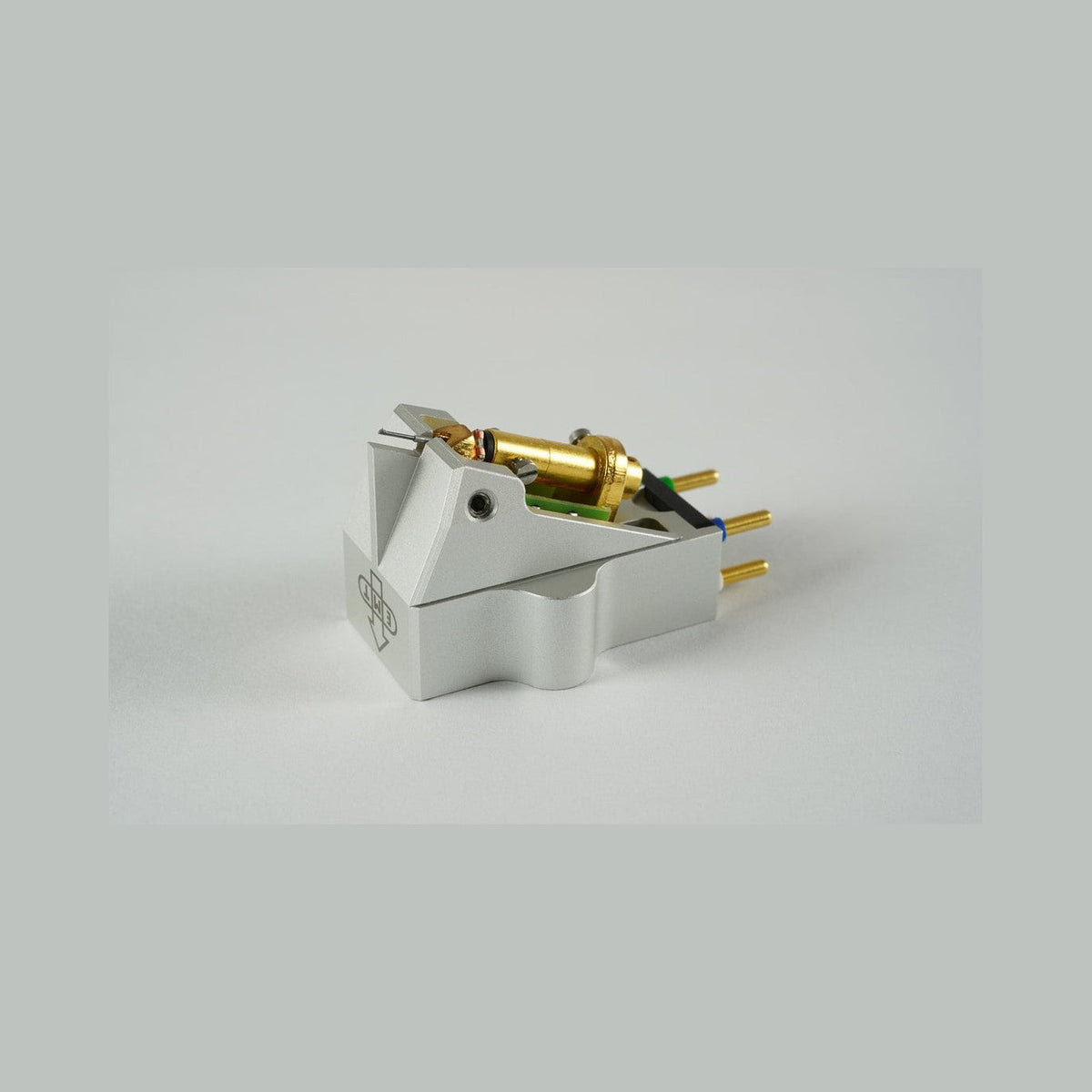

The JSD 5 opened EMT's high-end line in 2006 and remains a reference for resolution: a double-polished multi-radius diamond on a boron cantilever, drawing every small detail out of the groove in a modern audio system. The naturally anodised aluminium body carries the classic EMT moving-coil generator with gold-plated AlNiCo magnet parts.
Specifications
Diamond
MR HP
Cantilever
Boron
Transducer
MC Stereo
Coil
Copper 4N
Magnet
AlNiCo, gold-plated
Body
Aluminium, naturally anodised
Connection
1/2 inch, 4-pin
Vertical tracking angle
23°
Weight
10 g
Tracking force
2.4 g
Output voltage
1 mV @ 5 cm/s
Compliance
12 µm/mN
Frequency response
20 Hz – 30,000 Hz
Impedance
2x 24 Ω
Recommended load
200–300 Ω
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
