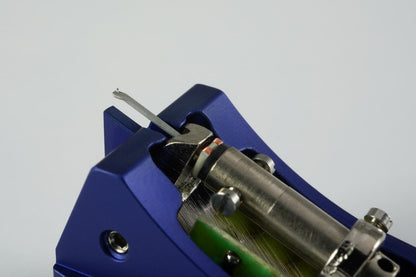

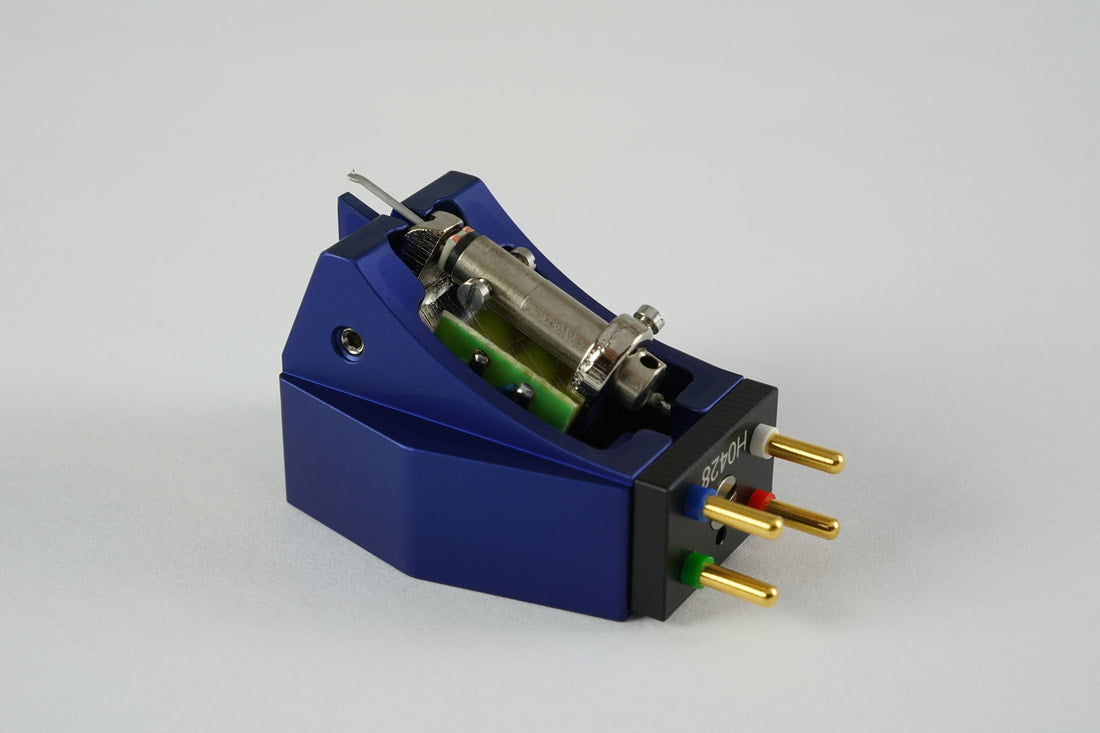

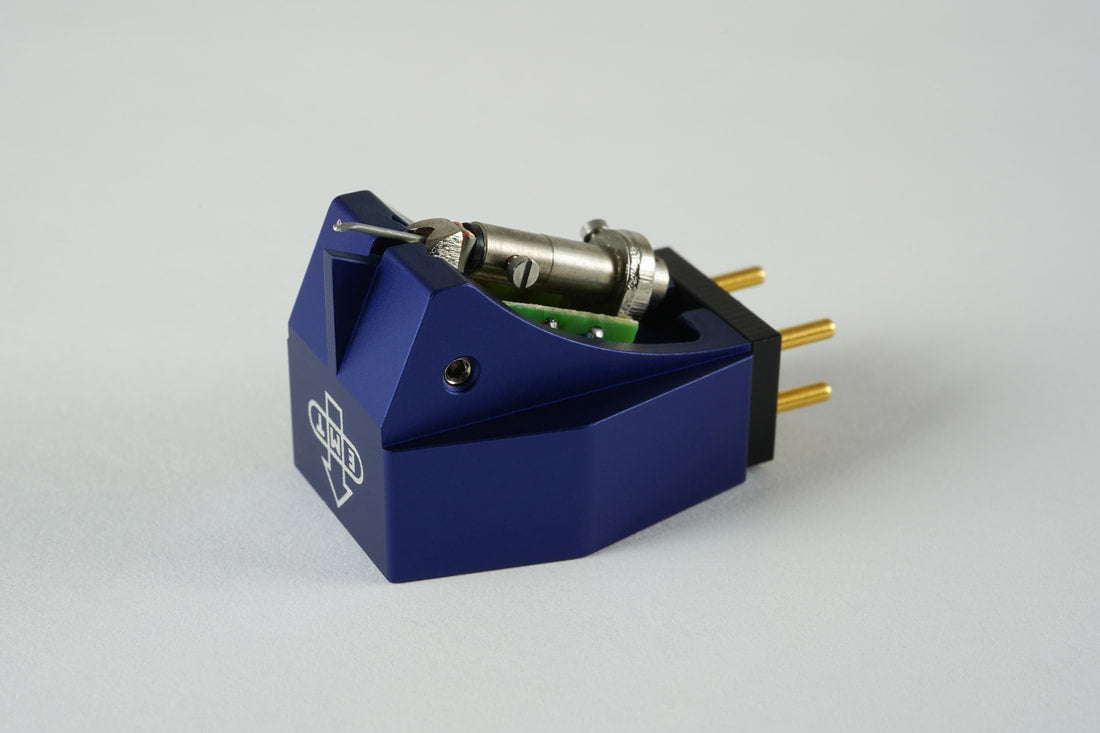

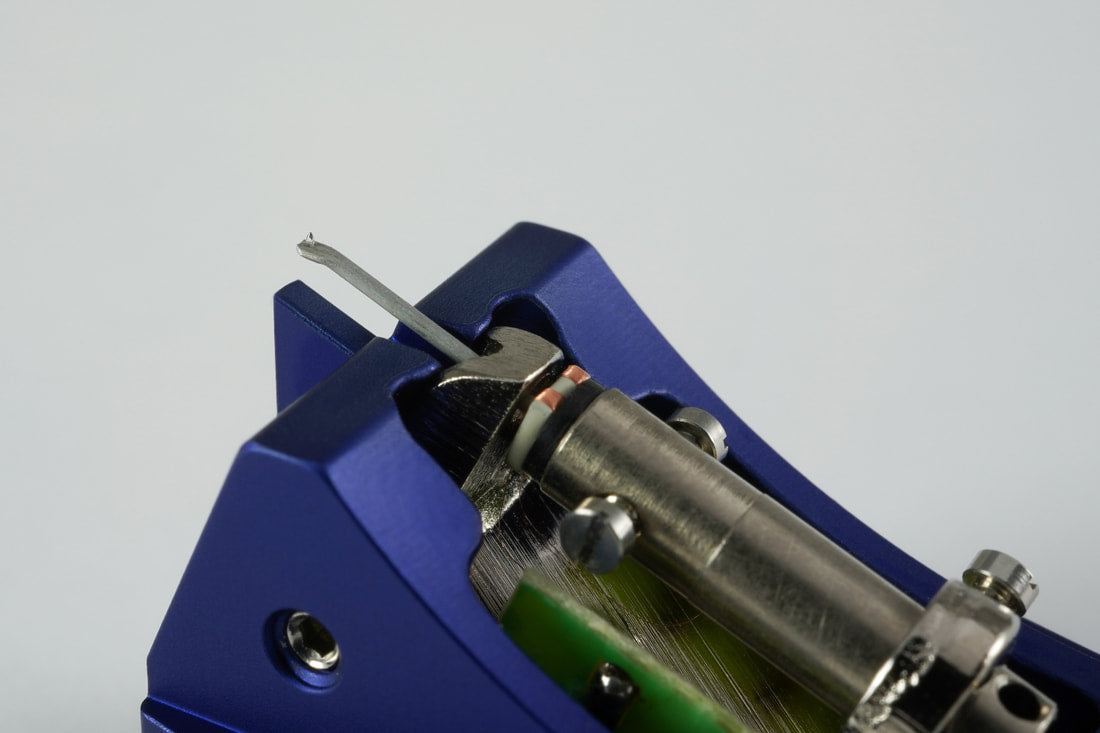

The HMD 025 carries EMT's traditional true-mono moving-coil generator, its musical quality confirmed over decades of worldwide broadcast use, in a blue anodised aluminium body for the home system. A true mono transducer — not a bridged stereo one — with a 25 µm spherical stylus suited to mono LPs.
Specifications
Diamond
SPH 25
Cantilever
Aluminium
Transducer
MC true mono
Coil
Copper 4N
Magnet
AlNiCo, nickel-plated
Body
Aluminium, blue anodised
Connection
1/2 inch, 4-pin
Vertical tracking angle
23°
Weight
12 g
Tracking force
2.4 g
Output voltage
1 mV @ 5 cm/s
Compliance
12 µm/mN
Frequency response
20 Hz – 20,000 Hz
Impedance
24 Ω
Recommended load
200–300 Ω
