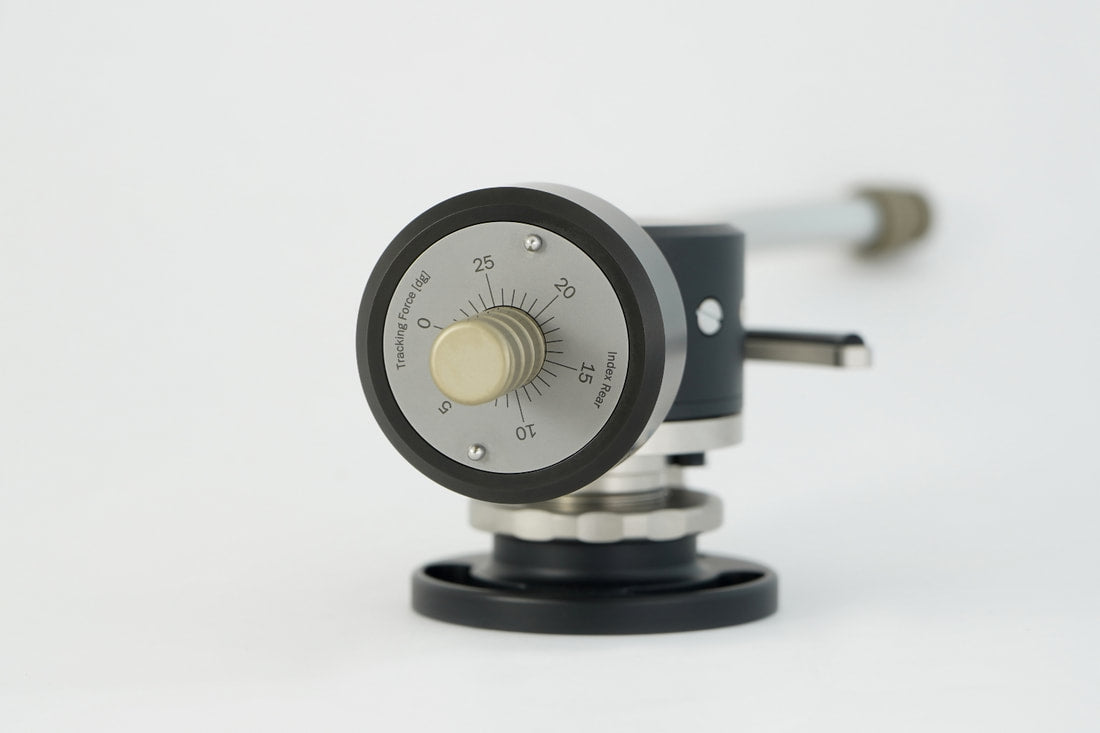

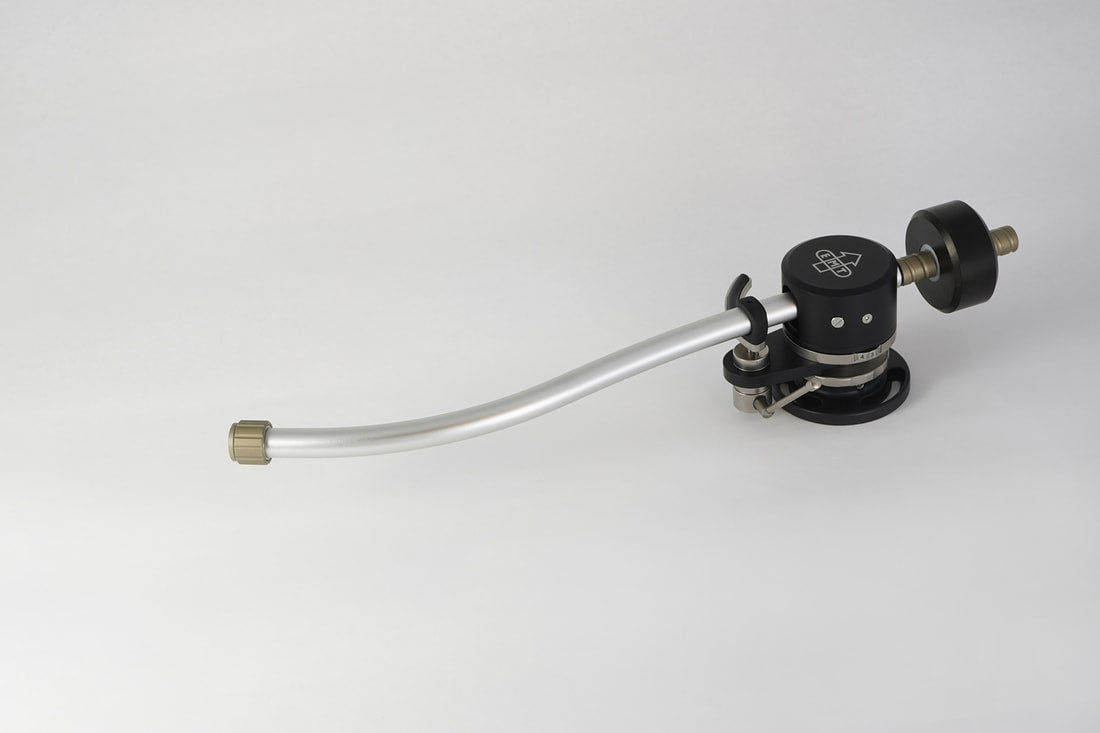

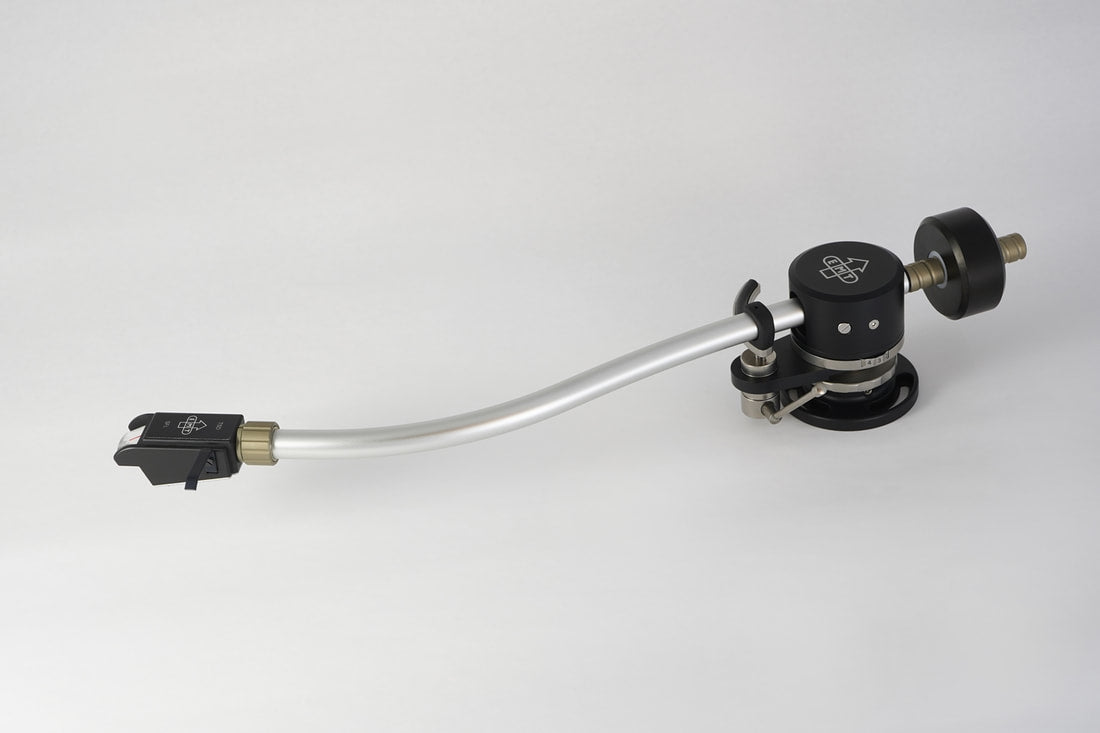

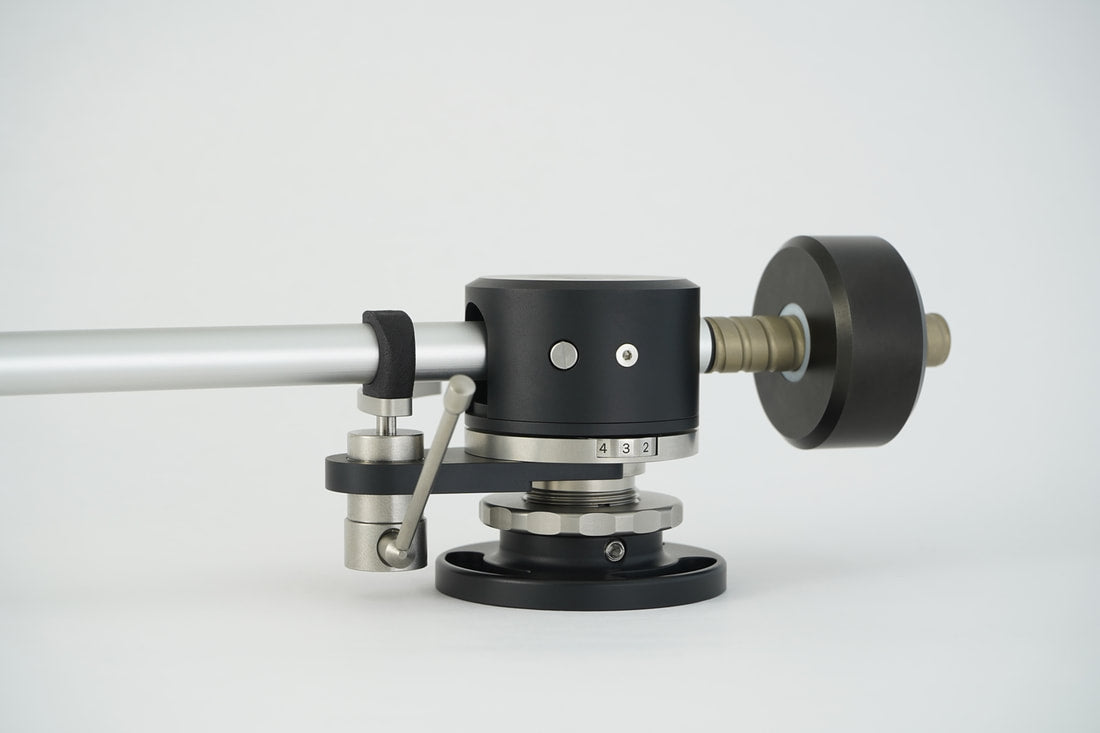

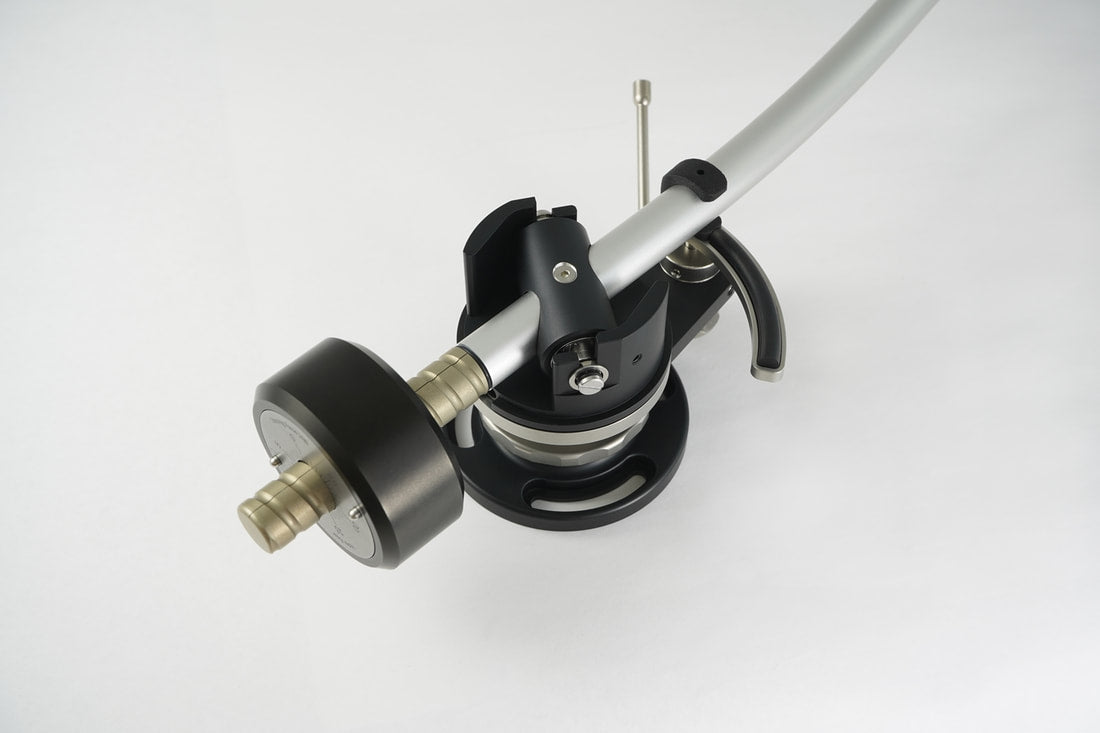

The 909 is EMT's professional 9-inch tonearm, built for the EMT Tondose. It carries the same engineering as the HI series — over 150 parts, stainless-steel base, aluminium-alloy moving elements, modern bearings inside the traditional EMT design — with the classic EMT cross-style connector in standard form. It can be ordered as INT (Ortofon A compatible) or X (SME standard) to suit the cartridge or headshell you plan to use; the mount is specified at order. Output is standard lead wire, with a 5-pin DIN outlet as a factory option.
Specifications
Effective length
246.75 mm
Mounting distance
230 mm
Effective mass
10.3 g
Offset angle
22.25°
Overhang
16.75 mm
Null points
120.9 | 66.04 mm
Connection
EMT Tondose (standard); INT (Ortofon A) or X (SME) at order
Headshell
Not included
Output
Standard lead wire; 5-pin DIN optional
Options & Upgrades
DIN output — 5-pin DIN outlet in place of lead wire
+$800
Prices shown are for the base configuration. Ask us about options and factory upgrades when you visit.
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
