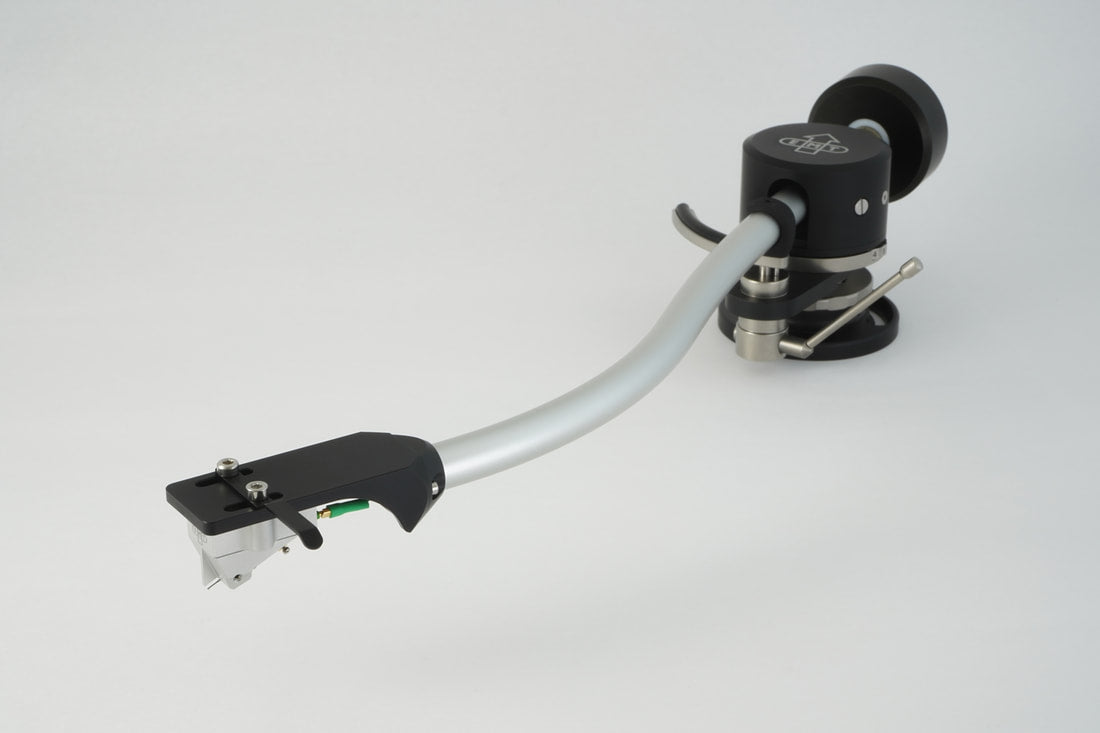

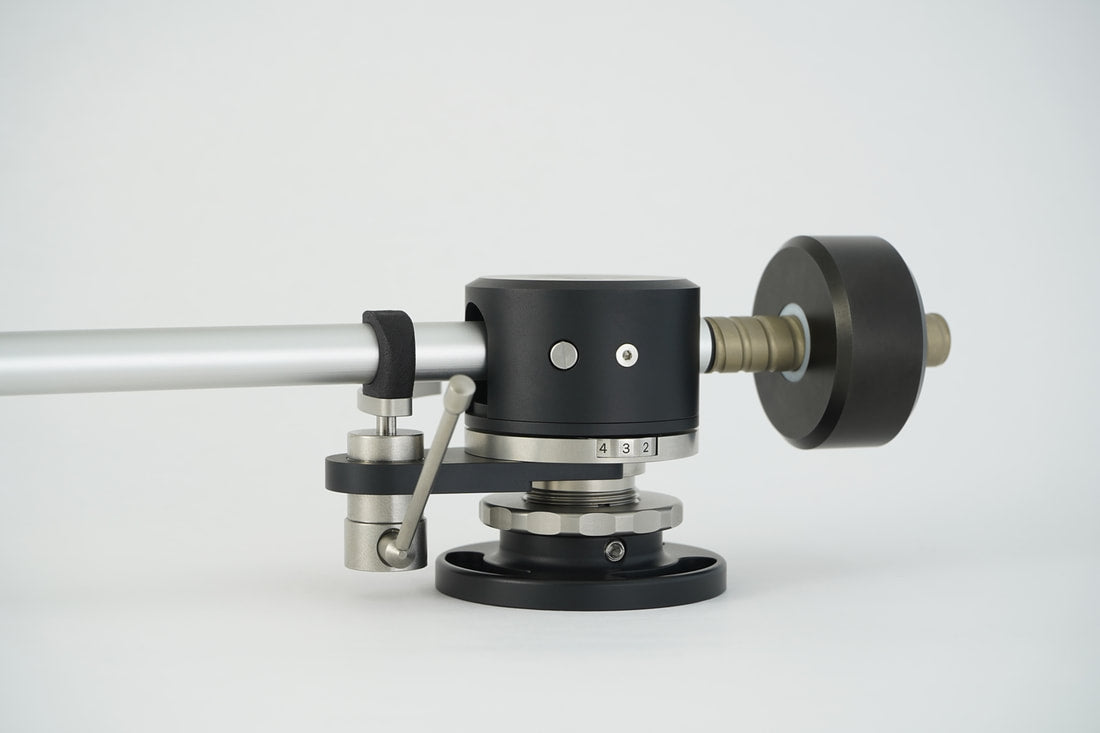

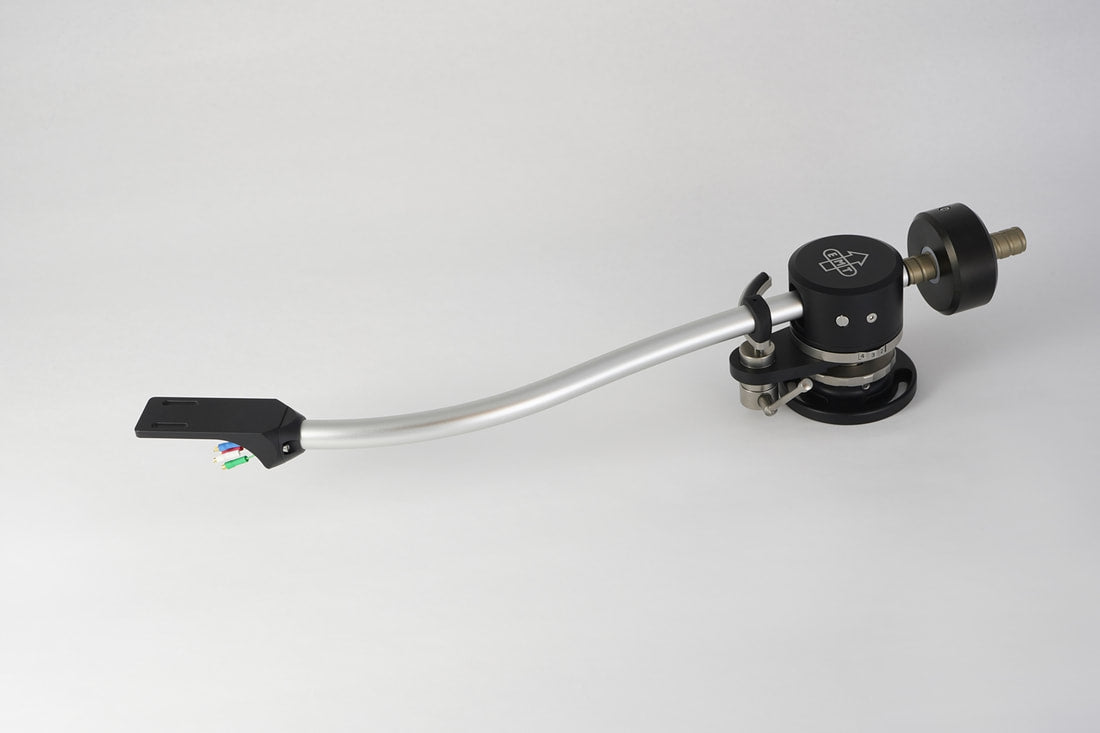

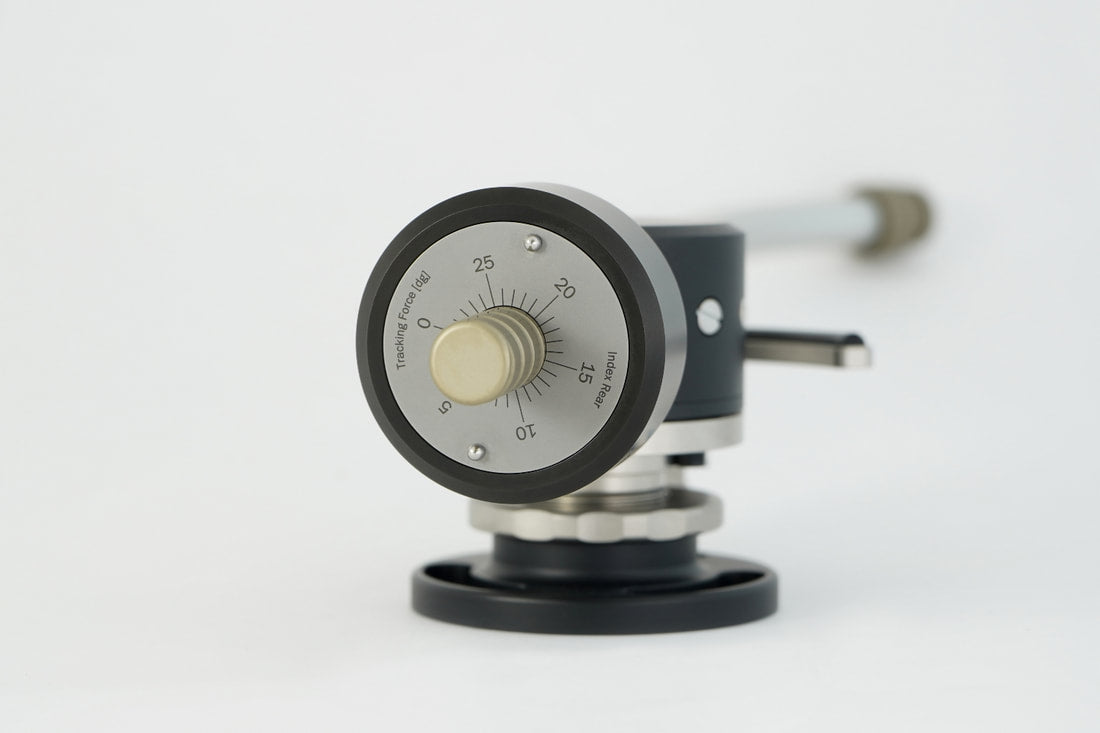

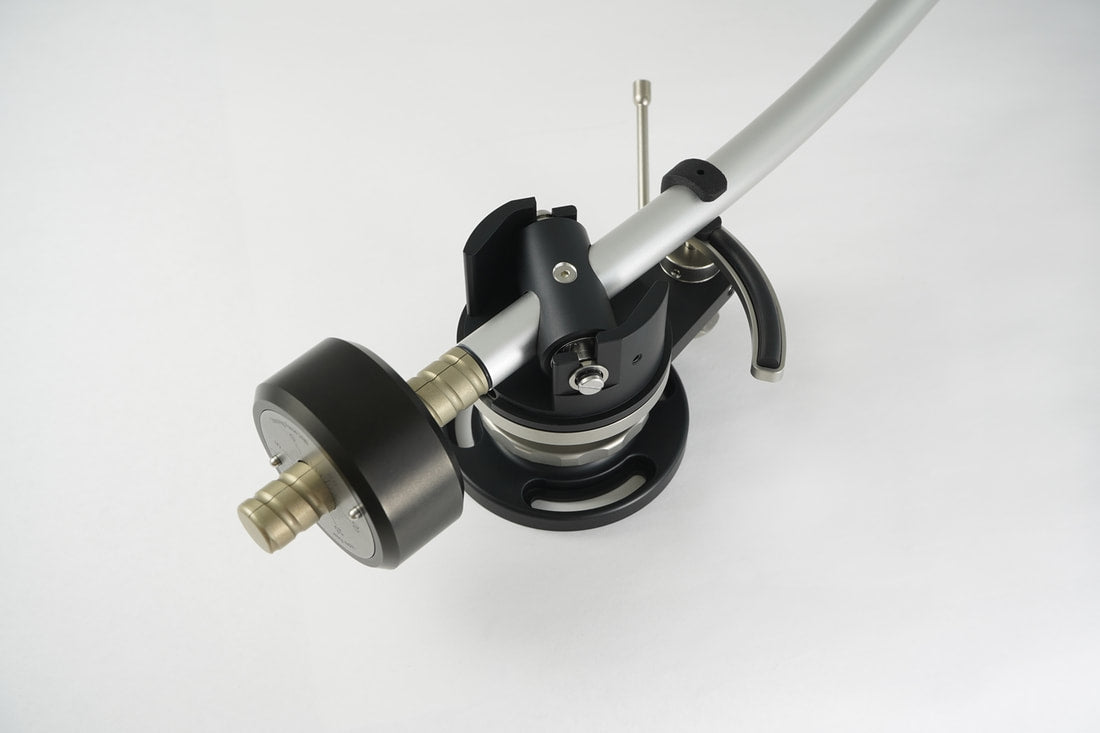

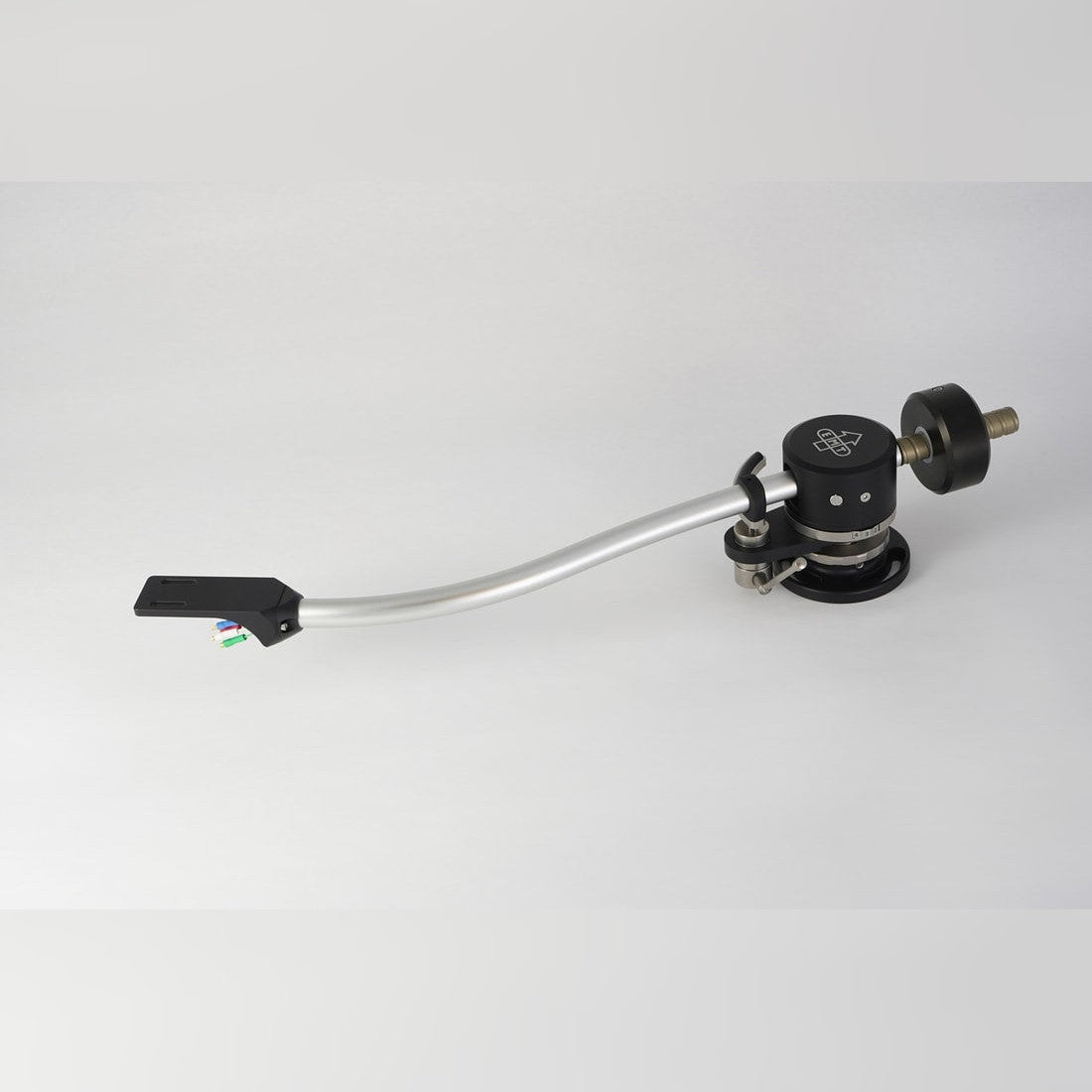

The 909-HI is EMT's 9-inch high-end tonearm with a rigidly fixed headshell for hi-fi cartridge connection. Each EMT tonearm consists of over 150 parts, the structural ones machined from solid material — stainless steel for the base, an aluminium alloy for the moving elements — with modern bearing technology and contactless magnetic anti-skating inside the traditional EMT form. The fixed headshell allows azimuth correction, and any EMT hi-fi cartridge can be mounted. Output is standard lead wire, with a 5-pin DIN outlet as a factory option.
Specifications
Effective length
246.75 mm
Mounting distance
230 mm
Effective mass
10.2 g
Cartridge weight
10–25 g
Offset angle
22.25°
Overhang
16.75 mm
Null points
120.9 | 66.04 mm
Headshell
Integrated, azimuth-adjustable
Output
Standard lead wire; 5-pin DIN optional
Options & Upgrades
DIN output — 5-pin DIN outlet in place of lead wire
+$800
Prices shown are for the base configuration. Ask us about options and factory upgrades when you visit.
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
