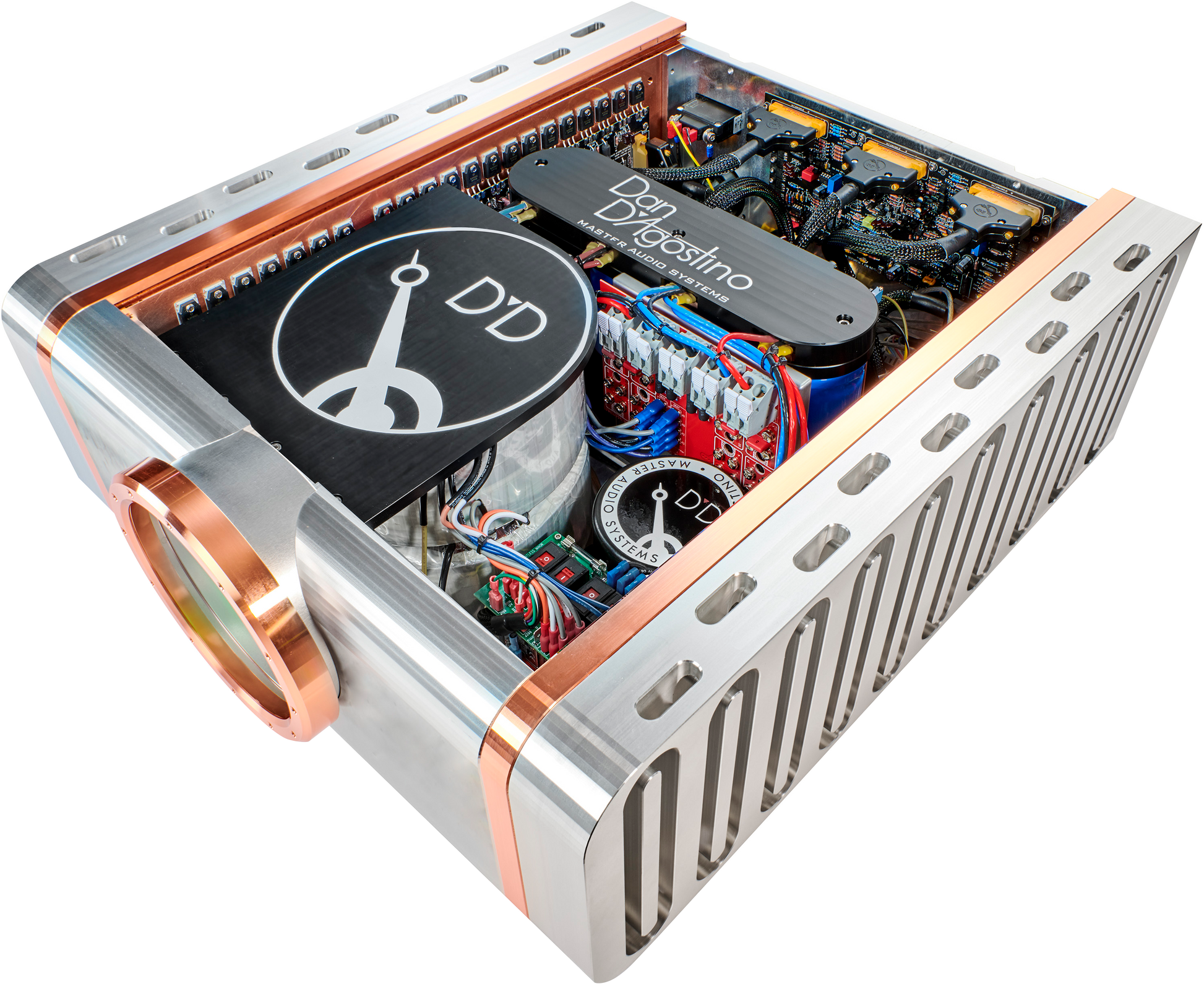

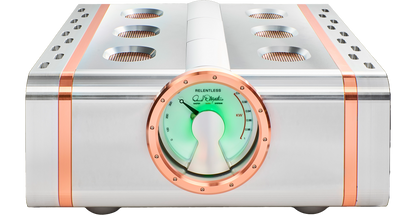

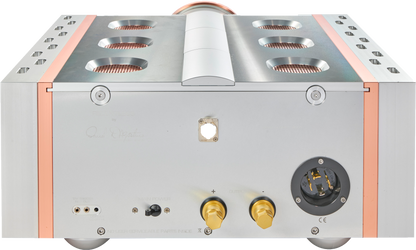

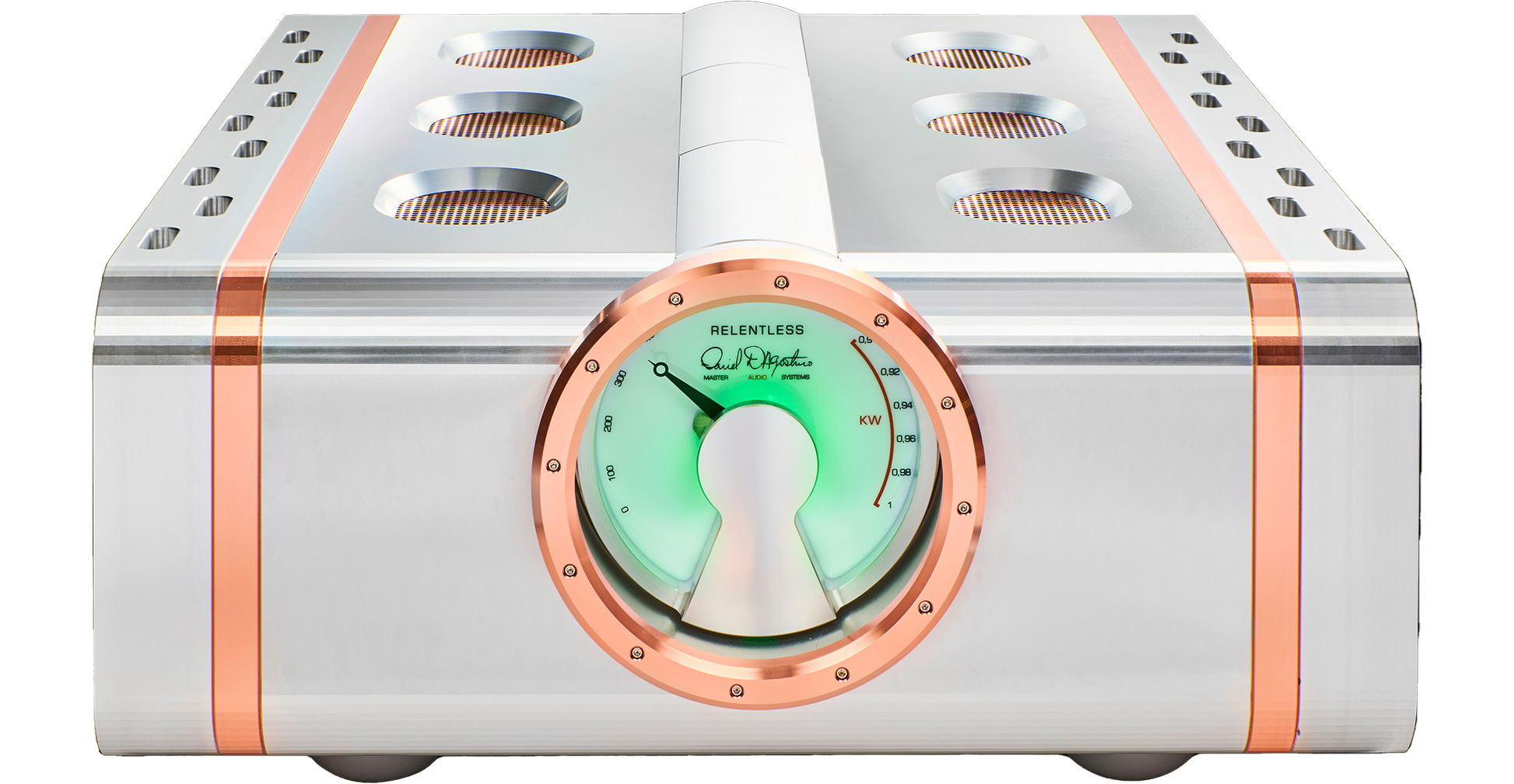

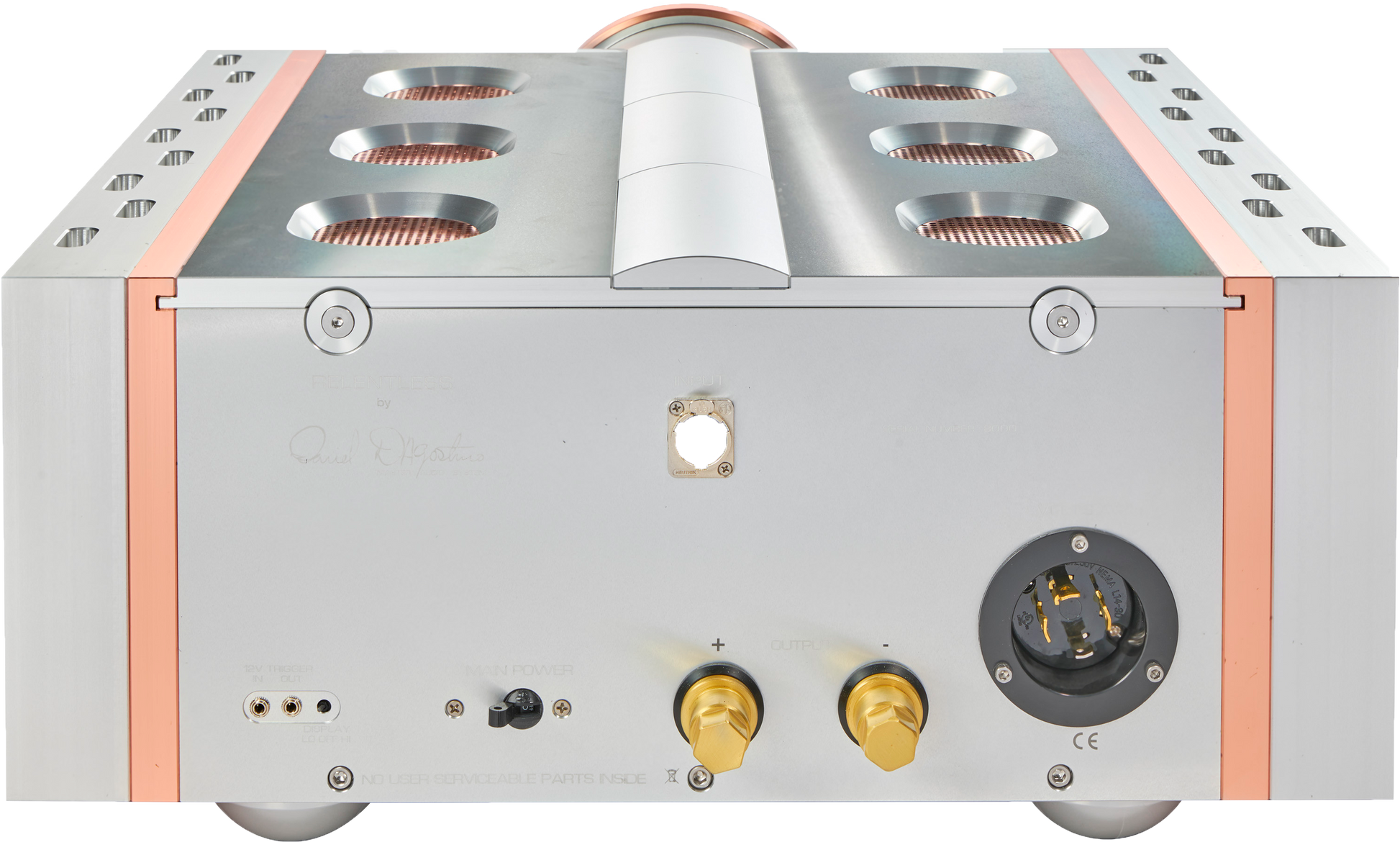

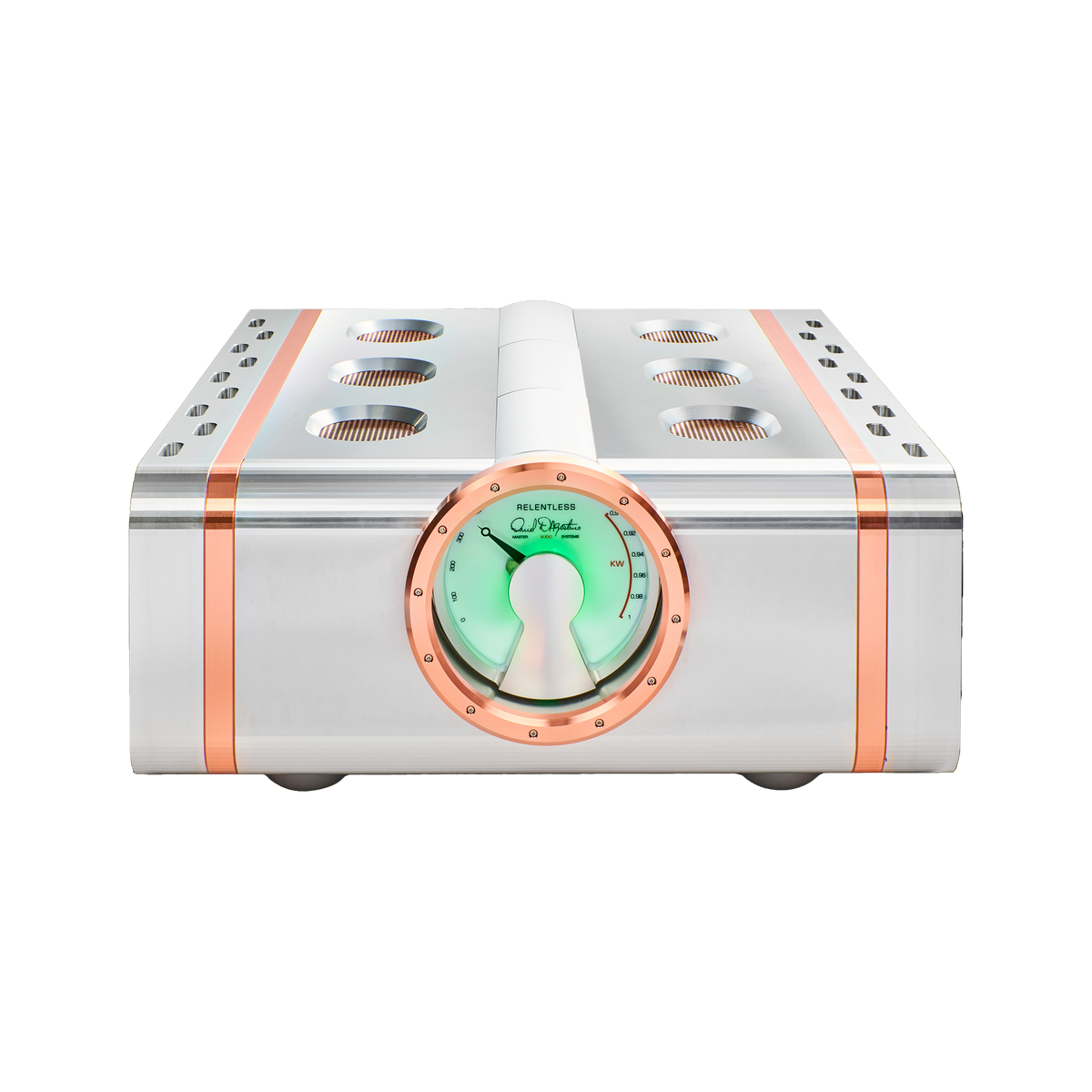

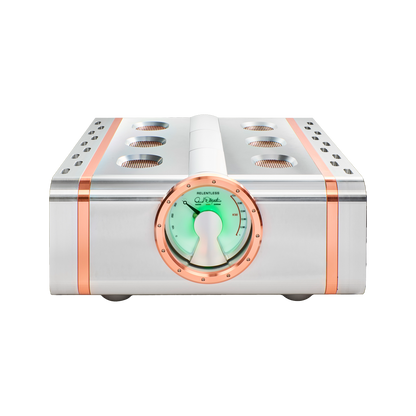

The Relentless 800 brings the circuit topology of the flagship Epic 1600 to a smaller platform, with power supply, input, driver, and output stages engineered to differ from its larger sibling only in output power. A nearly four-kilowatt potted, shielded transformer and 400,000 microfarads of capacitance feed 84 matched output devices, producing 800 watts into 8 ohms and doubling to 1,600 watts into 4 ohms and 3,200 watts into 2 ohms on a 220-volt outlet. The fully complementary, zero-global-feedback design employs Super Rail voltage boosting and a solid aluminum chassis with copper/aluminum elliptical heat sinks.
Specifications
Dimensions (WHD)
21.6 x 10.4 x 26.0 in / 54.9 x 26.4 x 66.0 cm
Finish
Silver or Black
Frequency Response
20 Hz to 20 kHz, ±0.1 dB
Gain
26.5 dB
Inputs
1 balanced XLR
Output Power
800 W @ 8Ω / 1,600 W @ 4Ω / 3,200 W @ 2Ω
Signal-to-Noise Ratio
>75 dB A-weighted / >113 dB unweighted
Weight
320 lb / 145 kg
