Shunyata Research
Regular price
From $550.00 USD
Regular price
Sale price
From $550.00 USD
Sold out

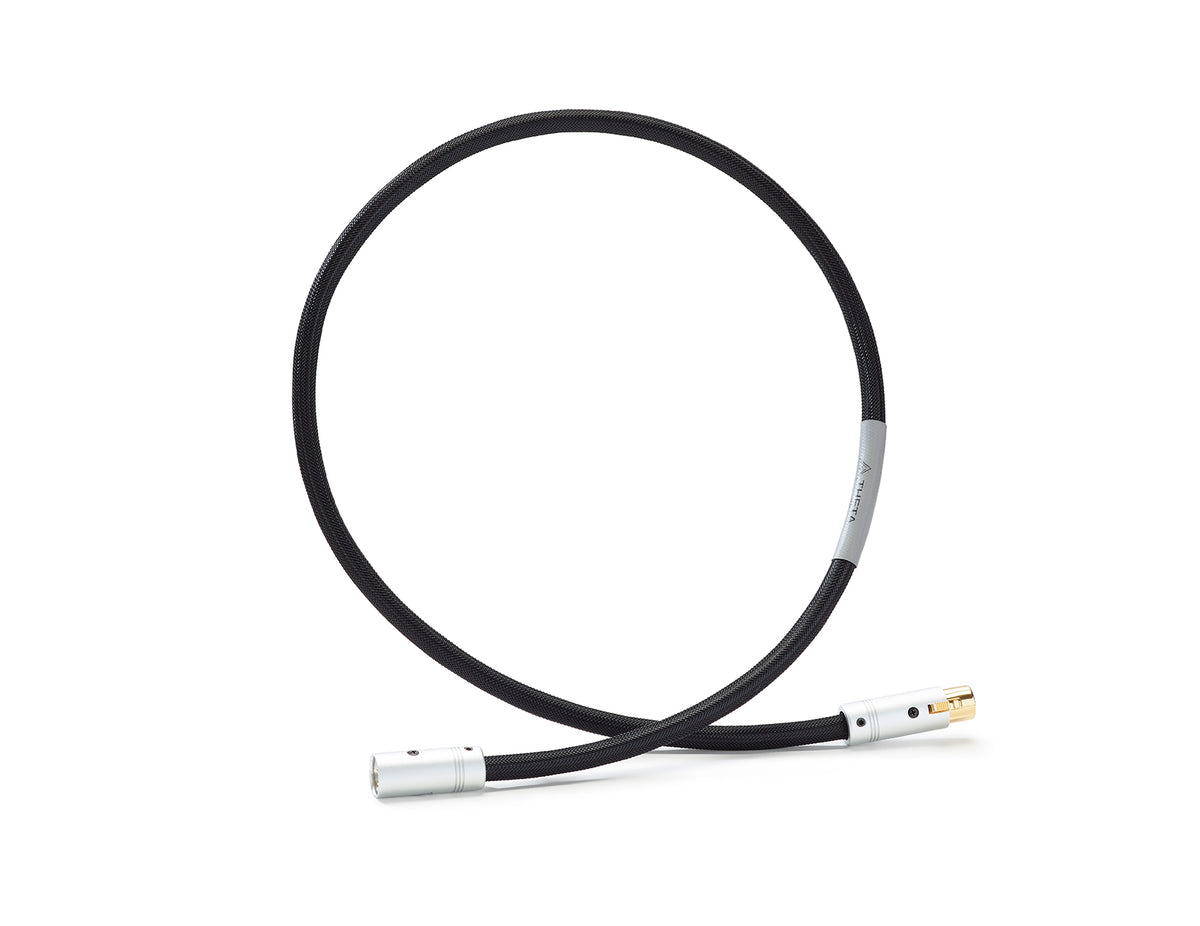

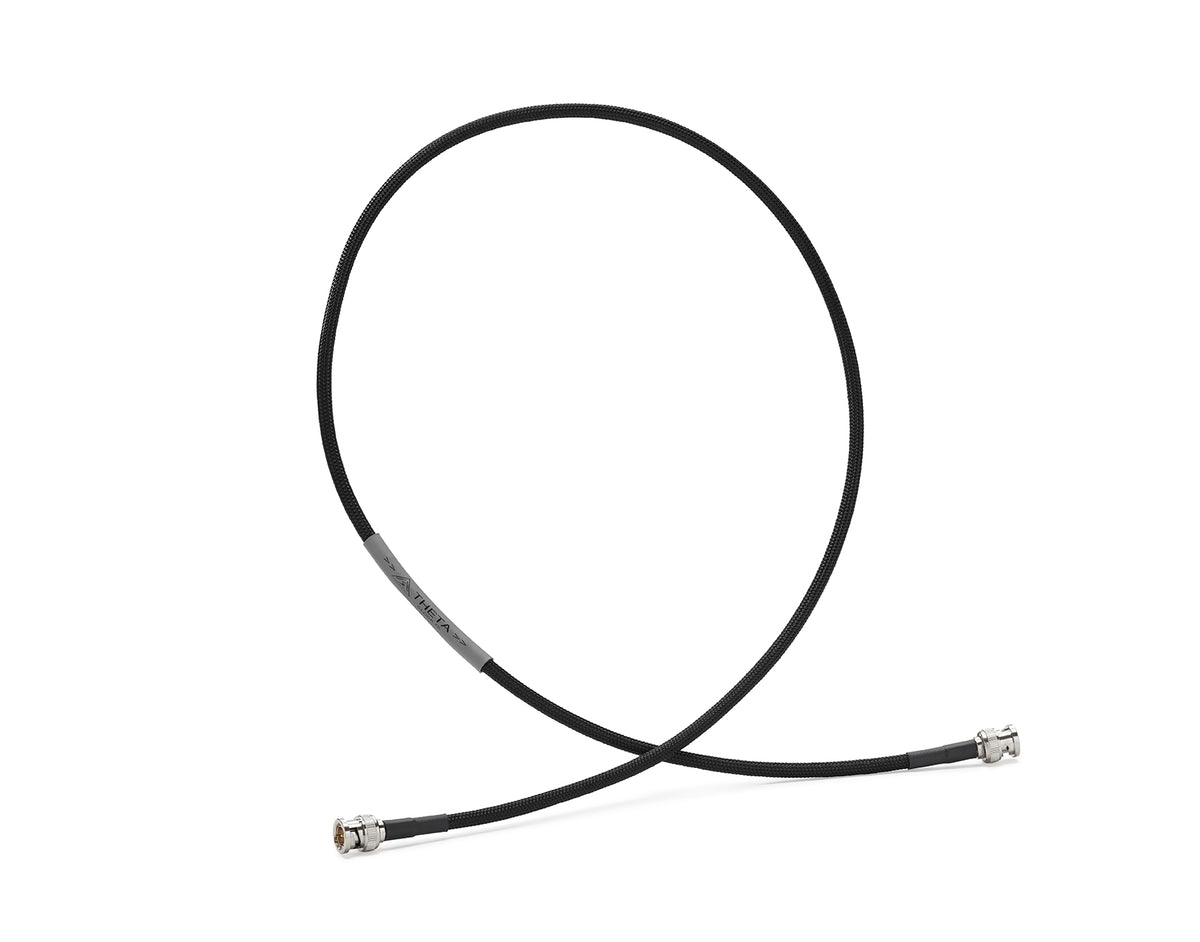

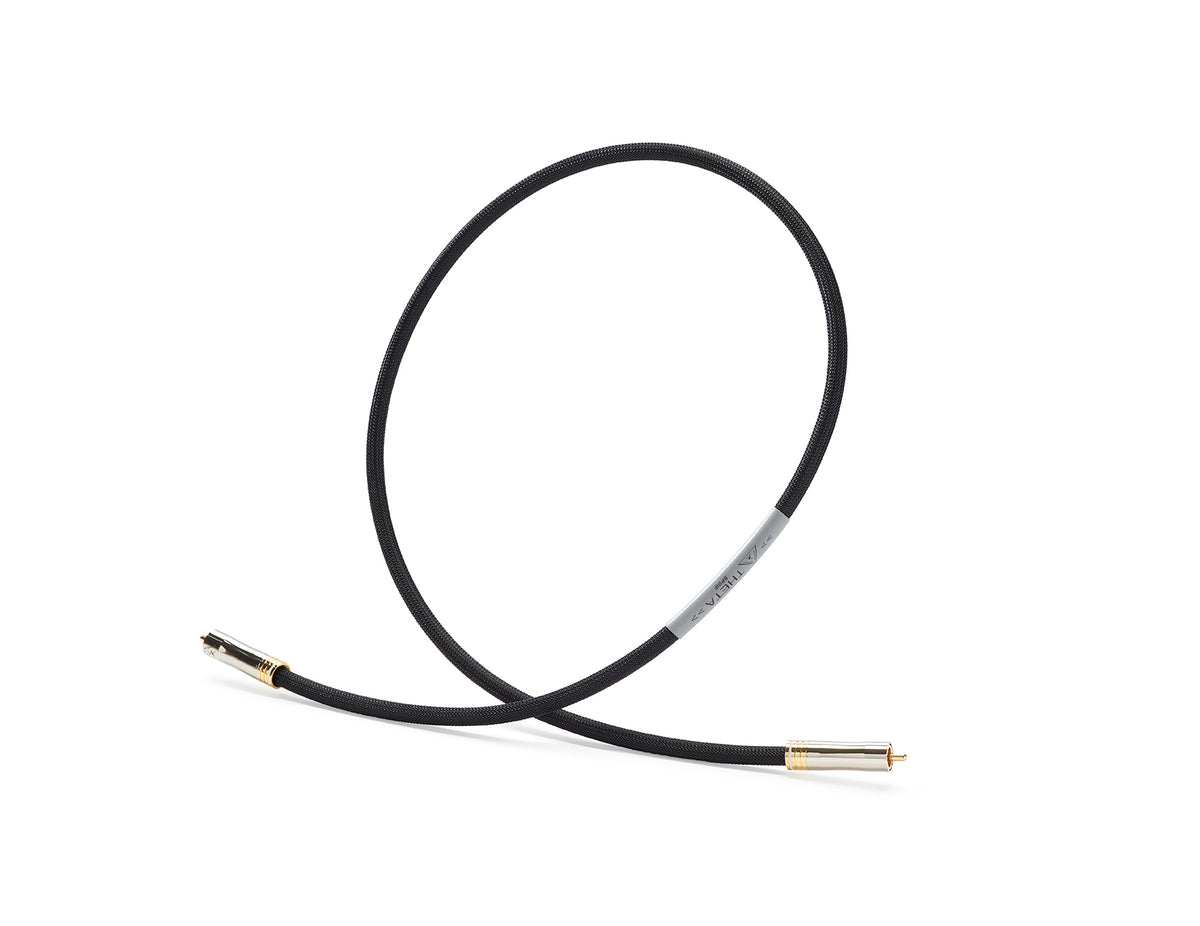

Theta digital cables use 16 gauge OCC copper conductors in a fluorocarbon dielectric: a 110 ohm AES/EBU on XLR, a 75 ohm S/PDIF on RCA and 75 ohm and 50 ohm BNC clock cables, the latter a silver-plated copper cable with a PTFE dielectric for word clock and 10 MHz links.
Specifications
AES/EBU
Twin-axial, OCC copper, foil shield, 110 ohm, 16 gauge
Clock-50
Coaxial, SPC conductor and shield, 50 ohm BNC, 20 gauge, PTFE dielectric, PMZ
Clock-75
Coaxial, OCC copper, pure copper braided shield, 75 ohm BNC, 16 gauge, PMZ
Color
Black flex
Connectors
Gold-plated brass contacts
Dielectric
Fluorocarbon
KPIP v2 processing
4 days
Made in
Poulsbo, Washington, USA
S/PDIF
Coaxial, OCC copper, pure copper braided shield, 75 ohm, 16 gauge, PMZ
Series
Theta
Standard length
1 m
Cables and pricing
Cable
1 m
Each additional 0.25 m
AES/EBU, XLR
$600
+$50
S/PDIF, RCA
$550
+$45
Clock-75, BNC
$700
+$58
Clock-50, BNC
$850
+$70
Prices are per cable at the standard length. Shorter cables are priced the same as the standard length.
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch .
