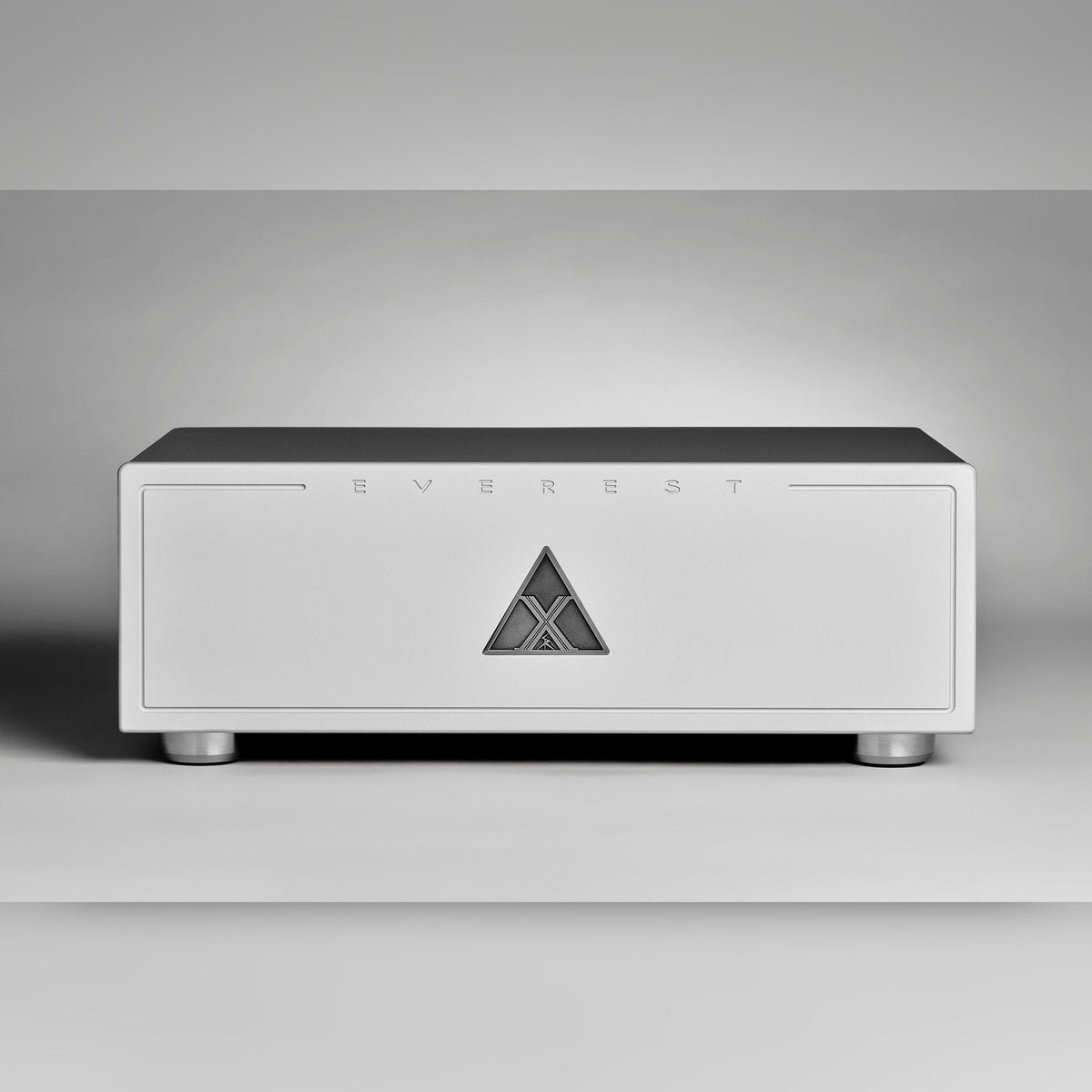

Everest-X is Shunyata's reference distributor: eight platinum CopperCONN outlets in six isolation zones, an 8 gauge ArNi VTX buss with 10 gauge wiring, and the full set of Shunyata technologies in one chassis, QRBB charge reserve, NIC noise isolation chambers, TAPc, HARP, CMode, CCI filtering and GPNR ground plane noise reduction with pure copper ground terminals. Noise reduction is more than 50 dB input to output and more than 60 dB zone to zone, with a 30 A input rating and 20 A per outlet. The Shelf model puts the same circuit in an 18 in wide rack-depth chassis, 6.47 in high, for an equipment rack or credenza. Silver or black, C19 inlet; sold without a cable.
Specifications
Construction
Aluminum and steel chassis, anodized aluminum faceplate
Dimensions
18 in W x 12.2 in D x 6.47 in H, with cable cradle
Feet
SSF-50 stainless steel
Finish

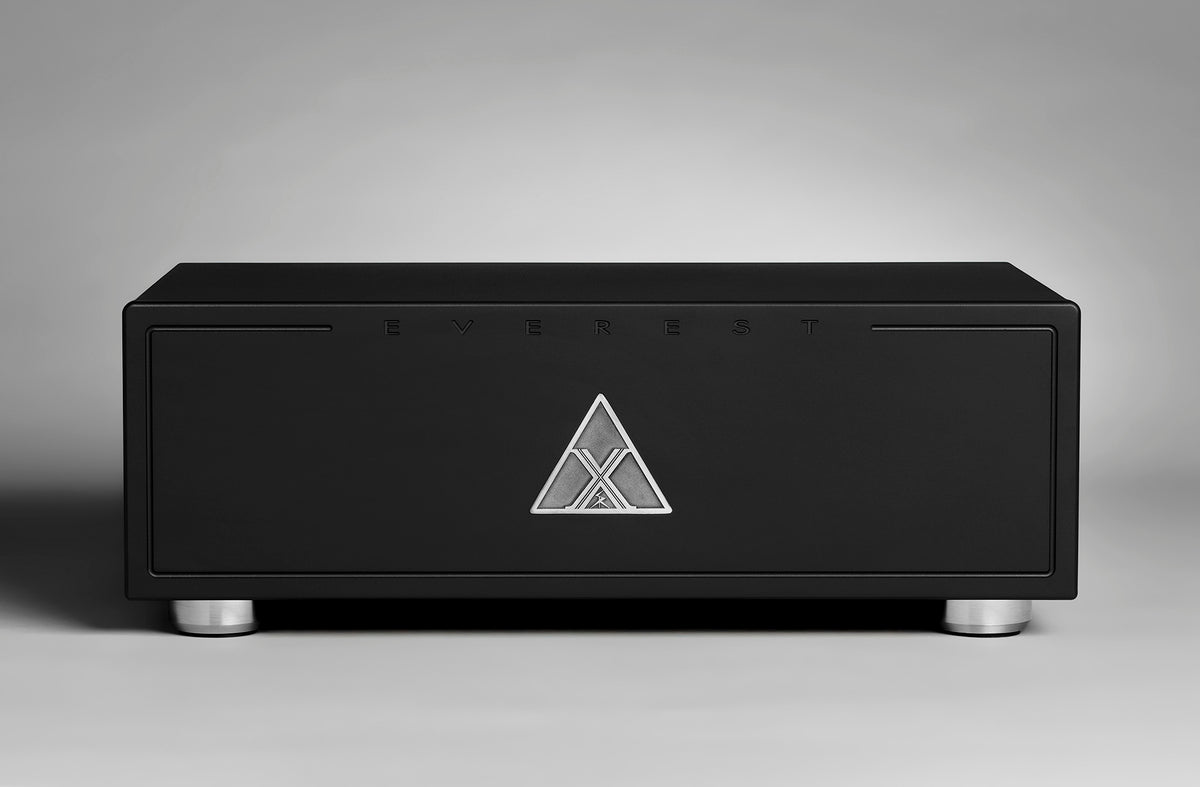

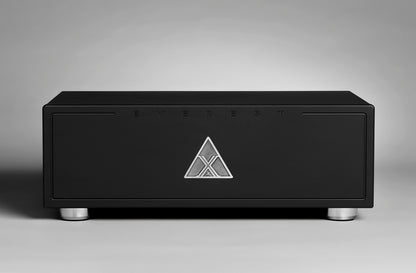

Silver or black
Ground terminals
OFE pure copper
Inlet
IEC C19
Input current
30 A
KPIP v2 processing
8 days
Made in
Poulsbo, Washington, USA
Noise suppression
More than 50 dB input to output, more than 60 dB zone to zone
Outlets

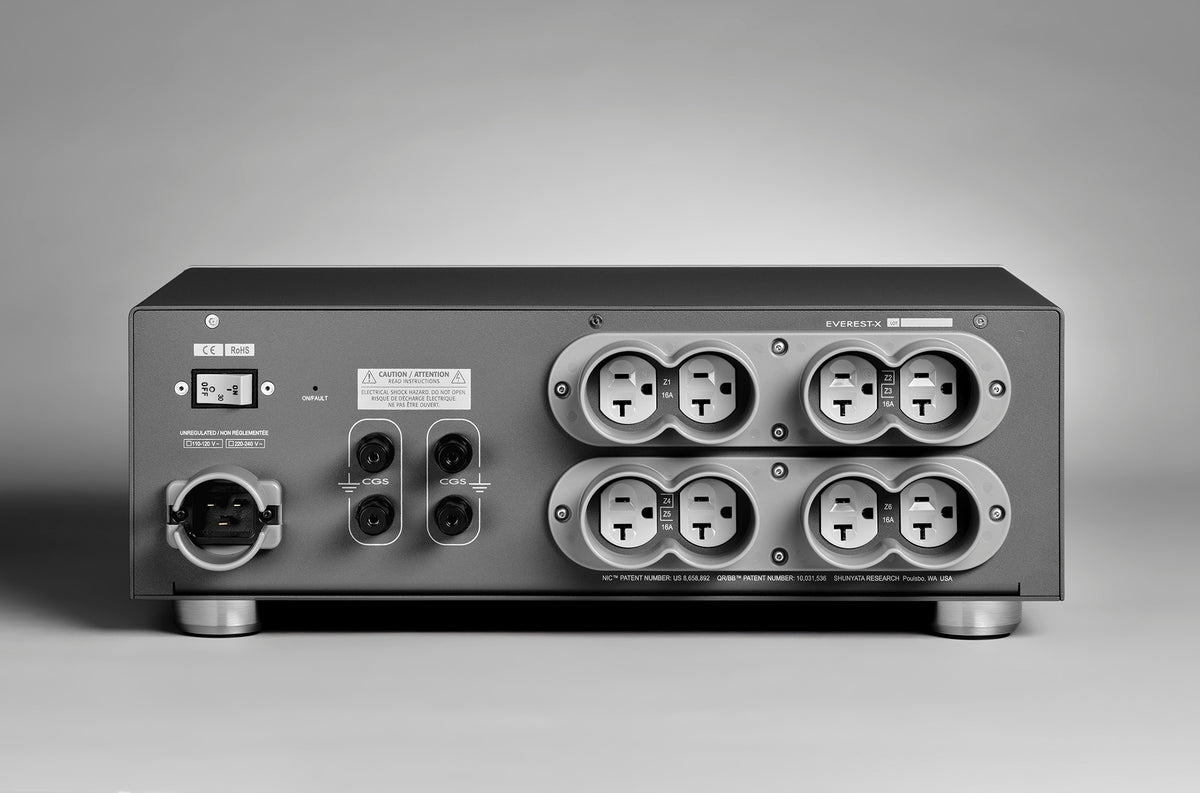

8 US NEMA 5-20R, CopperCONN platinum, six isolation zones
Output current
20 A per outlet
Protection
Hydraulic electromagnetic breaker, 40,000 A transient
Series
Reference
Technology
QRBB, NIC, TAPc, HARP, GPNR, CMode, CCI
Weight
28 lb
Wiring
8 gauge ArNi VTX buss, 10 gauge ArNi VTX wiring
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
