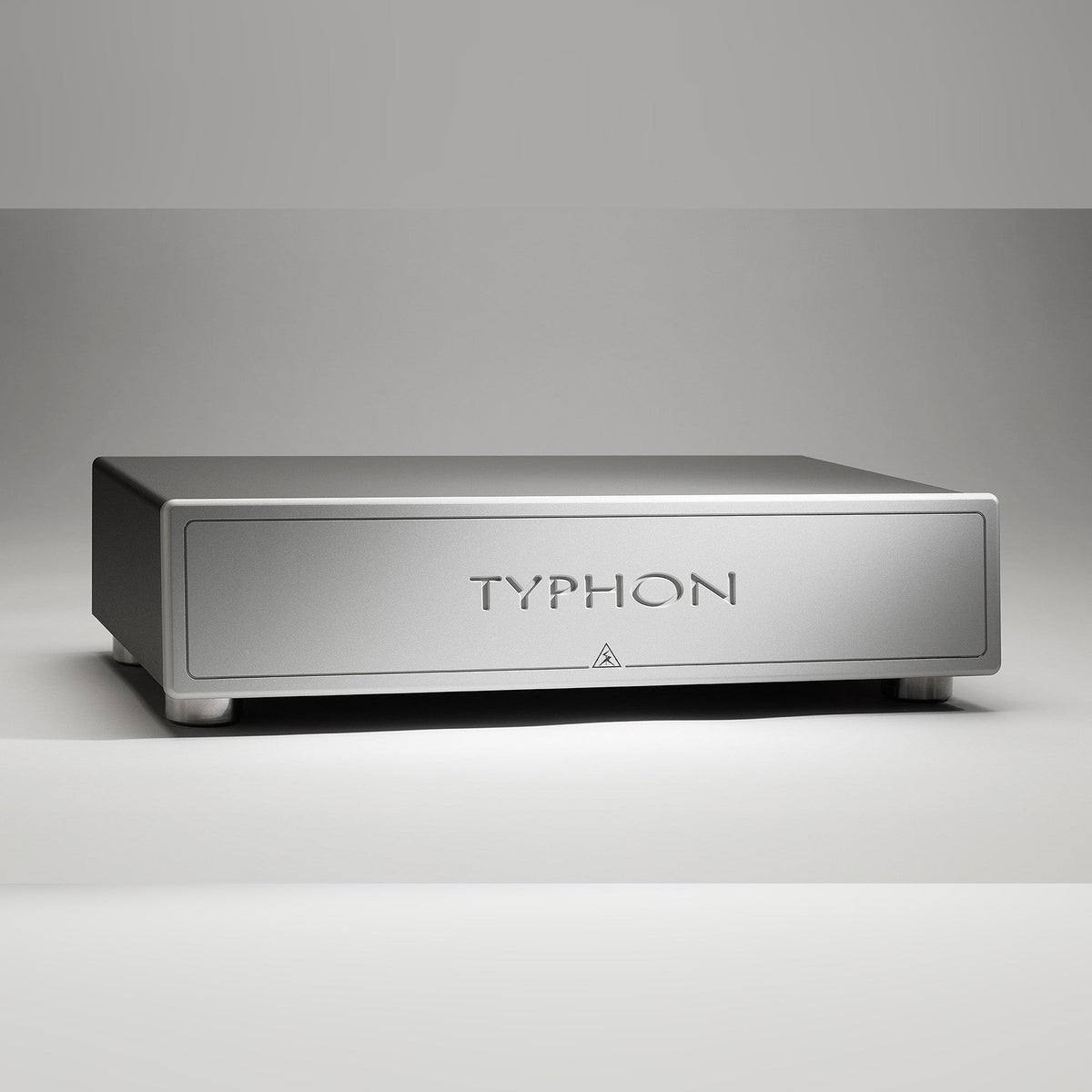

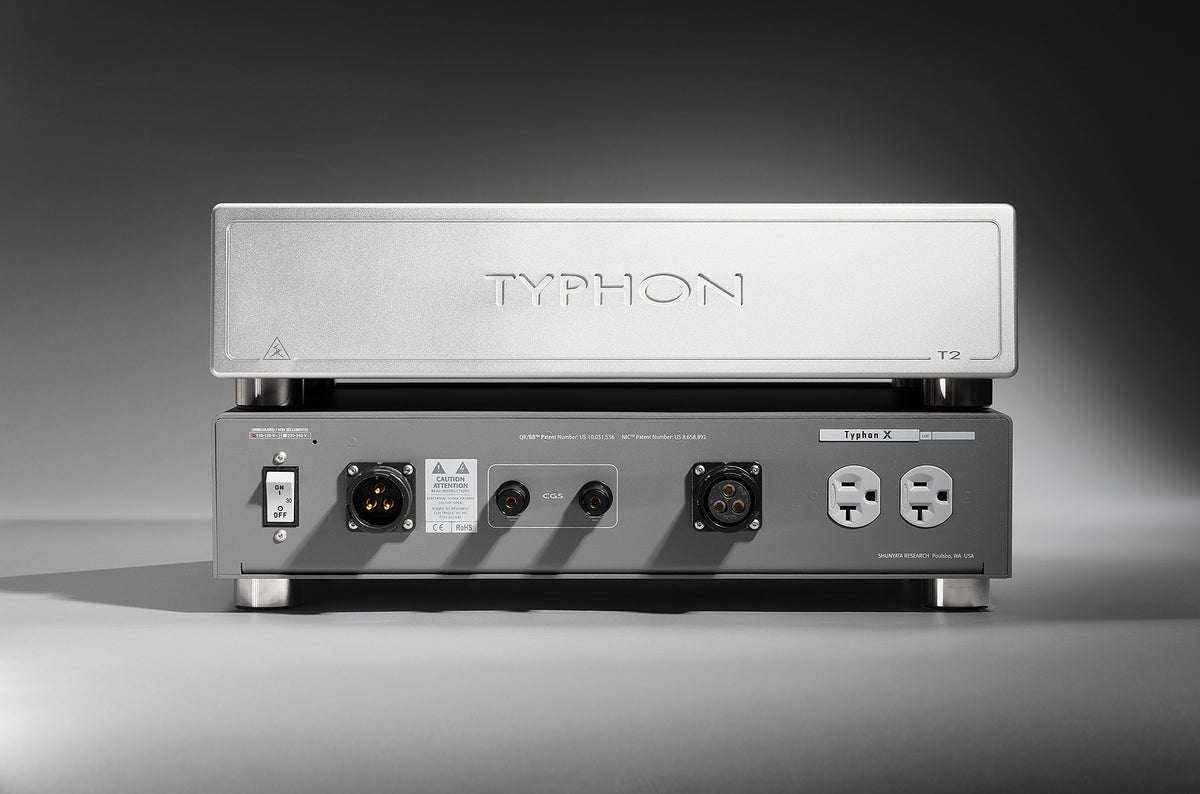

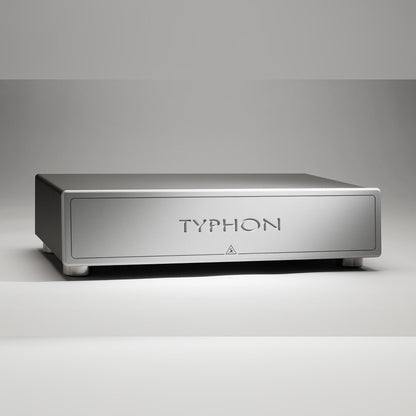

Typhon-X is the 2026 Typhon: the 30 A Amphenol-fed platform of the T30 with the X series technologies added, the patented QRBB charge-reserve circuit, NIC noise isolation chambers, the TAPc module and CCI filtering. A 6 gauge ArNi VTX-Ag buss feeds two 20 A NEMA 5-20R outlets and a 30 A Amphenol output in three isolation zones, with more than 50 dB input to output noise reduction. All-aluminum chassis on SSF-38 feet, in black or silver. It needs the T30 or T30-X power cable, listed separately.
Specifications
Construction
All-aluminum chassis, brushed anodized faceplate
Dimensions
17 in W x 10 in D x 4.4 in H
Feet
SSF-38 stainless steel
Finish
Black or silver
Inlet
Proprietary 30 A Amphenol twist-lock (T30 or T30-X cable required)
Input current
30 A
KPIP v2 processing
4 days
Made in
Poulsbo, Washington, USA
Noise suppression
More than 50 dB input to output, more than 40 dB zone to zone
Outlets

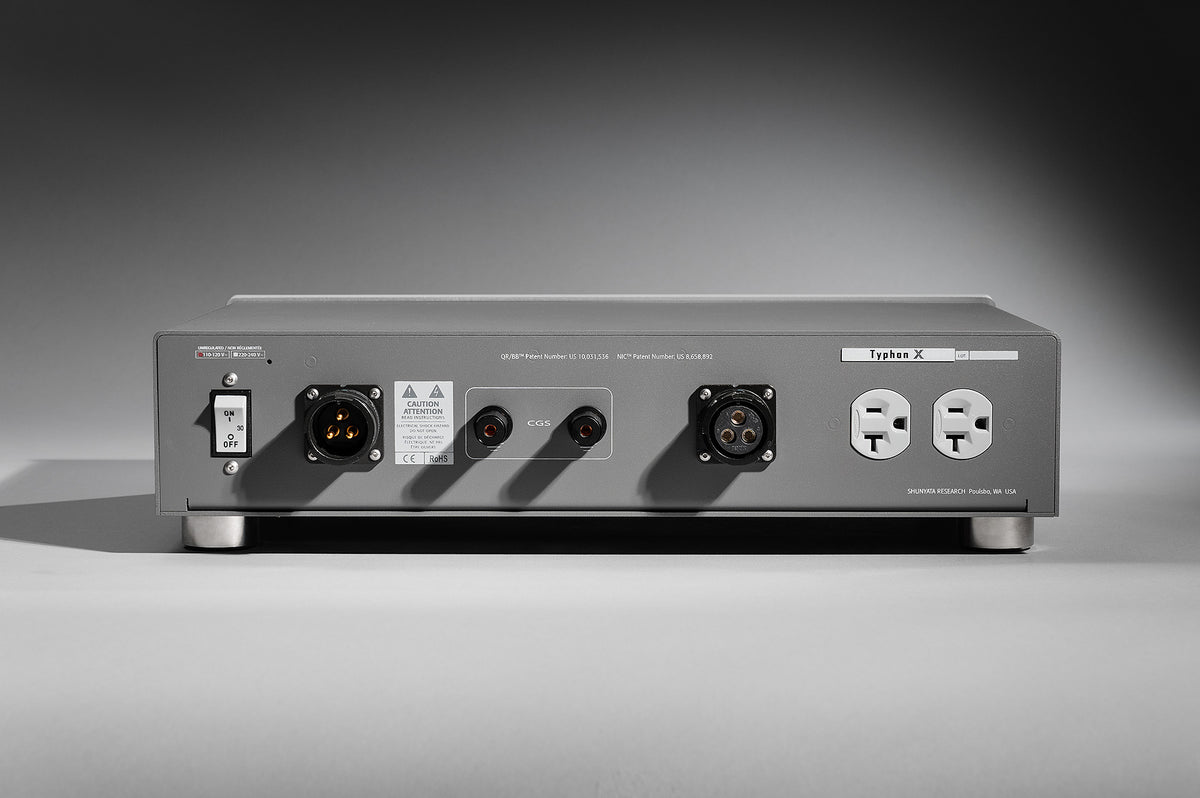

2 US NEMA 5-20R at 20 A, one 30 A Amphenol output, three isolation zones
Protection
Hydraulic electromagnetic breaker, 40,000 A transient
Series
Reference
Technology
QRBB, NIC, TAPc, CCI
Weight
17.5 lb
Wiring
6 gauge ArNi VTX-Ag buss
