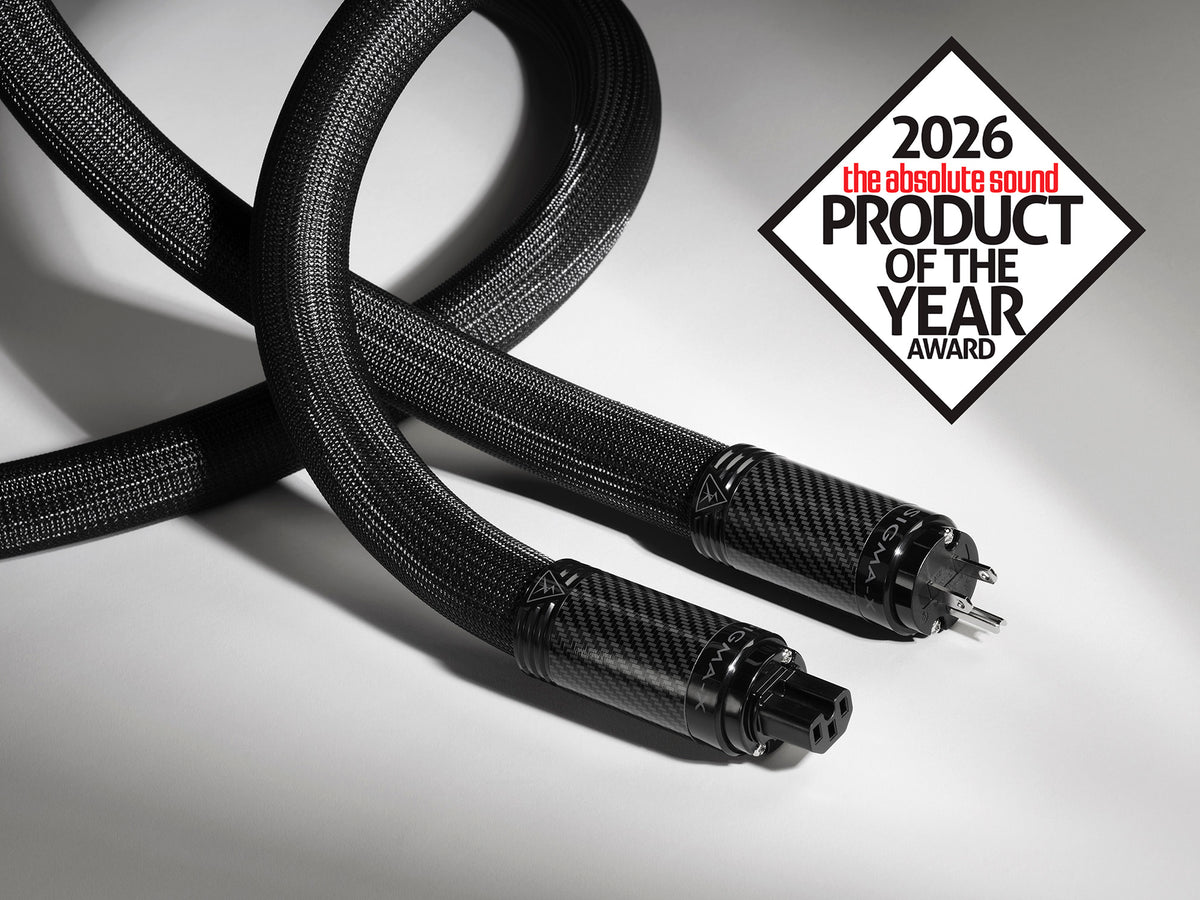

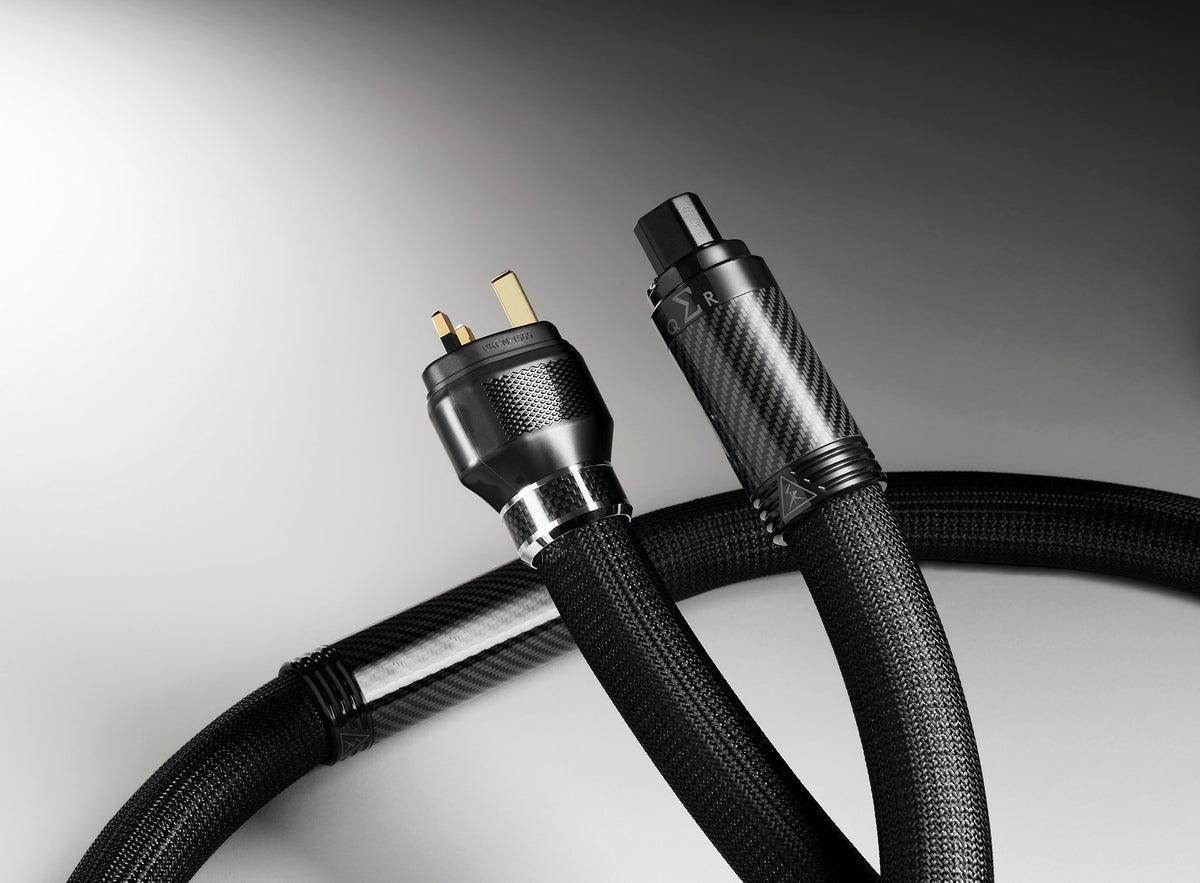

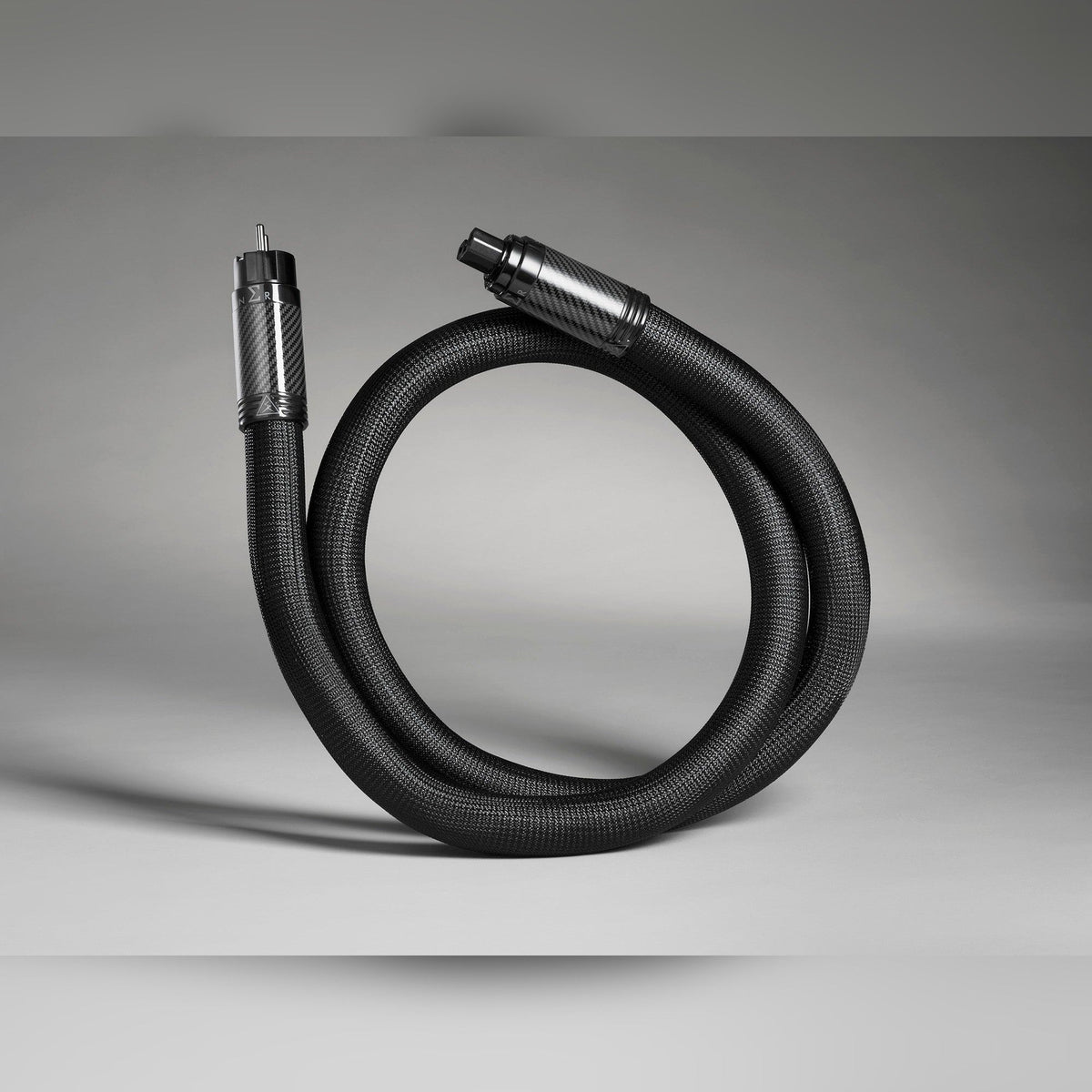

Sigma-X moves to 6 gauge VTX-Ag conductors in a 1 inch tube with CopperCONN carbon fiber connectors at both ends. Three versions: QR, with the patented QRBB charge-reserve circuit, NIC noise isolation chamber and two TAPc polarizers, built for power amplifiers; NR, with the noise filter and TAPc for sources and preamplifiers; and XC, the unfiltered cable with TAPc for the feed to a distributor. Standard color is black with charcoal carbon.
Specifications
AC connector
CopperCONN, carbon fiber
Color
Black flex
Conductors
VTX-Ag
Construction
1 inch tube
Dielectric
Fluorocarbon
Gauge
6
IEC connector
CopperCONN, carbon fiber
KPIP v2 processing
4 days
Made in
Poulsbo, Washington, USA
Noise reduction
QR and NR: more than 6 dB at 1 MHz. XC: none
Series
Sigma-X
Standard length
1.75 m
Technology
QR: QRBB, NIC, two TAPc. NR and XC: two TAPc
Lengths and pricing
Model
1.75 m
2 m
2.5 m
3 m
Each additional 0.25 m
Sigma-X NR
$4,000
$4,190
$4,570
$4,950
+$190
Sigma-X XC
$4,000
$4,190
$4,570
$4,950
+$190
Sigma-X QR
$6,500
$6,750
$7,250
$7,750
+$250
Prices are per cable with a US plug and either a C15 or C19 IEC at the same price. Shorter cables are priced the same as the standard length. Other plugs are quoted; ask us.
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
