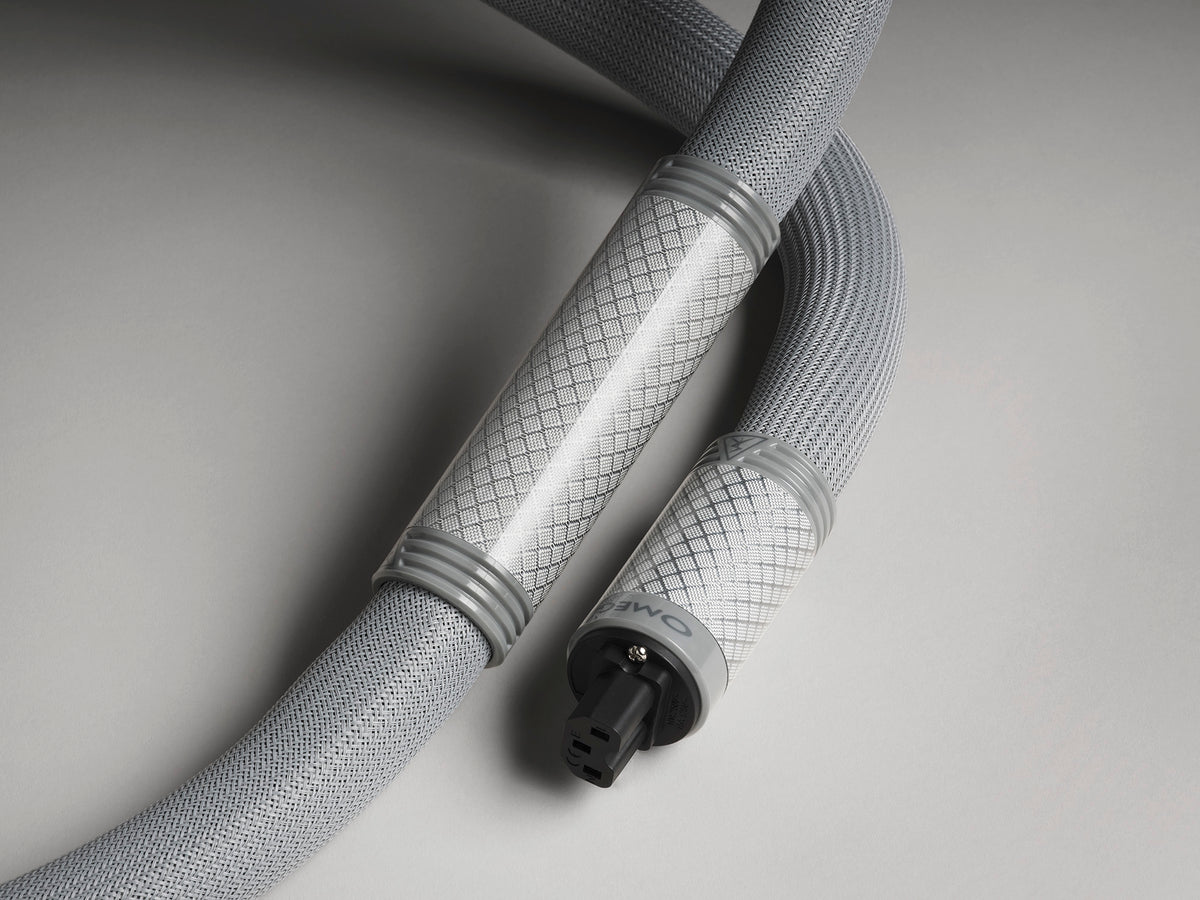

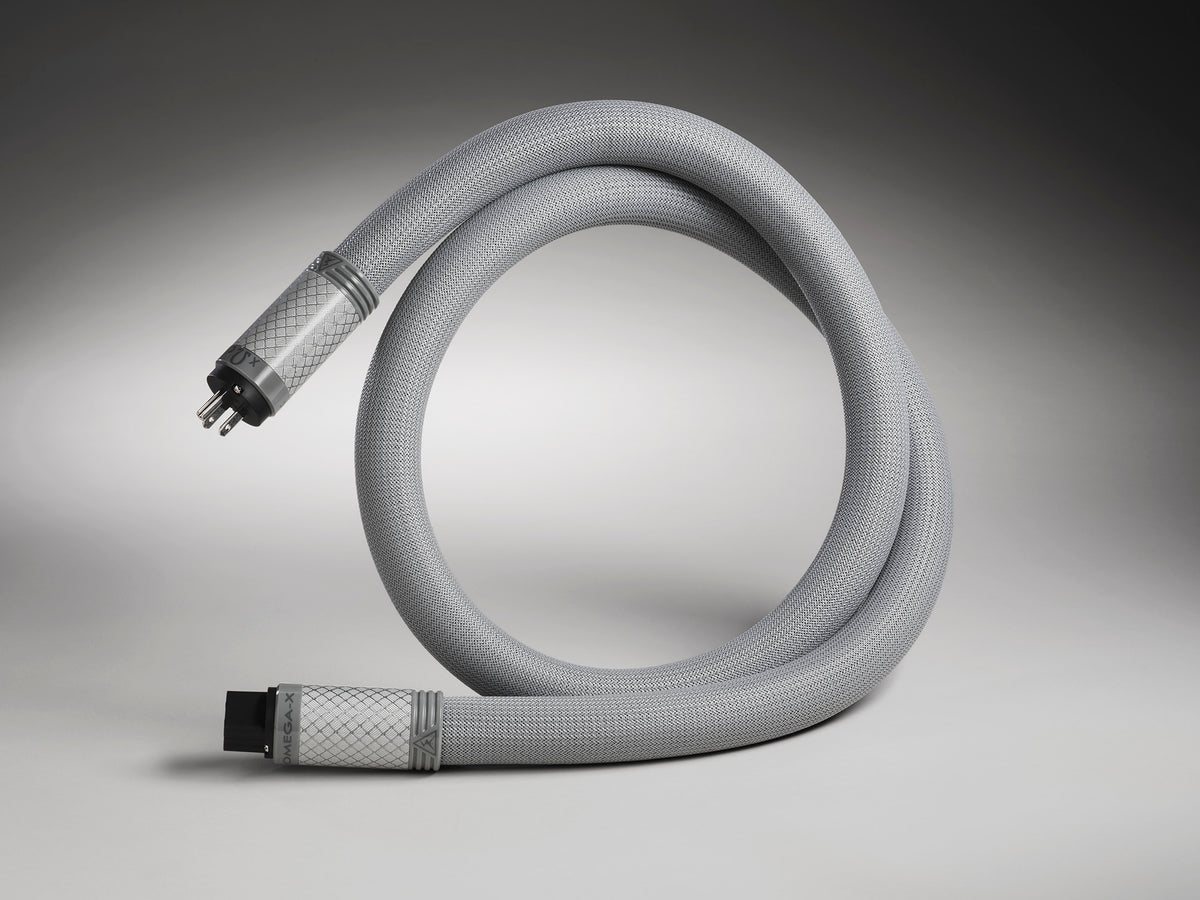

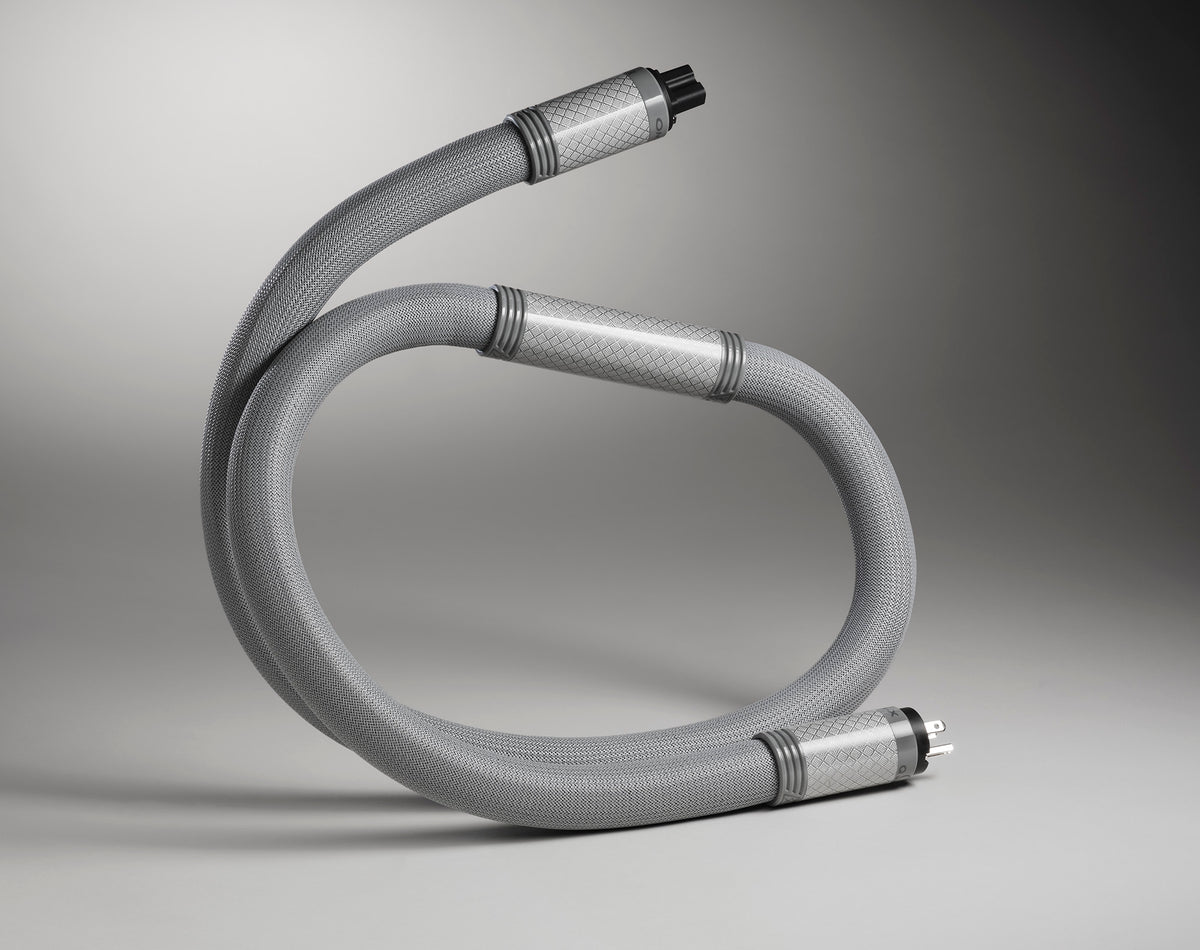

Omega-X is the top of the Shunyata power cable line. The QR version runs 6 gauge VTX-Ag conductors with two QRBB charge-reserve modules, a NIC noise isolation chamber and two TAPc polarizers, at a 2 m standard length for power amplifiers. The XC version is a 4 gauge unfiltered cable with two TAPc modules at 1.75 m for distributors. Both are finished in grey with platinum-plated CopperCONN connectors in carbon fiber shells.
Specifications
AC connector
CopperCONN, platinum plated, carbon fiber
Color
Grey flex, platinum connectors
Conductors
VTX-Ag
Construction
1 inch tube
Dielectric
Fluorocarbon
Gauge
QR: 6. XC: 4
IEC connector
CopperCONN, platinum plated, carbon fiber
KPIP v2 processing
4 days
Made in
Poulsbo, Washington, USA
Noise reduction
QR: more than 6 dB at 1 MHz. XC: none
Series
Omega-X
Standard length
QR: 2 m. XC: 1.75 m
Technology
QR: two QRBB, NIC, two TAPc. XC: two TAPc
Lengths and pricing
Model
Standard length
2.5 m
3 m
Each additional 0.25 m
Omega-X XC
$8,000 (1.75 m)
$9,050
$9,750
+$350
Omega-X QR
$12,500 (2 m)
$13,000
$13,500
+$250
Prices are per cable with a US plug and either a C15 or C19 IEC at the same price. Shorter cables are priced the same as the standard length. Other plugs are quoted; ask us.
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
