Shunyata Research

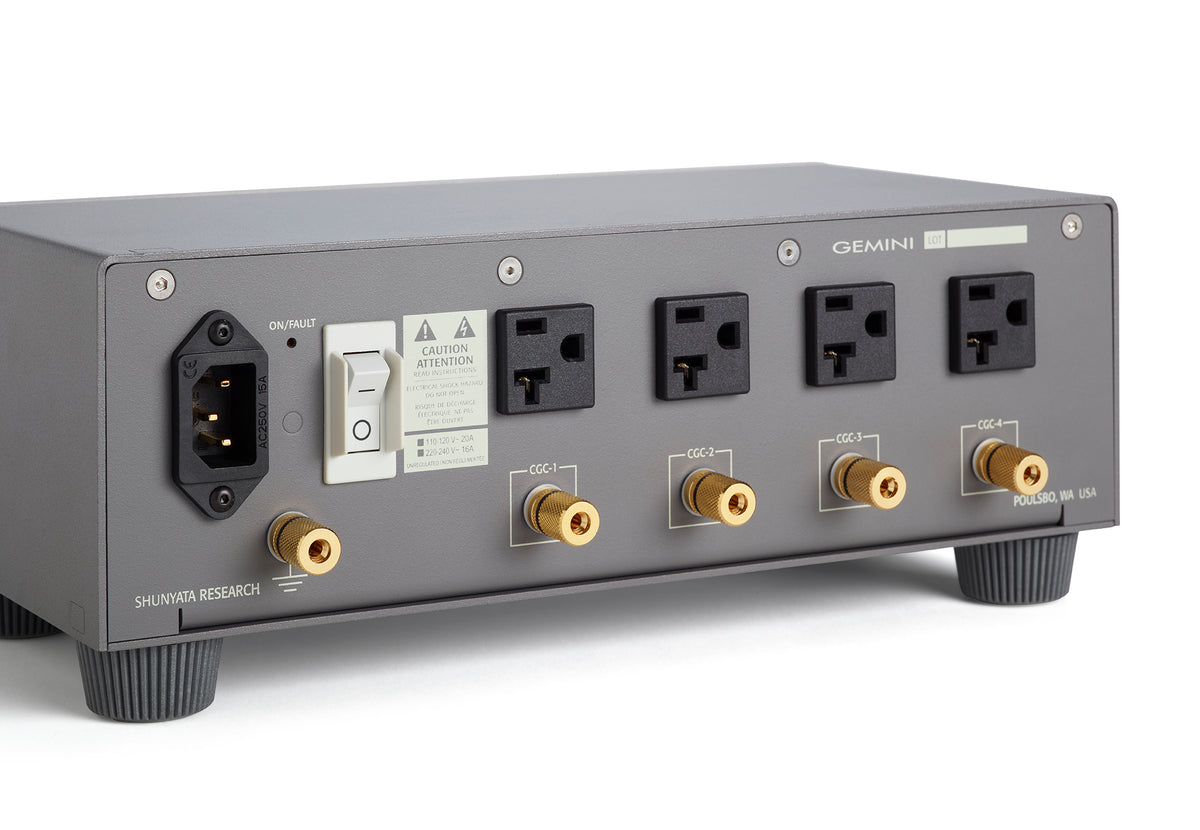

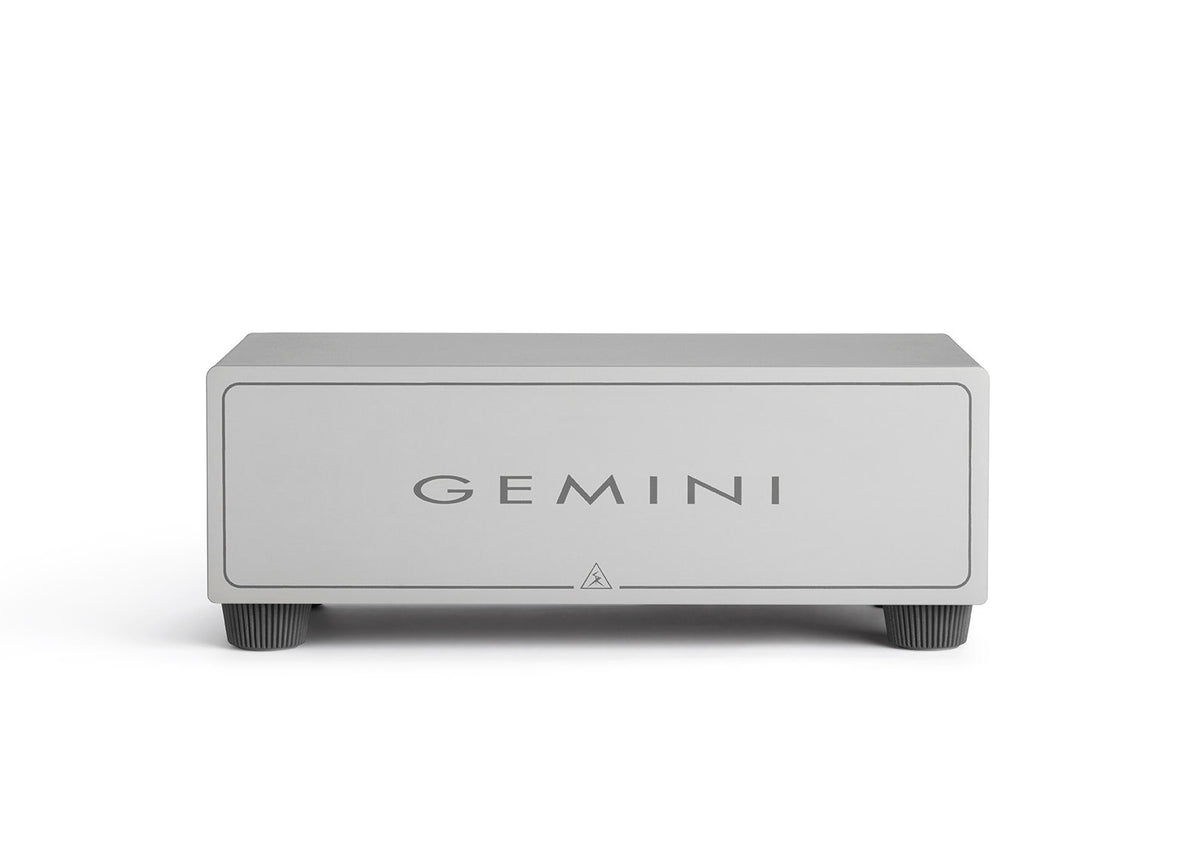

Shunyata Gemini Model-4 Power Distributor

Shunyata Gemini Model-4 Power Distributor

Regular price $2,450.00 USD
Regular price Sale price $2,450.00 USD
Sold out

Gemini Model-4 is a four-outlet distributor in two isolation zones, with the patented NIC noise isolation chambers, three CCI v4 noise filters and a Trident transient protection module. Wiring is 12 gauge ArNi OFE copper behind a hydraulic electromagnetic breaker. Input to output noise reduction is more than 40 dB from 100 kHz to 30 MHz. The Model-4 is the one Shunyata distributor with a C15 inlet, so it takes a standard C15 power cable. Sold without a cable.

Specifications

Construction Powder-coated steel chassis, anodized aluminum faceplate
Dimensions 12.25 in W x 5.88 in D x 4.77 in H
Inlet IEC C15
Input current 15 A
KPIP v2 processing 4 days
Made in Poulsbo, Washington, USA
Noise suppression More than 40 dB input to output, more than 30 dB zone to zone
Outlets 4 US NEMA 5-15R, two isolation zones
Protection Hydraulic electromagnetic breaker, 40,000 A transient
Series Performance
Technology NIC, CCI v4, Trident
Weight 6.6 lb
Wiring 12 gauge ArNi OFE copper

Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
