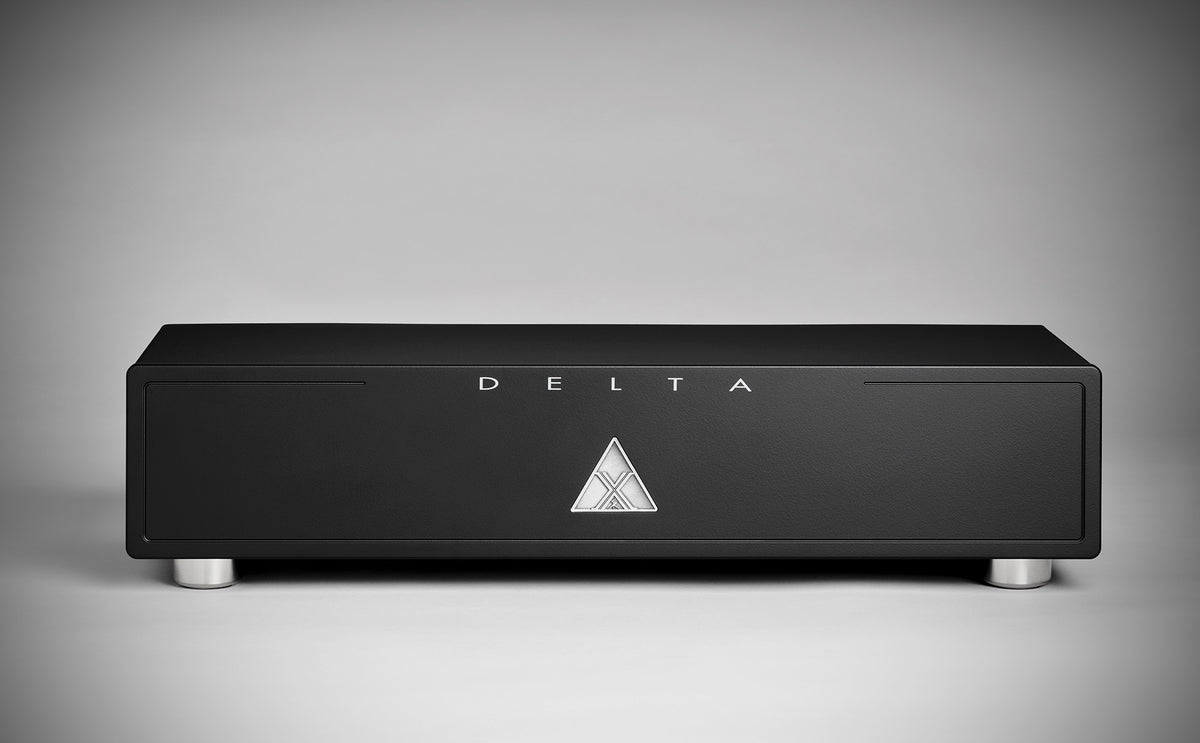

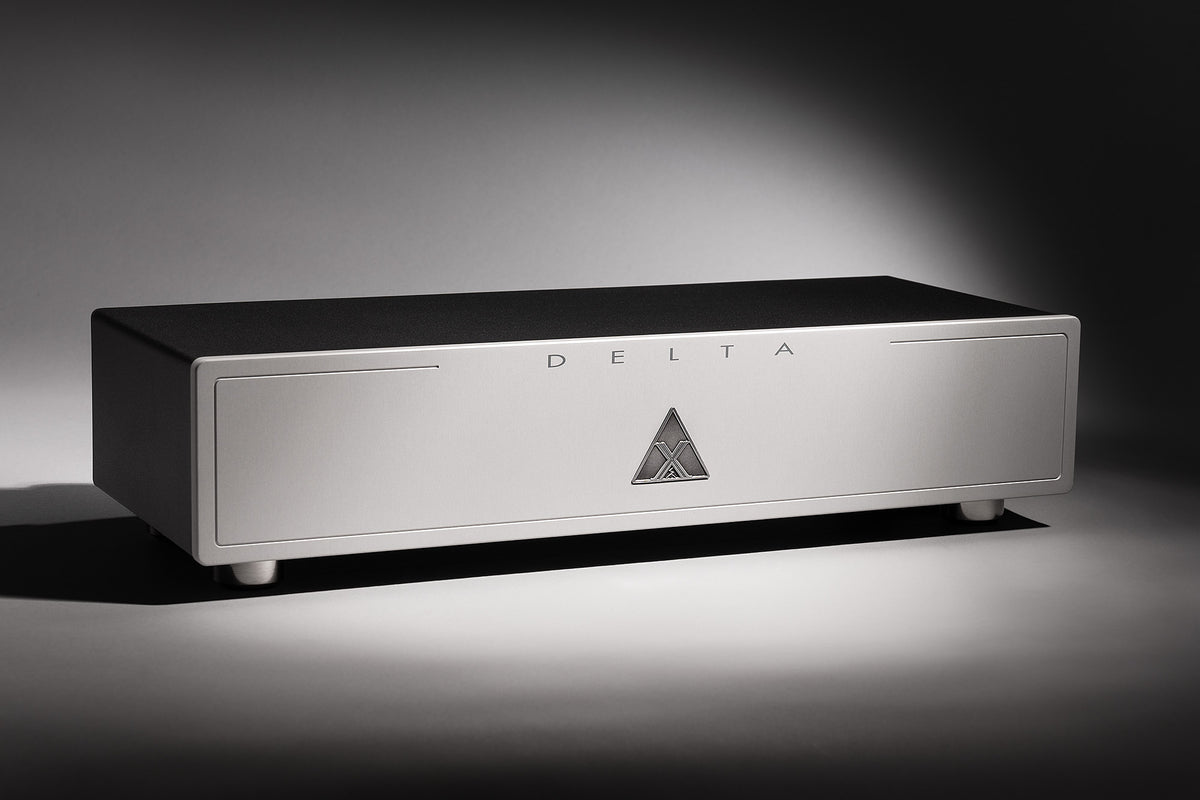

Delta-X is the eight-outlet entry to the Reference distributors, in an all-aluminum chassis with four isolation zones. An 8 gauge ArNi VTX buss feeds 12 gauge ArNi VTX wiring through a hydraulic electromagnetic breaker, with noise reduction of more than 50 dB input to output and more than 60 dB zone to zone. Internal damping panels and gasketed outlets handle vibration. Available in black or silver, with a C19 inlet; sold without a cable.
Specifications
Construction
All-aluminum chassis, anodized faceplate
Dimensions
19.81 in W x 9.06 in D x 4.72 in H
Finish
Black or silver
Inlet
IEC C19
Input current
20 A
KPIP v2 processing
4 days
Made in
Poulsbo, Washington, USA
Noise suppression
More than 50 dB input to output, more than 60 dB zone to zone

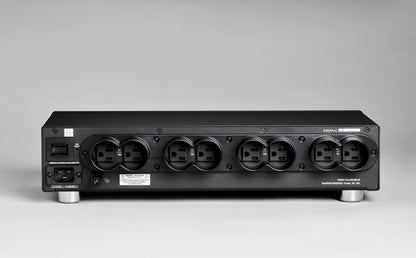

Outlets
8 US NEMA 5-20R, four isolation zones
Protection
Hydraulic electromagnetic breaker, 40,000 A transient
Series
Reference
Weight
12.2 lb
Wiring
8 gauge ArNi VTX buss, 12 gauge ArNi VTX wiring
