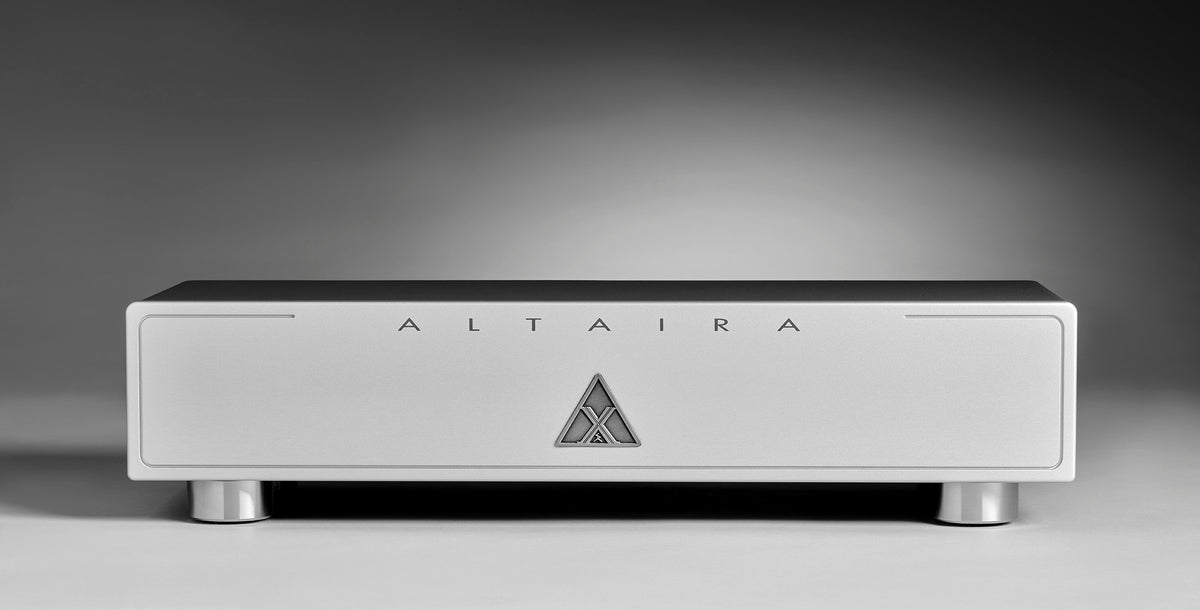

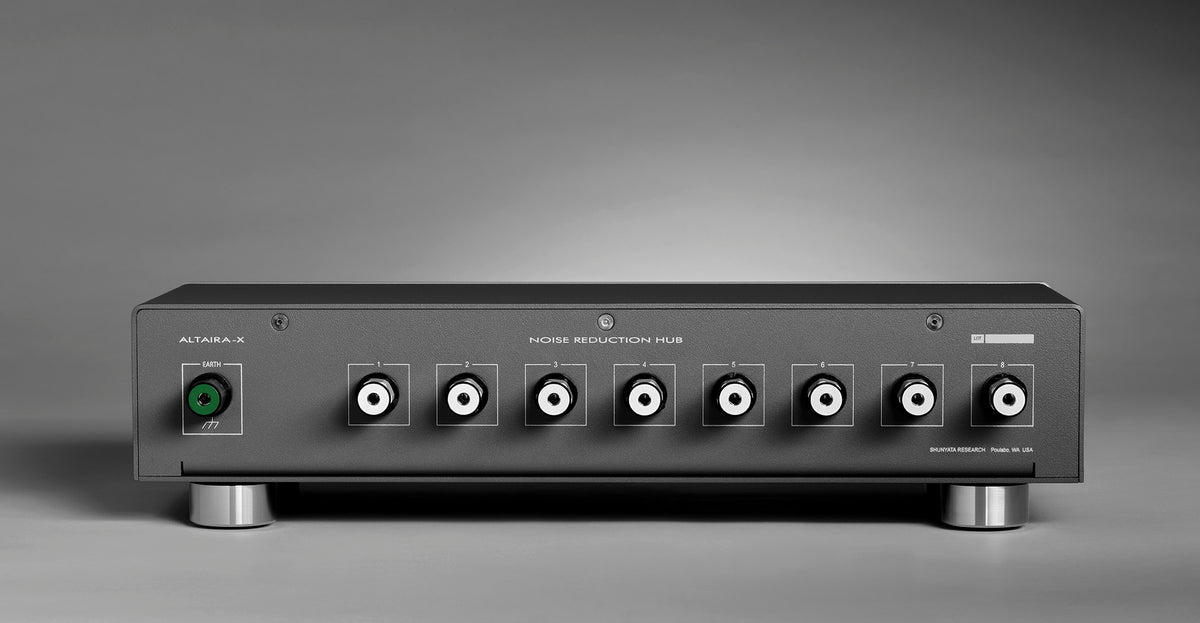

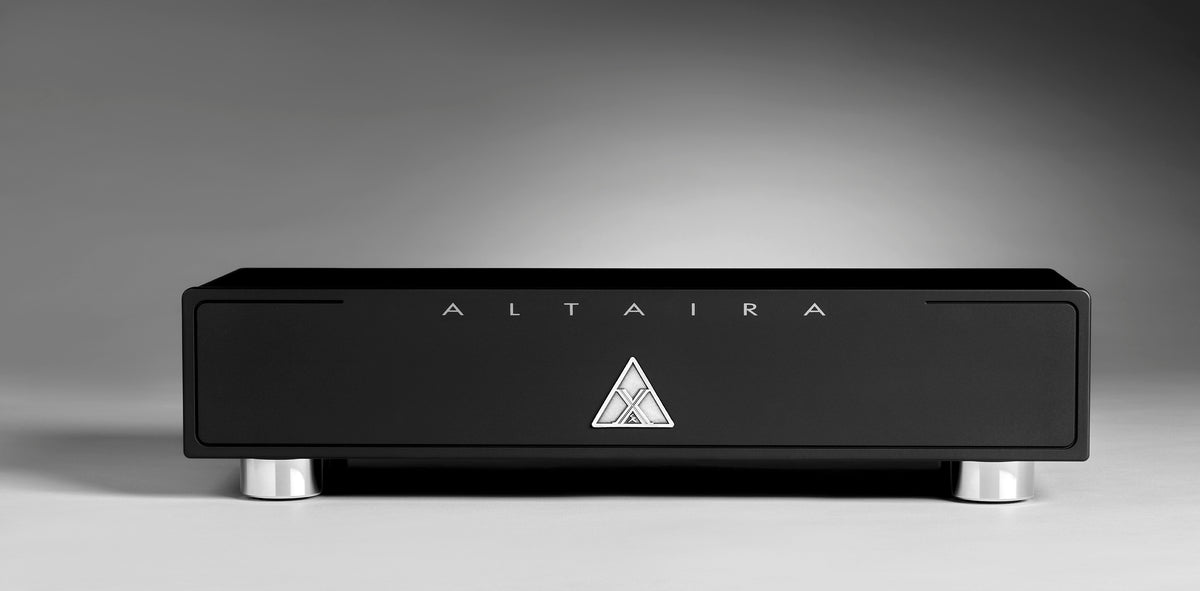

Altaira-X is the reference grounding hub: eight terminals in eight isolation zones, with 6 to 12 dB of ground plane noise reduction from 3 kHz to 30 MHz and earth ground isolation of more than 6 dB from 50 kHz to 30 MHz, in a single chassis that handles both chassis and signal grounds. Aluminum and steel construction on SSF-38 stainless feet, 16 in wide, in silver or black. Pairs with the X ground cable and the Everest-X GPNR ground terminals.
Specifications
Construction
Aluminum and steel chassis, machined aluminum faceplate
Dimensions
16 in W x 7.5 in D x 3.92 in H
Earth ground isolation
More than 6 dB, 50 kHz to 30 MHz
Feet
SSF-38 stainless steel
Finish
Silver or black
Isolation zones
Eight
Made in
Poulsbo, Washington, USA
Noise reduction
6 to 12 dB, 3 kHz to 30 MHz
Power
None required
Series
Altaira-X
Terminals
Eight
Weight
13.5 lb
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
