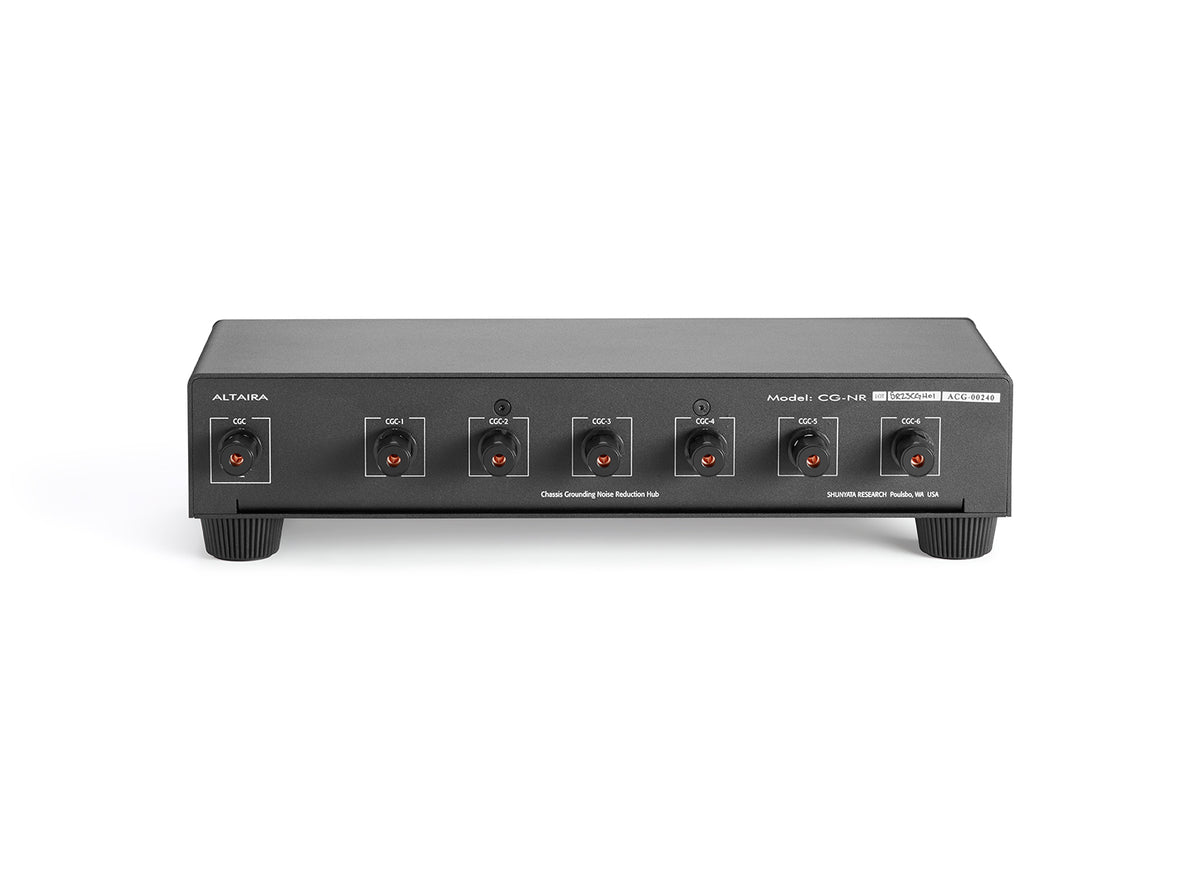

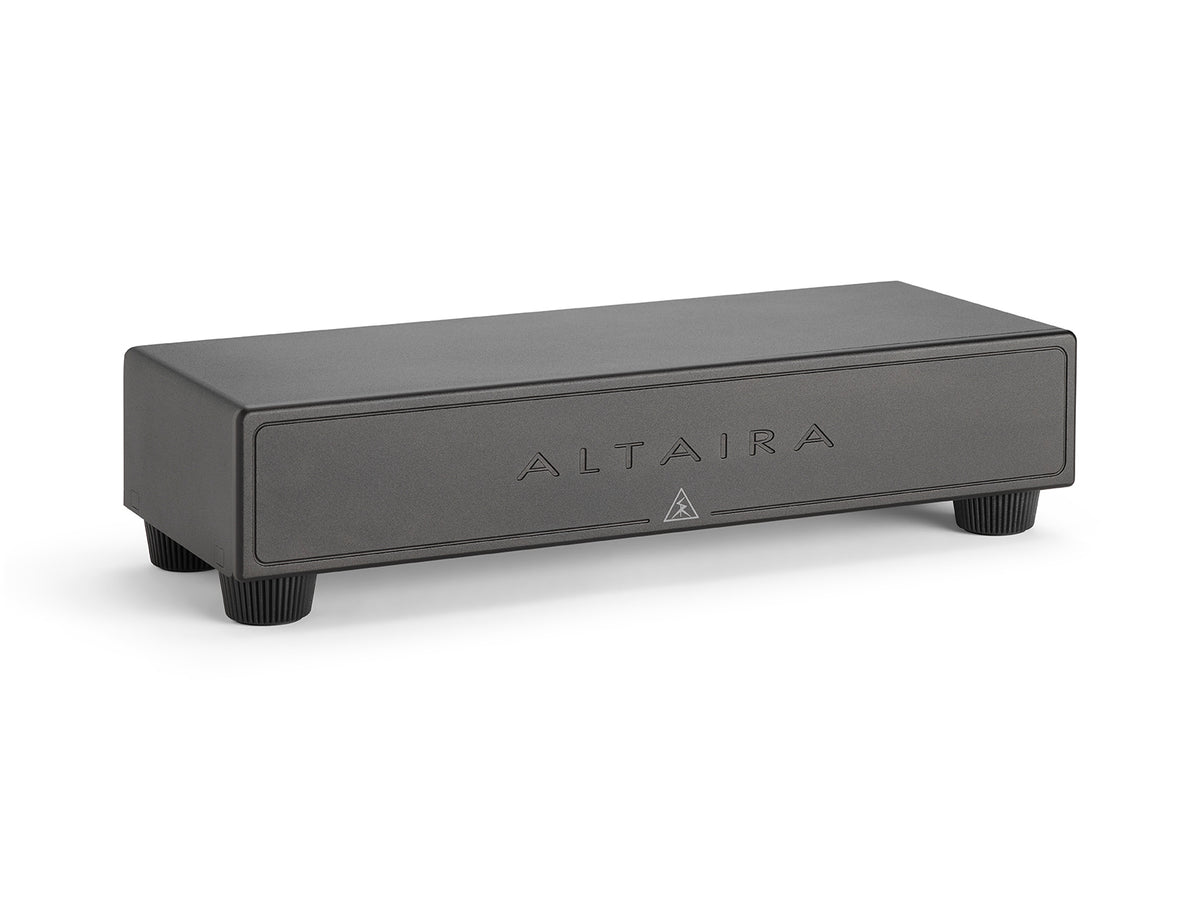

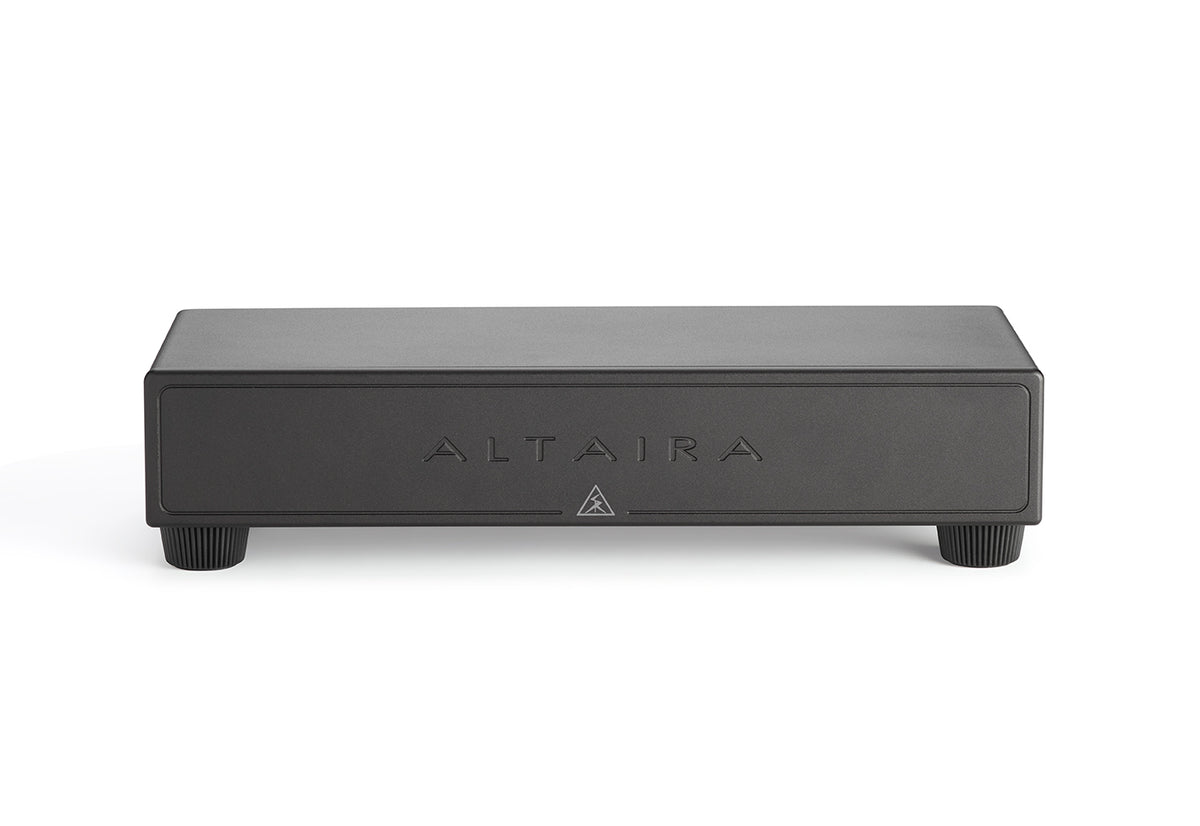

The Altaira CG-NR is the chassis ground hub: six ground terminals in six isolation zones, with noise reduction of 6 to 12 dB from 3 kHz to 30 MHz on the ground plane shared by the connected components. Each component's chassis ground post, or a ground tail into an unused input, runs to the hub on a Shunyata ground cable; the hub itself needs no power. Aluminum and steel chassis with a machined faceplate, in silver or black.
Specifications
Construction
Aluminum and steel chassis, machined aluminum faceplate
Dimensions
14.1 in W x 6.9 in D x 3.4 in H
Feet
Isolation polymer footer
Finish
Silver or black
Function
Chassis ground center
Isolation zones
Six
Made in
Poulsbo, Washington, USA
Noise reduction
6 to 12 dB, 3 kHz to 30 MHz
Power
None required
Series
Altaira
Terminals
Six
Weight
8.2 lb
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
