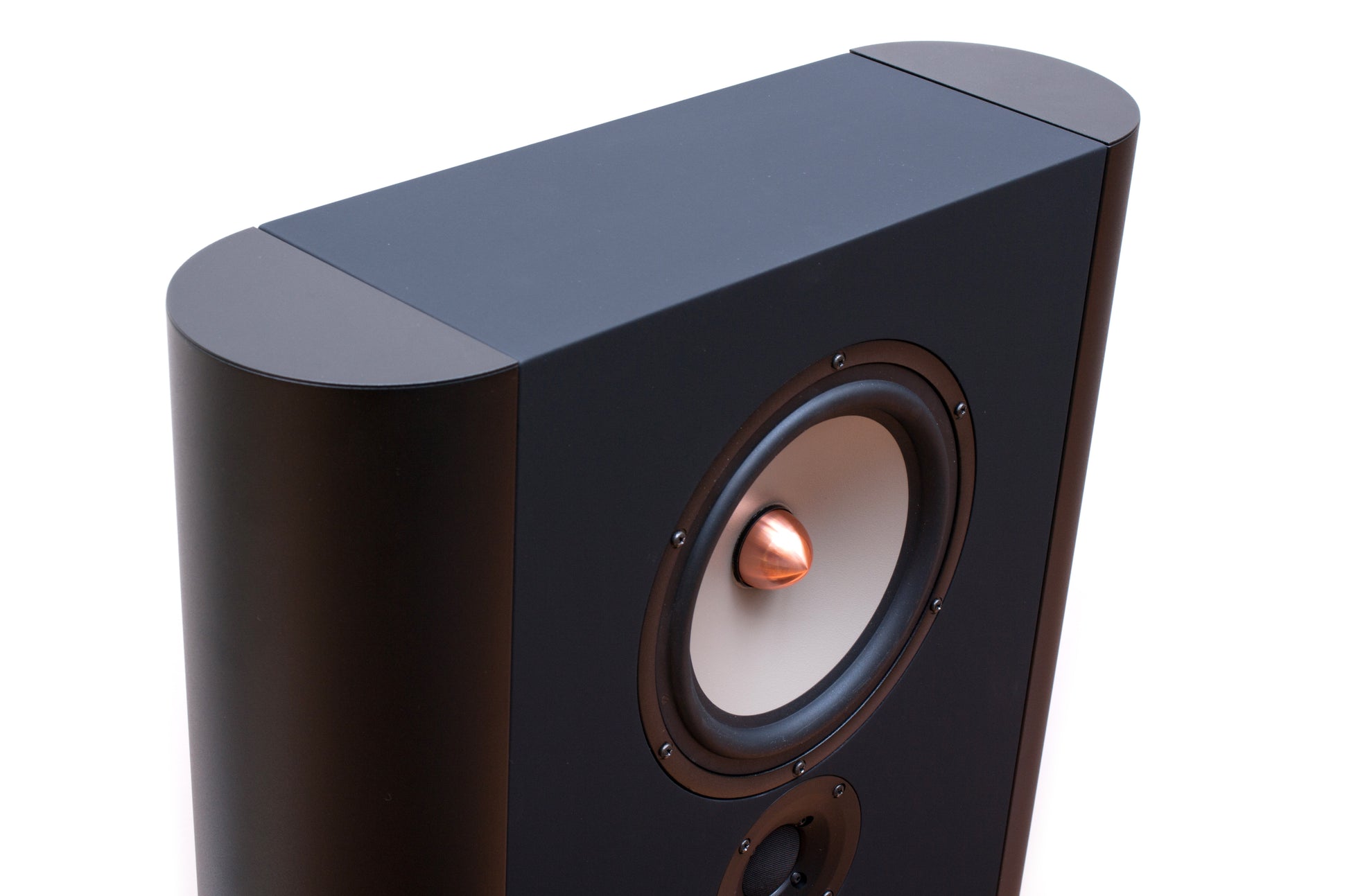

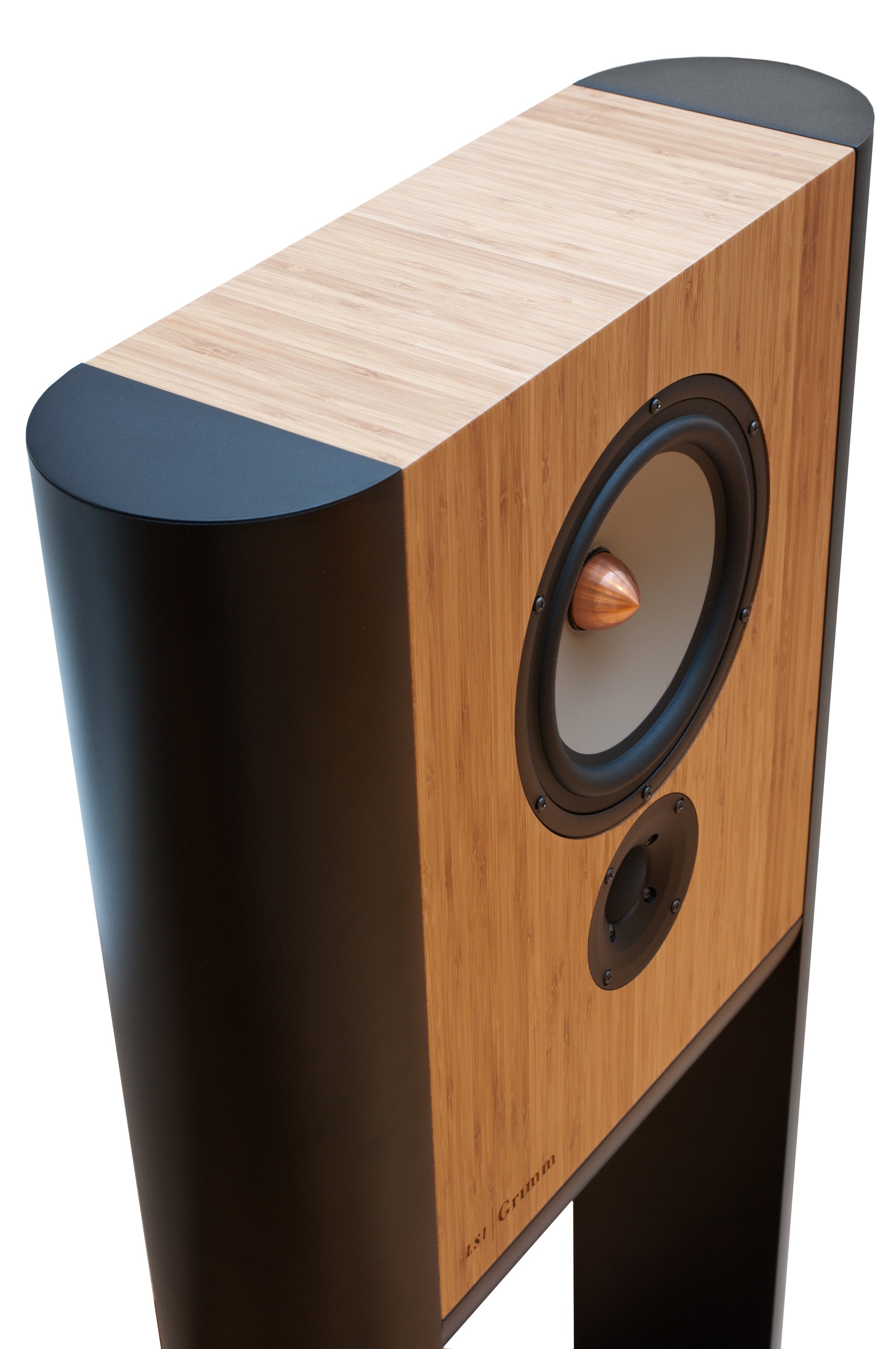

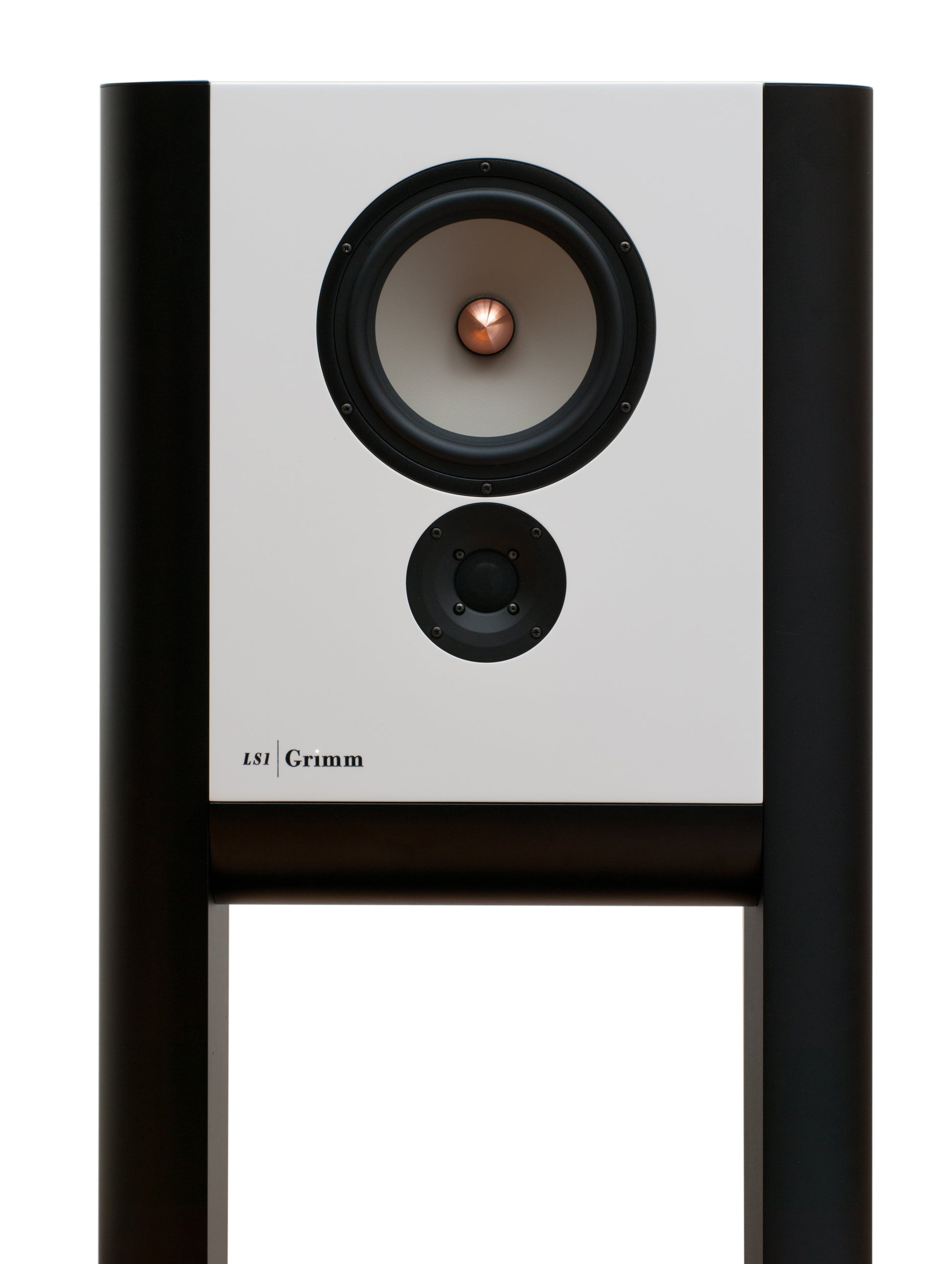

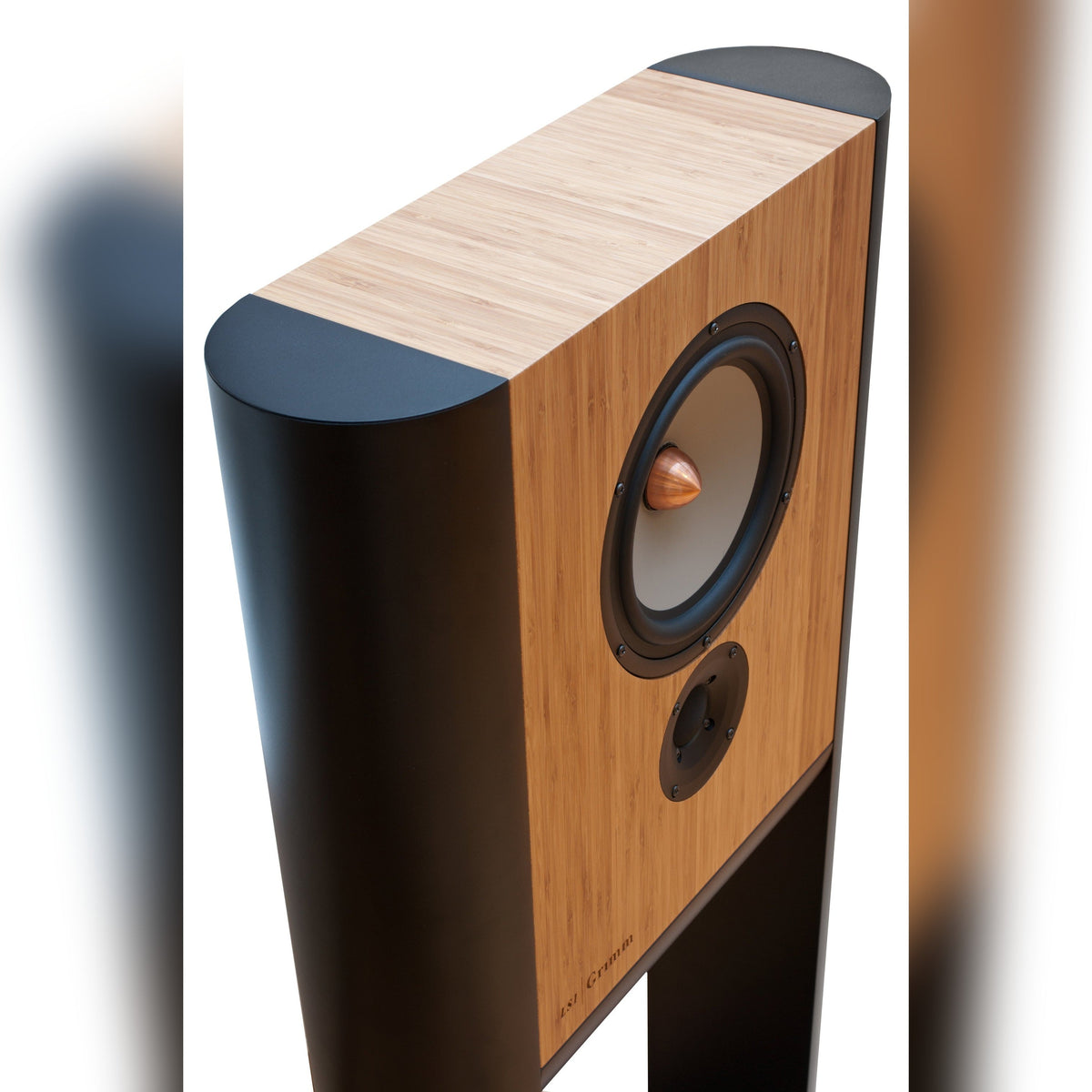

The LS1v2 is a complete active audio system rather than a conventional loudspeaker, integrating digital signal processing, converters and amplification in one of the speaker's legs so it needs only an analog or digital line source to perform. An 8-inch magnesium woofer and 1-inch dome tweeter work from a 14-litre sealed enclosure suspended between two half-cylinder legs that combat diffraction. Computer Aided Calibration during production linearizes the frequency response, with controlled bass extension down to 35 Hz.
Specifications
Configuration
Active two-way system, unidirectional down to 250 Hz
Drivers
8" magnesium woofer, 1" dome tweeter (audiophile quality Seas drivers)
Amplification
Two 180 W Hypex NCore class D power amplifiers per speaker
Processing
48/76-bit DSP with Computer Aided Calibration, clock circuit shared with the CC1 master clock
Inputs
Digital and analog audio, with filtered analog subwoofer output
Bass response
Controlled down to 35 Hz
Warranty
5 year limited
