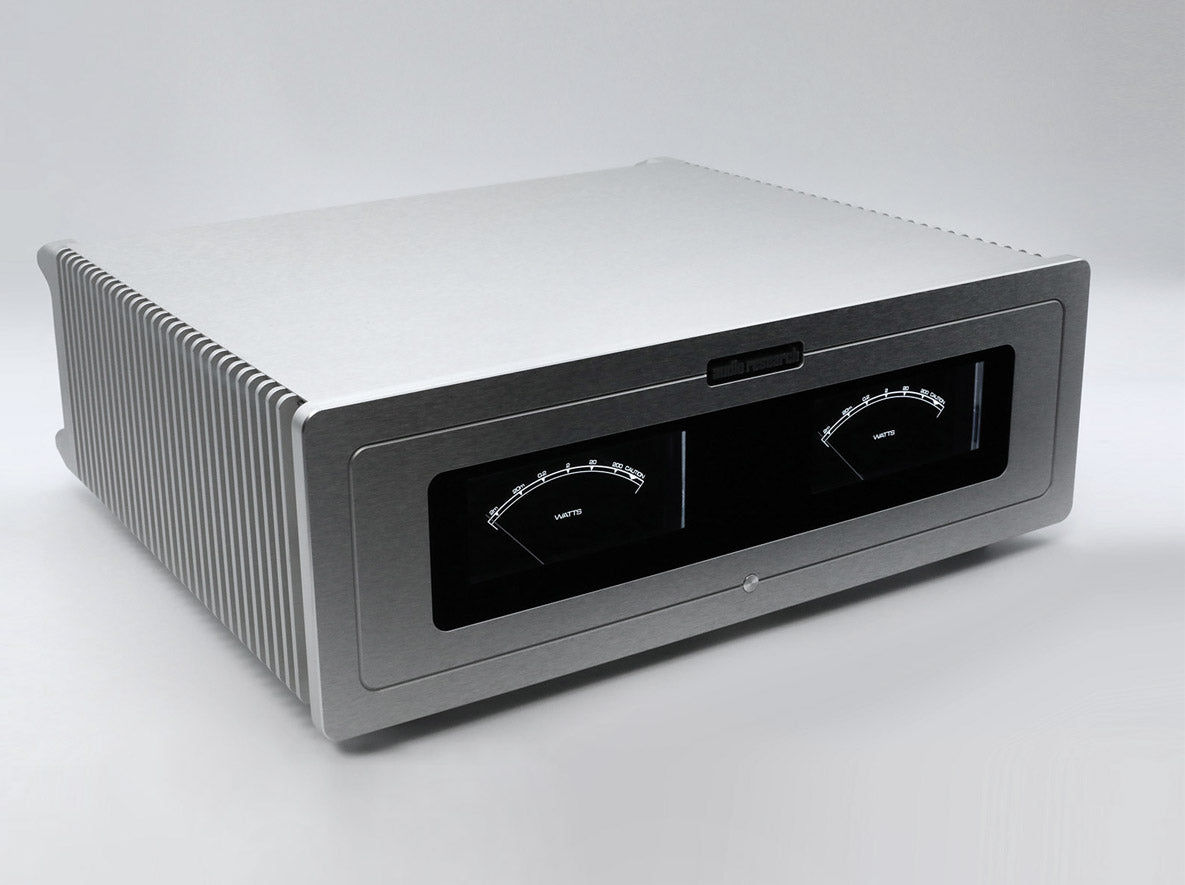

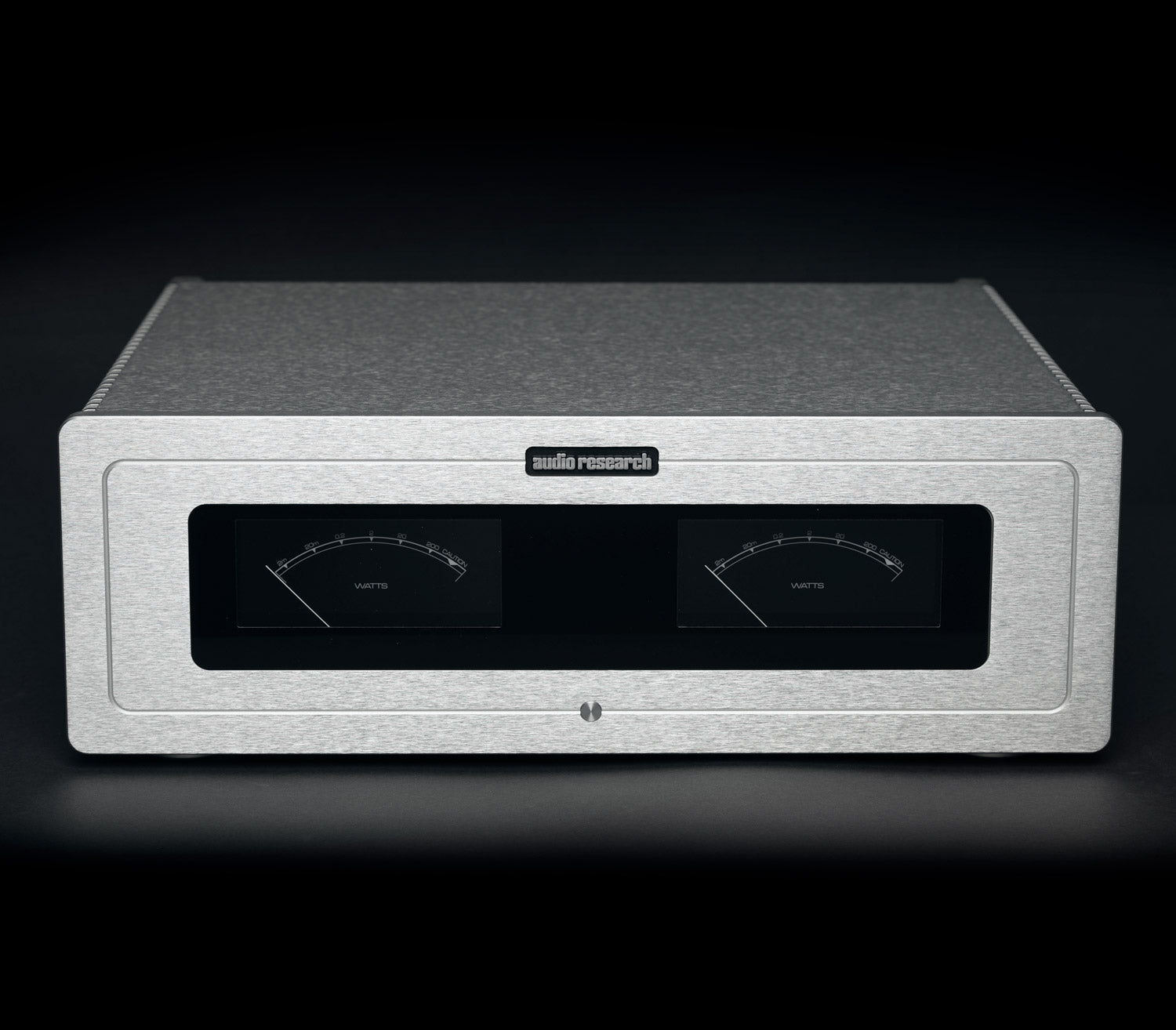

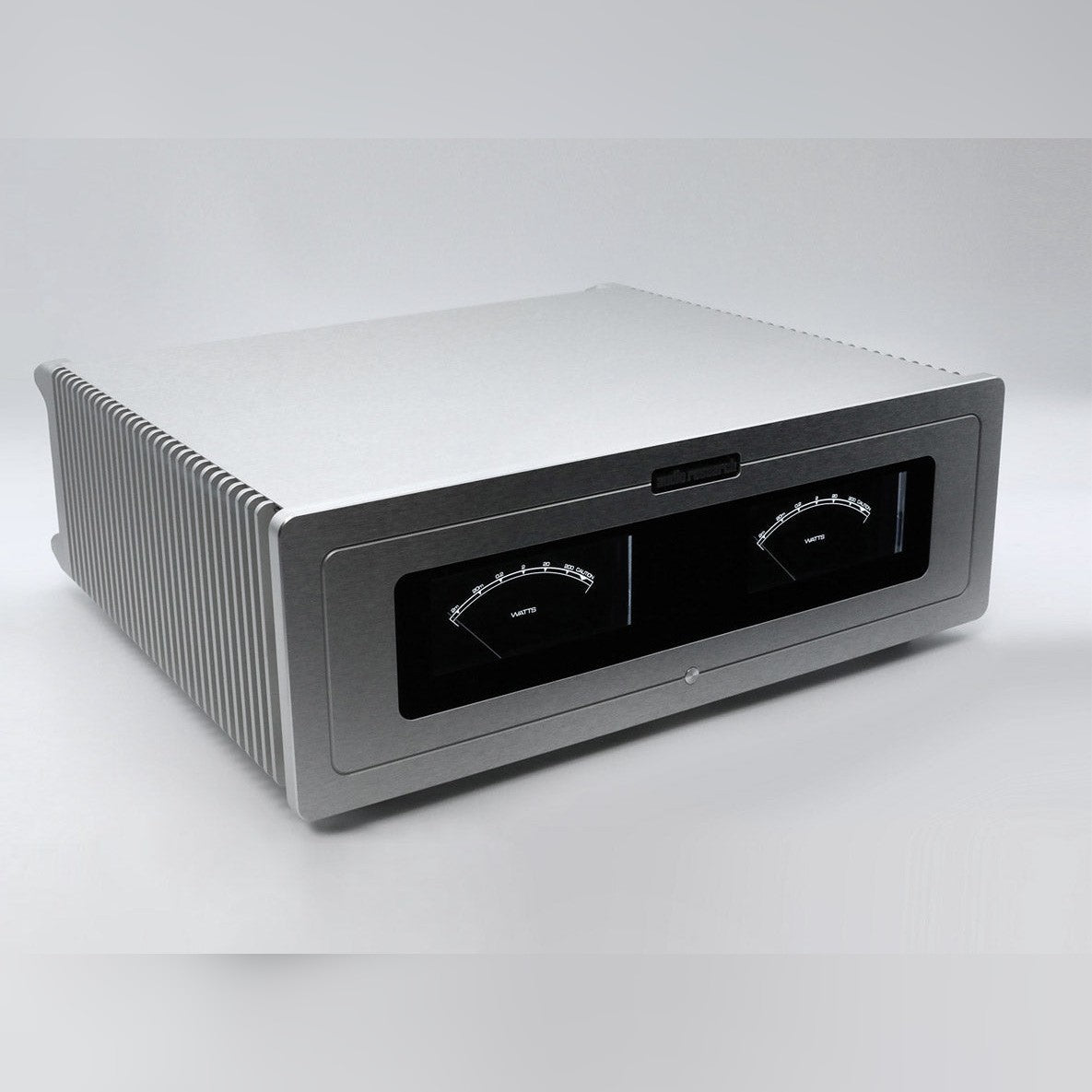

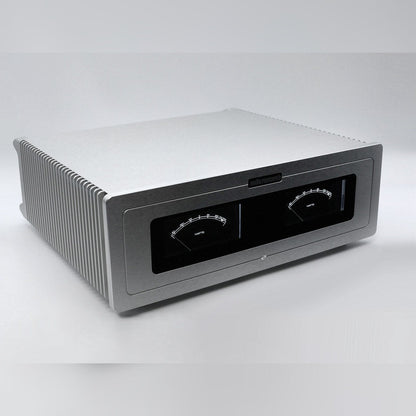

The S-200 is a 200-watt-per-channel stereo amplifier from Audio Research's solid-state engineering team, a pure Class A/B design on a truly dual-mono platform with dual toroidal transformers feeding fully balanced circuits. Bipolar transistors were chosen over MOSFETs for their purity, transparency and dynamics. The machined aluminum chassis, available in black or silver anodized finishes, carries custom machined heat sinks and power output meters styled after the Reference amplifiers, rendered on a solid black background.
Specifications
Damping factor
300 from 20Hz to 1kHz
Dimensions
19 in W x 7 in H x 17.5 in D, 41 lbs net
Frequency response
20Hz to 20kHz (+/-0.1dB)
Input impedance
100K ohms balanced or single-ended
Power output
200 watts per channel into 8 ohms, 400 watts into 4 ohms
THD
Less than 0.1% from 0.25W to rated output into 8 ohms at 1kHz
Topology
Pure Class A/B, dual mono, fully balanced, bipolar output devices
