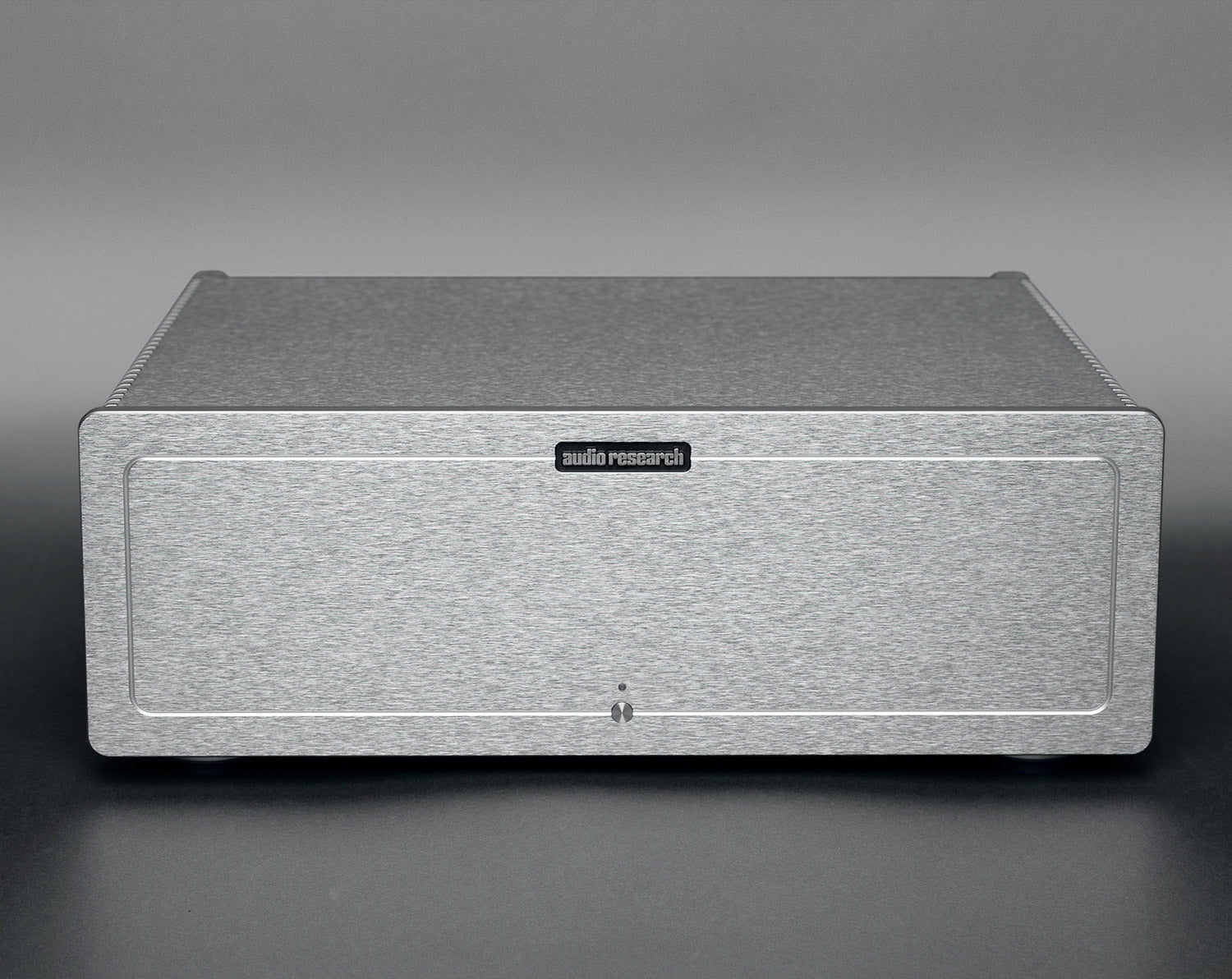

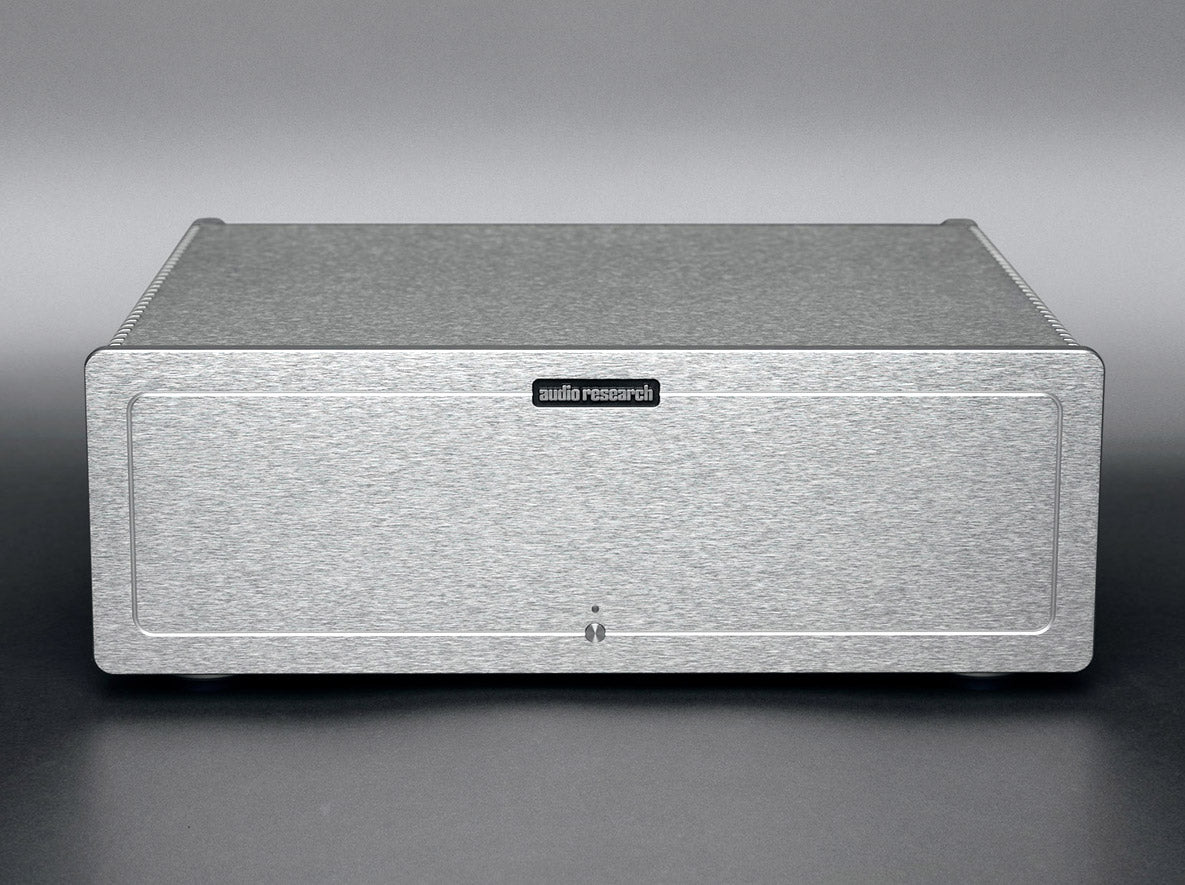

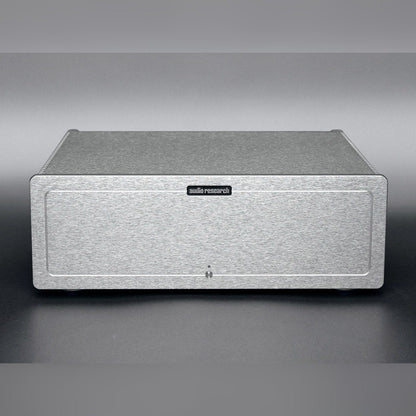

The S-100 answers founder Bill Johnson's demand that solid-state designs never fail to engage the listener. Like the S-200, it is a pure Class A/B design on a dual-mono platform, conservatively rated at 100 watts per channel and doubling into 4 ohms via dual toroidal transformers and a fully balanced stereo circuit, with bipolar transistors chosen over MOSFETs. The machined aluminum chassis in black or silver anodized finish features custom machined heat sinks with no visible fasteners from the front or top, and every unit is produced in the Minnesota facility alongside the Reference tube amplifiers.
Specifications
Dimensions
19 in W x 7 in H x 17.5 in D, 41 lbs net
Frequency response
20Hz to 20kHz (+/-0.1dB)
Gain
26dB
Input impedance
100K ohms balanced or single-ended
Power output
100 watts per channel into 8 ohms, 200 watts into 4 ohms
THD
Less than 0.1% from 0.25W to rated output into 8 ohms at 1kHz
Topology
Pure Class A/B, dual mono, fully balanced, bipolar output devices
