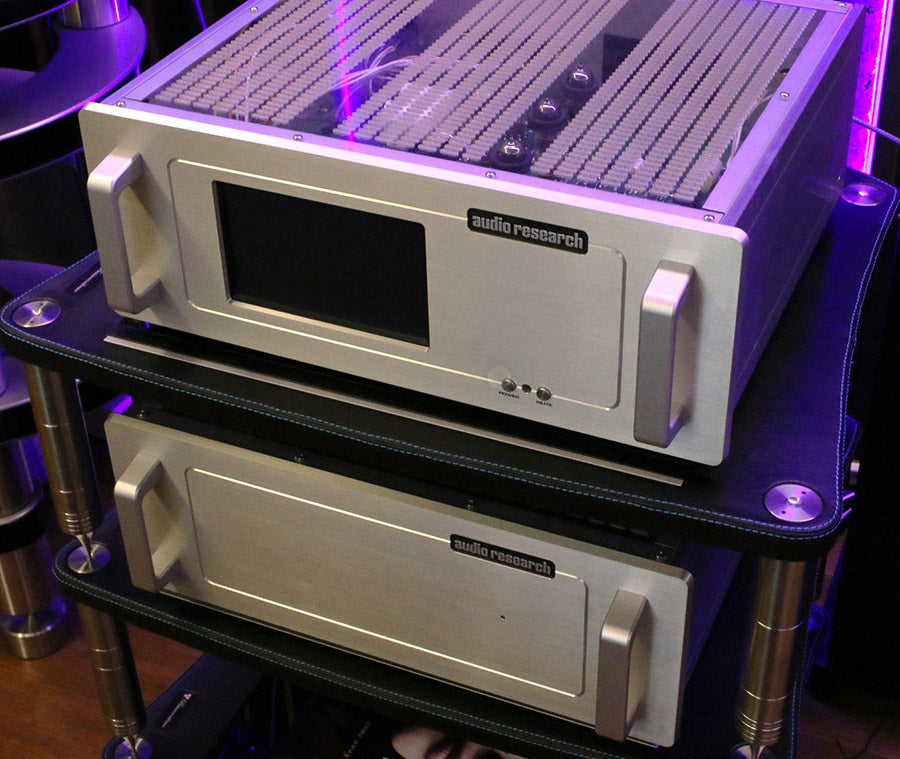

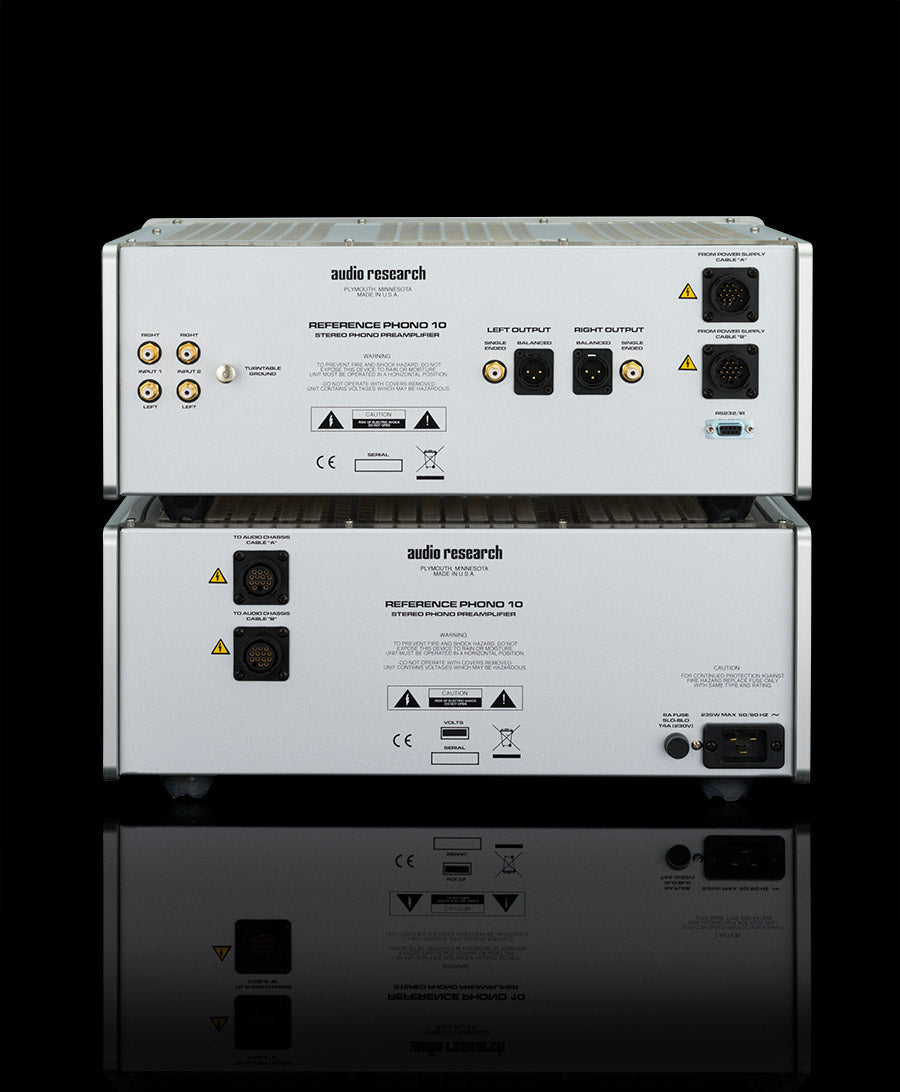

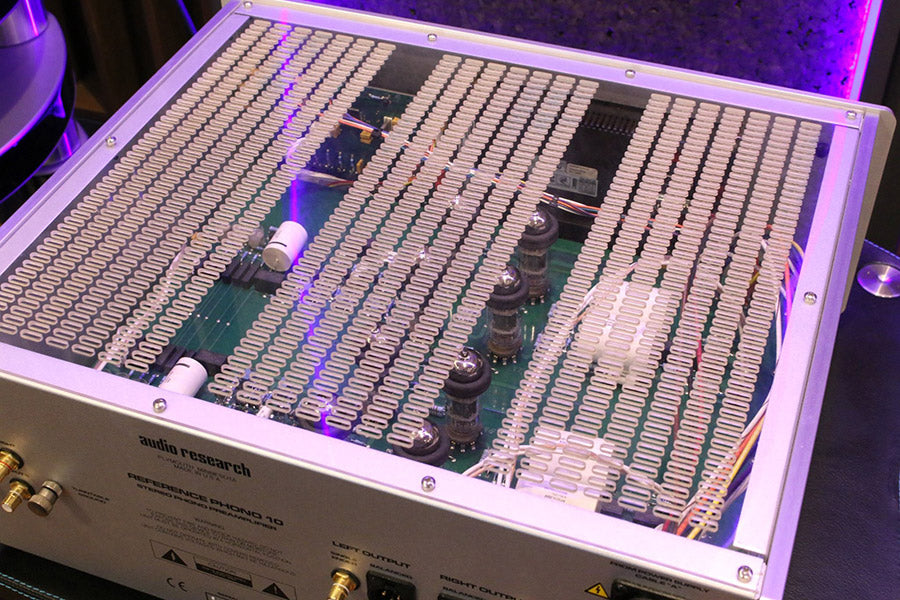

The Reference Phono 10 is Audio Research's ultimate phono stage, a true dual-mono design across separate amplification and power supply chassis, with independent signal paths, separate high- and low-voltage transformers per channel, and twenty stages of electronic regulation including separate vacuum-tube regulation for each channel. The fully discrete, pure Class-A, zero-feedback audio circuit uses eight 6H30 tubes, with high-gain, extremely low-noise FETs in place of a step-up transformer. Two independently configurable inputs offer switchable gain, seven loading options and selectable RIAA, Columbia and Decca equalization, all accessible by remote control.
Specifications
Configuration
Two-chassis, true dual mono
Equalization
Selectable RIAA, Columbia, Decca
Frequency response
Within 0.2dB of RIAA, 10Hz to 60kHz
Gain
Selectable 51dB (low) or 74dB (high) balanced at 1kHz, MC and MM compatible
Loading
Selectable 1000, 500, 200, 100, 50 ohms and Custom
Topology
Fully balanced, pure Class A, zero feedback
Tube complement
Eight 6H30P dual triodes, plus two each 6550C and 6H30P in power supply
