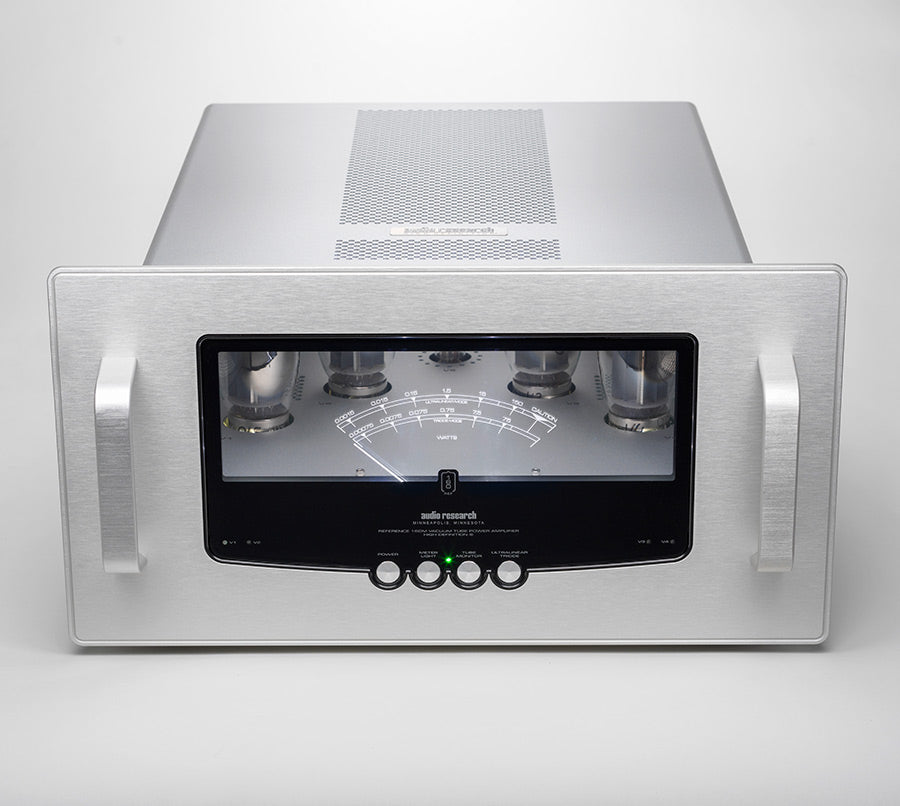

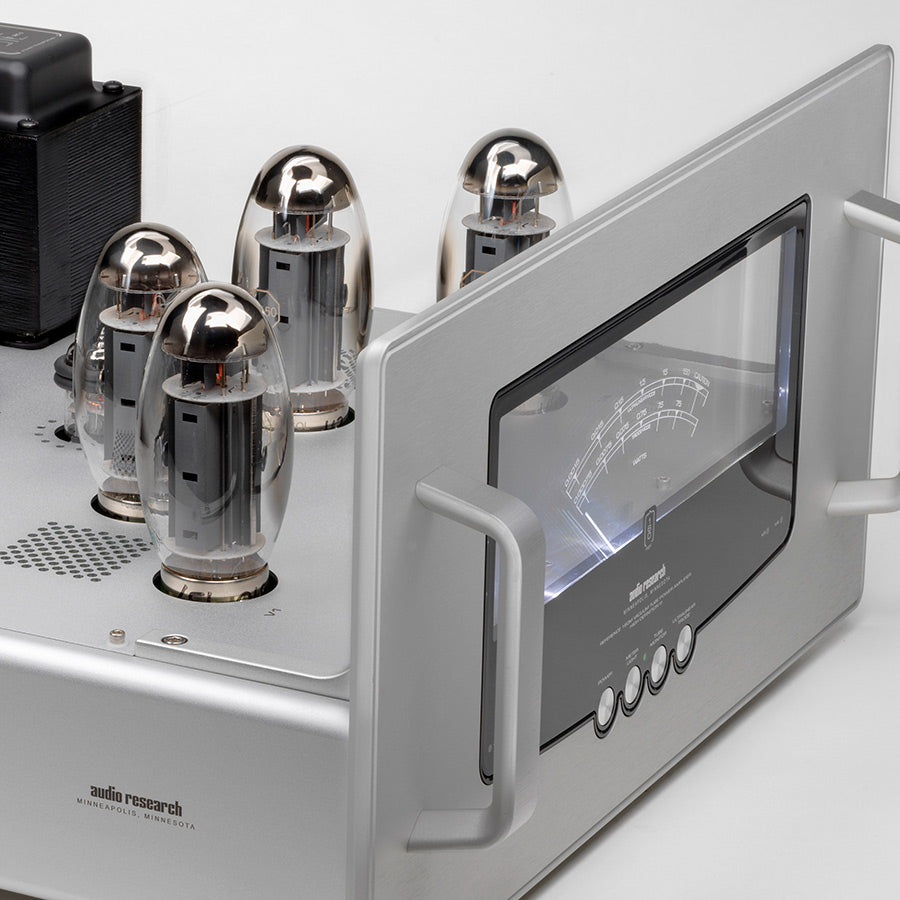

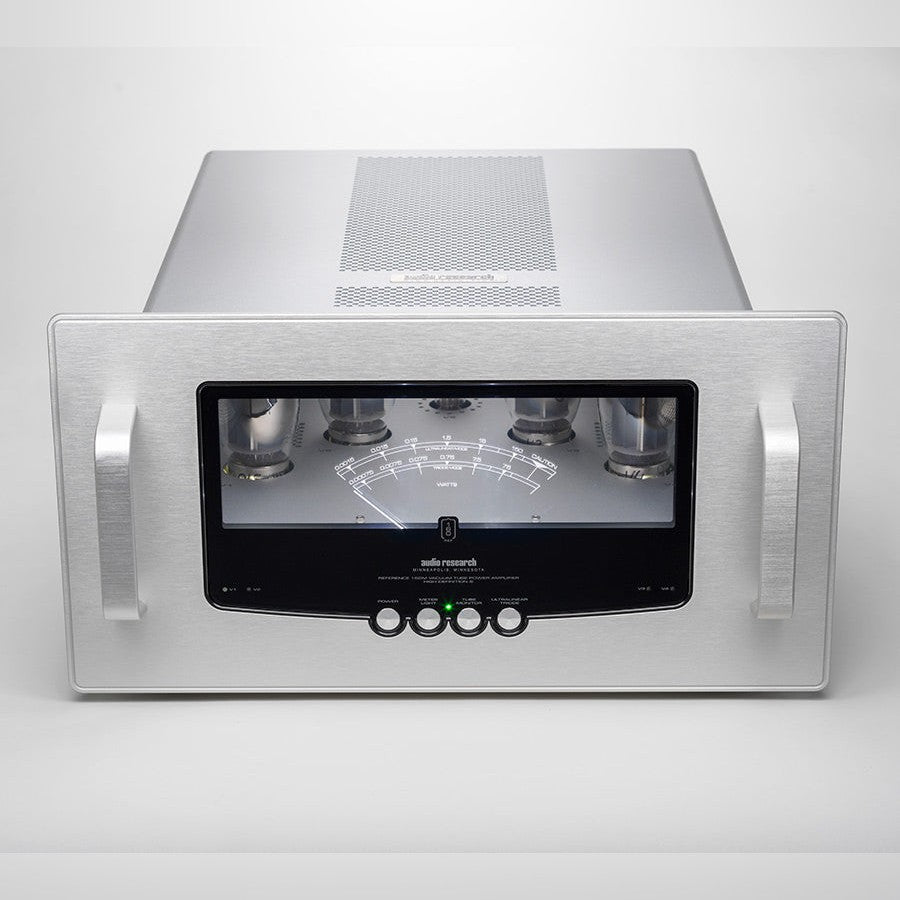

The Reference 160M MkII is a central pillar of the Reference amplifier range, with a refined audio topology that places fewer, better components in the signal path on a four-layer circuit board. Four KT150 output tubes and four 6H30 drivers deliver 140 watts, with switchable Ultralinear or Triode operation and a proprietary auto-bias circuit that continuously adjusts for tube wear and also accepts 6550, KT88 and KT120 tubes. The trademark GhostMeter serves as a window onto the output tubes while incorporating a power output meter with adjustable brightness.
Specifications
Finishes
Natural silver, black
Frequency response
0.5Hz to 110kHz (-3dB at 1 watt)
Operating modes
Switchable Ultralinear / Triode
Output taps
4, 8 and 16 ohms
Power output
140 watts continuous, 20Hz to 20kHz
Tube biasing
Proprietary auto-bias, compatible with KT150, KT120, KT88 and 6550
Tube complement
Two matched pairs KT150 output, four 6H30 gain stage (per monoblock)
