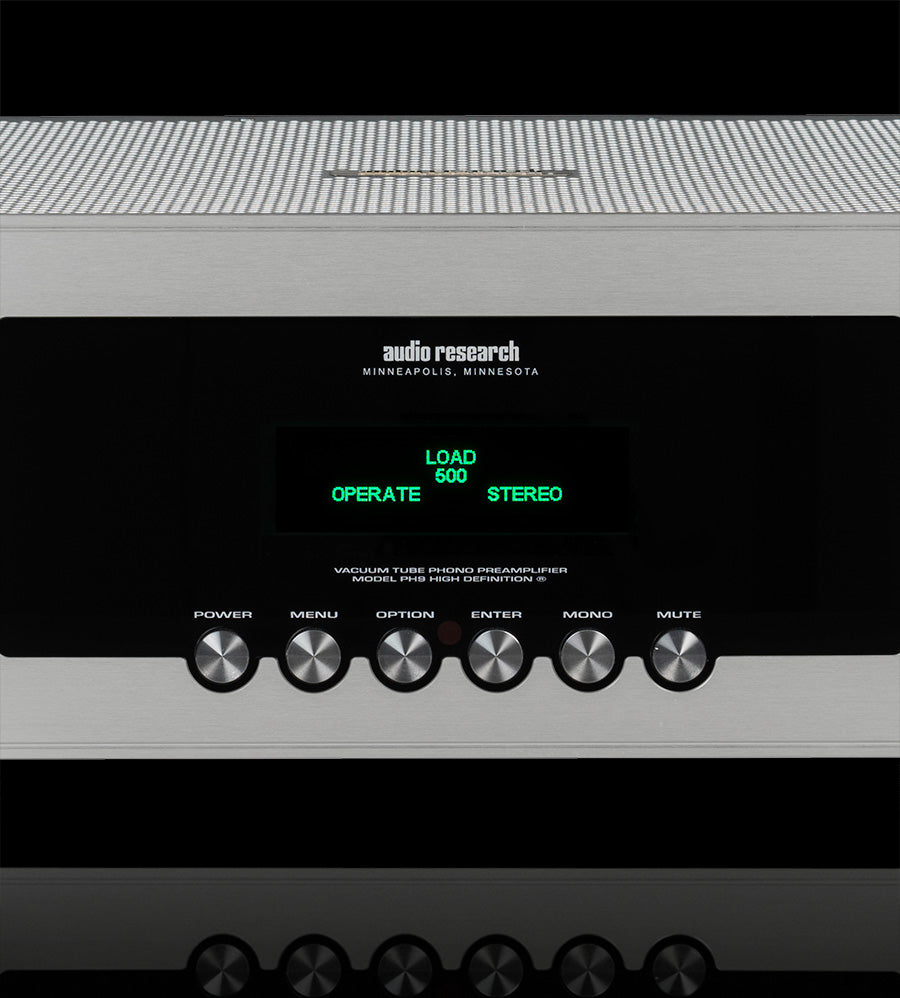

The PH9 is Audio Research's classic all-tube phono stage, providing class-leading phono preamplification for the majority of cartridge and turntable combinations. A trio of 6H30 vacuum tubes forms the core of a simple, clear signal path with 58dB of gain. Five impedance settings allow cartridge loading to be changed on the fly from the included metal remote, and cartridge impedance, tube hours and auto shutdown are managed through the menu system.
Specifications
Dimensions
19 in W x 6.5 in H x 13.7 in D, 15.4 lbs net
Frequency response
Within 0.2dB of RIAA, 5Hz to 20kHz
Gain
58dB at 1kHz
Loading
Selectable 47k, 1000, 500, 200, 100 ohms
Remote
Included metal remote with on-the-fly loading control
Tube complement
Three 6H30P dual triodes, plus one each 6550WE and 6H30P in power supply
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
