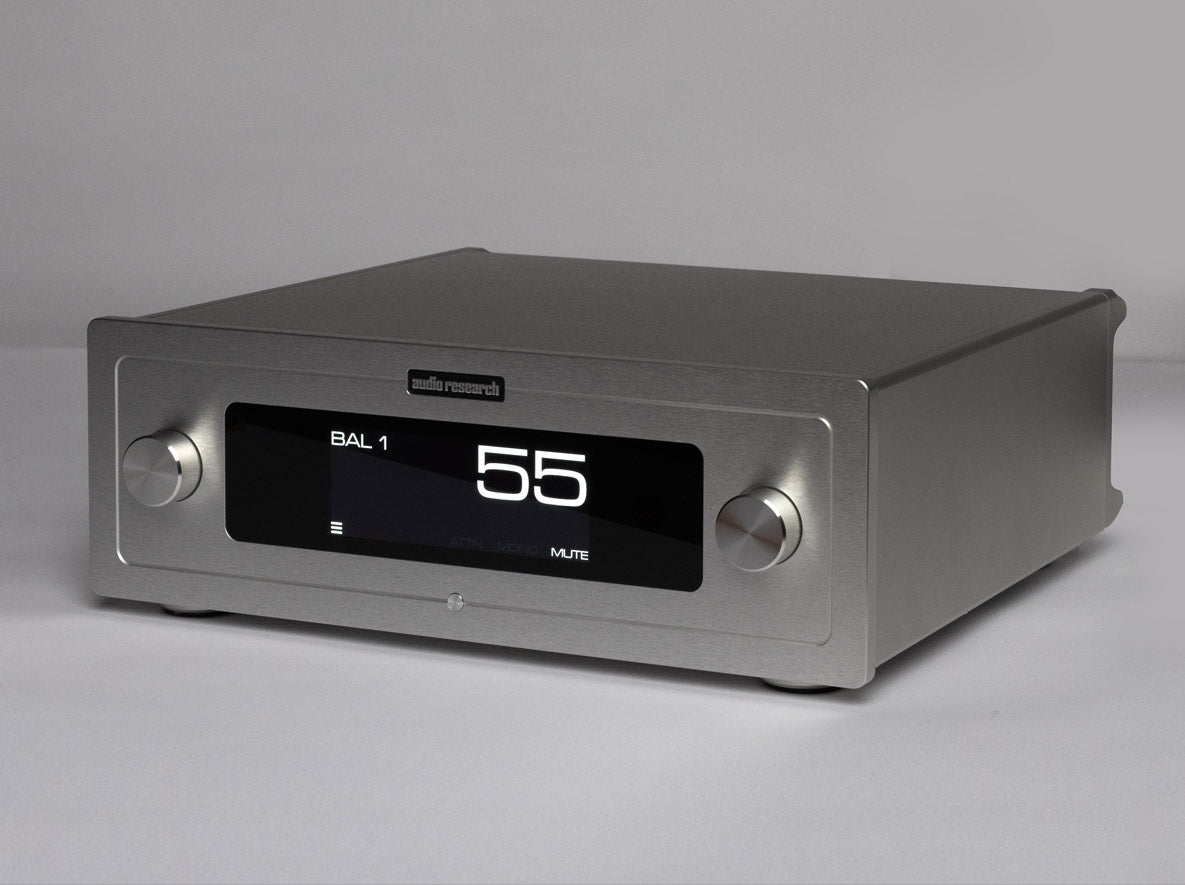

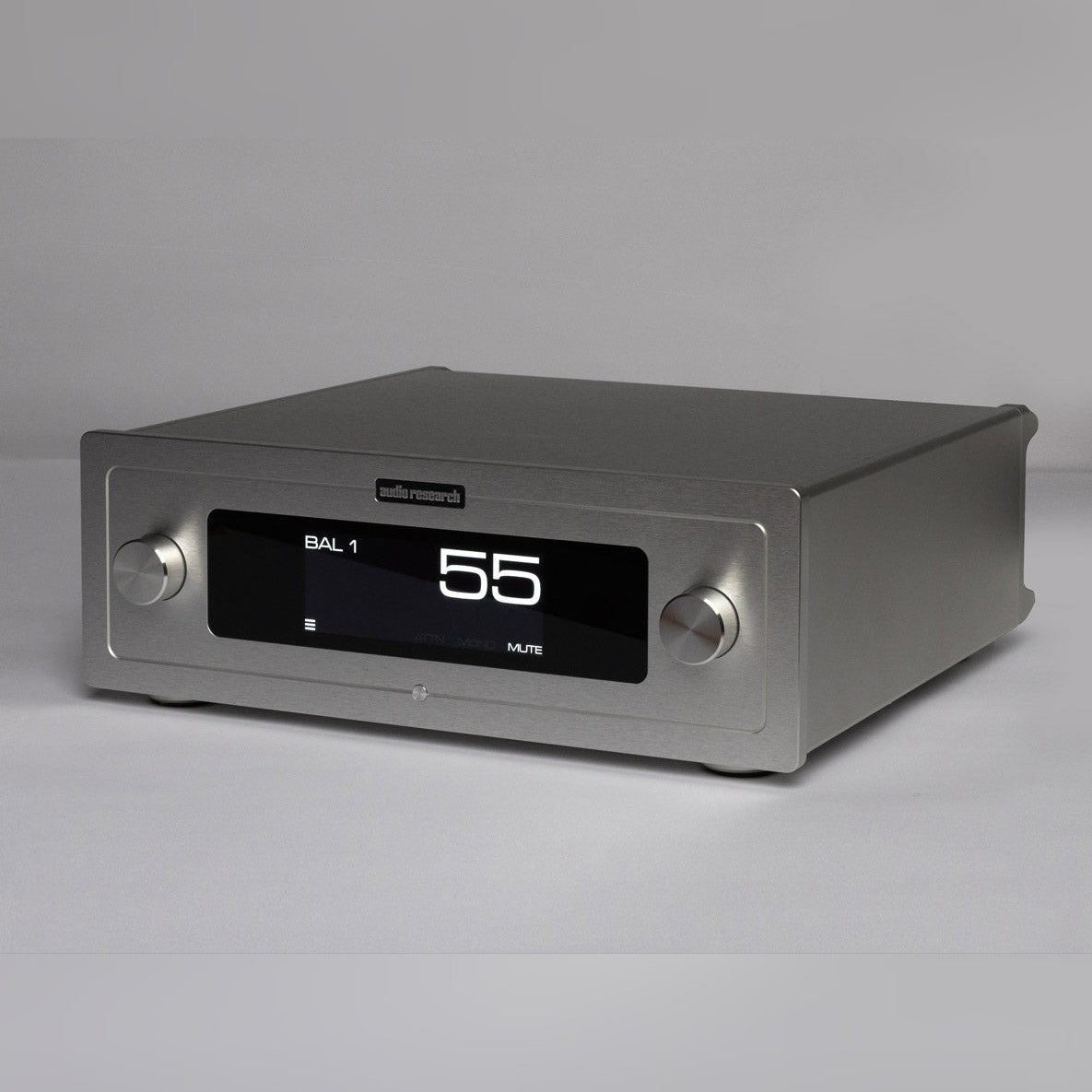

The LS-3 is a solid-state preamplifier from Audio Research's dedicated solid-state engineering team, externally identical to the LS-2 yet built on a fully balanced differential JFET input stage, a bipolar-transistor voltage amplifier and Class-A output stages. The signal path is fully dual-mono, with separate power transformers per channel, a zero-gain cascaded voltage reference and linear power supplies for low noise and outstanding dynamics. The all-aluminum chassis is shared with the LS-2, and a touch-screen display carries the font of the Reference GhostMeters for a cohesive look.
Specifications
Architecture
Dual mono with separate power transformers per channel
Dimensions
19 in W x 7 in H x 17.5 in D, 33 lbs net
Frequency response
10Hz to 40kHz (+/-0dB at rated output, balanced)
Gain
20dB balanced and single-ended
Inputs
Balanced XLR and RCA; optional user-installable DAC and MM/MC phono cards
