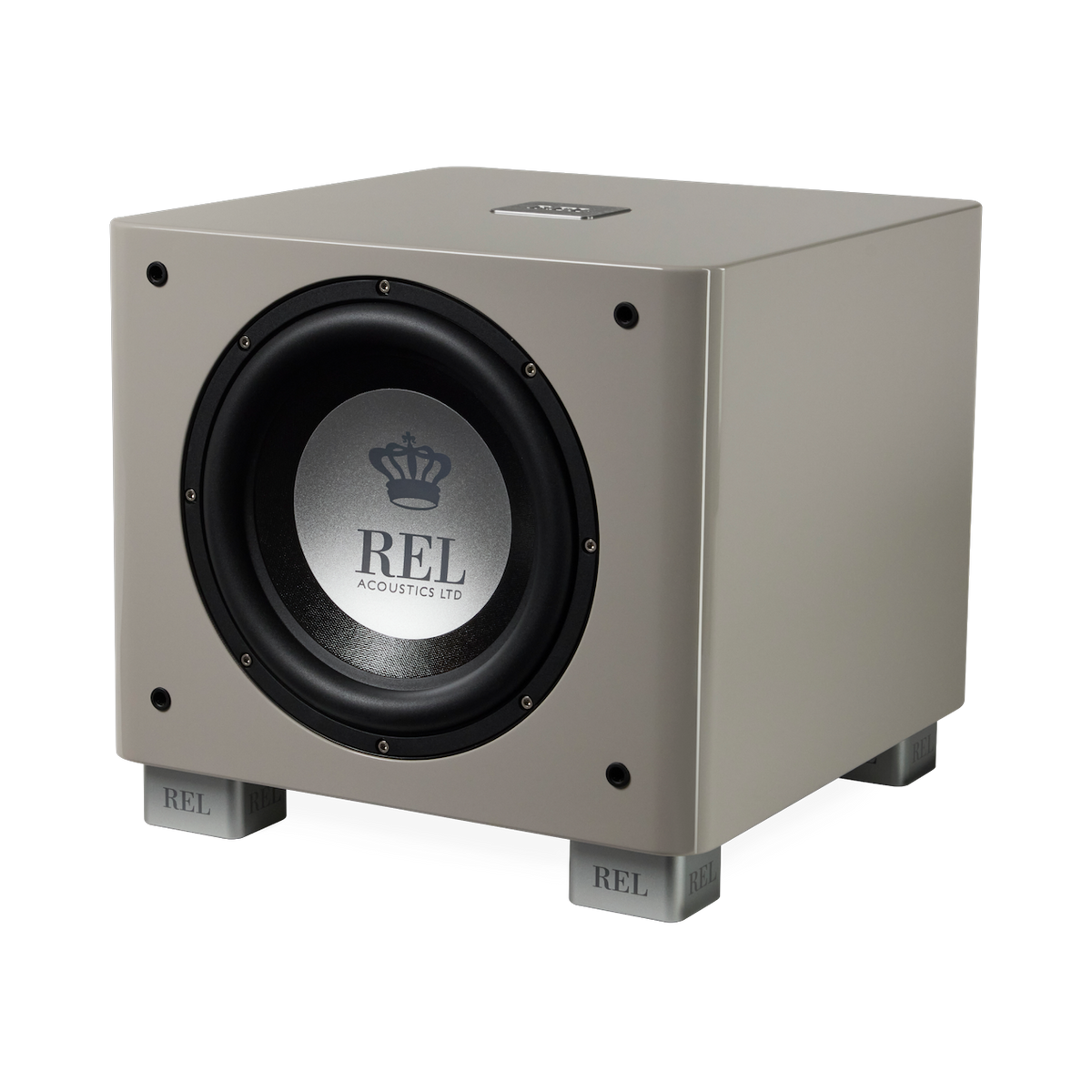

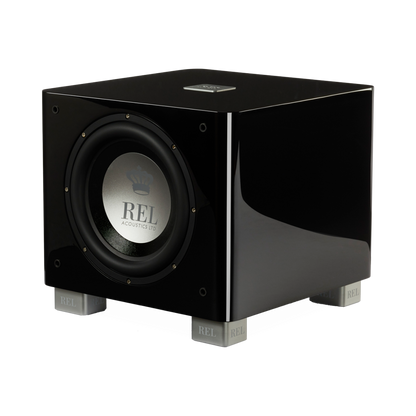

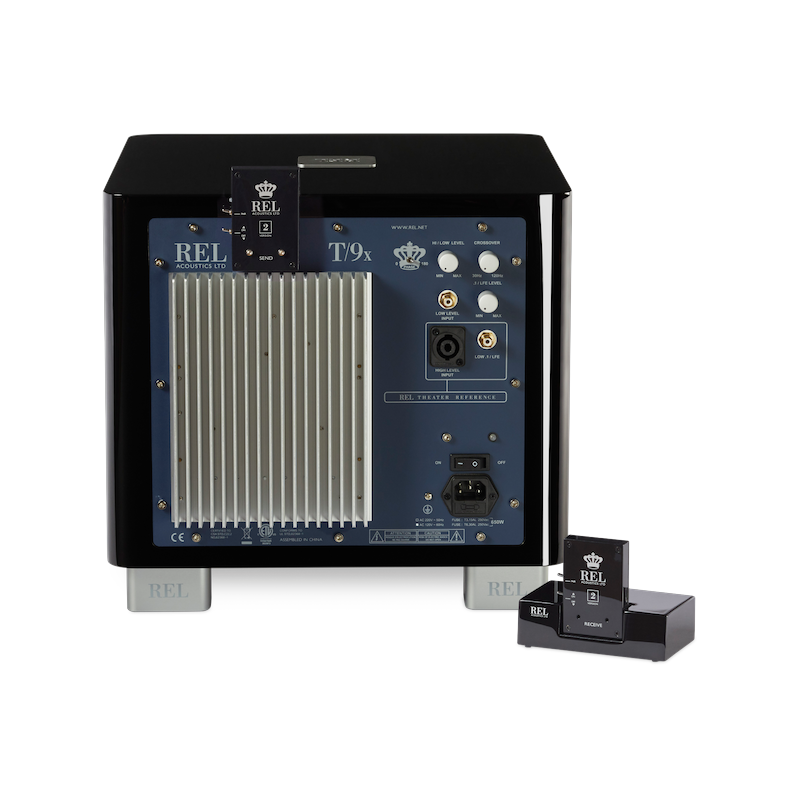

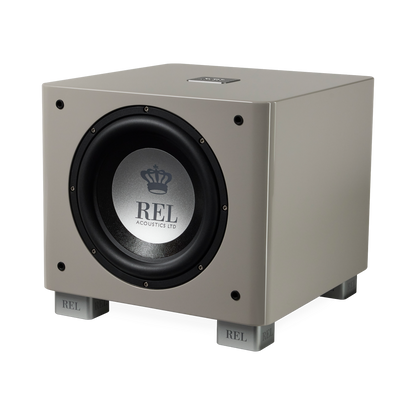

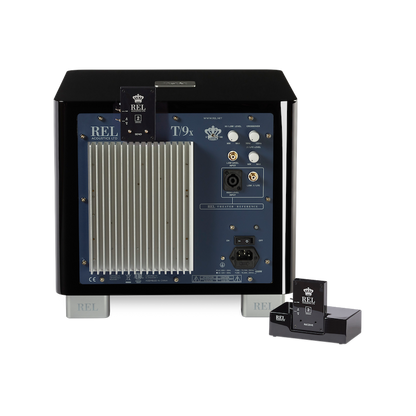

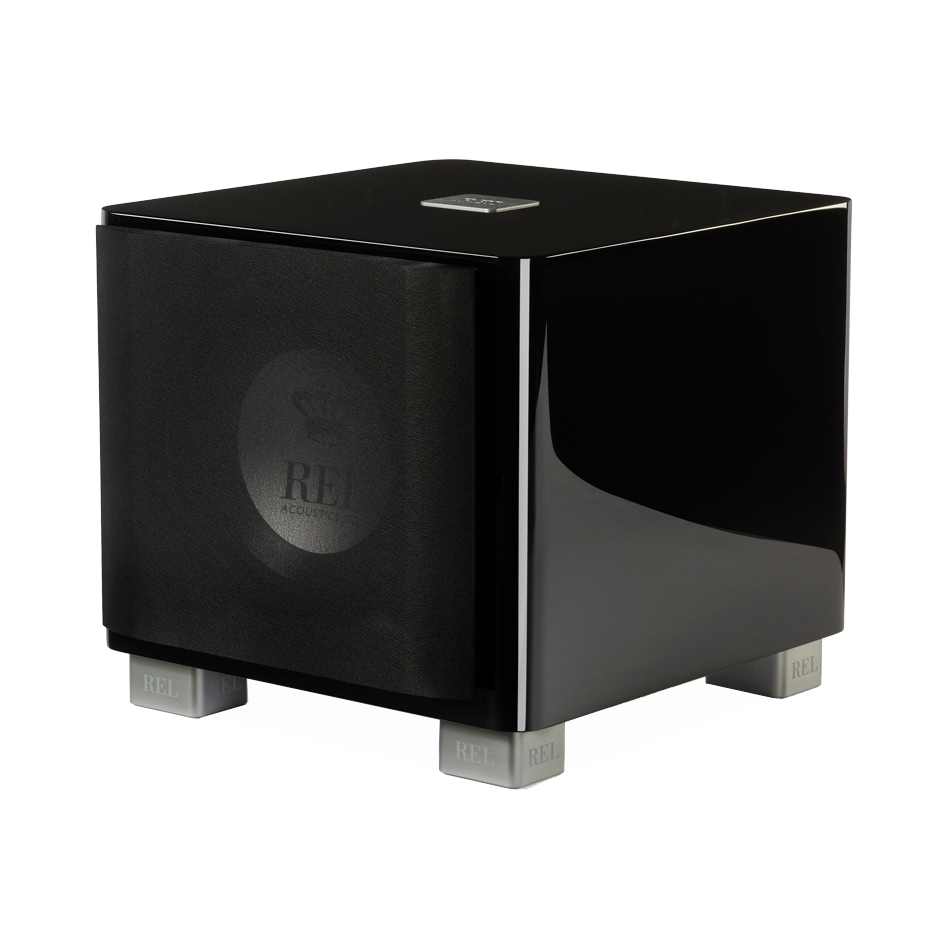

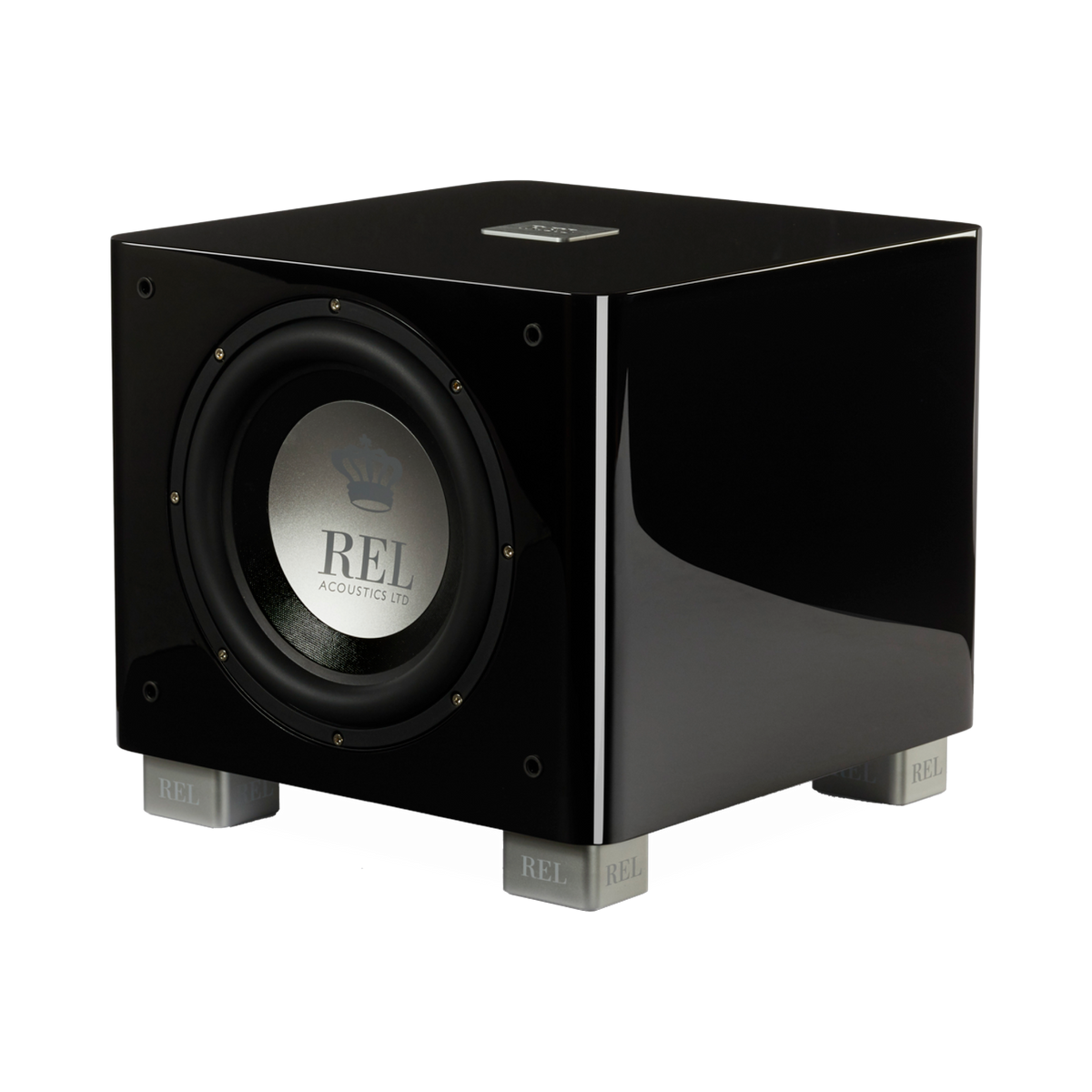

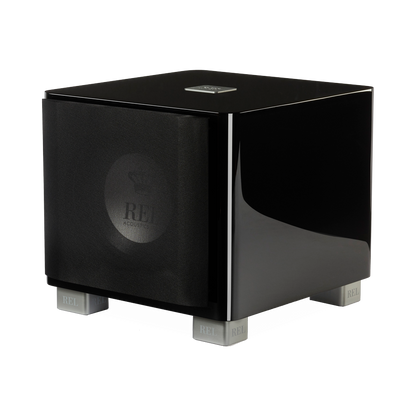

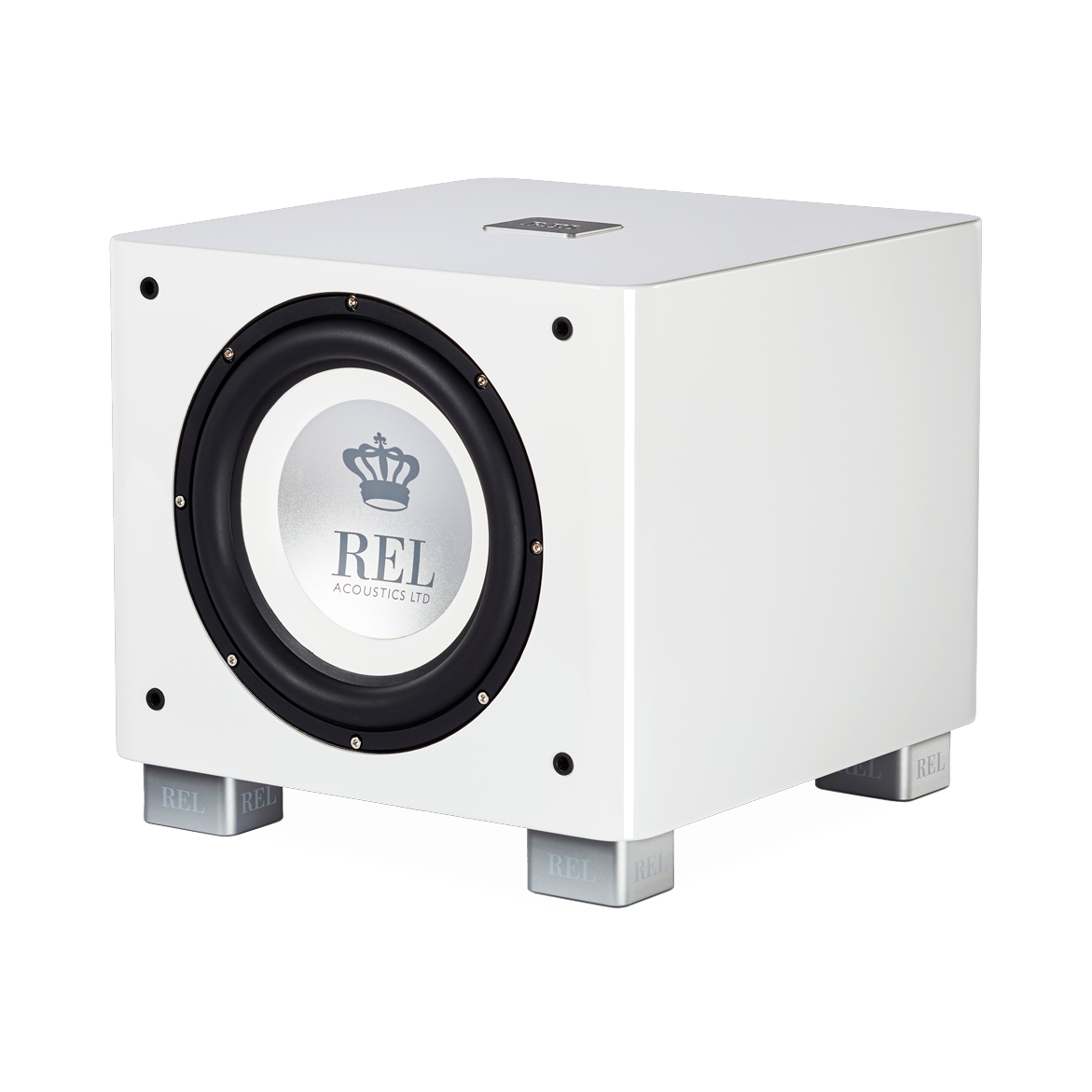

T/9x is the largest of the three standard T/x subwoofers: a 10 in. FibreAlloy long-throw active driver with an inverted alloy centre cap fires forward and a matching 10 in. passive radiator fires down, driven by a 300 W RMS Class A/B amplifier. Extension is rated at -6 dB at 27 Hz. High level input is on Neutrik SpeakOn, low level on RCA, LFE on RCA. Finished in five coats of piano black, gloss grey or gloss white lacquer; it weighs 45.5 lb. Wireless connection is through the Arrow transmitter, sold separately.
Specifications
Series
Serie T/x
Type
Front-firing active driver, down-firing passive
Active driver
10 in. (250 mm) long-throw, FibreAlloy cone, inverted alloy centre cap, steel chassis
Passive radiator
10 in. (250 mm) long-throw, FibreAlloy cone, inverted alloy centre cap, steel chassis
