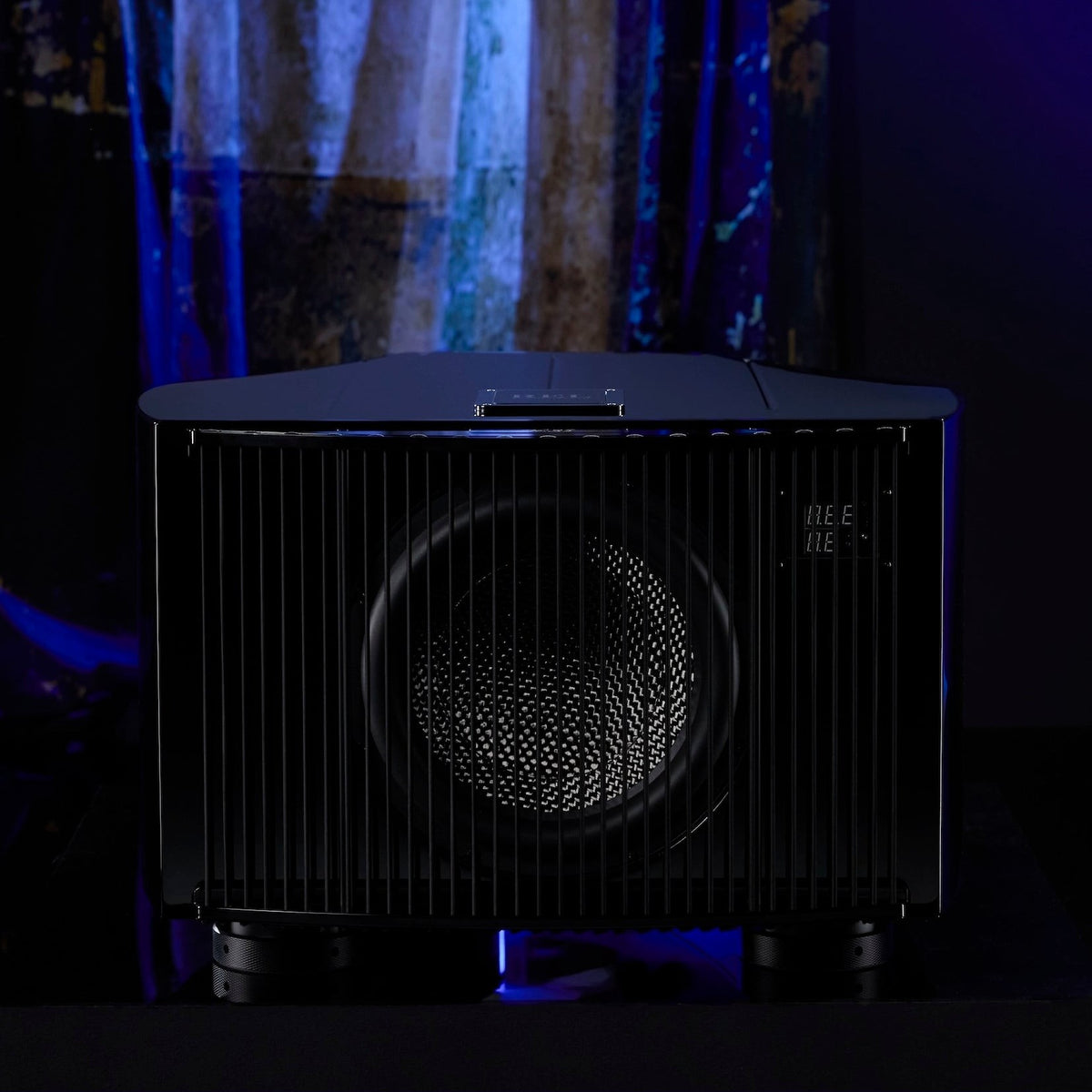

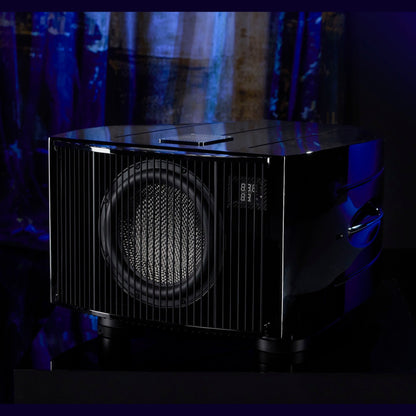

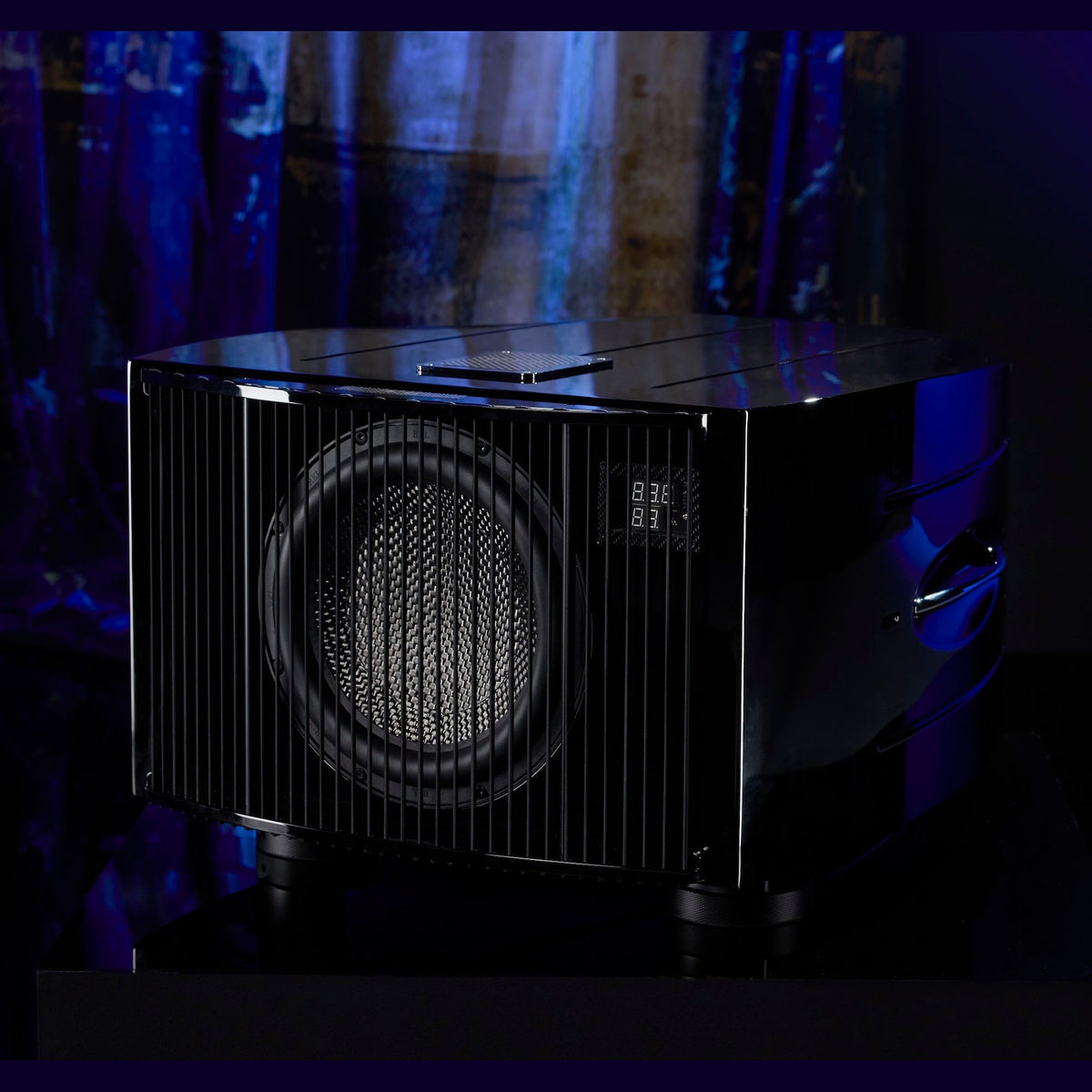

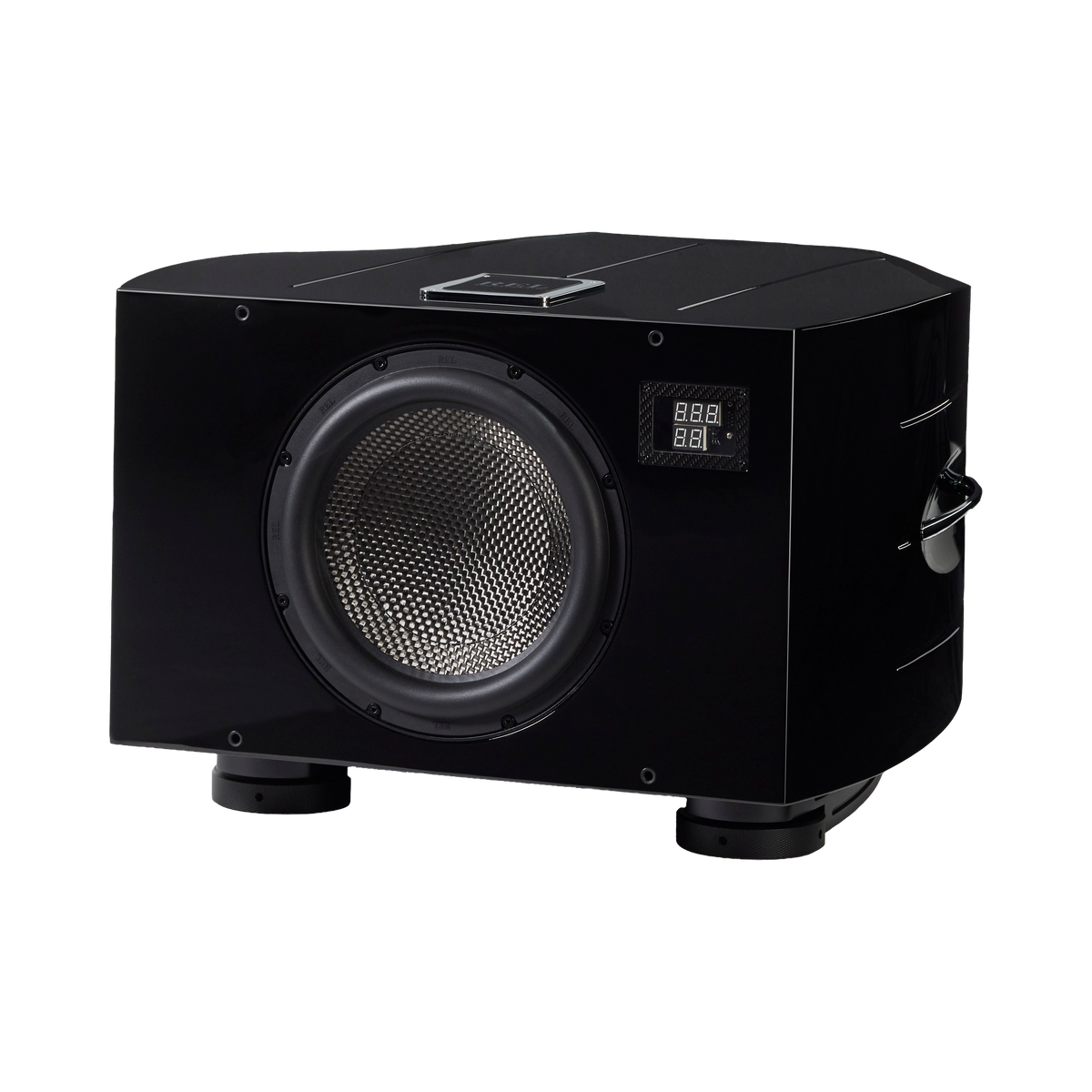

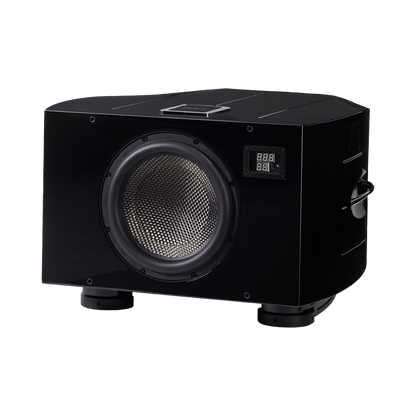

No.35 is the 12 in. Reference subwoofer. The long-throw driver has a carbon fibre cone with an inverted carbon fibre centre cap on a die cast alloy chassis, in a closed box driven by a 900 W RMS Class AB/D amplifier on an ultra high-current power supply; extension is rated at -6 dB at 17 Hz in room. Inputs are high level on Neutrik SpeakOn, stereo low level on RCA and XLR, and LFE on RCA and XLR, with pass-through outputs for a Line Array and a built-in dual parametric filter with an 80 dB gain range. The cabinet carries 12 coats of piano black lacquer and weighs 130 lb. Wireless connection is through the Airship Direct transmitter, sold separately.
Specifications
Series
Reference
Type
Closed box, front-firing driver
Active driver
12 in. (305 mm) long-throw, carbon fibre cone with inverted carbon fibre centre cap, die cast alloy chassis
Low frequency extension
-6 dB at 17 Hz in room
Amplifier
Class AB/D
Power output
900 W RMS
Inputs
High level Neutrik SpeakOn, stereo low level RCA and XLR, LFE RCA, LFE XLR
Outputs
High level Neutrik SpeakOn, LFE RCA, LFE XLR, line XLR, line RCA
Wireless
Airship Direct (sold separately)
Finish
Piano black lacquer, 12 coats
Dual parametric filter
Yes
Dimensions (W x H x D)
25.12 x 17 x 28.5 in (638 x 435 x 724 mm)
Weight
130 lb (59 kg)
