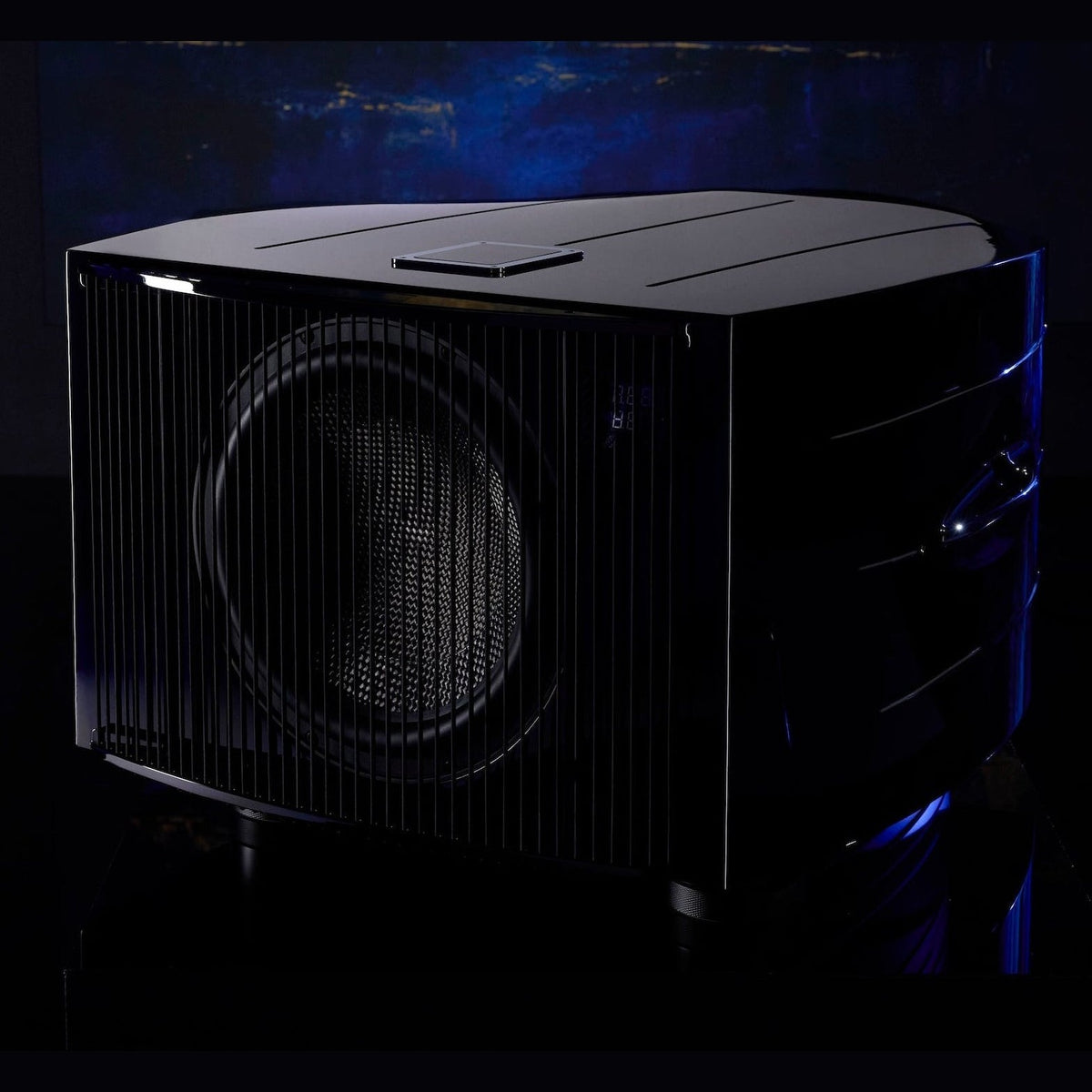

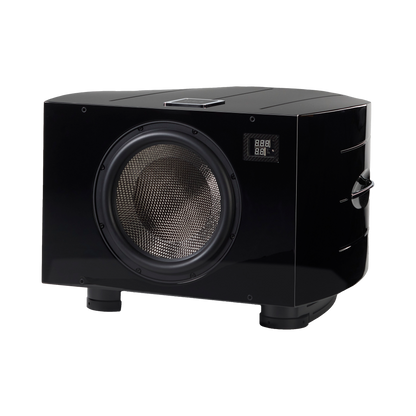

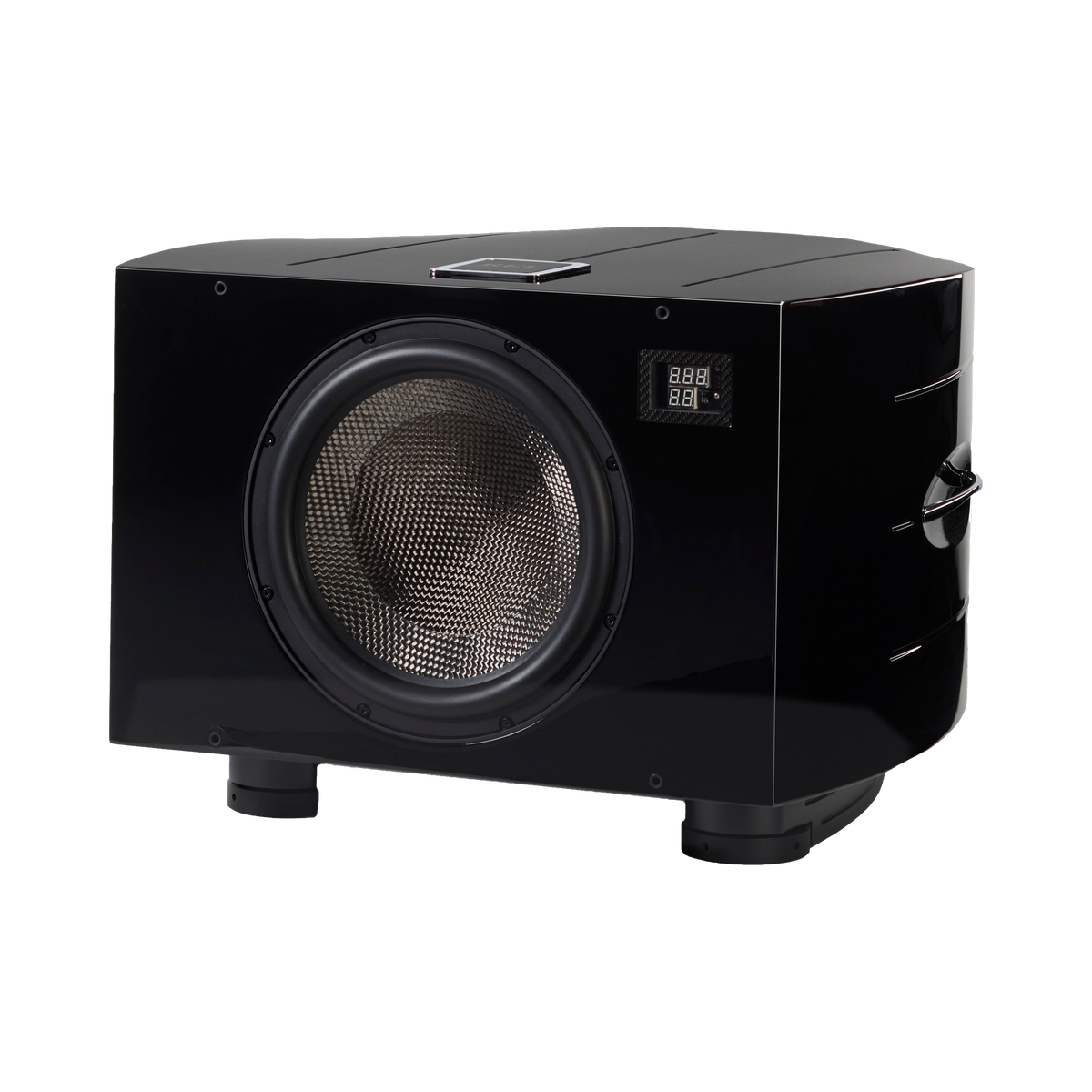

No.36 is the larger of the two current Reference subwoofers. A 15 in. long-throw carbon fibre driver with an inverted carbon fibre centre cap works in a closed box, driven by a 1,000 W RMS Class AB/D amplifier on an ultra high-current power supply, and low frequency extension is rated at -6 dB at 15 Hz in room. Inputs cover high level on Neutrik SpeakOn, stereo low level on RCA and XLR, and LFE on RCA and XLR, with pass-through outputs for stacking a Line Array, and a dual parametric filter is built in. The cabinet carries 12 coats of piano black lacquer and weighs 202.5 lb. Wireless connection is through the Airship Direct transmitter, sold separately.
Specifications
Series
Reference
Type
Closed box, front-firing driver
Active driver
15 in. (380 mm) long-throw, carbon fibre cone with inverted carbon fibre centre cap
Low frequency extension
-6 dB at 15 Hz in room
Amplifier
Class AB/D
Power output
1,000 W RMS

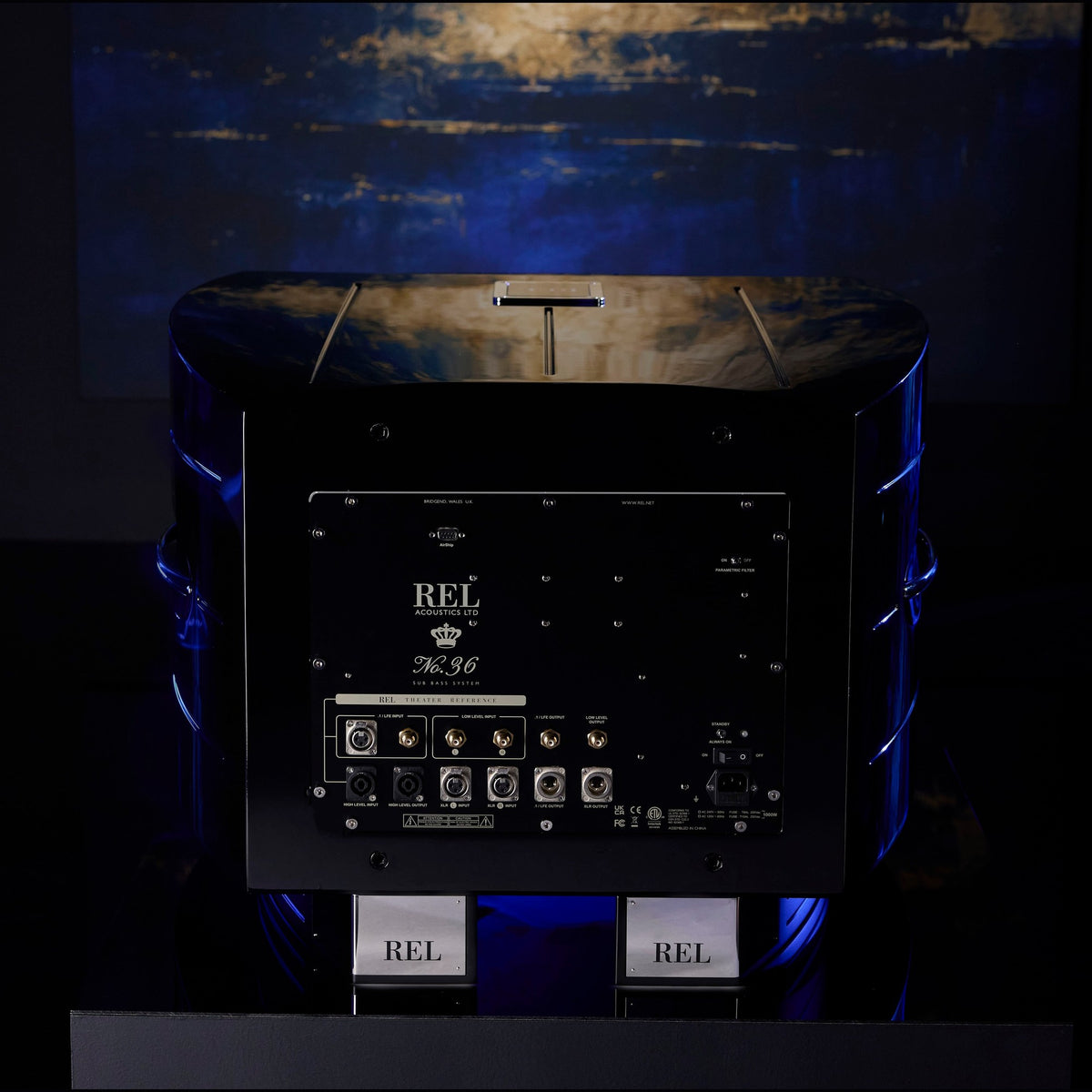

Inputs
High level Neutrik SpeakOn, stereo low level RCA and XLR, LFE RCA, LFE XLR
Outputs
High level Neutrik SpeakOn, LFE RCA, LFE XLR, line XLR, line RCA
Wireless
Airship Direct (sold separately)
Finish
Piano black lacquer, 12 coats
Dual parametric filter
Yes
Dimensions (W x H x D)
29.25 x 21.3 x 32.125 in (743 x 541 x 816 mm)
Weight
202.5 lb (91.8 kg)
