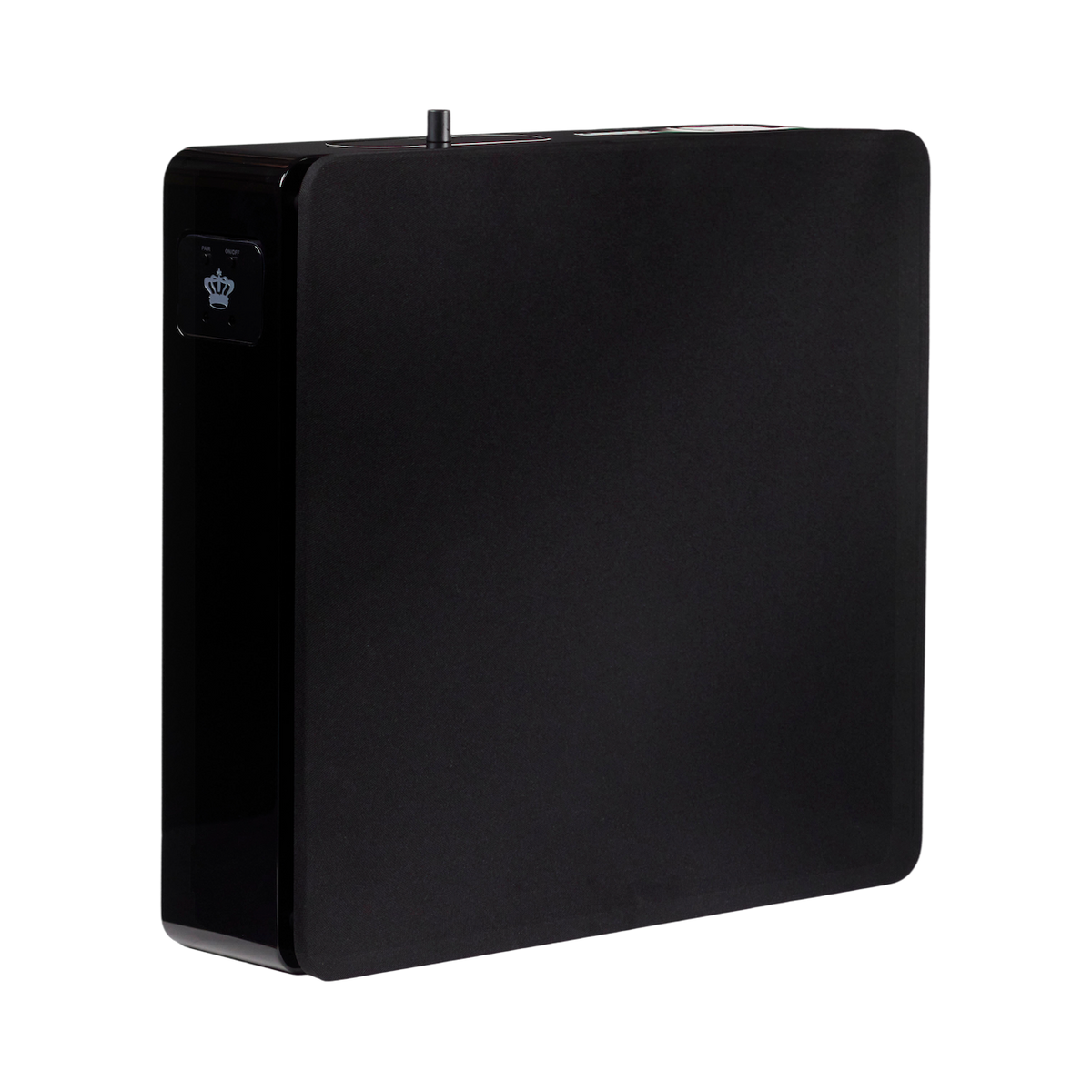

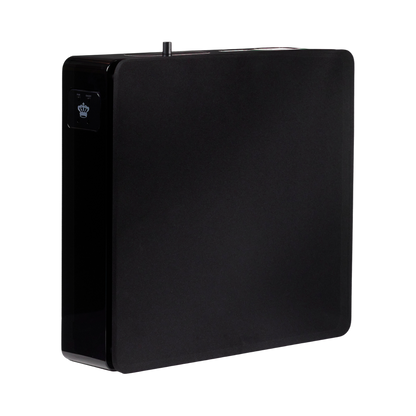

Planar PL-1 is the smaller of the two on-wall subwoofers, 5.7 in. deep and designed to work against the wall behind it. Two 6.5 in. FibreAlloy long-throw active drivers fire forward and a 10 in. FibreAlloy passive radiator fires to the rear, driven by a 300 W RMS Pure Class D amplifier; extension is rated at -6 dB at 31 Hz in room. High level input is on Neutrik SpeakOn, low level on RCA, LFE on RCA. Wireless reception is built in and works with the Airship Direct transmitter. The mains lead exits at 90 degrees for on-wall mounting, and the optional Planar Cart stands it on the floor. Piano black or gloss white, cloth grille included, premium wood grille optional. It weighs 41.6 lb.
Specifications
Series
Planar
Type
Two front-firing active drivers, rear-firing passive radiator
Active driver
(2) 6.5 in. (165 mm) FibreAlloy cone, long-throw, steel chassis
Passive radiator
10 in. (250 mm) FibreAlloy cone, steel chassis
Low frequency extension
-6 dB at 31 Hz in room
Amplifier
Pure Class D
Power output
300 W RMS

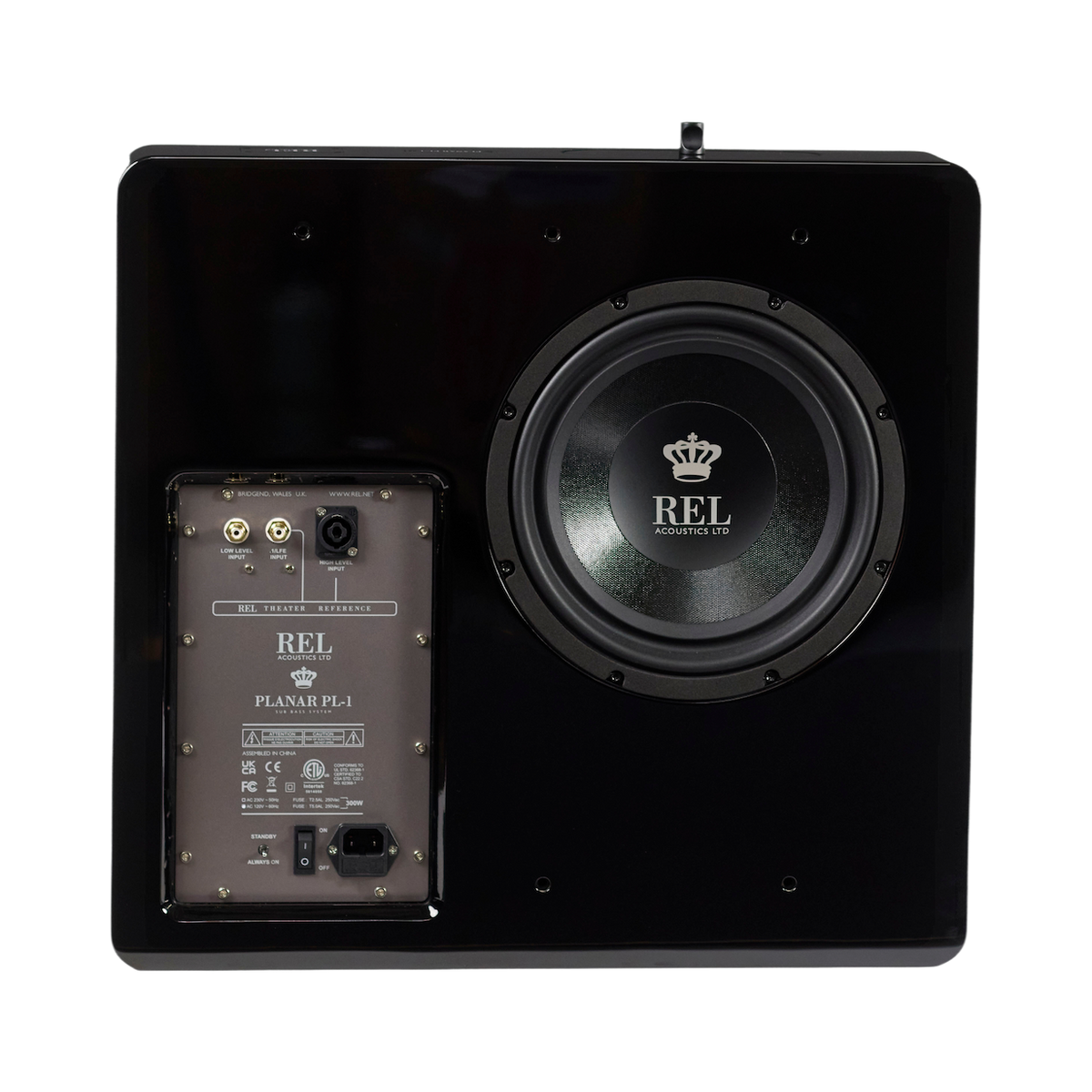

Inputs
High level Neutrik SpeakOn, low level RCA, LFE RCA
Wireless
Built in; works with Airship Direct transmitter
Finish

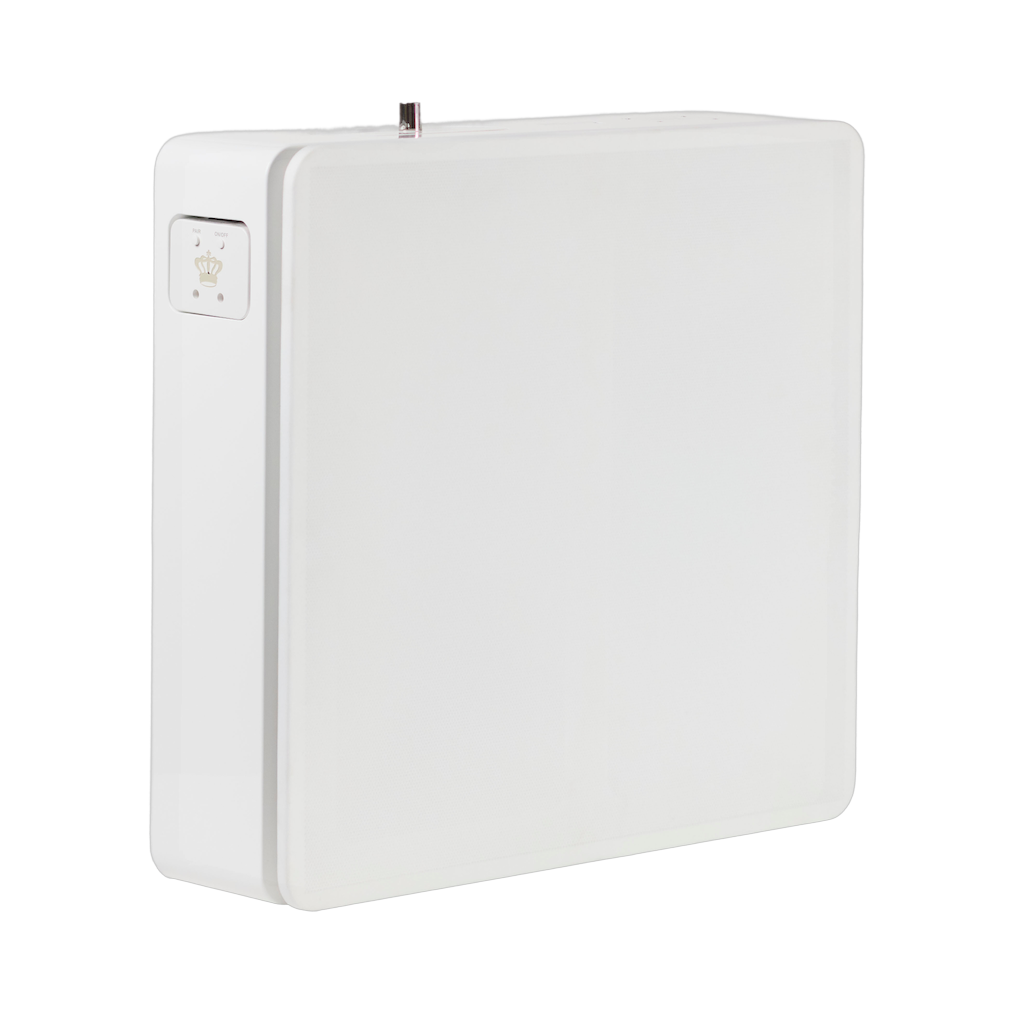

Piano black lacquer or gloss white lacquer
Grille

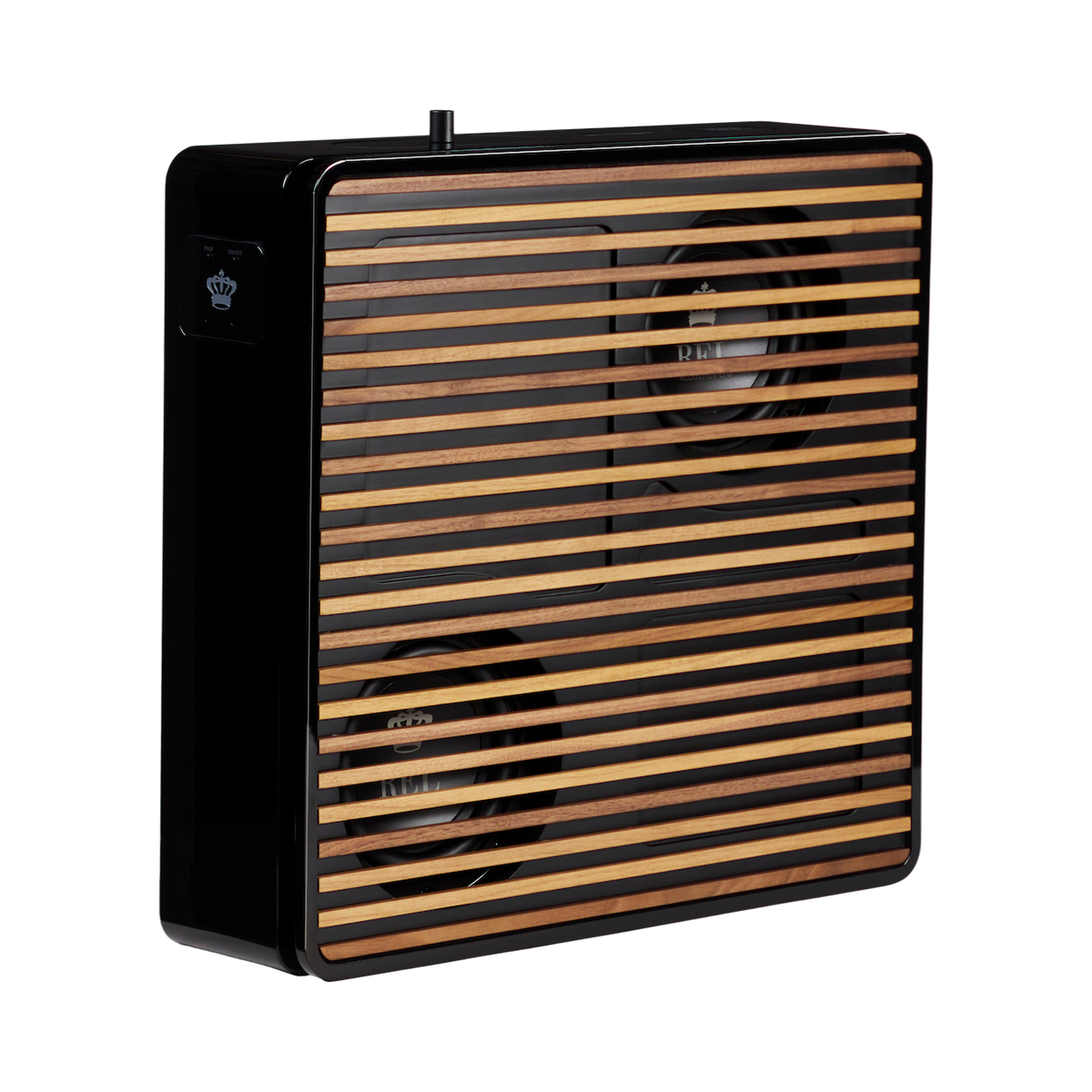

Cloth included; premium wood grille optional
Dual parametric filter
No
Dimensions (W x H x D)
20.6 x 19.4 x 5.7 in (522 x 492 x 144 mm)
Weight
41.6 lb (18.9 kg)
Mains
100-240 V selectable
