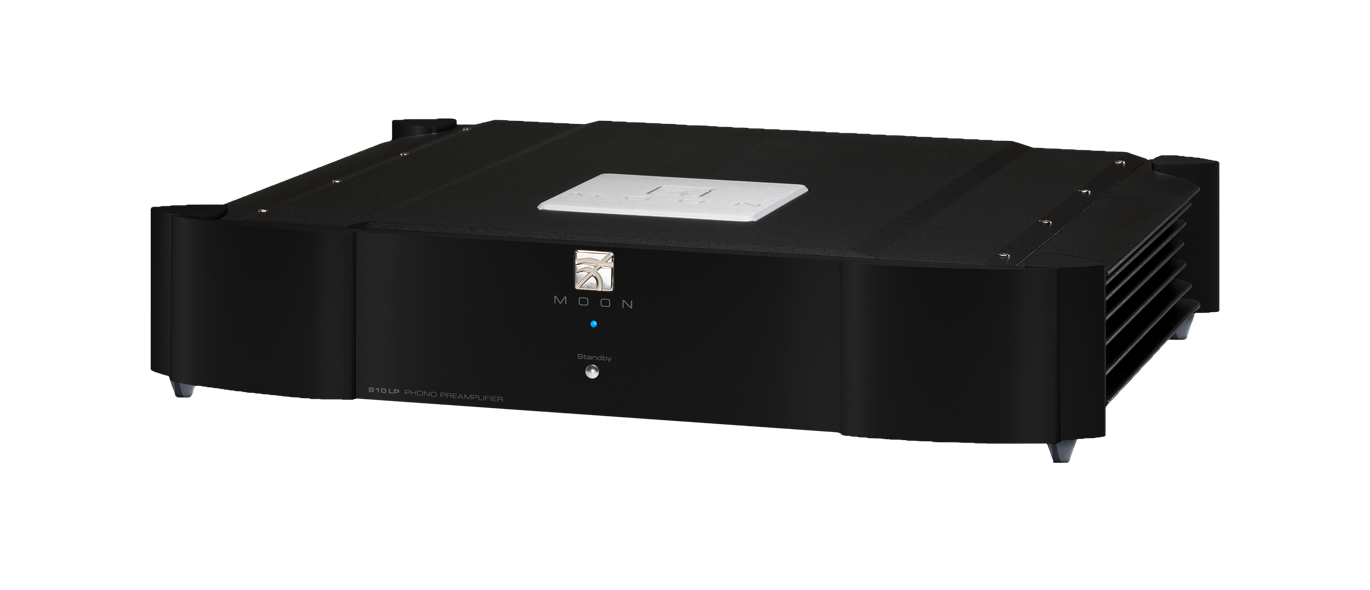

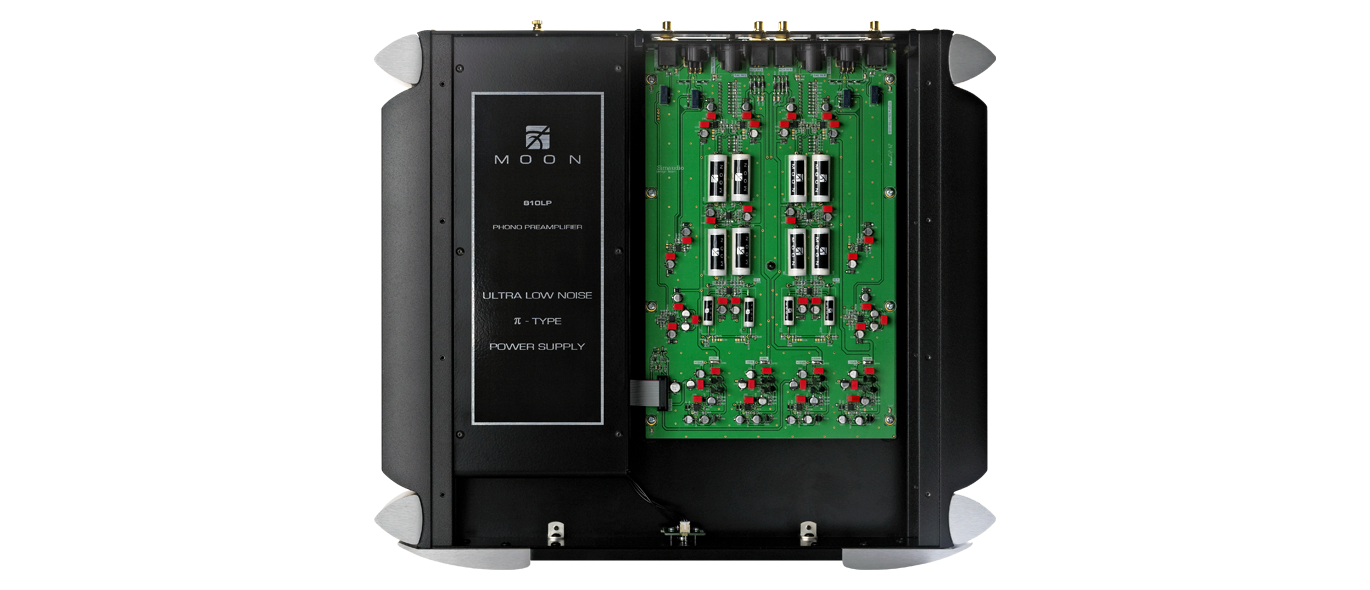

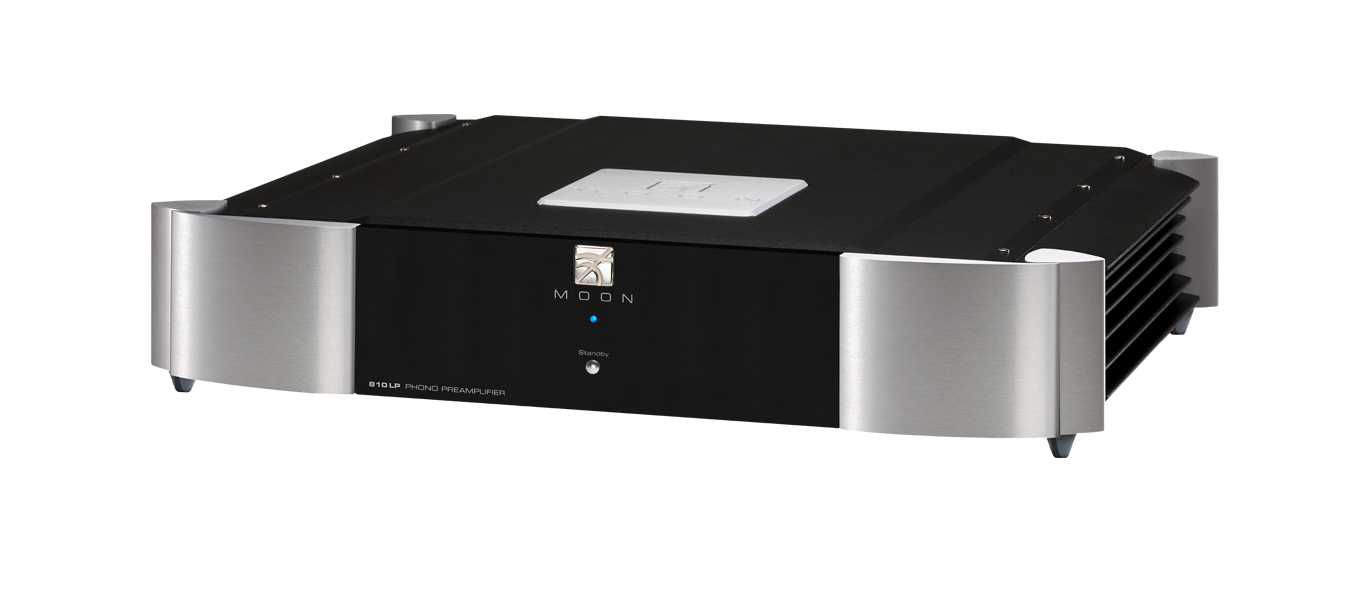

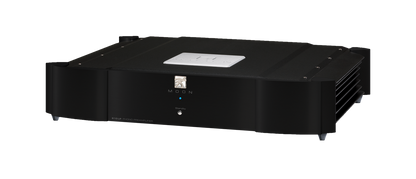

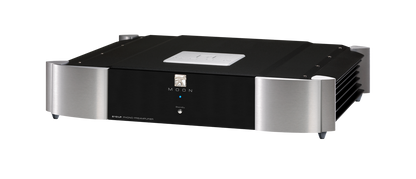

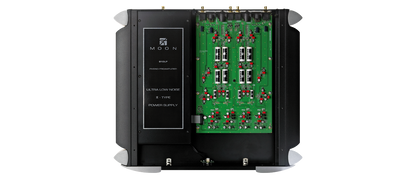

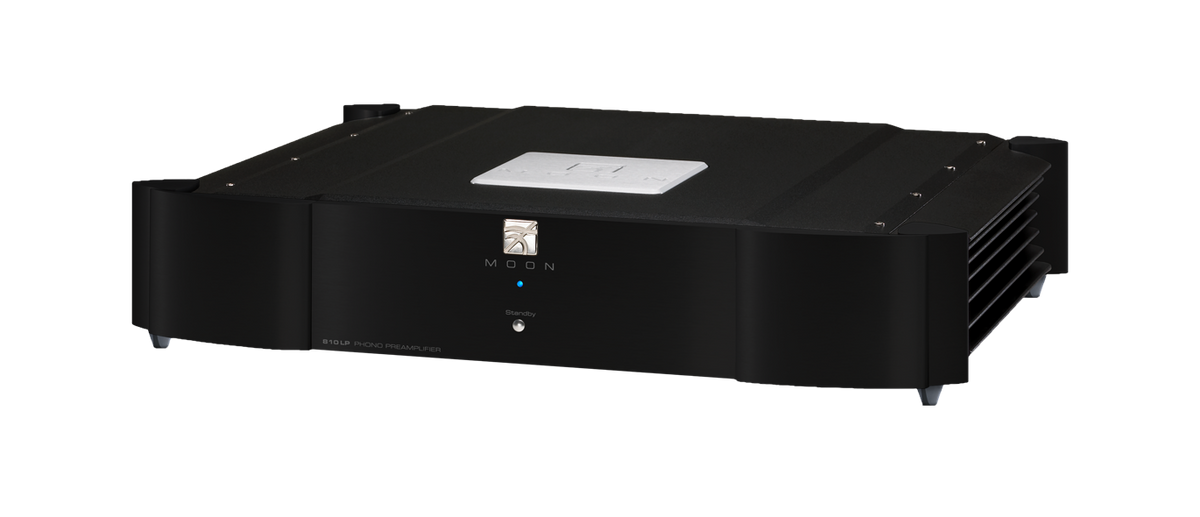

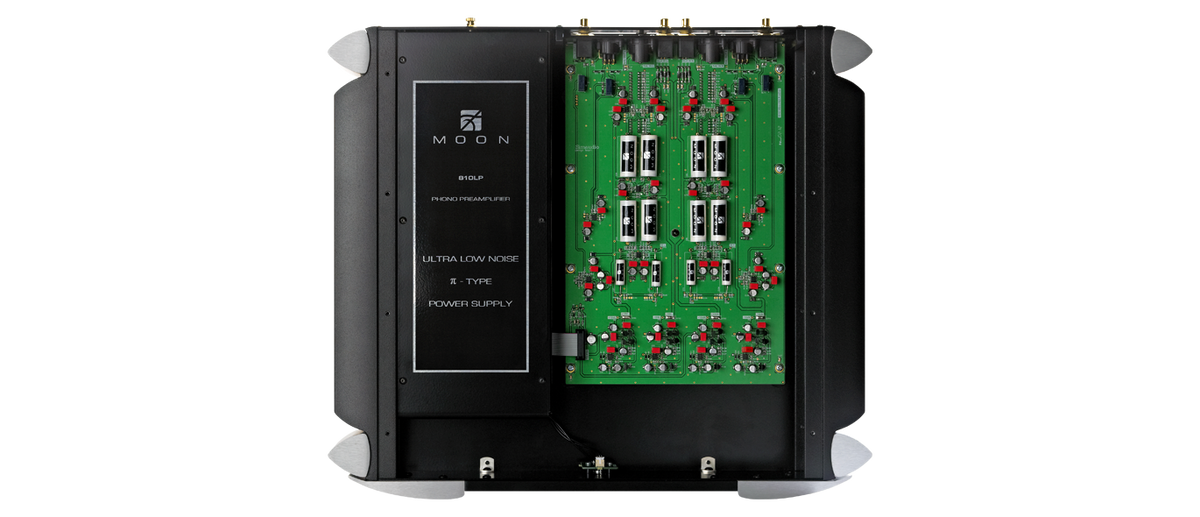

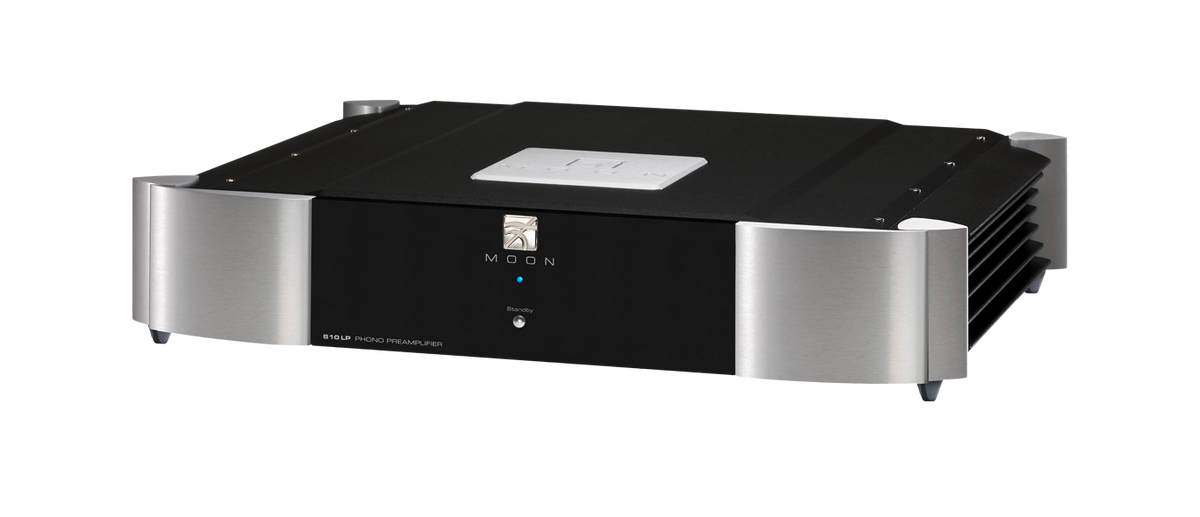

The Moon 810LP is Simaudio's reference phono preamplifier, a purist design whose dedicated audio circuit board rides on a five-point gel-based floating suspension derived from the M-Octave technology of the 850P preamplifier. Independent inductive DC filtering provides one inductor for every IC in the signal path across 24 stages, yielding a signal-to-noise ratio of 115 dBr and distortion of 0.0008 percent. It is fully compatible with the 820S external power supply.
Specifications
Inputs
1 pair XLR, 1 pair RCA
Suspension
5-point gel-based floating suspension for the audio board
Signal-to-noise ratio
115 dBr (full scale at 40 dB gain)
THD (20 Hz - 20 kHz)
0.0008%
Frequency response
20 Hz - 20 kHz (+/-0.1 dB)
Crosstalk
-106 dB at 1 kHz
Upgrade path
Compatible with 820S external power supply
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
