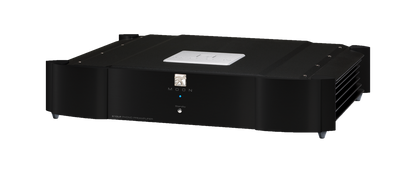

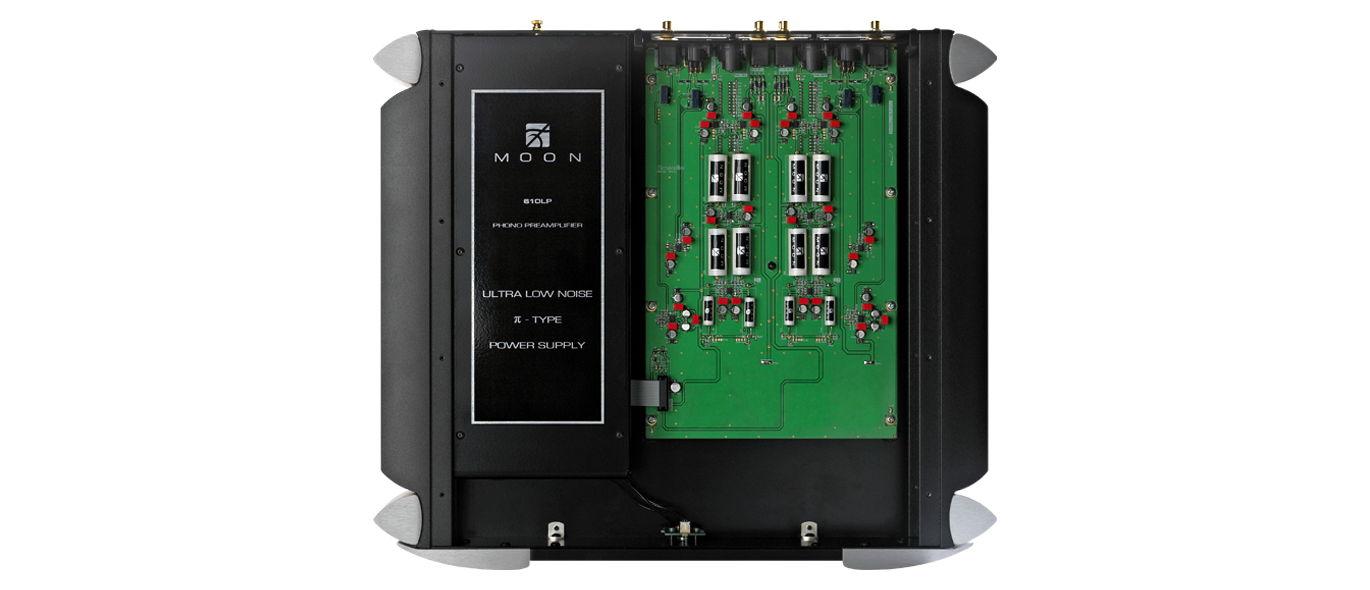

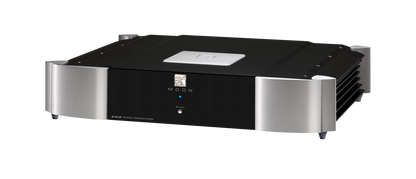

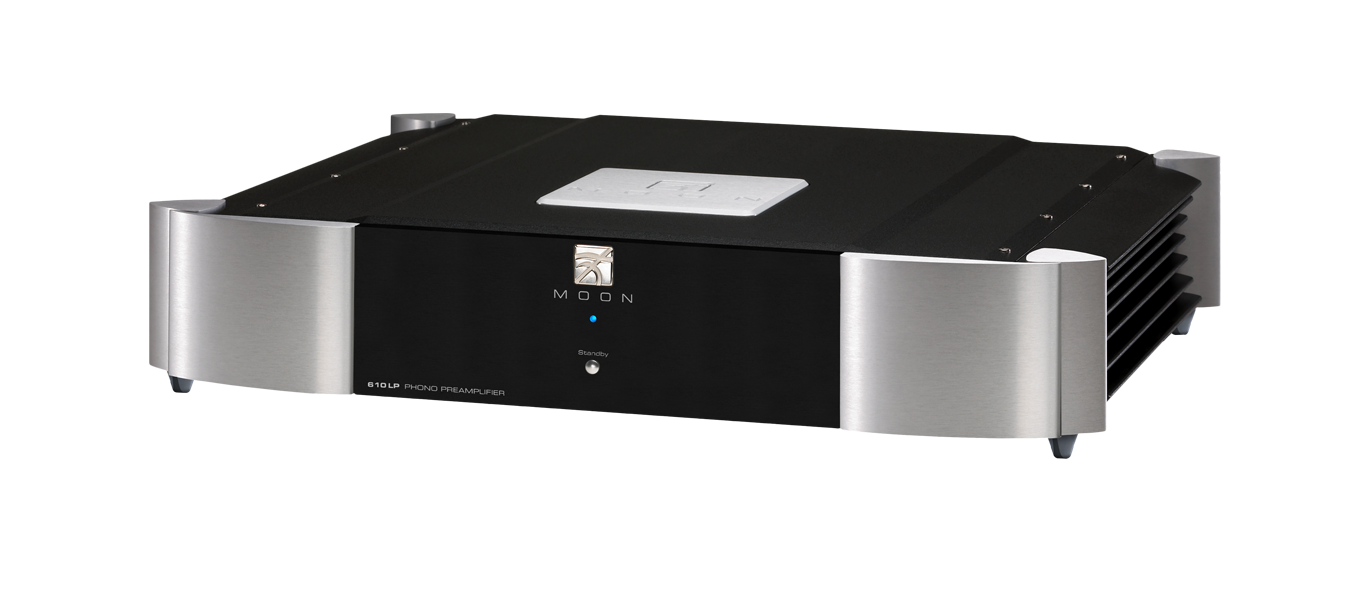

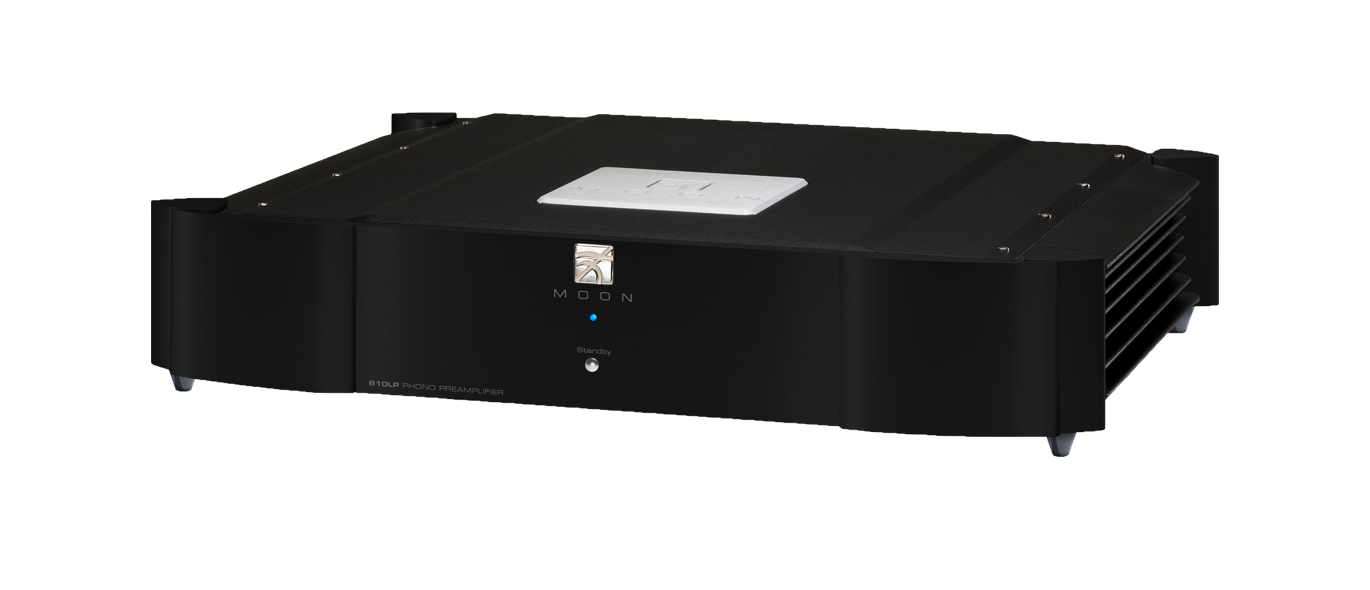

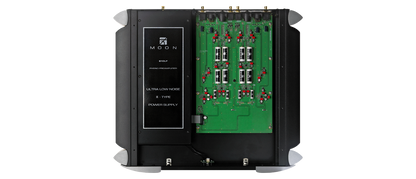

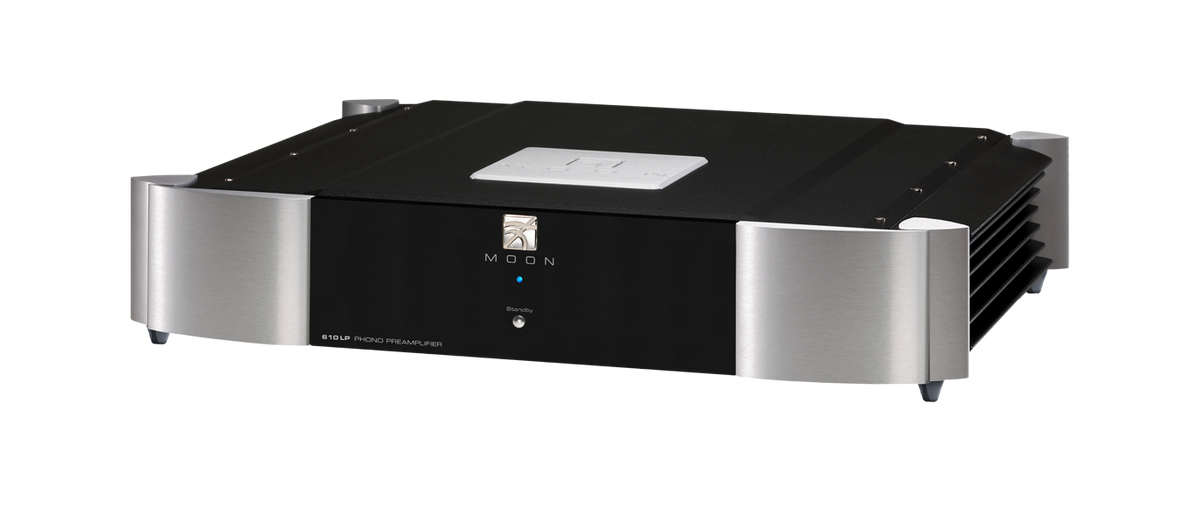

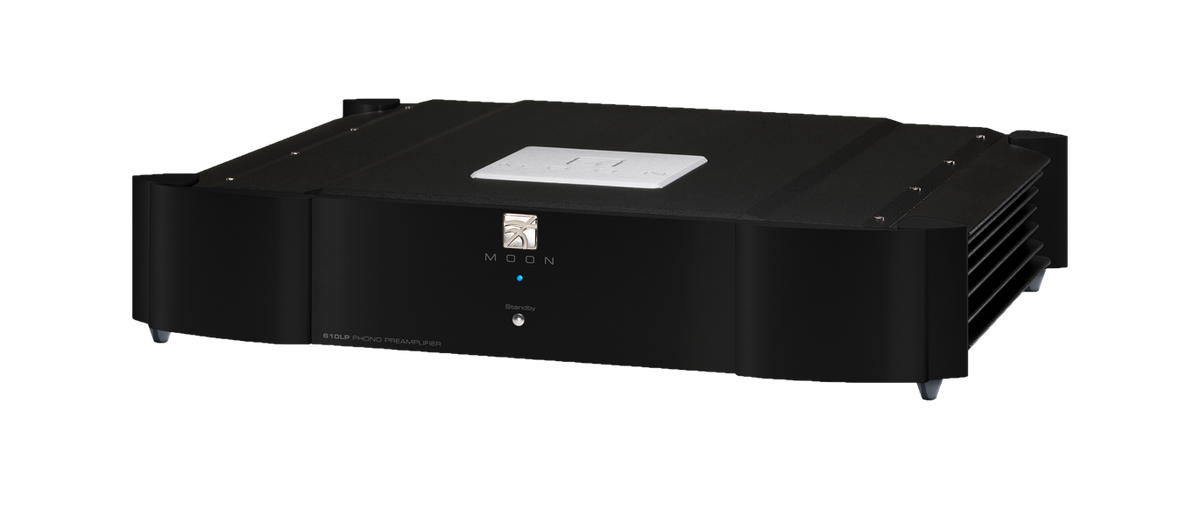

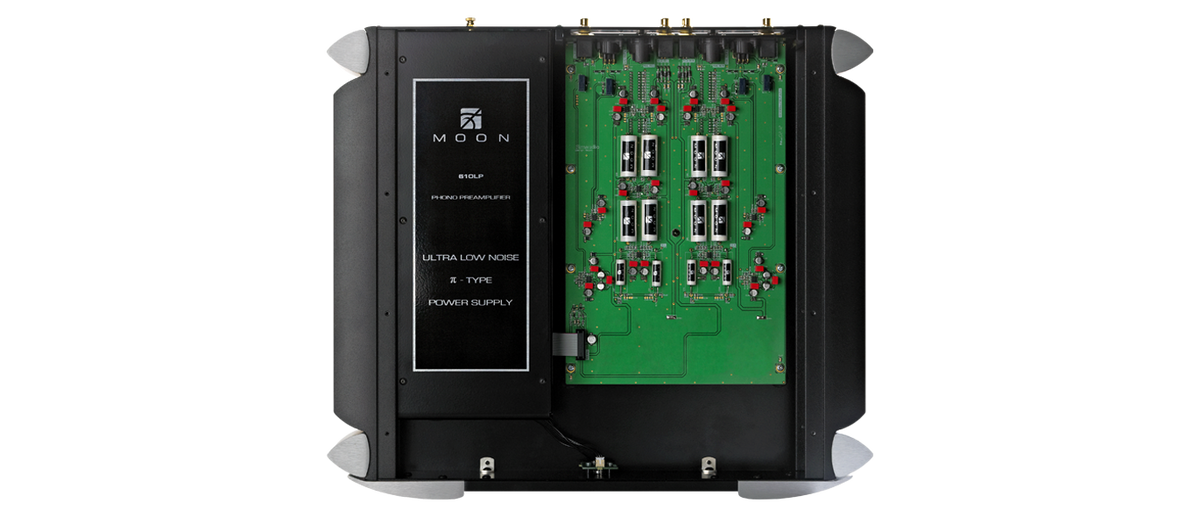

The Moon 610LP is a purist phono preamplifier with a dual-mono, fully balanced differential circuit heavily based on the reference Moon 810LP. It offers 64 impedance loading settings, 16 capacitance settings, and 16 gain settings from 40 to 70 dB, with selectable RIAA and IEC equalization curves. Power supply regulation uses independent inductive DC filtering across 24 stages, and it is fully compatible with the 820S external power supply.
Specifications
Circuit
Dual-mono, fully balanced differential layout
Inputs
1 pair XLR, 1 pair RCA
Impedance loading
64 settings, 12.1 ohms to 47 kohms
Capacitance loading
16 settings, 0 to 1120 pF
Gain
16 settings, 40 to 70 dB
Signal-to-noise ratio
112 dBr (full scale at 40 dB gain)
Upgrade path
Compatible with 820S external power supply
