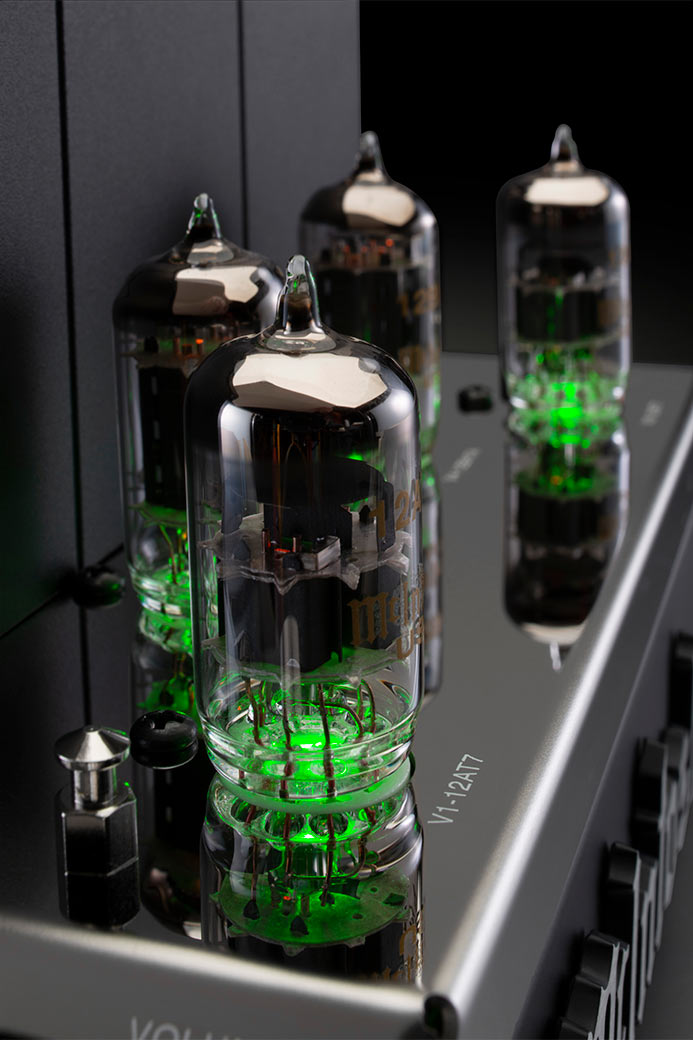

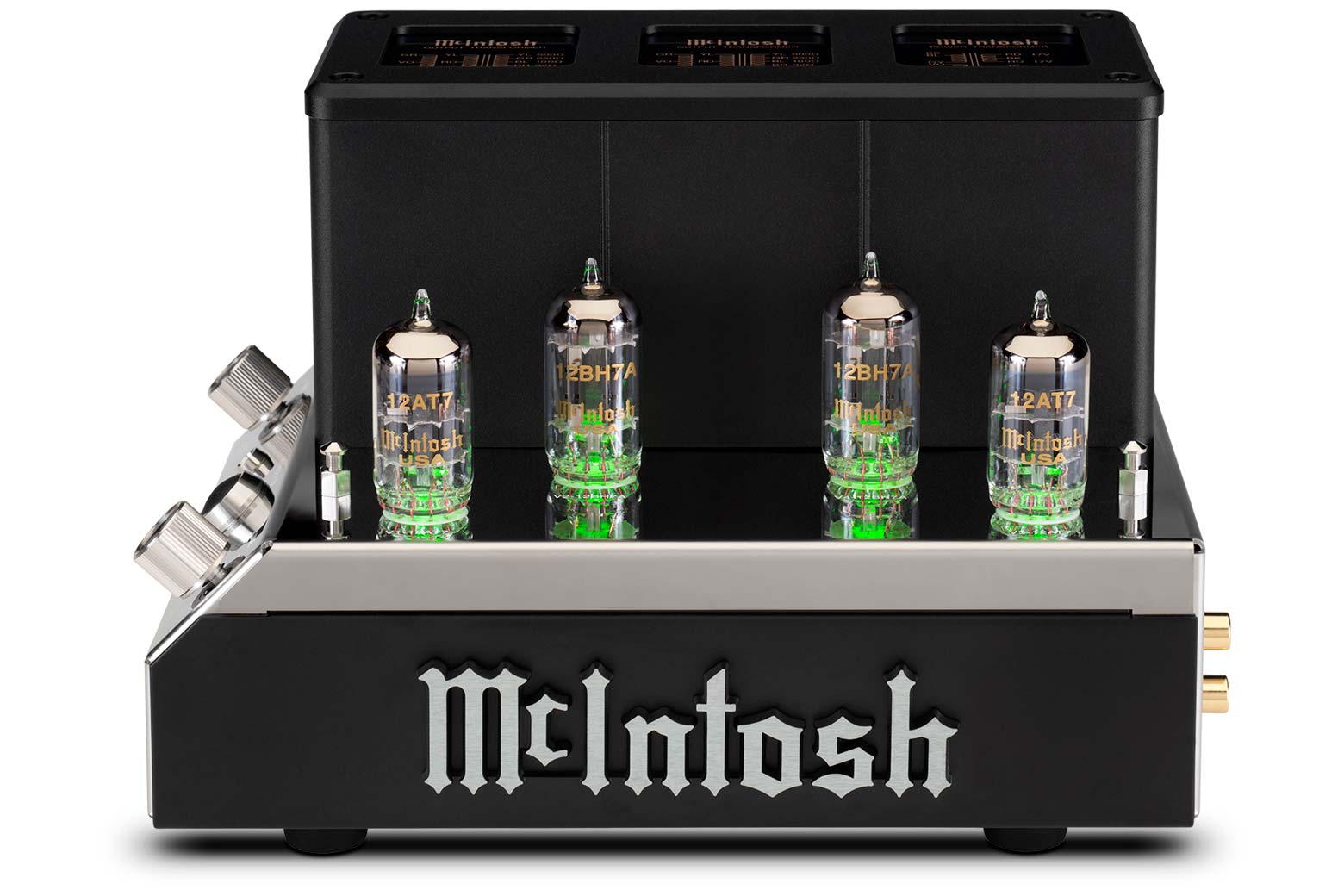

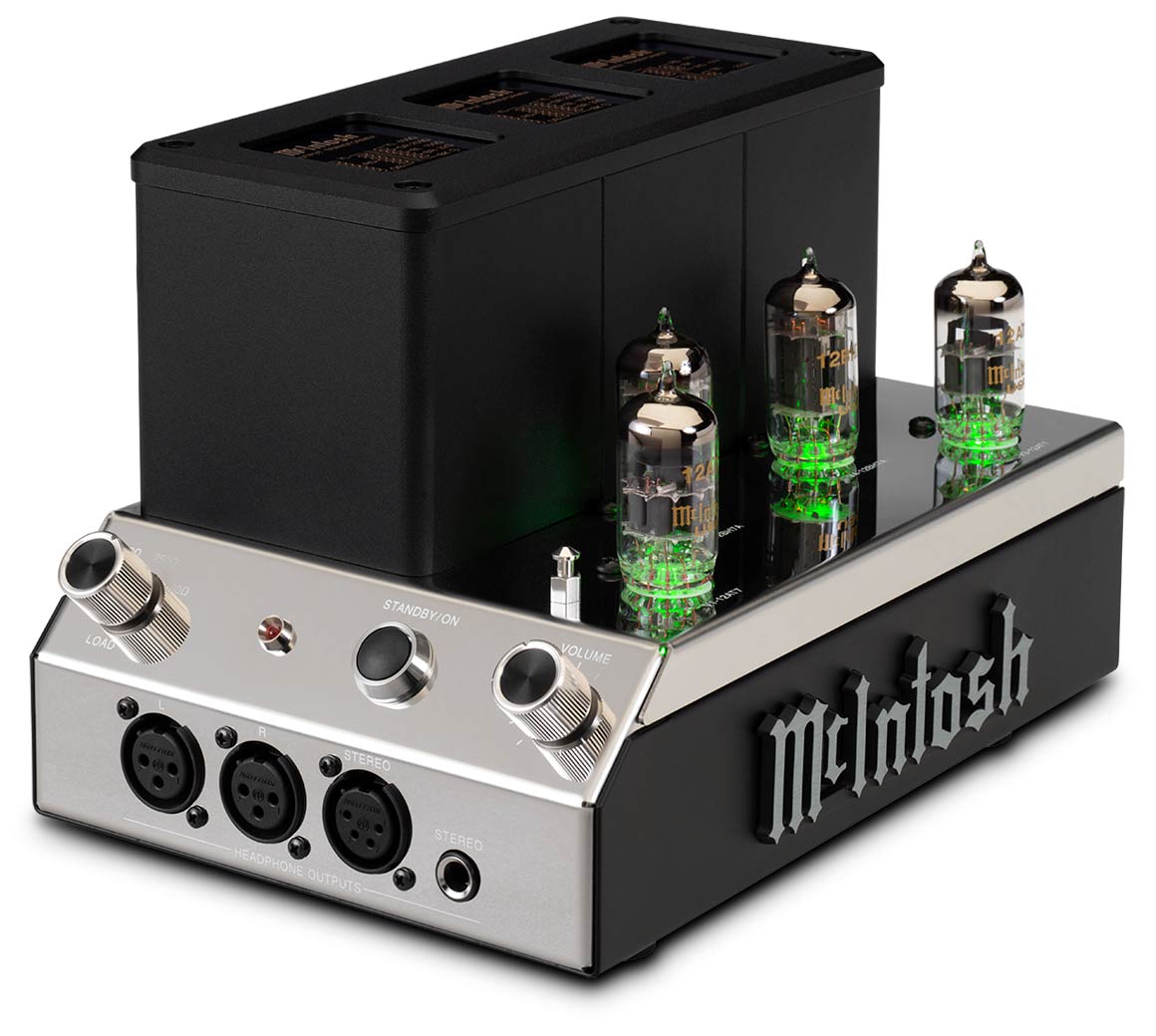

The MHA200 is a compact vacuum tube headphone amplifier built around a pair each of 12AT7 and 12BH7A dual triode tubes and McIntosh's Unity Coupled Circuit output transformers. Four selectable impedance ranges from 32 to 1,000 ohms suit nearly any headphone, with balanced stereo, dedicated left and right balanced, and quarter-inch outputs provided. Balanced and unbalanced inputs connect it to a full-size system.
Specifications
Output power
500 mW
Tubes
Two 12AT7, two 12BH7A
Headphone impedance ranges
32-100, 100-250, 250-600, 600-1,000 ohms
Outputs
Dual 3-pin XLR, 4-pin XLR, 1/4-inch stereo jack
Output type
Unity Coupled output transformers
Dimensions
6-1/8 in W x 9-1/8 in D
