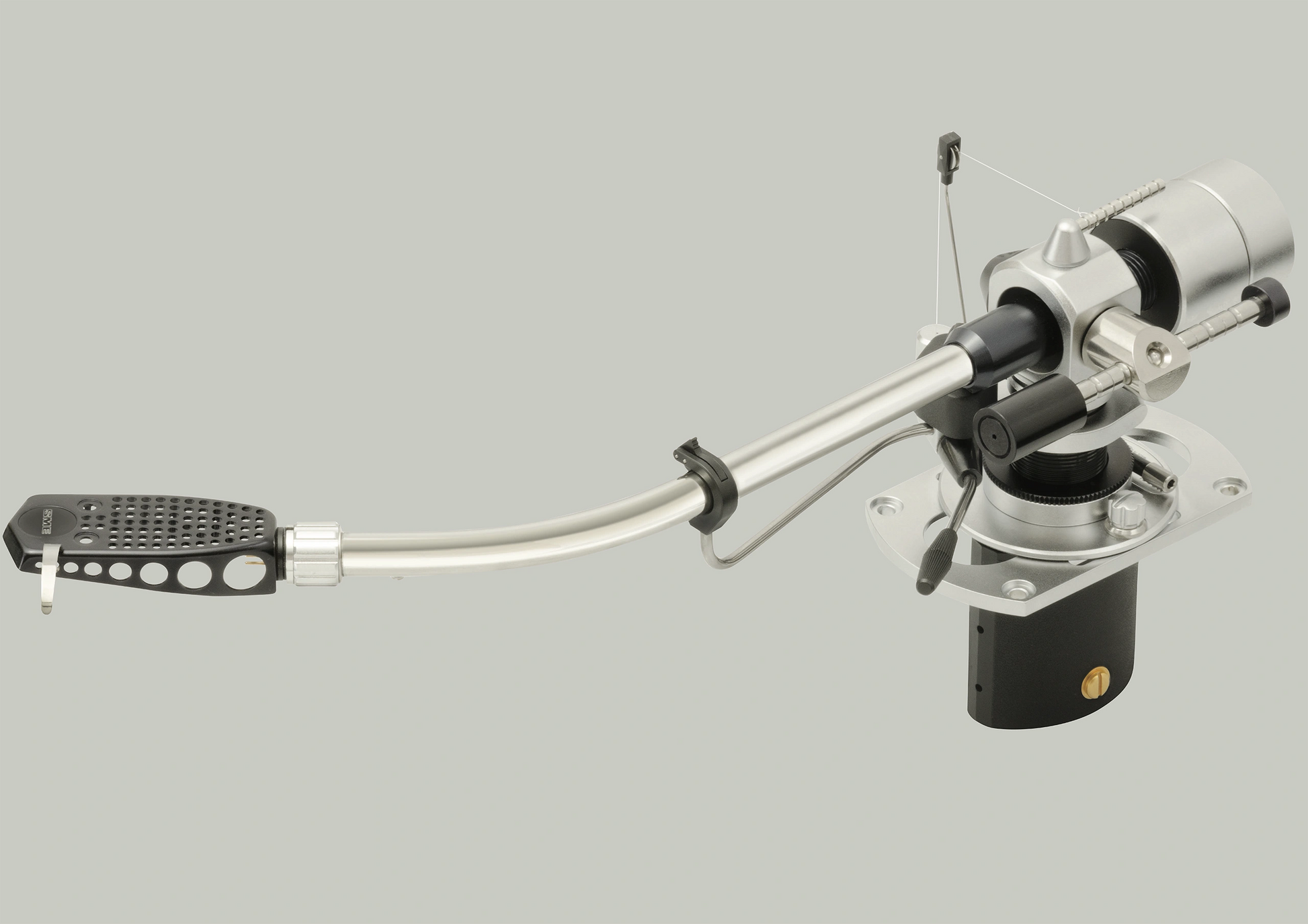

The Series M2-9R was developed by popular demand, bringing SME's design and engineering in a compact 9-inch package built by enthusiasts for enthusiasts. A detachable S2-R aluminium headshell on a double draw-pin bayonet fitting allows azimuth adjustment and cartridge changes without disturbing the wiring, while tungsten-alloy balance weight inserts in satin chromed brass sleeves accommodate an unusually wide range of cartridges. Internal constrained-layer damping renders the arm acoustically inert.
Specifications
Effective mass
9.5 g
Cartridge balance range
Up to 38 g (S2-R headshell), up to 46 g (plug-in heads)
Vertical tracking force
Up to 5.0 g, applied in 0.5 g increments
Headshell
Detachable S2-R aluminium, double draw-pin bayonet with azimuth adjustment
Internal wiring
Silver Litz
Pivot to stylus
233.2 mm
Audio lead
1.2 m balanced hybrid cable with gold-plated connectors
