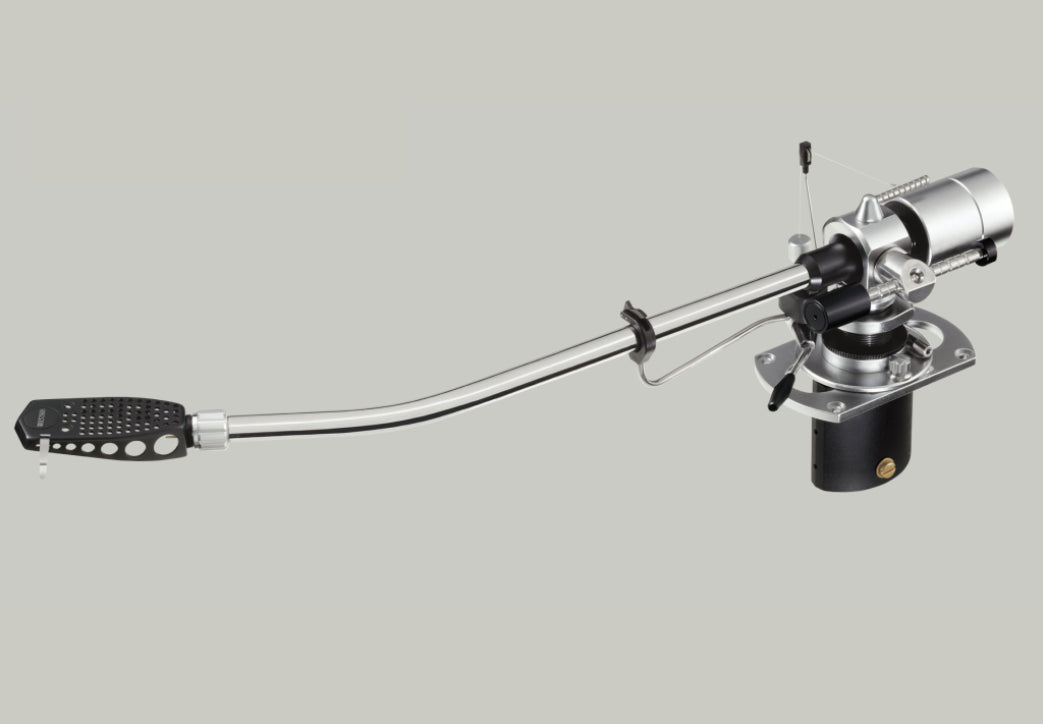

The Series M2-12R extends the M2 range to a full 12 inches, taking advantage of the longer arm to minimise lateral tracking error and the harmonic distortion that accompanies it. A classic J-shaped, thin-walled stainless steel arm tube with internal constrained-layer damping is paired with a detachable S2-R aluminium headshell, a two-stage tungsten counterbalance system and precision ball race bearings throughout.
Specifications
Arm tube
Thin-walled stainless steel, traditional J shape
Pivot to stylus
308.81 mm
Offset angle
17.62 degrees
Headshell
Detachable S2-R aluminium, double draw-pin bayonet with azimuth adjustment
Counterbalance
Two-stage tungsten-alloy system, up to 38 g (S2-R headshell) or 46 g (plug-in heads)
Vertical tracking force
Up to 5.0 g, applied in 0.5 g increments
Internal wiring
Silver Litz
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
