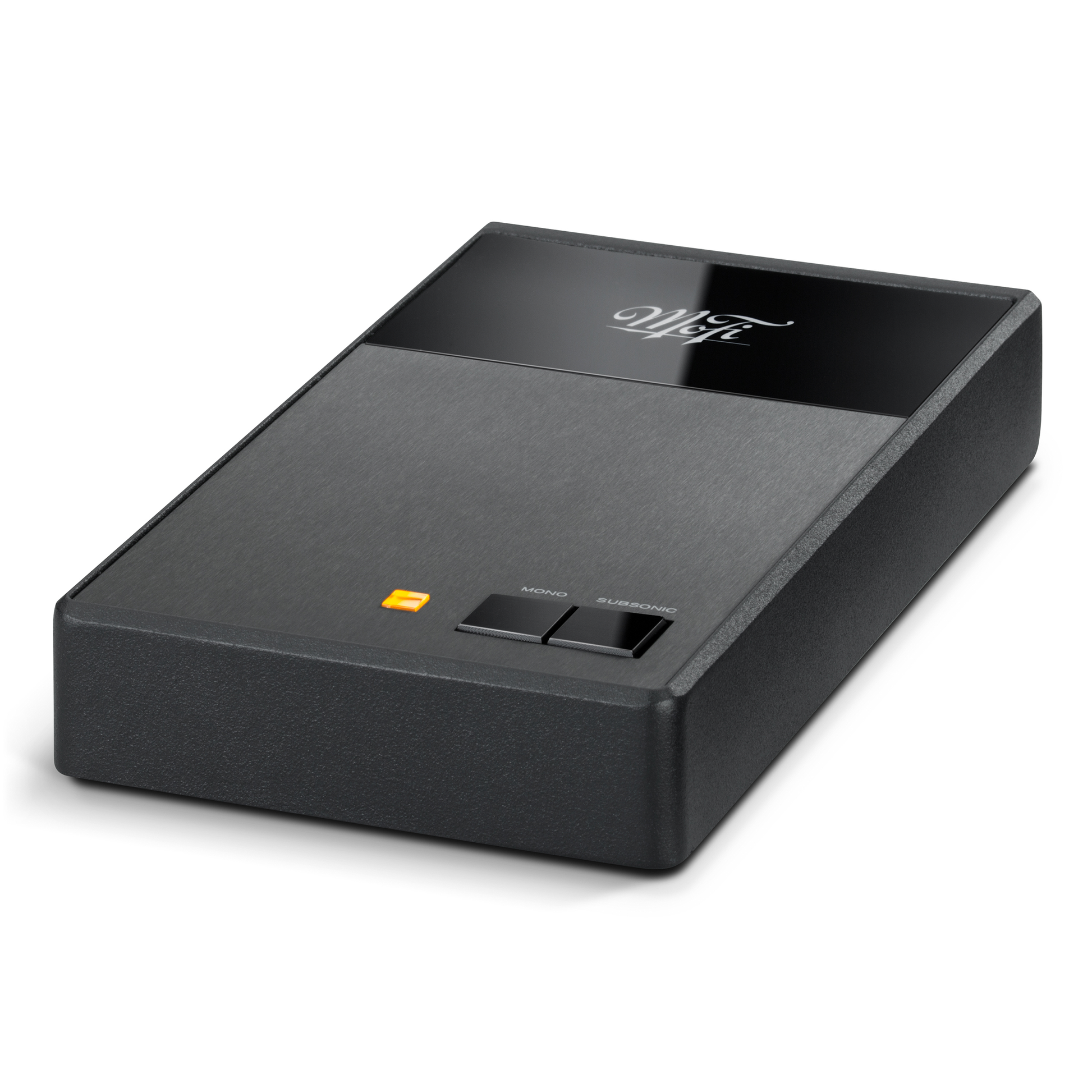

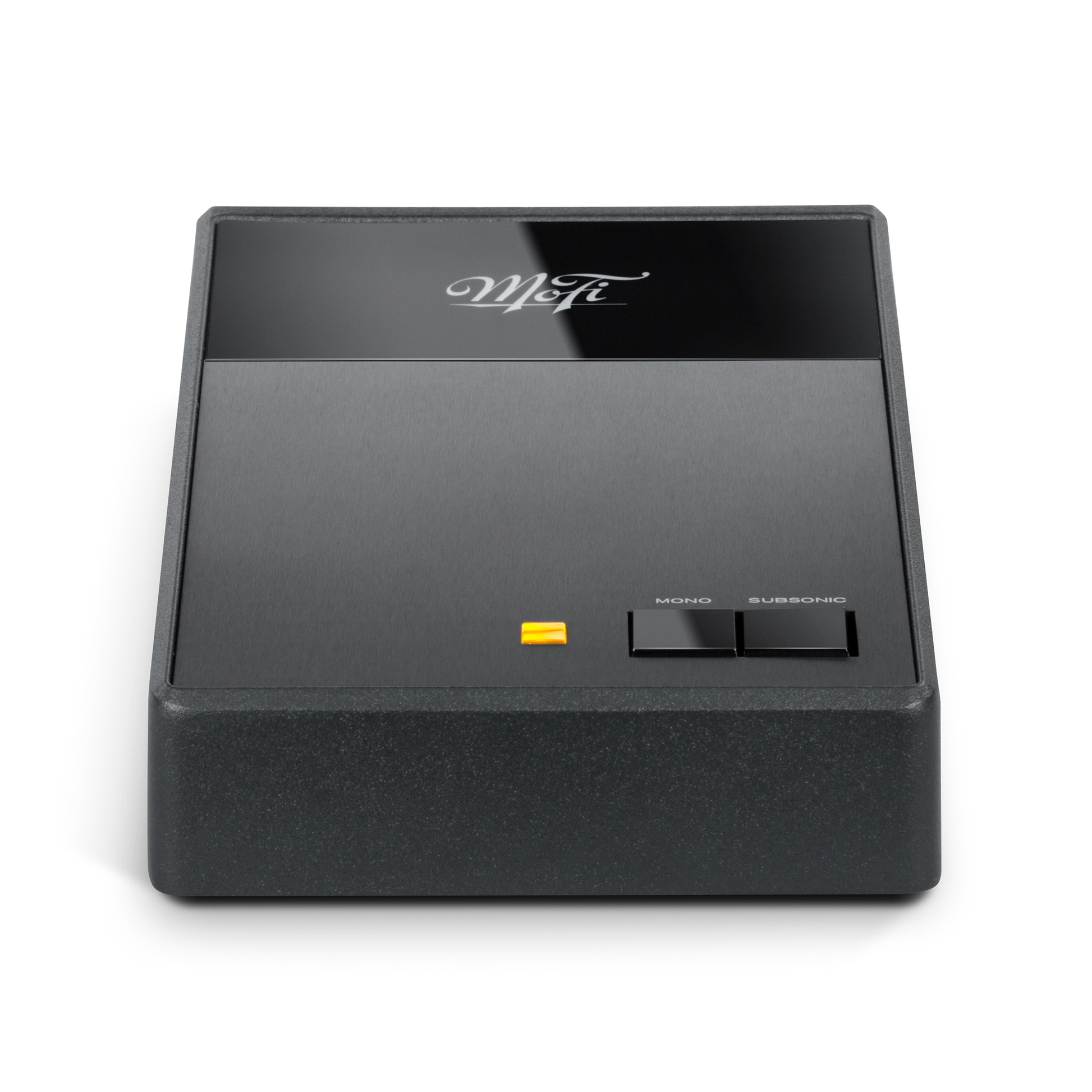

The StudioPhono is a compact phono preamplifier that accommodates both moving magnet and moving coil cartridges through four selectable gain settings up to 66dB and adjustable loading from 75 ohms to 47k ohms. A switchable mono mode and subsonic filter address less-than-perfect pressings, and an external power supply keeps noise out of the signal path.
Specifications
Gain
Selectable 40dB, 46dB, 60dB, 66dB (MM or MC)
MC load impedance
75, 100, 500, 1k, 10k, 47k ohms
MM load impedance
47,000 ohms
THD
Less than 0.01% (MM), less than 0.012% (MC)
Input capacitance
100pF
Features
Switchable mono mode, subsonic filter, external power supply
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
