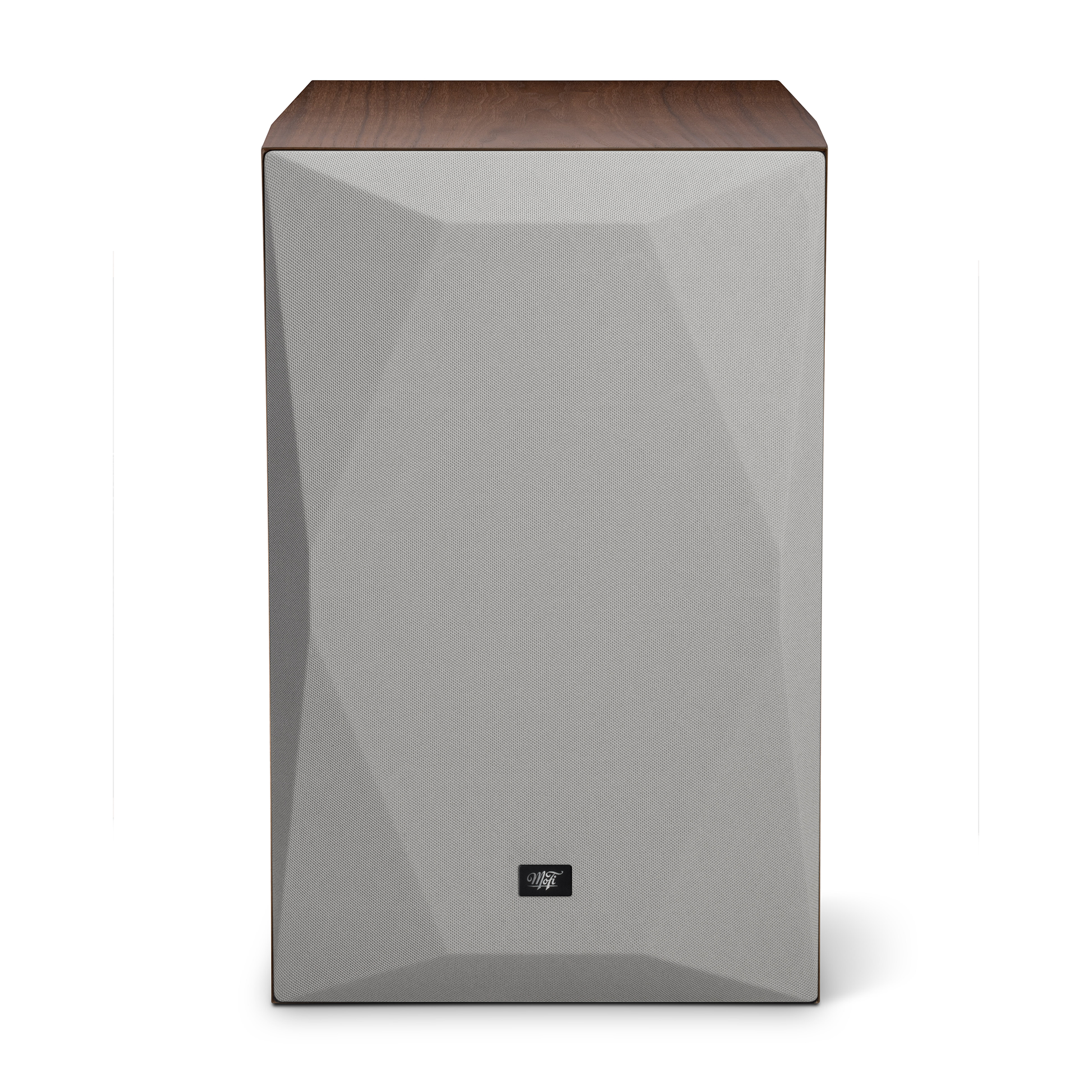

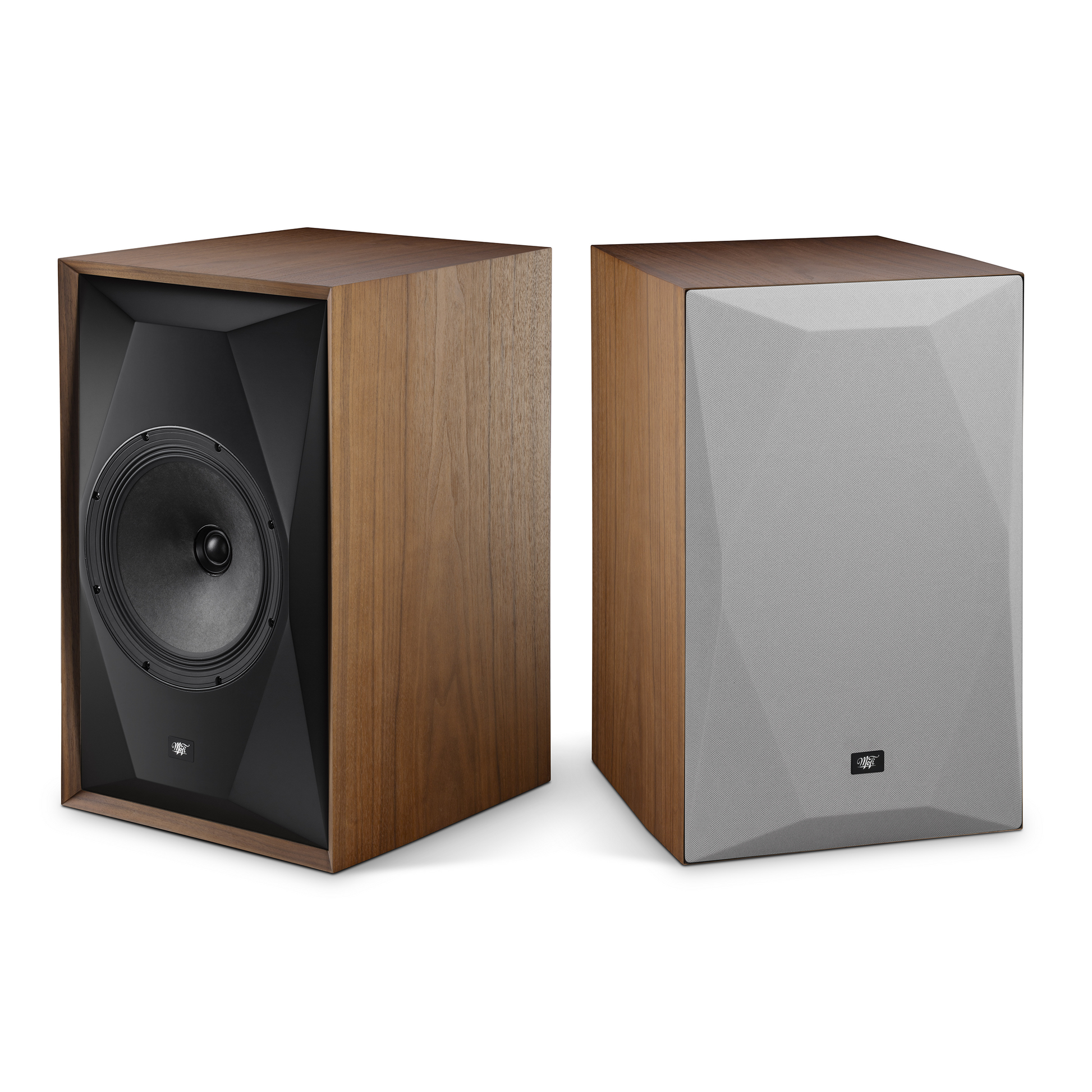

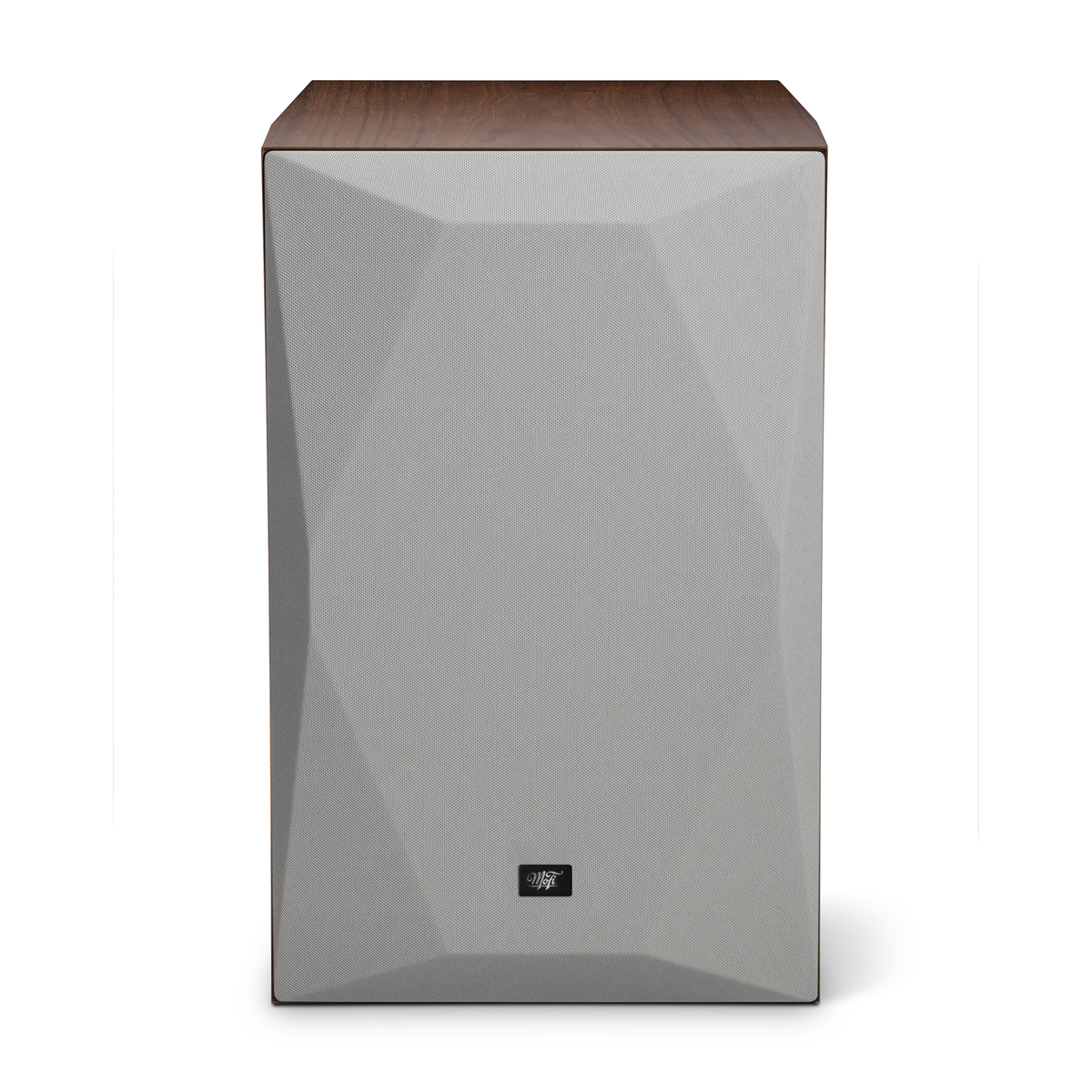

The SourcePoint 10 Master Edition refines Andrew Jones' acclaimed concentric design with an upgraded crossover built from polypropylene film capacitors, metalized-film resistors, and air-core inductors for improved coherence and impedance linearity. A three-position tweeter level switch integrated into the crossover tailors high-frequency output to damped, neutral, or reflective rooms without compromising signal purity. The custom 10-inch concentric driver and Twin-Drive high-flux neodymium magnet system carry over, in a two-way vented cabinet sold as a pair.
Specifications
Driver
10-inch concentric with 1.25-inch soft dome tweeter
Crossover
Master Edition with 3-position tweeter level switch
Frequency response
42Hz - 30kHz
Sensitivity
91dB/2.83V/1m
Nominal impedance
8 ohms (6.2 ohms minimum)
Finishes
Satin Walnut or Satin Black Ash real wood veneer
Weight
46.2 lb each
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
