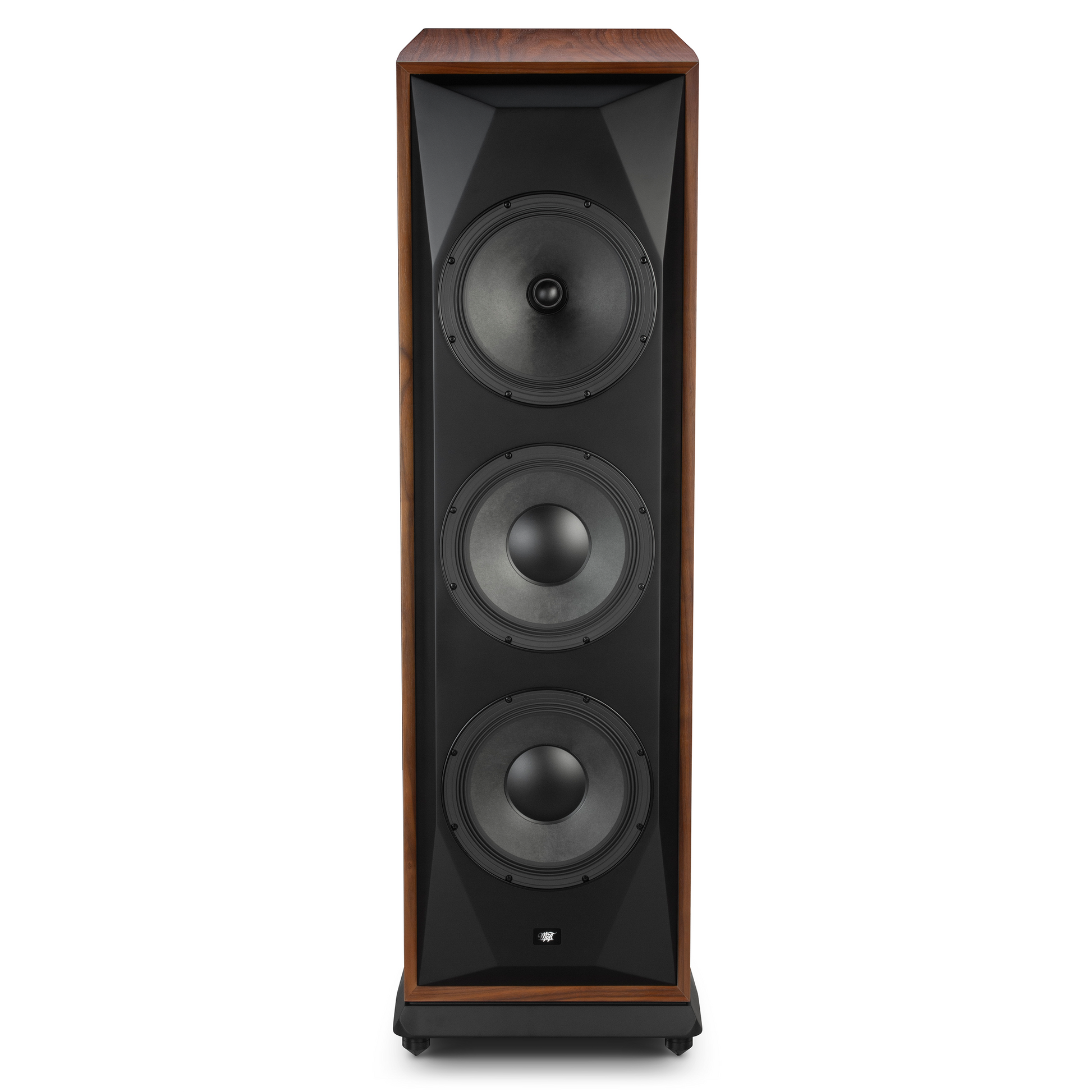

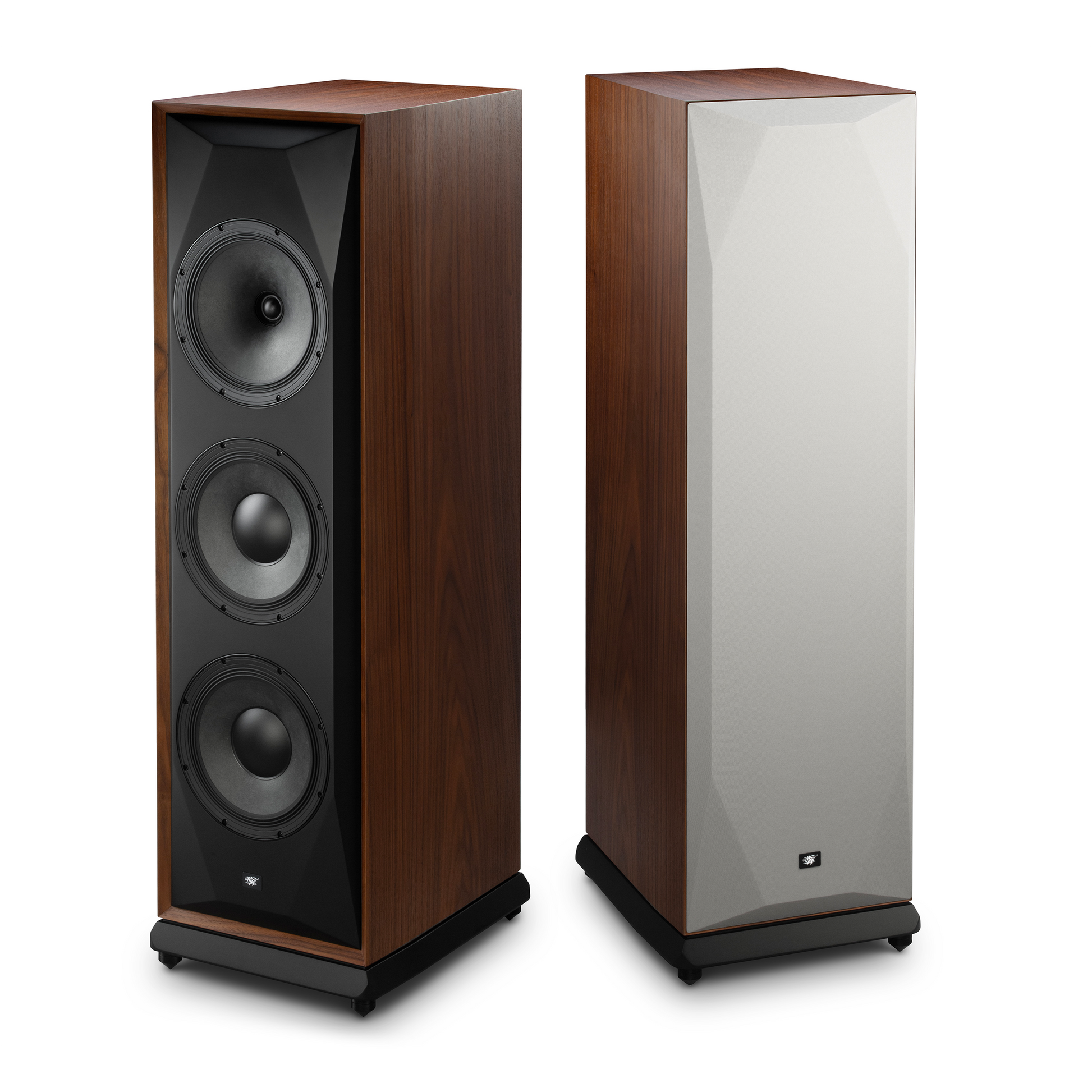

The SourcePoint V10 Master Edition is a ground-up evolution of the SourcePoint 10 platform, with each cabinet housing five 10-inch elements: a concentric midrange with tunable 1.25-inch soft dome tweeter, twin woofers, and dual rear-firing passive radiators that extend bass to 27Hz without port turbulence. The Master Edition crossover employs polypropylene film capacitors, metalized-film resistors, and air-core inductors, all within a stiffened, multi-chambered cabinet with a sculpted multi-faceted baffle. Finished in book-matched Walnut or Black Ash real wood veneer and sold as a pair.
Specifications
Configuration
3-way passive radiator with concentric driver
Drivers
Concentric 10-inch midrange with 1.25-inch tunable tweeter, 2 x 10-inch woofers, 2 x 10-inch passive radiators
Frequency range
27Hz - 30kHz
Sensitivity
91dB/2.83V/1m
Nominal impedance
6 ohms (4.5 ohms minimum)
Max power handling
200W
Weight
160 lb each
