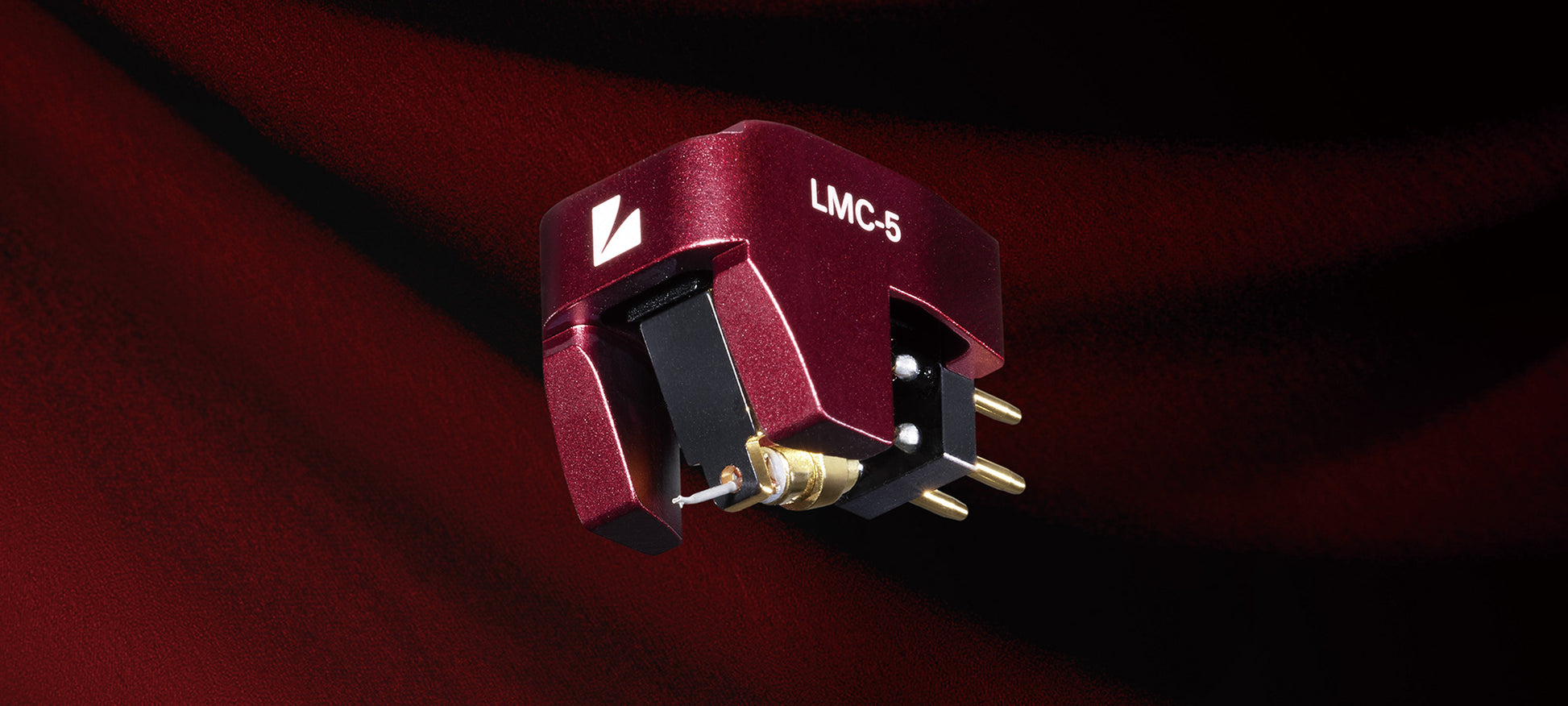

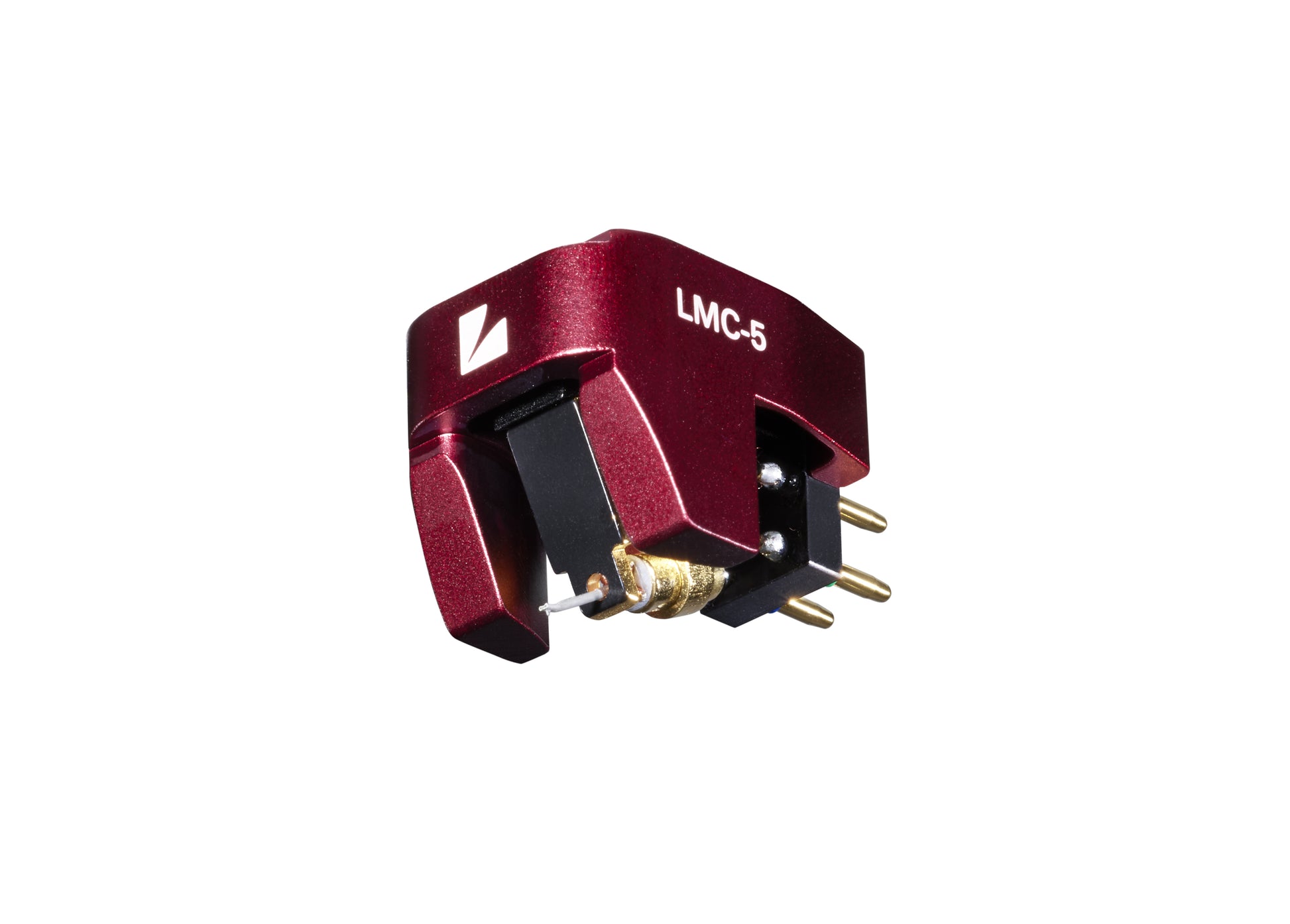

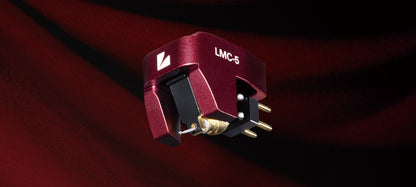

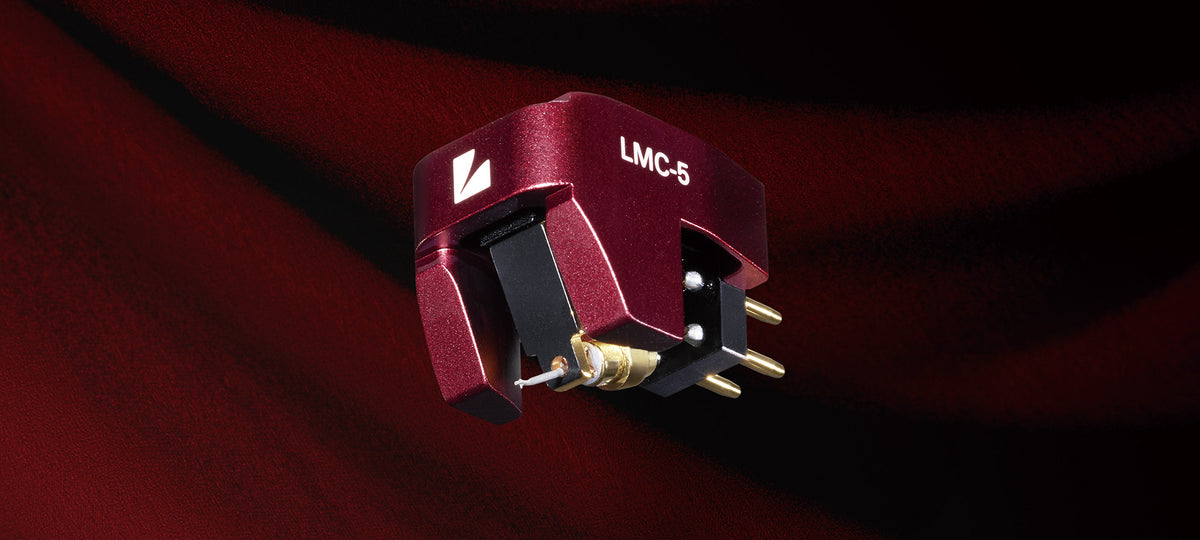

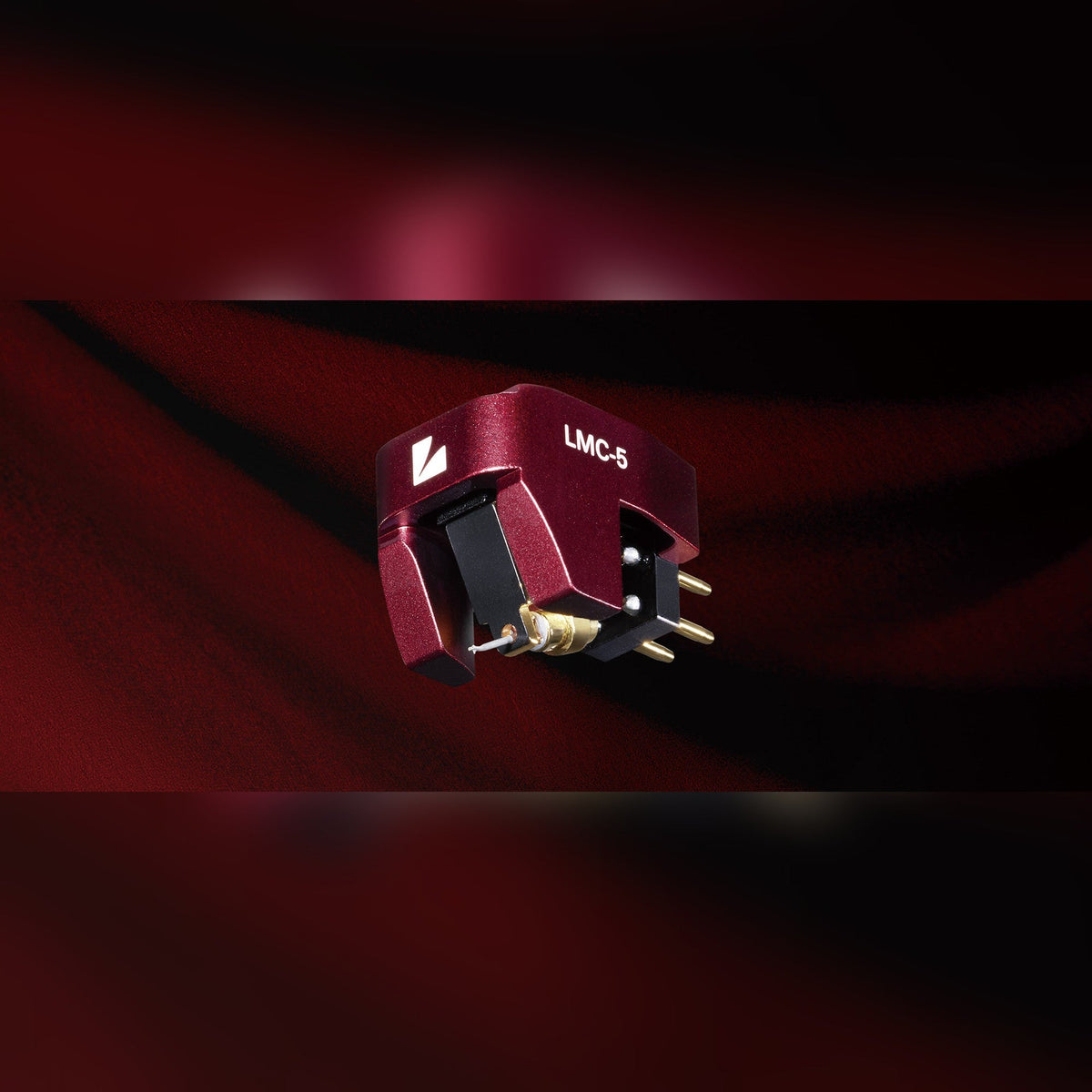

The LMC-5 is Luxman's moving coil phono cartridge, designed to retrieve the full measure of musical information pressed into the groove. Its MC generator uses a cross-mounted pure iron core within a compact samarium-cobalt magnetic system, and the vibration system pairs an aluminum cantilever with a Shibata line-contact stylus for excellent tracing ability. The aluminum housing was refined through repeated prototyping and listening.
Specifications
Type
Moving coil (MC)
Output voltage
0.4mV (1kHz, 3.54cm/sec)
Internal impedance
4.7 ohms (1kHz)
Stylus
Solid diamond, Shibata profile
Cantilever
0.5mm aluminum
Tracking force
2.1-2.3 g (2.2 g standard)
Weight
8.5 g
