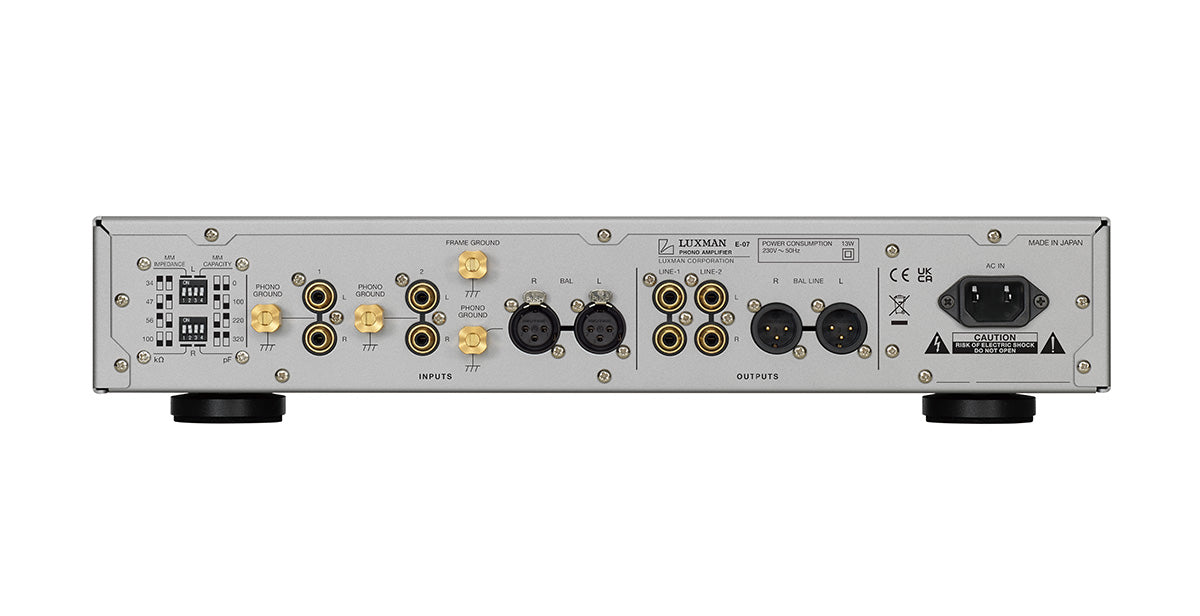

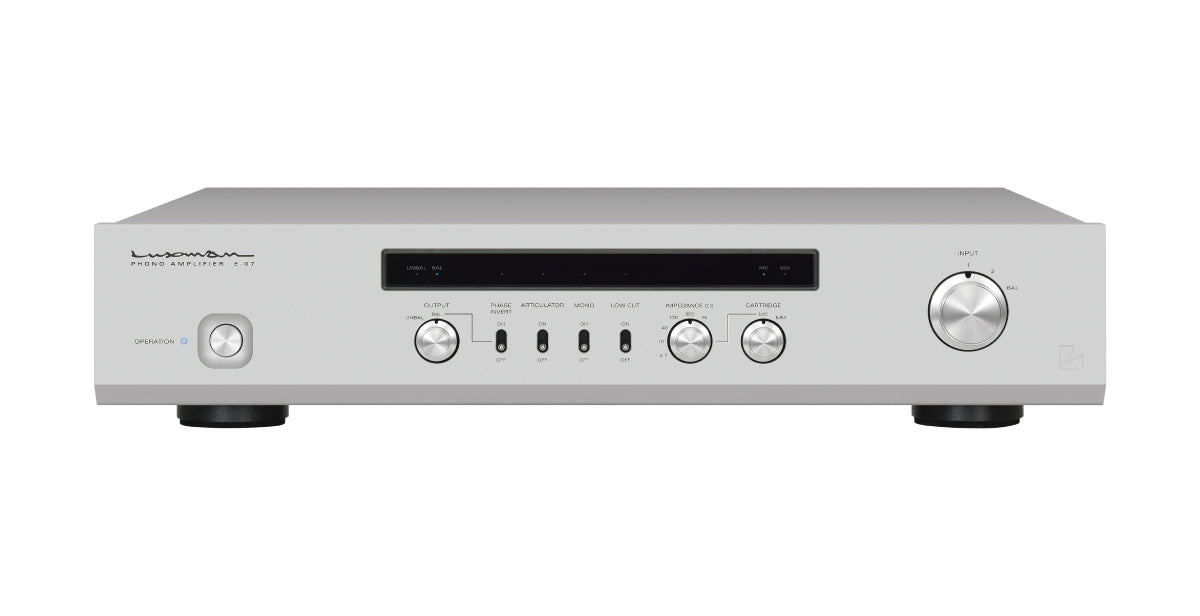

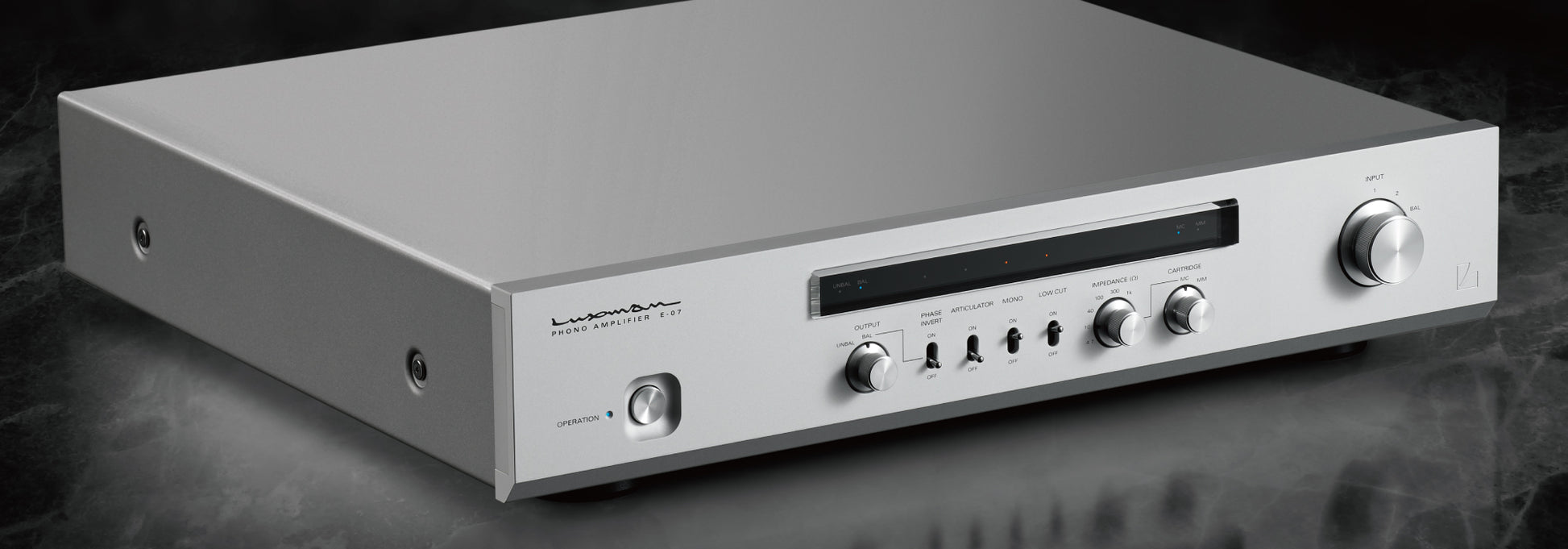

The E-07 is an all-solid-state phono equalizer amplifier developed as Luxman marked its 100th anniversary, setting a new benchmark for the company's analog front ends. Newly developed super permalloy core MC step-up transformers are fitted in four independent units, and a balanced XLR input receives the differential signal from MC cartridges directly. The RIAA equalizer itself is a non-feedback design with a four-parallel FET first stage, in a slim chassis with a blasted white finish.
Specifications
Circuit
Non-feedback RIAA equalizer, four-parallel FET first stage
MC step-up transformers
Super permalloy core x 4 (L/R and L/H independent)
Gain
MM 38dB, MC-High 57dB, MC-Low 66dB
Inputs
1 balanced (XLR), 2 unbalanced (RCA)
RIAA response
MM 20Hz-20kHz (plus/minus 0.1dB)
Dimensions
440 x 92 x 407 mm (W x H x D)
Weight
13.2 kg
