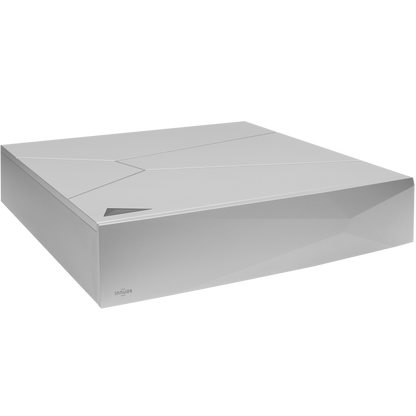

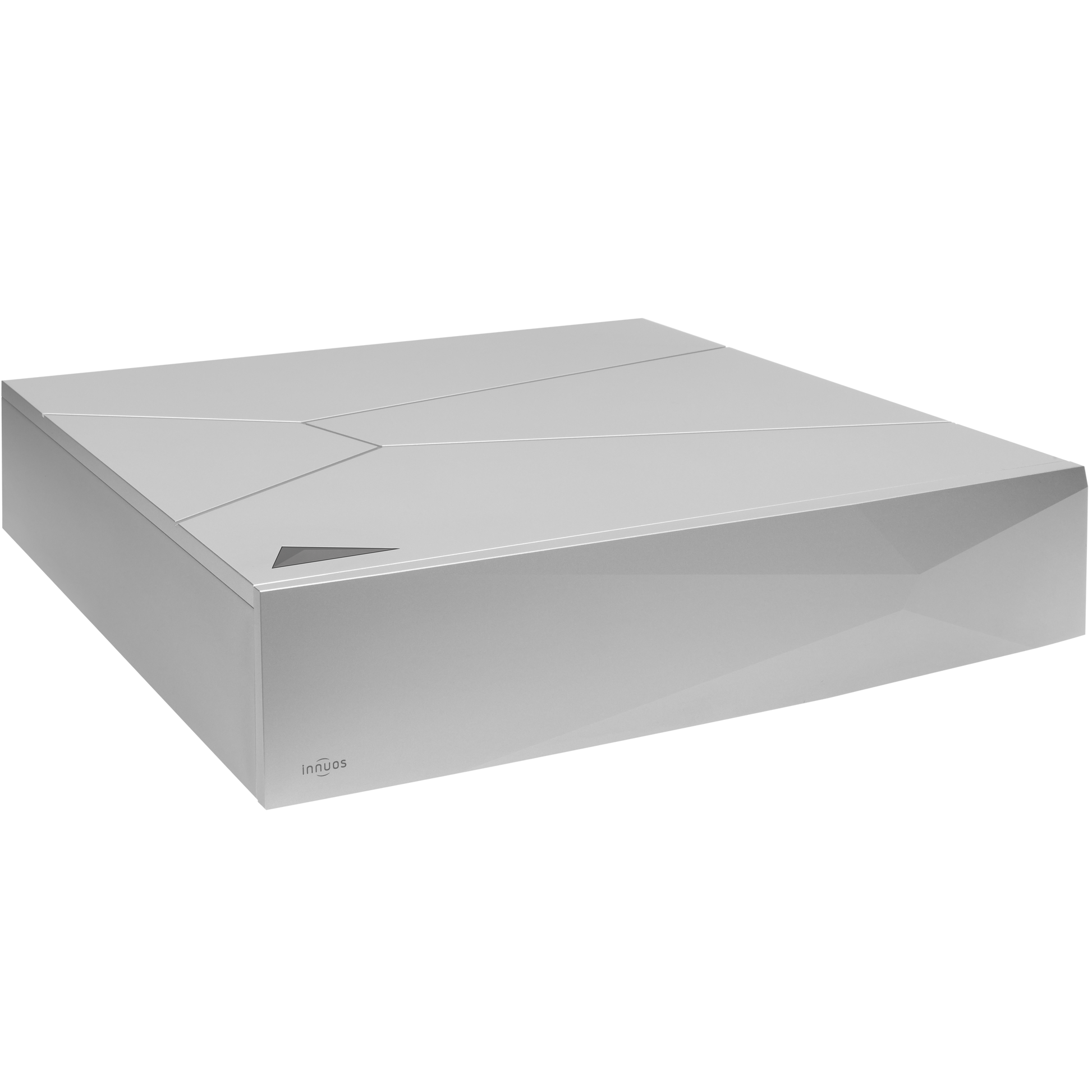

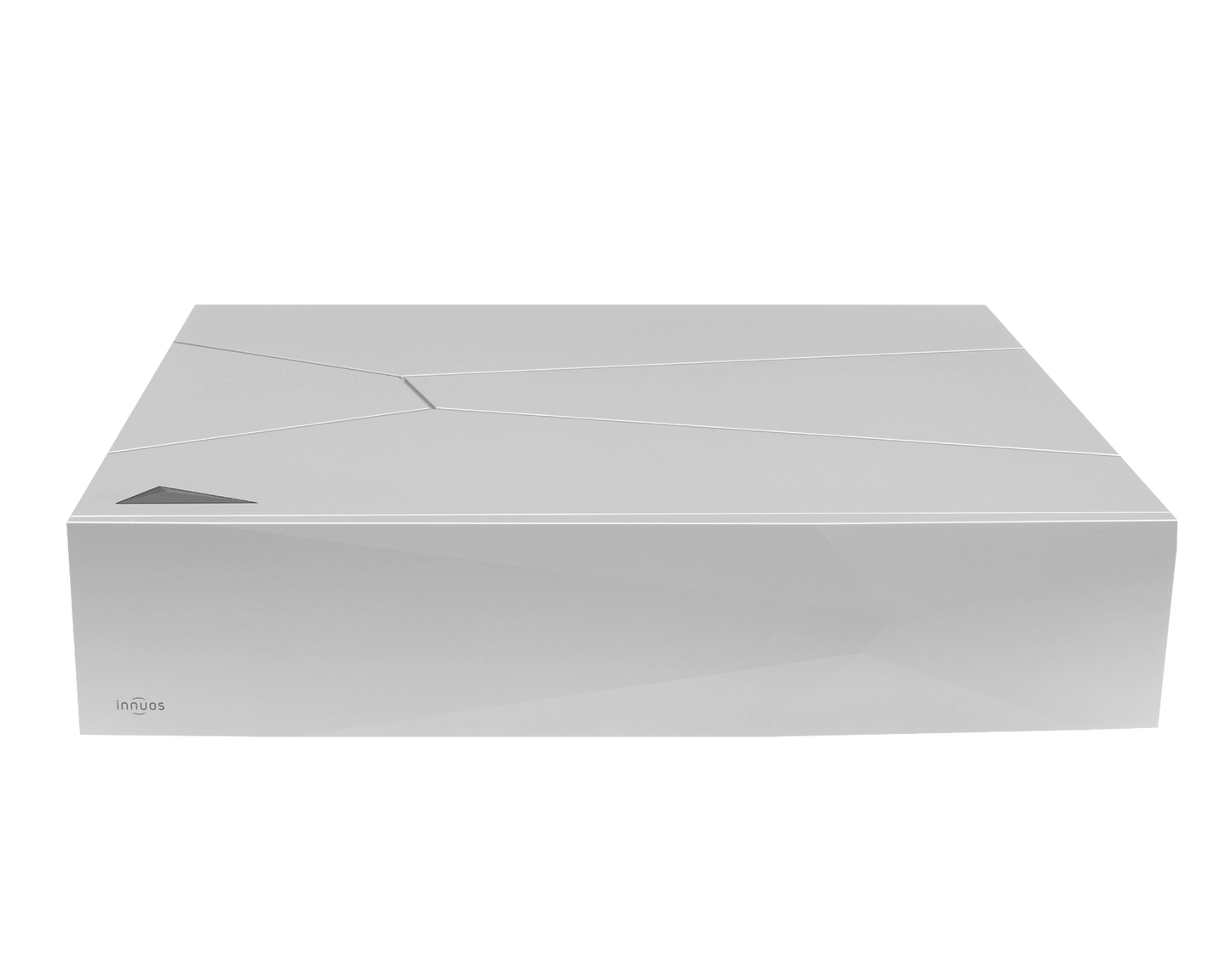

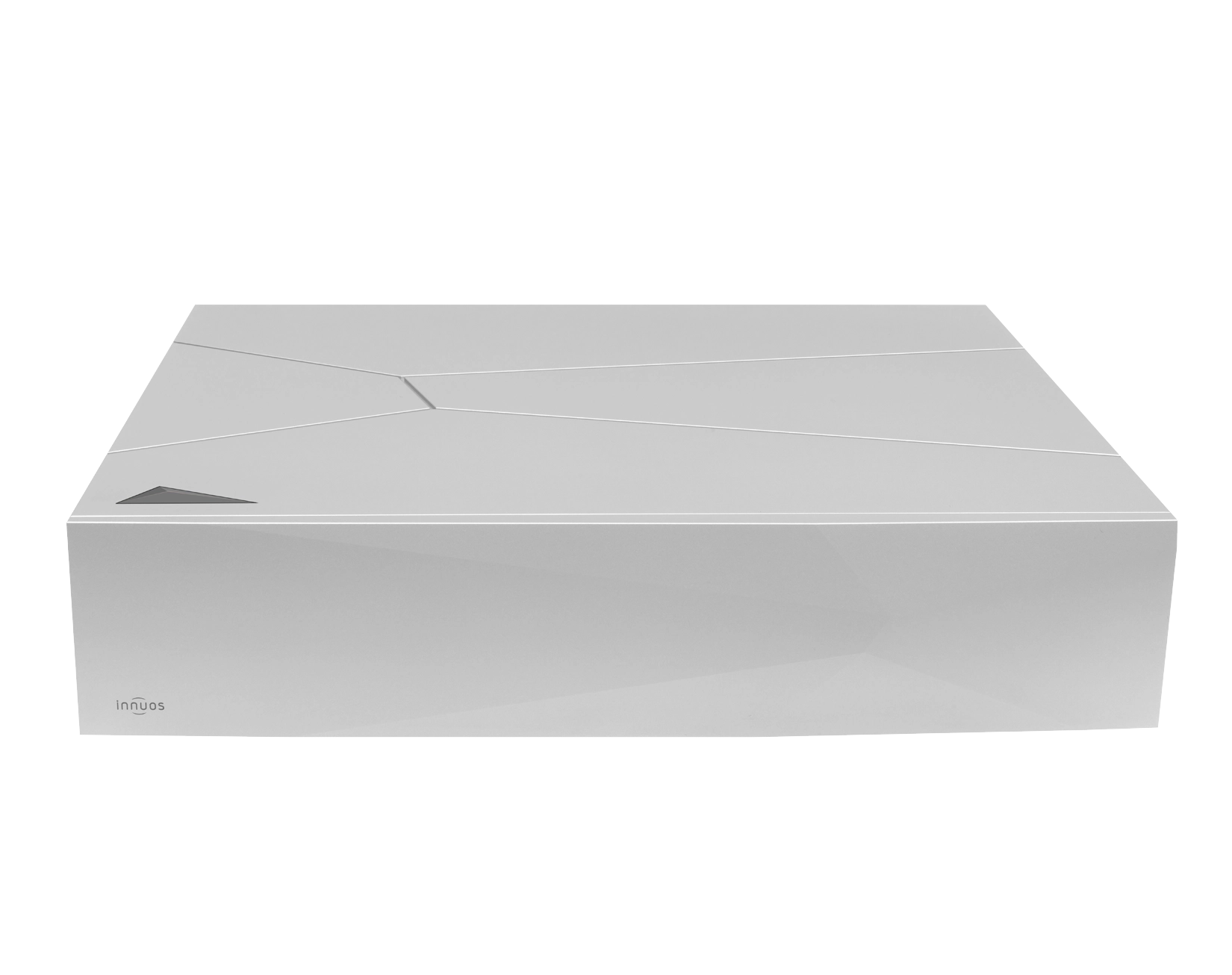

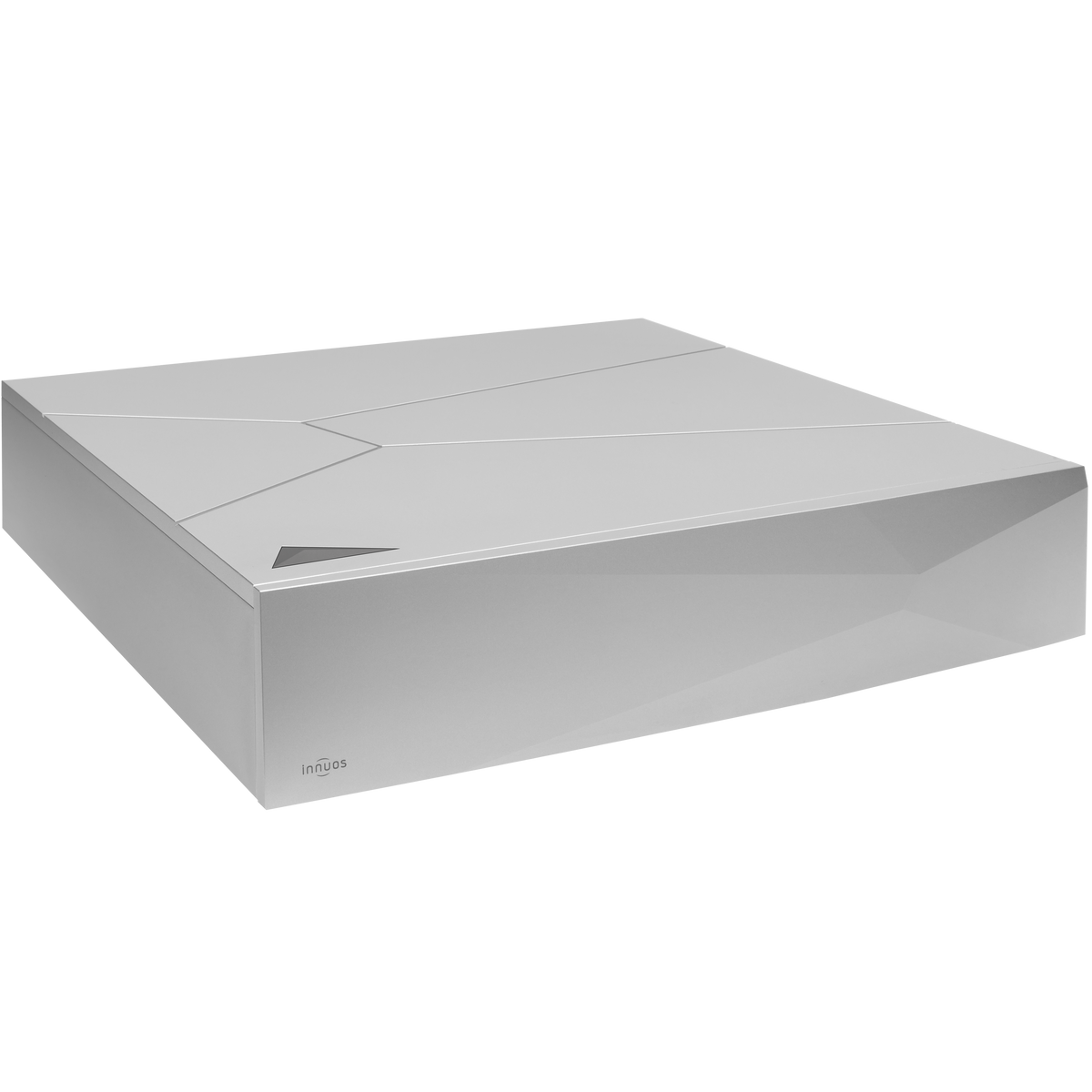

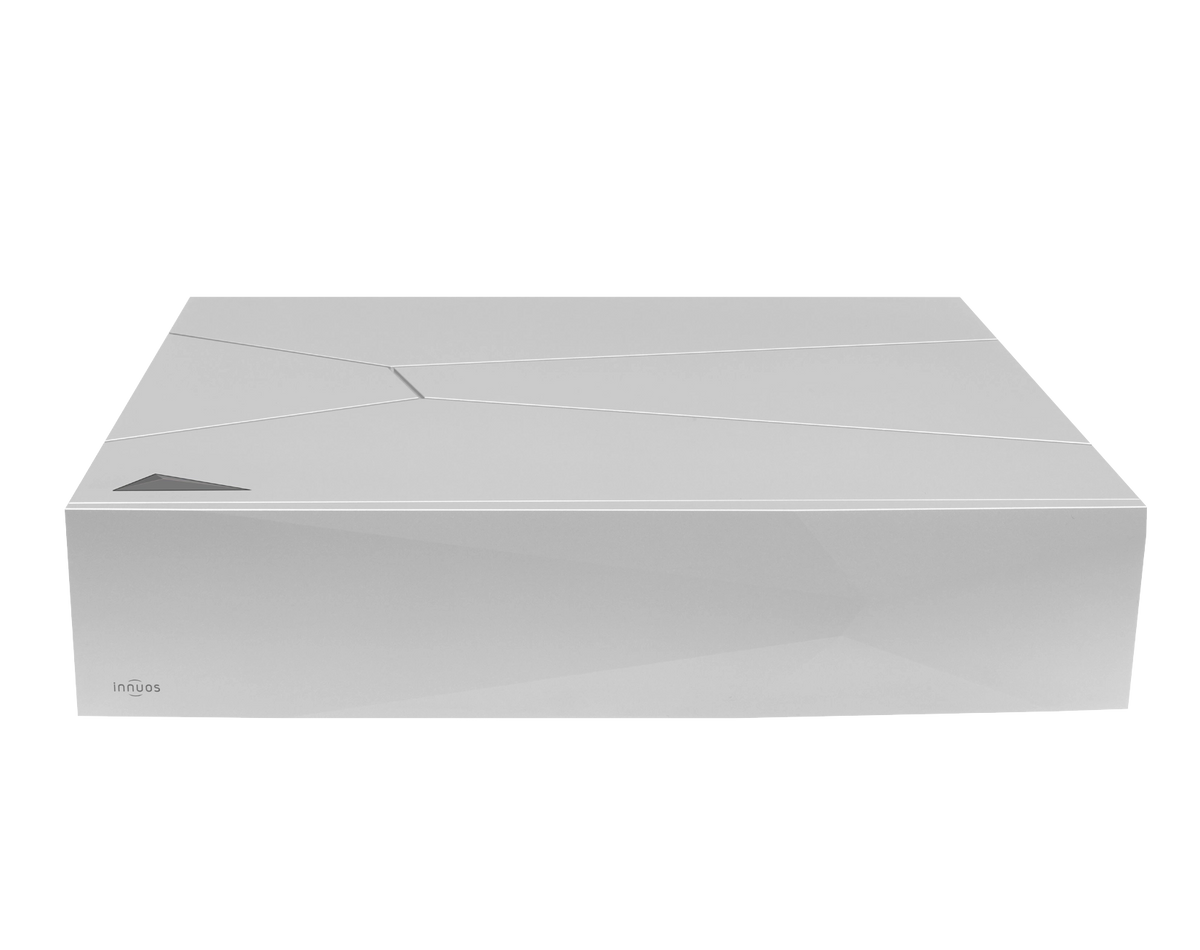

The ZEN Next-Gen is an Innuos music server and streamer built on a custom PreciseAudio server-grade mainboard, tuned for low processor latency, power noise and EMI. Its RECAP2 NGaN power supply adds a gallium nitride regulation stage to the RECAP2 linear power modules, while an Intel Core i3 with Innuos AudioCore dedicates separate physical cores to audio processes. Storage is expandable to 16TB across internal NVMe and M.2 drives, a modular bay accepts PhoenixUSB, PhoenixI2S or SPDIF output boards, and the unit can later be upgraded to full ZENith Next-Gen specification.
Specifications
Sample rates
PCM up to 32bit/768kHz, DSD up to DSD256 via DoP and DSD512 native
Power supply
RECAP2 NGaN with gallium nitride regulation stage
Processing
Intel Core i3 with Innuos AudioCore, 16GB industrial-grade DDR4 RAM
Storage
Up to 16TB SSD (8TB internal NVMe PCIe + 8TB external-access M.2)
Output options
PhoenixUSB, PhoenixI2S or SPDIF module
Chassis
10mm CNC-machined bead-blasted anodised aluminium
Dimensions
420mm x 365mm x 105mm (W x D x H), 12.7kg
