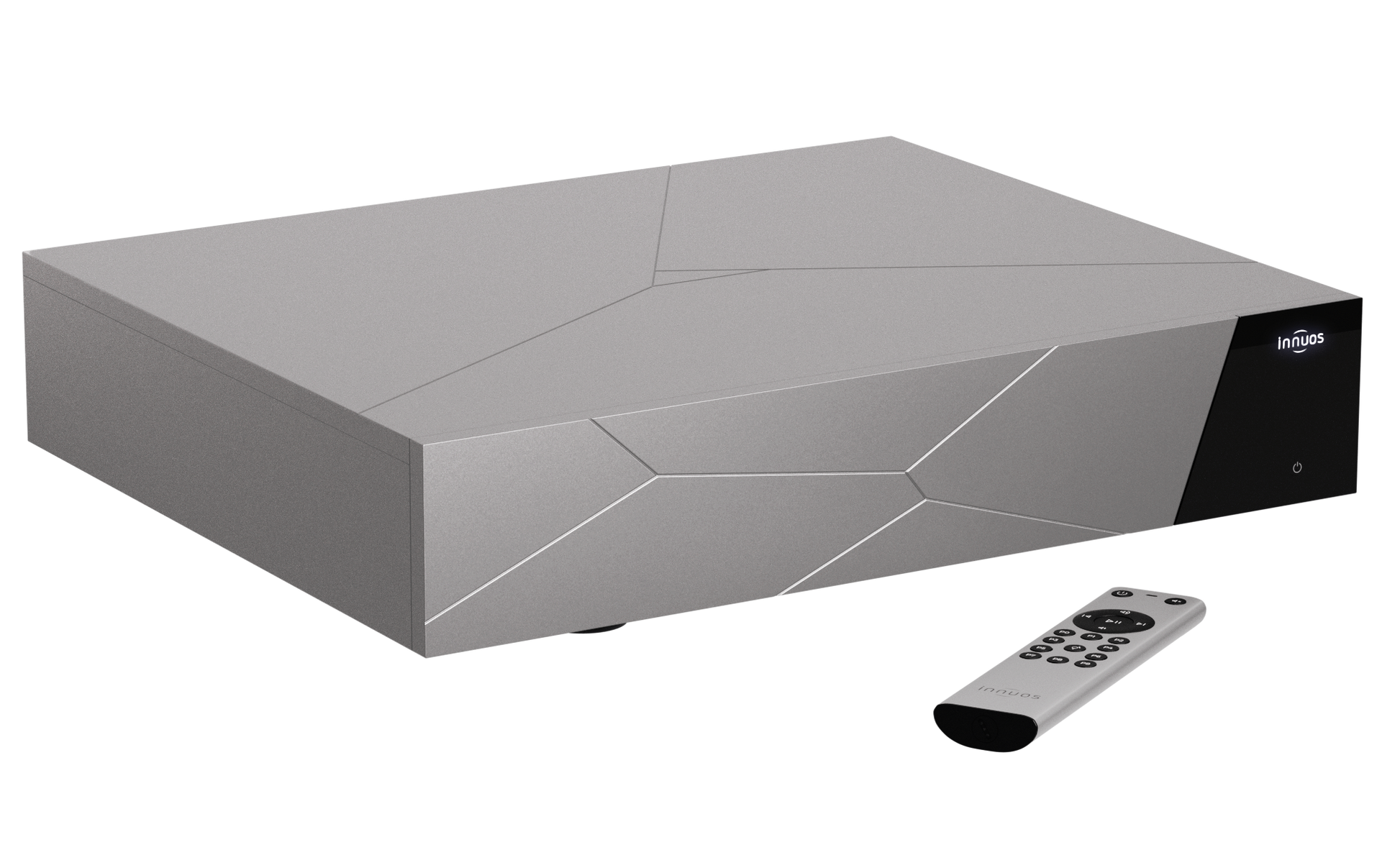

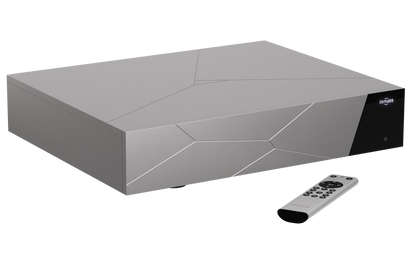

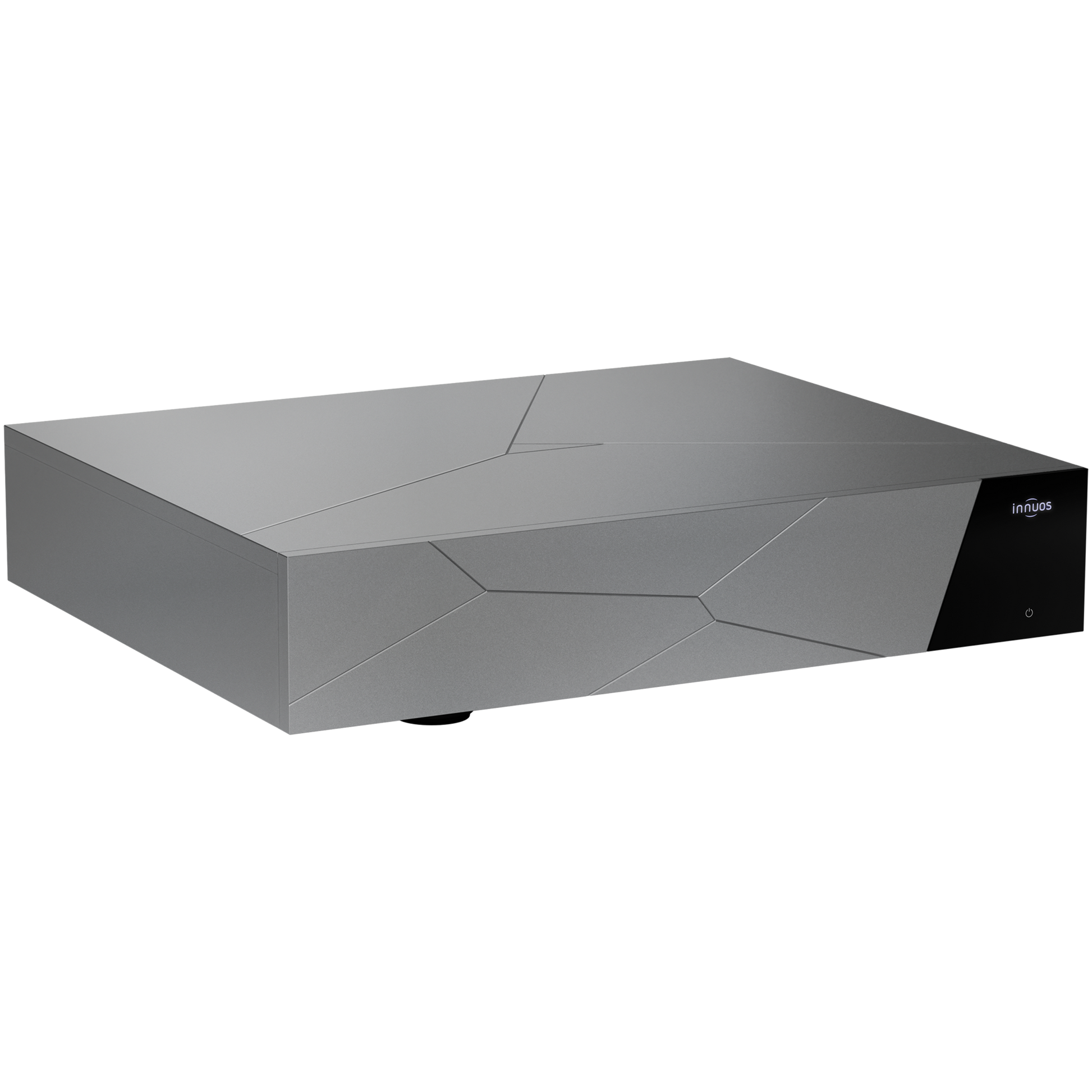

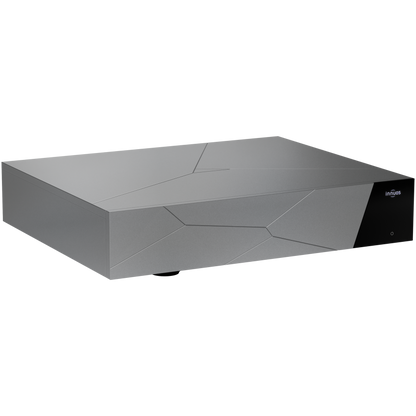

The STREAM3 is the top-performance streamer and server of the Innuos STREAM series, housed in a 10mm-thick CNC-machined, bead-blasted and anodised aluminium chassis with a 4mm grounding port. Its integrated ARC6-CX linear power supply, developed with Dr Sean Jacobs, combines 132,000uF of Mundorf capacitance, active rectification and CX regulation fed from a 300VA toroidal transformer. A modular output bay accepts boards up to the PhoenixDAC, a dual-mono internal DAC stage with OCXO and femto clocking, and the STREAM Series remote control is included as standard.
Specifications
Sample rates
PCM up to 32bit/768kHz, DSD up to DSD256 via DoP and DSD512 native
Power supply
ARC6-CX LPSU with 132,000uF Mundorf capacitance and 300VA toroidal transformer
Processing
13th Gen Intel quad-core, 8GB industrial-grade DDR5 RAM
Network
2 x 2.5Gb Ethernet, bridged (wired only)
Storage
Optional 2TB, 4TB or 8TB M.2 NVMe SSD
Output options
PerformanceDAC, PhoenixDAC, PhoenixUSB, PhoenixI2S or SPDIF module
Dimensions
420mm x 330mm x 85mm (W x D x H), 12.8kg
