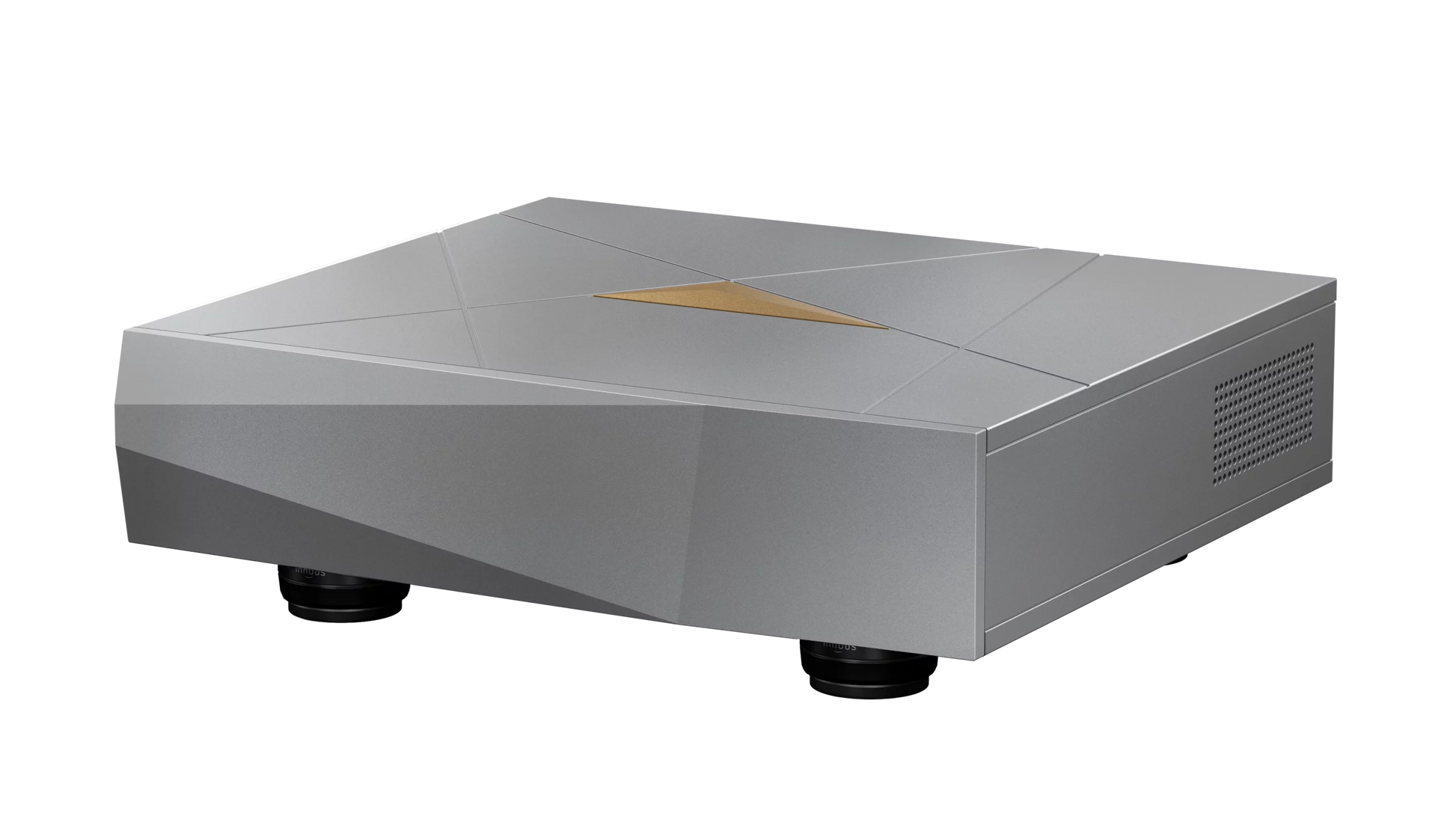

The NazaréNET is the flagship Innuos audiophile network switch, the successor to the acclaimed PhoenixNET, housed in the same vibration-controlled chassis as the NAZARÉ music server. Its purpose-built WaveNET board runs four independently regulated, electrically isolated power rails serving the OCXO clock, the analogue PHY transceivers and the Ethernet controller. Alongside four RJ45 ports it carries a reference-grade Finisar single-mode SFP fibre connection for ground isolation from the router, and its custom firmware shuts down the onboard microprocessor entirely after initialisation.
Specifications
Ports
4 x Gigabit Ethernet (RJ45)
Fibre
1 x SFP, single-mode 1310nm up to 10km, Finisar module
Clock
High-precision OCXO with dedicated isolated power rail
Power architecture
Four independent regulated rails, GaN-ARC8 rectification with 376,000uF capacitance
Chassis
10mm CNC-machined aluminium with TONEO SmartStack damping and IsoAcoustics feet
Control
Sense app port management (via firmware update)
Dimensions
480mm x 430mm x 150mm (W x D x H), 28kg
