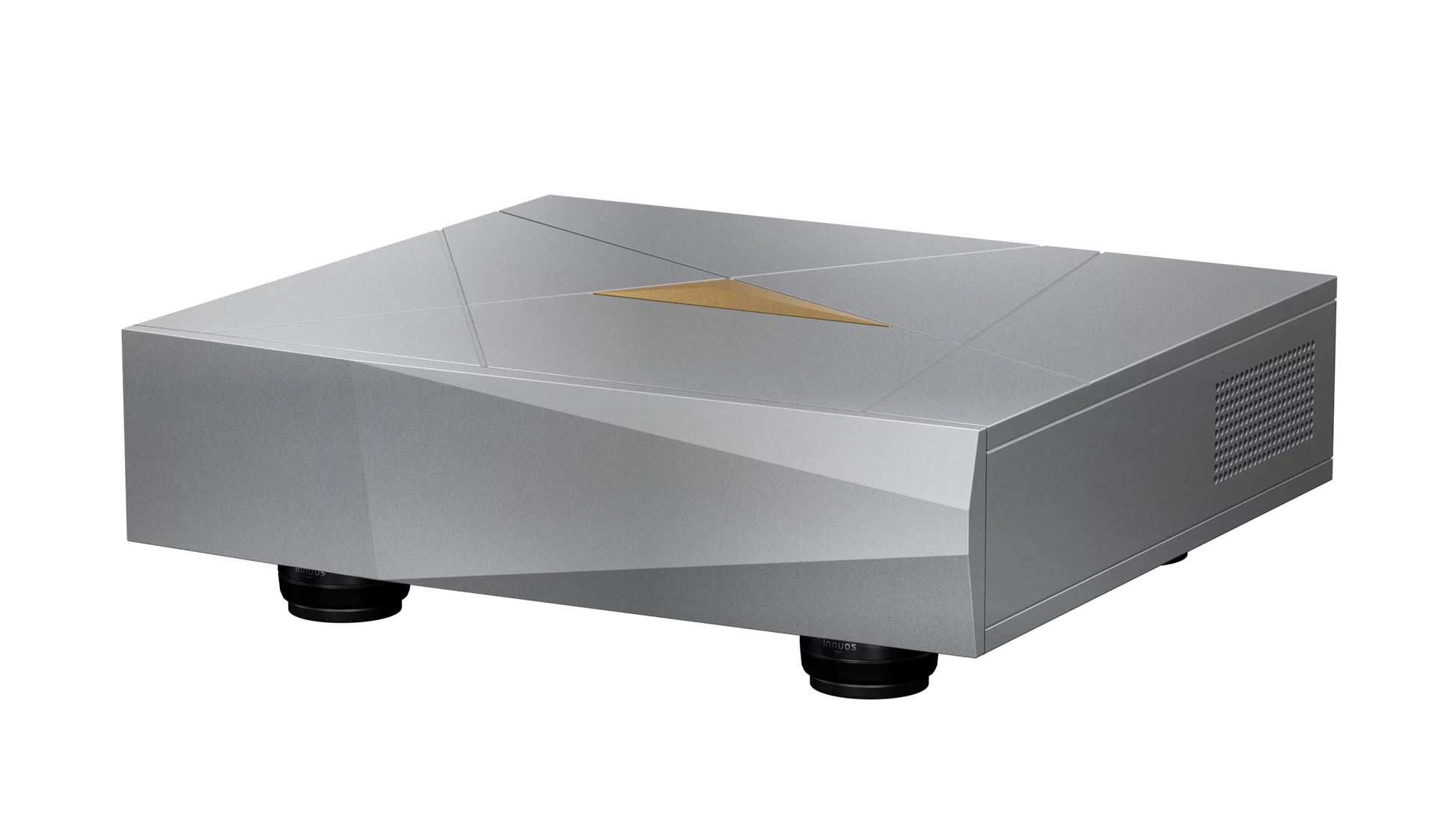

The NazaréFLOW is the flagship Innuos digital audio reclocker, designed to separate the DAC connection from the electrical complexity of the streamer by regenerating the signal in both timing and power. A master reclocker circuit built on an ultra-high-precision 3ppb OCXO clock acts as the single master clock for all digital data communication, powered by isolated low-noise rails from the NAZARÉ power supply architecture. Modular DAC outputs implement the native protocols of dedicated converters, including MSB ProISL and CH Precision CH-Link, and the unit works with any source offering USB audio output.
Specifications
Master reclocker
High-precision 3ppb OCXO oscillator with dedicated isolated power rail
Input
1 x USB Type-B audio
Output
1 x USB Type-A reclocked
DAC modules
FLOW ProISL (MSB), FLOW CH-Link (CH Precision)
Power
230V/115V AC, C13 inlet
Dimensions
480mm x 430mm x 150mm (W x D x H), 28kg
