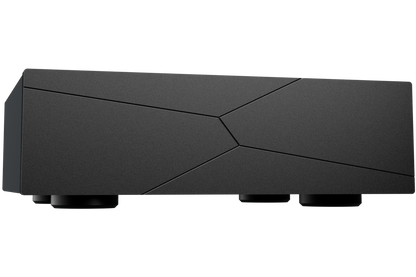

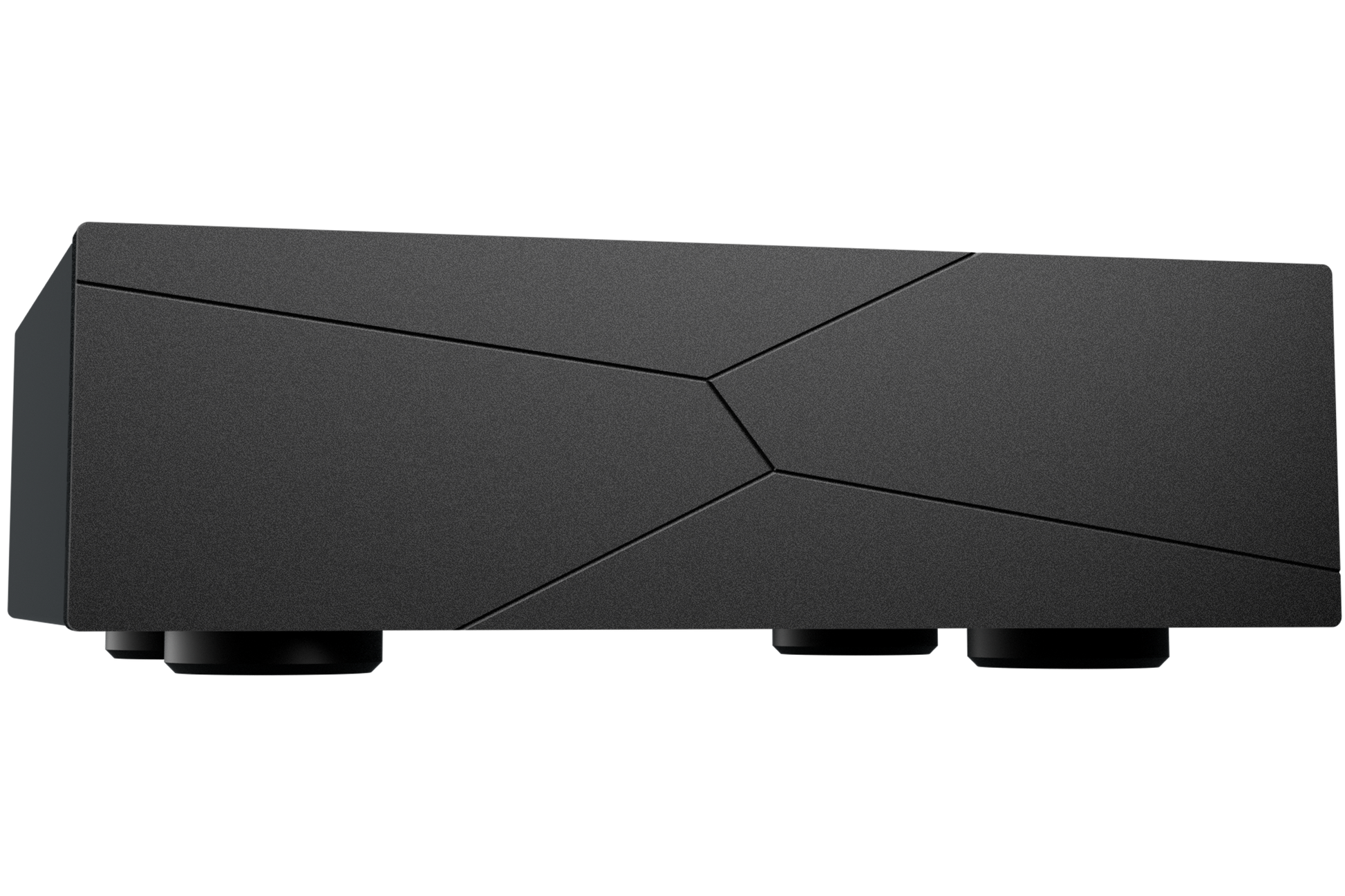

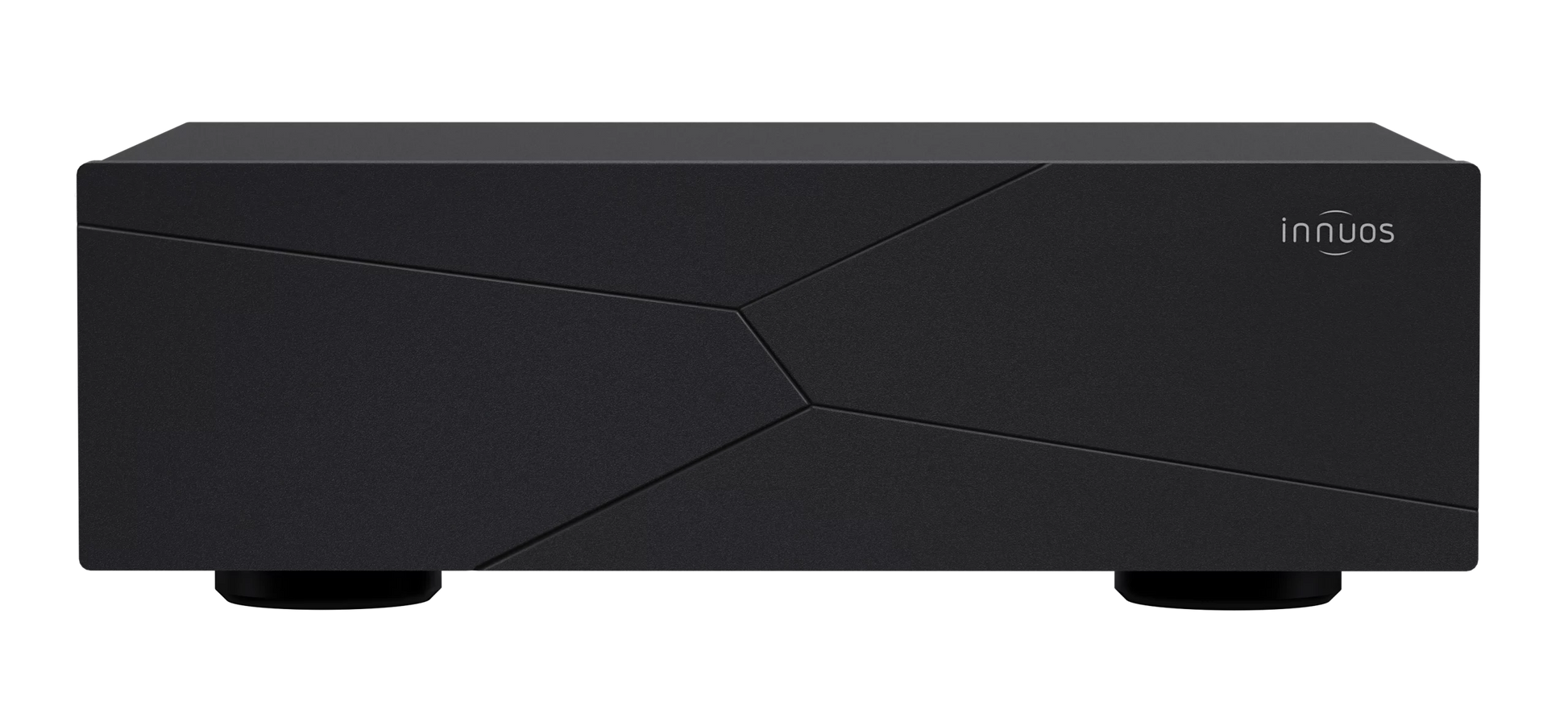

The LPS1 is a linear power supply designed as the matching upgrade for the Innuos STREAM1, replacing its external switch-mode supply. It is built around a 150VA toroidal transformer with medical-grade AC filtering and premium Mundorf and Nichicon capacitors, and adds a second switchable output so a DAC, network switch or router can be powered alongside the streamer. The chassis mirrors the STREAM1's half-width design with a 10mm CNC-machined aluminium front panel, and it remains backwards compatible with the ZENmini Mk3 and PULSEmini.
Specifications
Transformer
150VA toroidal with medical-grade AC filtering
Capacitors
Mundorf and Nichicon
Outputs
1 x 19V (supported Innuos products), 1 x switchable 5V/12V (1.5A max)
Grounding
4mm chassis grounding port
Compatibility
STREAM1, ZENmini Mk3, PULSEmini
Dimensions
240mm x 200mm x 80mm (W x D x H), 3.9kg
