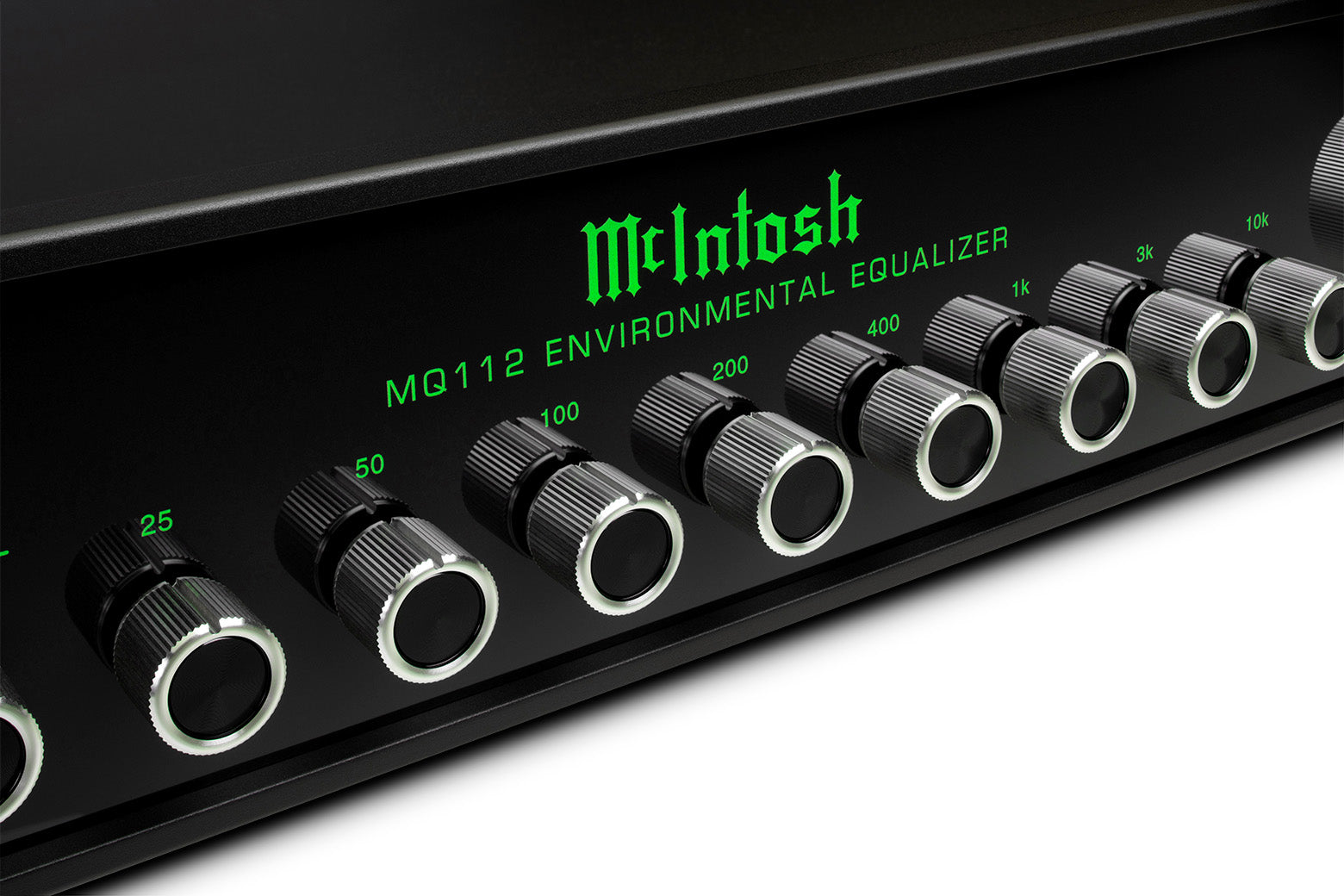

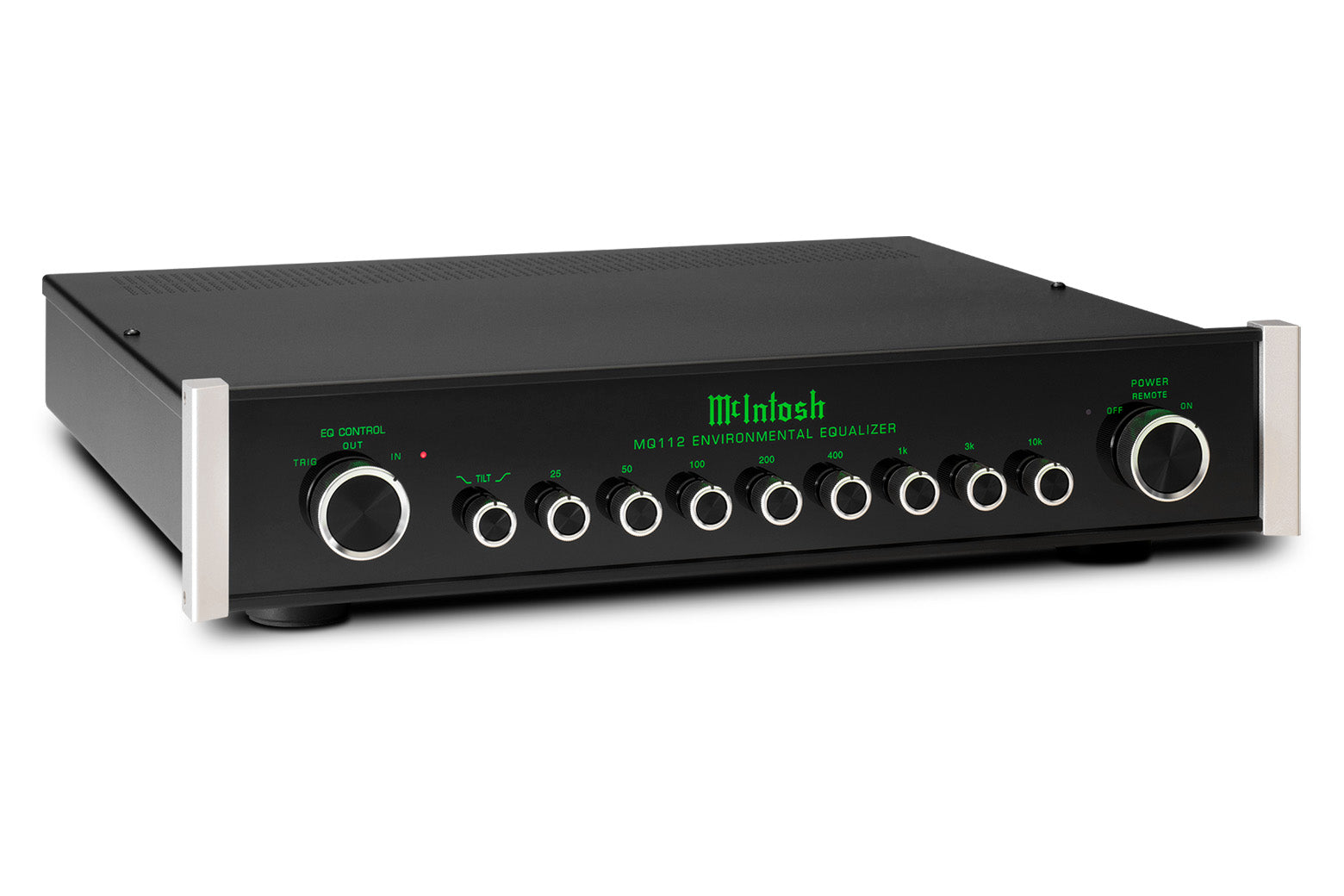

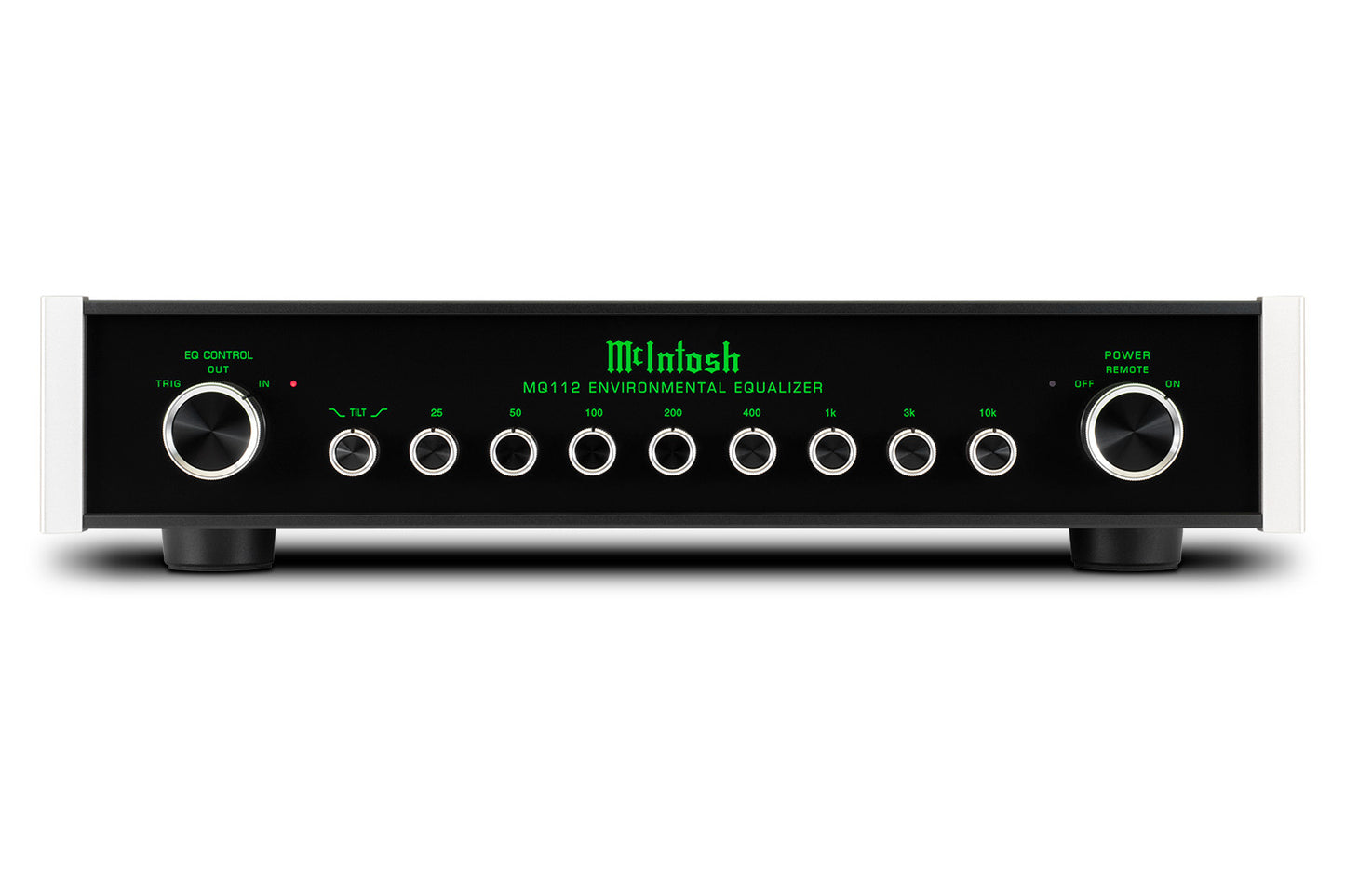

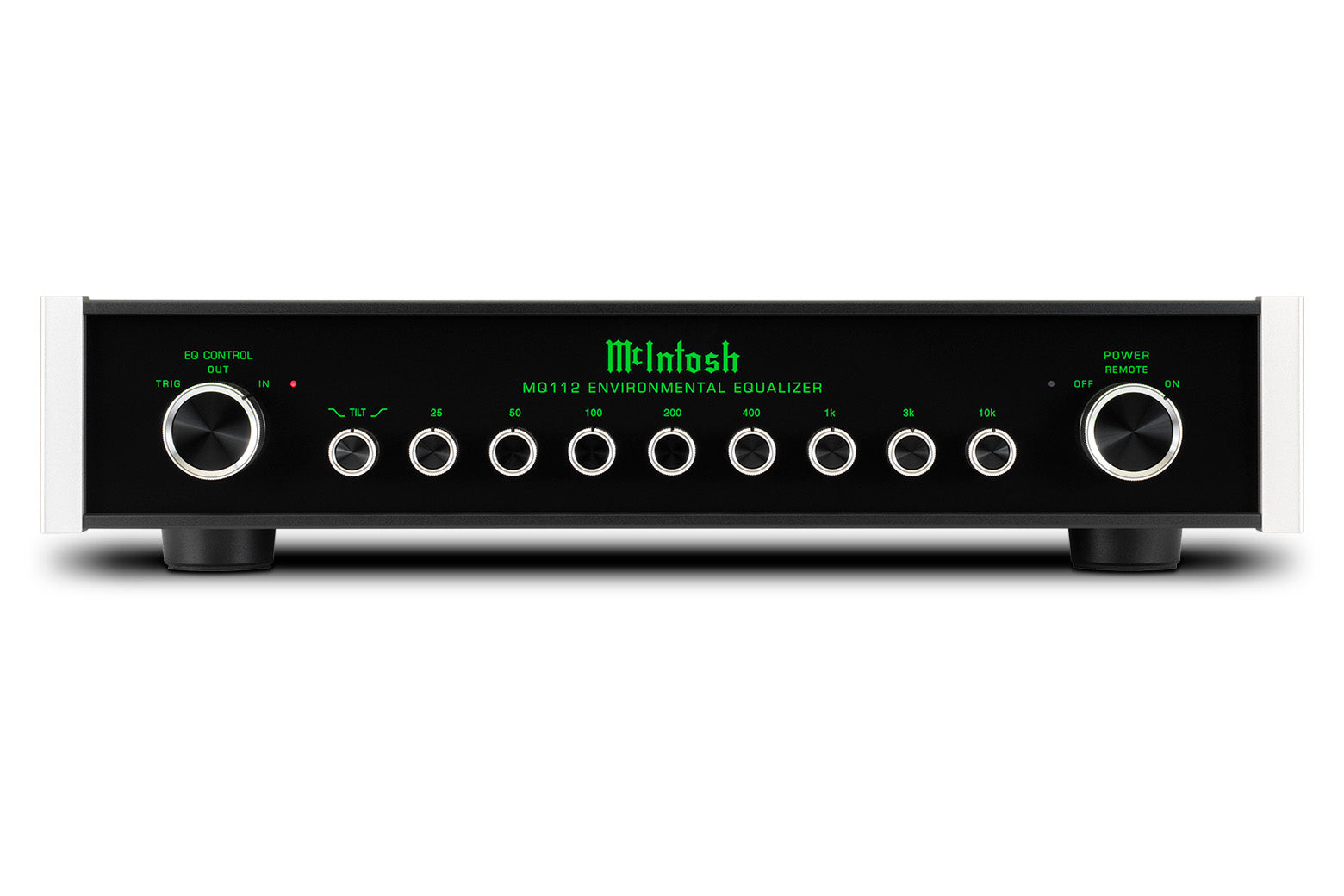

The MQ112 is an eight-band analog stereo equalizer that adjusts the music itself so room acoustics matter less, with ±12dB of adjustment at eight key bands from 25Hz to 10kHz. A TILT control shifts overall tonal balance by ±6dB for further refinement. With a 115dB signal-to-noise ratio and 0.005% distortion, it shapes the signal without leaving a sonic footprint of its own.
Specifications
Bands
±12dB at 25Hz, 50Hz, 100Hz, 200Hz, 400Hz, 1kHz, 3kHz and 10kHz
Tilt control
±6dB at 20Hz and 20kHz
Signal-to-noise ratio
115dB below rated output
Total harmonic distortion
0.005% from 20Hz to 20kHz
Connections
Balanced and unbalanced inputs and outputs
Weight
15 lbs (6.8 kg)
