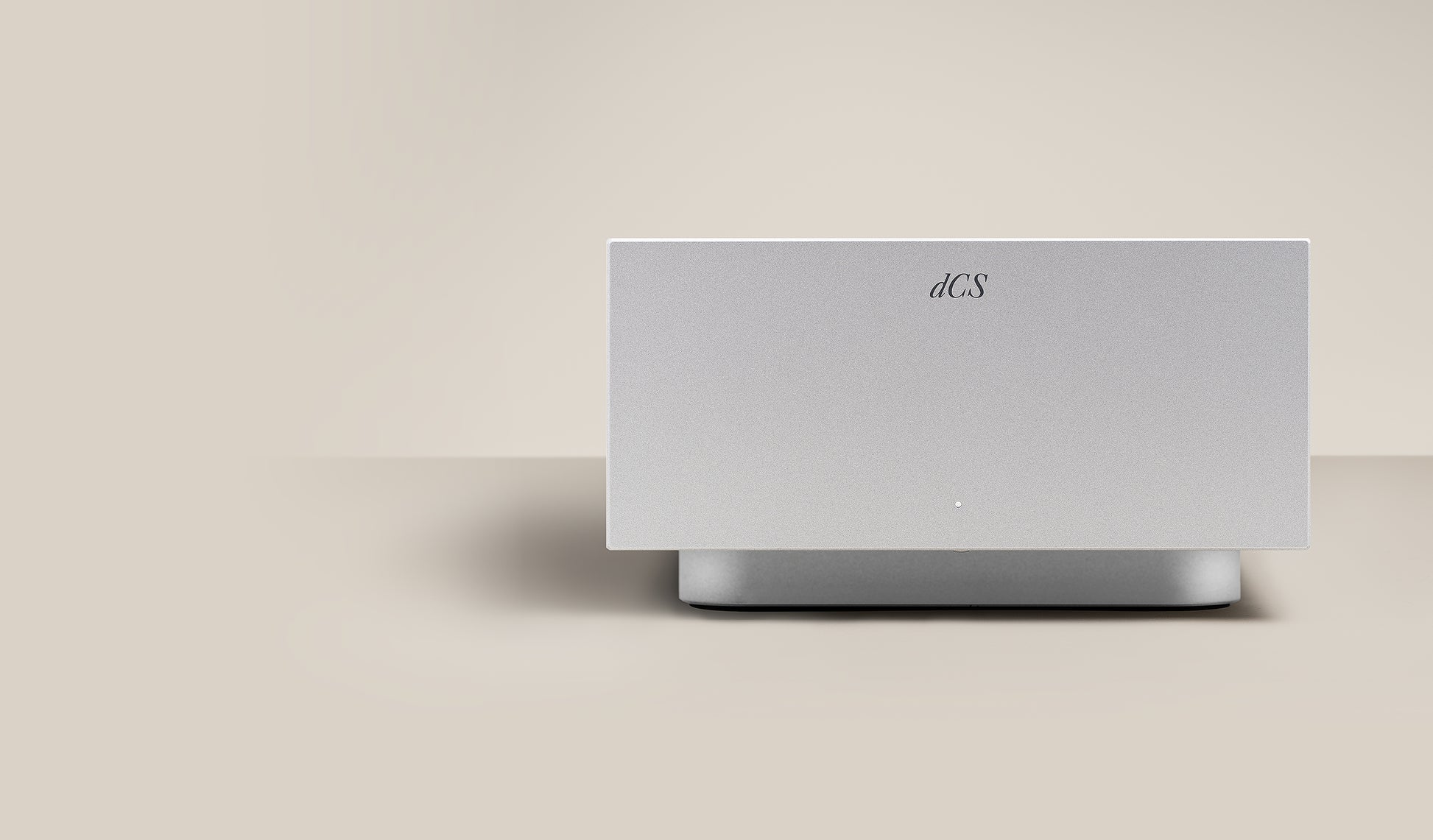

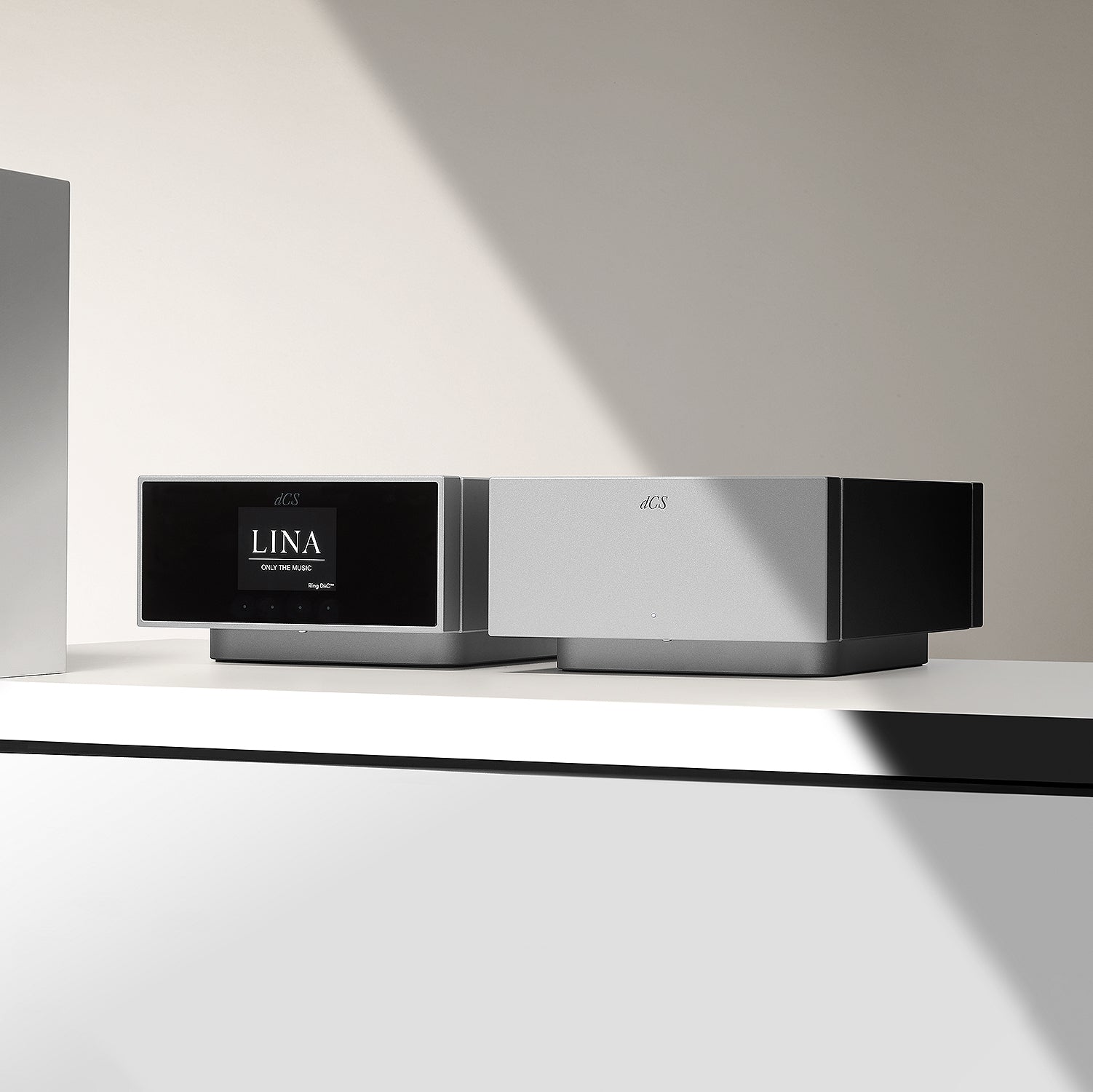

The Lina Master Clock is a standalone Grade 1 master clock that pairs with the Lina DAC, Lina DAC X and Bartók components to further enhance audio performance. Dual crystal oscillators housed in a dedicated chassis with independent circuit boards and power supplies generate a precise clocking signal for all audio formats and frequencies.
Specifications
Clock type
Dual crystal oscillators, one oven-controlled and one voltage-controlled
Clock accuracy
Better than +/-1ppm when shipped, +5 to +45 degrees C ambient
Wordclock outputs
2x independently buffered TTL-compatible on 75-ohm BNC, fixed 44.1kHz and 48kHz
Compatibility
Lina DAC, Lina DAC X and Bartók
Finishes
Silver or black painted aluminium
Dimensions
121.5mm x 220mm x 339mm, 7kg
Call or visit the showroom about availability. Contact our team for pricing, a demonstration, or system design — get in touch.
